O78SC280VHF Portable Radio

Page 1/11 INSTRUCTION MANUAL SC- 580, SC- 581 UHF TRUNKING / CONVENTIONAL TRANSCEIVER SC- 280, SC- 281 VHF TRUNKING / CONVENTIONAL TRANSCEIVER Page 2/11 - FCC NOTICE - SAFETY INFORMATION This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control its RF exposure conditions. When the Push-to-Talk (PTT) button is pushed, the transceiver sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission adopted RF exposure guidelines with safety levels for hand-held wireless devices. The device is authorized to operate at a duty factor not to exceed 50%. WARNING To maintain compliance with the FCC’s RF exposure guidelines, this transmitter and its Antenna must maintain a separation distance of at least 1 inch (2.5 centimeters) from your face and body.. Speak in a normal voice, with the antenna pointed up and away from the face at the required separation distance. NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a reasonable installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced electronics technician for help. Page 3/11 CONTENTS GENERAL INFORMATION................................................................................ 4 SUPPLIED ACCESSORIES............................................................................................. 4 ACCESSORY ATTACHMENTS ......................................................................... 4 INSTALLING THE ANTENNA....................................................................................... 4 INSTALLING / REMOVING THE BATTERY PACK...................................................... 5 INSTALLING THE BELT CLIP...................................................................................... 5 INSTALLING THE JACK COVER................................................................................. 5 BATTERY SAFETY............................................................................................ 5 USING THE BATTERY PACK.......................................................................................... 6 INSTALLING / REMOVING THE BATTERY PACK.......................................................... 6 BATTERY LIFE INDICATOR............................................................................................ 6 CONTROL AND CONNECTIONS...................................................................... 7 POWER SWITCH / VOLUME CONTROL......................................................................... 7 SYSTEM/GROUP CONTROL........................................................................................... 7 TX/BUSY LED INDICATOR.............................................................................................. 7 LCD (Liquid Crystal Display).......................................................................................... 7 H (HOME) KEY................................................................................................................. 8 S (SCAN) KEY.................................................................................................................. 8 F1 KEY............................................................................................................................. 8 F2 KEY............................................................................................................................. 8 10 KEY (SC- 580, SC-280 full key model only).............................................................. 8 PTT SWITCH.................................................................................................................... 8 SHIFT (shift/key lock) KEY............................................................................................. 8 PROGRAMMABLE KEY FUNCTIONS............................................................................. 9 ACCESSORY JACK......................................................................................................... 9 BATTERY PACK............................................................................................................... 9 BATTERY LOCK.............................................................................................................. 9 ADJUST THE LCD CONTRAST...................................................................................... 9 BASIC OPERATION ........................................................................................ 10 LTR OPERATION........................................................................................................... 10 CONVENTIONAL OPERATION...................................................................................... 10 EMERGENCY................................................................................................................. 11 MAN DOWN.................................................................................................................... 11 Page 4/11 GENERAL INFORMATION The SC-580 series and SC-280 series transceiver is a combination conventional and trunking radio. As the trunking radio, the rad…

Text truncated - open the document above for the full version.

September 5, 2006 Federal Communications Commission Re: FCC ID O78SC280 Applicant: Smart Communications LTD 731 Confirmation Number: EA735184 To Whom It May Concern: This equipment meets the requirements of FCC Rules under CFR Title 47, Part 90.203(e) and (g) as applicable. Programming of this product’s transmitter frequencies can ONLY be performed by the manufacturer or by service/maintenance personnel. The operator cannot program the transmitter frequencies using the equipment’s external controls. Sincerely, Walter “Bud” Simciak Chief Engineer, ADRad Communications, Inc. 5481 SAND LAKE DRIVE, MELBOURNE,FLORIDA • 32934 PHONE/FAX: 321-255-0329

September 5, 2006 Federal Communications Commission Re: FCC ID O78SC280 Applicant: Smart Communications LTD 731 Confirmation Number: EA735184 To Whom It May Concern: Our client, Smart Communications LTD has requested that the following information is to be held confidential and on their behalf: Block Diagram Schematic Diagram Operational Description Parts List Tune Up Procedures . These exhibits were marked confidential at time of upload. Smart Communications deems this information to be a trade secret and proprietary. If made public, this information would damage their position in the market place. Sincerely, Walter “Bud” Simciak Chief Engineer, ADRad Communications, Inc. 5481 SAND LAKE DRIVE, MELBOURNE,FLORIDA • 32934 PHONE/FAX: 321-255-0329

November 19, 2006 Federal Communications Commission Re: FCC ID O78SC280 Applicant: Smart Communications LTD Correspondence Number: 31830 731 Confirmation Number: EA735184 To Whom It May Concern: In reply to your questions in correspondence, by your question numbers: 1) The factory has provided additional pictures which have been uploaded under the name SAR pictures with two different battery pictures. The file that has been uploaded is actually a number of pictures, with photo #7 being the one with the radio and belt clip next to a ruler. 2) The SAR information has been re-written for the manual and submitted for your approval as the file “SAR Safety and Warning” Sincerely, Walter “Bud” Simciak Chief Engineer, ADRad Communications, Inc. 5481 SAND LAKE DRIVE, MELBOURNE,FLORIDA • 32934 PHONE/FAX: 321-255-0329

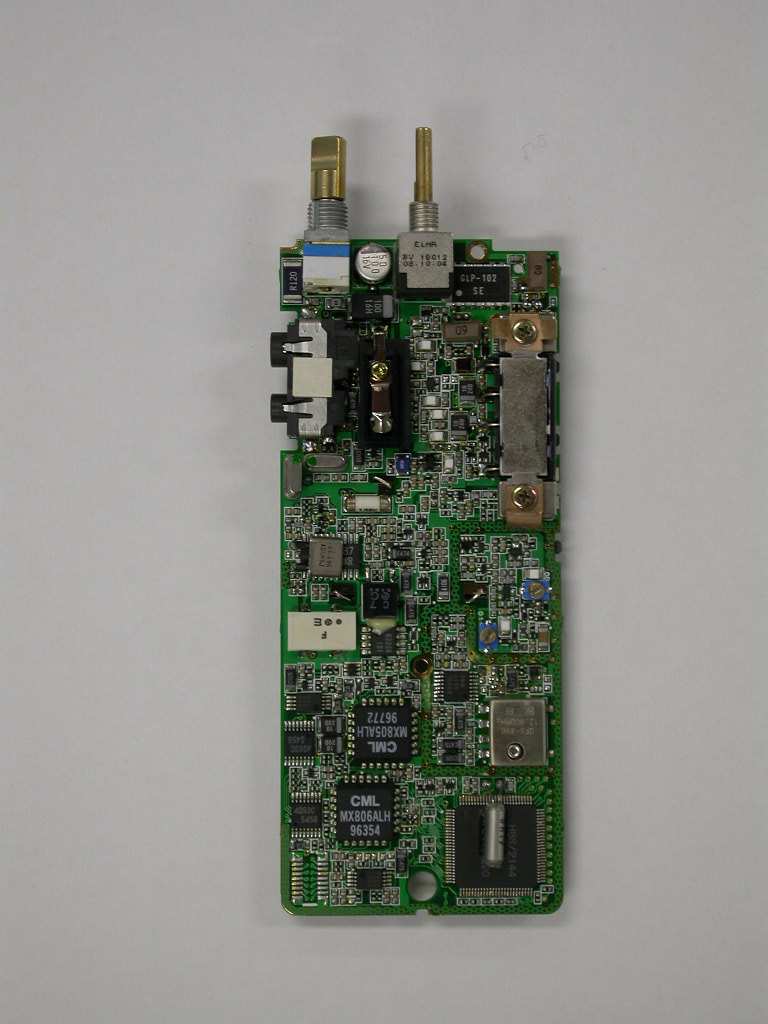

E. PHOTOGRAPHS-SC280 1) Model view – Front Three- Quarter View 1 2) Model view – Front Three- Quarter View 2 3) Model view – Back view 4) Model view - Back view (Label Position) 5) Model view – Top view 6) Model view – Bottom view 7) MAIN PCB (Component Side View) 8) MAIN PCB (Solder Side View) 1) Model view – Front Three- Quarter View 1 2) Model view – Front Three- Quarter View 2 3) Model view – Back view 4) Model view - Back view (Label Position) 5) Model view – Top view 6) Model view – Bottom view 7) MAIN PCB (Component Side View) 8) MAIN PCB (Solder Side View)

E. PHOTOGRAPHS-SC-280 With Battery (SCB-2200) 1) Model view of SC-280 – Front Three- Quarter View 1 2) Model view of SC-280 – Front Three- Quarter View 2 3) Model view of SC-280 – Back view 4) Model view of SC-280 – Back view (Label Position) 5) Model view of SC-280 – Top view 6) Model view of SC-280 – Bottom view 7) Model view of SC-280 – Belt clip 8) MAIN PCB of SC-280 (Component Side View) 9) MAIN PCB of SC-280 (Solder Side View) 1) Model view of SC-280 – Front Three- Quarter View 1 2) Model view of SC-280 – Front Three- Quarter View 2 3) Model view of SC-280 – Back view 4) Model view of SC-280 – Back view (Label Position) 5) Model view of SC-280 – Top view 6) Model view of SC-280 – Bottom view 7) Model view of SC-280 – Belt clip 8) MAIN PCB of SC-280 (Component Side View) 9) MAIN PCB of SC-280 (Solder Side View)

E. PHOTOGRAPHS-SC-280 With Battery (SCB-4000) 1) Model view of SC-280 – Front Three- Quarter View 1 2) Model view of SC-280 – Front Three- Quarter View 2 3) Model view of SC-280 – Back view 4) Model view of SC-280 – Back view (Label Position) 5) Model view of SC-280 – Top view 6) Model view of SC-280 – Bottom view 7) Model view of SC-280 – Belt clip 8) MAIN PCB of SC-280 (Component Side View) 9) MAIN PCB of SC-280 (Solder Side View) 1) Model view of SC-280 – Front Three- Quarter View 1 2) Model view of SC-280 – Front Three- Quarter View 2 3) Model view of SC-280 – Back view 4) Model view of SC-280 – Back view (Label Position) 5) Model view of SC-280 – Top view 6) Model view of SC-280 – Bottom view 7) Model view of SC-280 – Belt clip 8) MAIN PCB of SC-280 (Component Side View) 9) MAIN PCB of SC-280 (Solder Side View)

SC- 280 Model Label Deteil

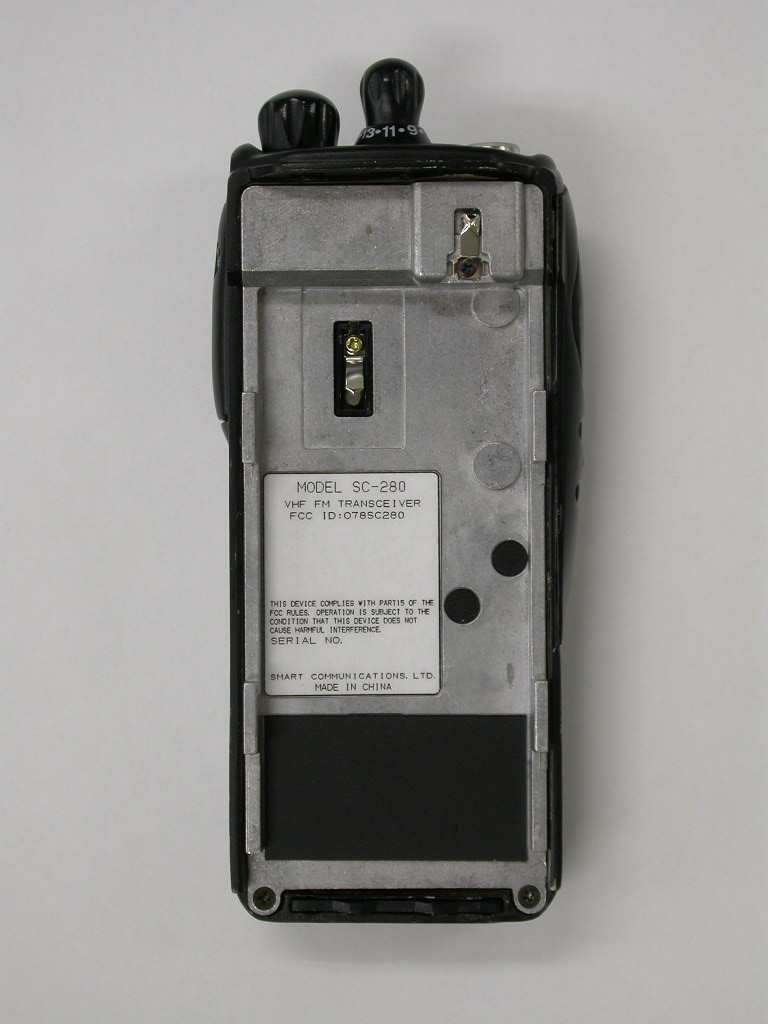

MODEL LABEL DETAIL FCC Operational Requirement THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE CONDITION THAT THIS DEVICE DOES NOT CAUSE HARMFUL INTERFERENCE. SC - 280 MODEL LABEL POSITION Rear side panel Label

Radio intended for occupational Push to Talk service only. Required training is in the instruction manual which must be reviewed prior to operation. Radio intended for occupational Push to Talk service only. Required training is in the instruction manual which must be reviewed prior to operation.

Warning: This device is for occupational use only in the course of employment. All training material in the operator manual must be reviewed to satisfy FCC RF exposure complance requirements. Warning: This device is for occupational use only in the course of employment. All training material in the operator manual must be reviewed to satisfy FCC RF exposure complance requirements.

E. PHOTOGRAPHS-SC280 1) Model view – Front Three- Quarter View 1 2) Model view – Front Three- Quarter View 2 3) Model view – Back view 4) Model view - Back view (Label Position) 5) Model view – Top view 6) Model view – Bottom view 7) MAIN PCB (Component Side View) 8) MAIN PCB (Solder Side View) 1) Model view – Front Three- Quarter View 1 2) Model view – Front Three- Quarter View 2 3) Model view – Back view 4) Model view - Back view (Label Position) 5) Model view – Top view 6) Model view – Bottom view 7) MAIN PCB (Component Side View) 8) MAIN PCB (Solder Side View)

Safety and Training Information Important Warning Minimize Your Exposure Your Smart Communications radio when in the transmit mode will generate high levels of RF electromagnetic energy. This radio is NOT intended for use by the “General Population”. It has been designed for and classified as “Occupational Use Only”, which means it must be used only during the course of employment by individuals that are aware of the hazards, and the ways to minimize such hazards. This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only”. This means that your Smart Communications professional radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C Edition 01-01, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C65.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields- RF and Microwave. • The accessories (antennas, batteries, belt clips, speaker-microphone, etc. that is listed in this manual are authorized for use with this product. Use of accessories other than those specified may result in RF exposure exceeding the FCC requirements for electromagnetic exposure. To minimize your exposure to RF Electromagnetic energy and ensure that it is within the FCC allowable limits for occupational use, always adhere to the following guidelines: • DO NOT operate the radio without a proper antenna attached, as this may damage the radio but may also cause you to be exposed to excess RF exposure. The proper antenna is the antenna supplied with this radio by the manufacturer of an antenna specifically authorized by the manufacturer for use with this radio. • DO NOT transmit for more than 50% of the total radio use time (a “50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the TX indicator on the top of the radio lights red. You can cause the radio to transmit by pressing the “PTT” switch either on the radio body or on the speaker microphone. • ALWAYS KEEP the antenna at least one inch (2.5 cm) away from the body when transmitting and only use the Smart Communications belt clips listed in this manual when attaching the radio to your belt, etc., to ensure FCC RF exposure compliance requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the radio at least two inches (5 cm) from your mouth, with the antenna slightly off the one side. The information listed above should be reviewed at a regular interval to insure the user is aware of RF exposure and what to do to assure that this radio is operated within the FCC RF exposure limits.

TECHNICAL DATA – SC-280 Narrow band A. RF POWER OUTPUT 1. Power measured using test set-up Figure 1. Primary power 7.2 VDC at battery input connector. 2. Power Data for 146.0125MHz to 173.9875MHz @ 5W is presented in Paragraph 1. 3. Power Data for 146.0125MHz to 173.9875MHz @ 1W is presented in Paragraph 2. B. FREQUENCY STABILITY 1. a. Frequency stability with varying temperature. See Figure 1 for test set-up. b. Data is presented on Paragraph 3 for Standard Primary Input Voltage of 7.2 VDC maintained throughout entire test. 2. a. Frequency stability with Primary Input Voltage. See Figure 1 for test set-up. b. Data is presented on Paragraph 4 for Standard Temperature of 25 degrees Celsius maintained throughout entire test. C. OCCUPIED BANDWIDTH 1. a. A spectrum analyzer was used to determine the occupied bandwidth. See Figure 1 for test set-up. b. Data is presented on Paragraph 5 to Paragraph 8 for Standard primary Input Voltage of 7.2 VDC maintained throughout entire test. The carrier and all detectable sidebands were displayed on the spectrum analyzer and pertinent data concerning amplitude and frequency were read from the screen. c. un modulated : Data measured at 160.0125MHz. (see Paragraph 5) d. Input to transmitter audio circuits: 2500Hz sine wave at a level 16dB greater than that necessary to produce 50% modulation. Data measured at 160.0125MHz and is typical of all frequencies. (see Paragraph 6) e. Input to transmitter audio circuits: 2500Hz sine wave at a level 16dB greater than that necessary to produce 50% modulation with CTCSS(250.3Hz). Data measured at 160.0125MHz and is typical of all frequencies. (see Paragraph 7) f. Input to transmitter audio circuits: 2500Hz sine wave at a level 16dB greater than that necessary to produce 50% modulation with DCS(023). Data measured at 160.0125MHz and is typical of all frequencies. (see Paragraph 8) D. MODULATION CHARACTERISTICS 1. Modulation Deviation a. Measured using test set-up, see Figure 1. b. Primary Input Voltage of 7.2 VDC at battery input connector. c. Data (Positive peak) is presented in Paragraph 9 d. Data (Negative peak) is presented in Paragraph 10. e. Data (Positive peak) with CTCSS (250.3Hz) is presented in Paragraph 11. f. Data (Negative peak) with CTCSS (250.3Hz) is presented in Paragraph 12. g. Data (Positive peak) with DCS (023) is presented in Paragraph 13. h. Data (Negative peak) with DCS (023) is presented in Paragraph 14. 2. Transmitter Audio Frequency Response a. Measured using test set-up, see Figure 1. b. Primary Input Voltage of 7.2 VDC at battery input connector. Ref = 1 kHz tone response at +-1.5 kHz deviation. Curve was taken maintaining constant +- 1.5 kHz deviation. c. Data is presented in Paragraph 15. 3. Low-Pass Filter Response a. Measured using test set-up, see Figure 1. b. Primary Input Voltage of 7.2 VDC at battery input connector. Input 1 kHz tone at a level 20dB greater than that required for 3 kHz deviation The response at 1 kHz tone = 0dB. Curve was taken maintaining constant input at modulation sensitivity. Output of low-pass filter was monitored using Audio Analyzer c. Data is presented in Paragraph 16. E. CONDUCTED SPURIOUS EMISSION 1. Conducted spurious data was measured at 25 degrees Celsius, 7.2 VDC applied at battery input connector external power input and using external antenna jack. See Figure 1 for test set-up. 2. Data for 146.0125MHz @ 5W is presented in Paragraph 17. 3. Data for 160.0125MHz @ 5W is presented in Paragraph 18. 4. Data for 173.9875MHz @ 5W is presented in Paragraph 19. 5. Data for 146.0125MHz @ 1W is presented in Paragraph 20. 6. Data for 160.0125MHz @ 1W is presented in Paragraph 21. 7. Data for 173.9875MHz @ 1W is presented in Paragraph 22. 8. Data for 160.0125MHz @ Receiver is presented in Paragraph 23. F. TRANSIENT BEHAVIOR a. Measured using test set-up, see Figure 1. b. Primary Input Voltage of 7.2 VDC at battery input connector. c. Data is presented in Paragraph 24. G. RADIATED SPURIOUS EMISSION 1. Radiated spurious data was measured at 20degrees Celsius, 7.2 VDC applied at battery input and using external antenna jack into a 50 ohm non-radiating load. The substitution method found in TIA/EIA 603 procedure. 2. Data for 146.0125MHz @ 5W is presented in Paragraph 25. 3. Data for 160.0125MHz @ 5W is presented in Paragraph 26. 4. Data for 173.9875MHz @ 5W is presented in Paragraph 27. H. RADIATED SPURIOUS EMISSION (Receive) 1. Data for 146.0125MHz to 173.9875MHz @ Receiver is presented in Sheet 1. （ EMI TEST REPORT ） I. PARAGRAPHS 1. RF Power Output, 5W 2. RF Power Output, 1W 3. Frequency Stability vs. Temperature 4. Frequency Stability vs. Voltage 5. Occupied Bandwidth, un modulated 6. Occupied Bandwidth, 2500Hz Sine Wave 7. Occupied Bandwidth, 2500Hz Sine Wave with CTCSS (250.3Hz) 8. Occupied Bandwidth, 2500Hz Sine Wave with DCS (023) 9. Deviation vs. Audio input Level - Positive peak 10. Deviation vs. Audio input Level - Negative peak 11. Deviation vs. Audio input Level with CTCSS (250.3Hz) - Positive peak 12. Deviation vs. Audio input Level with CTCSS (250.3Hz) - Negative peak 13. Deviation vs. Audio input Level with DCS (023) - Positive peak 14. Deviation vs. Audio input Level with DCS (023) -Negative peak 15. Transmitter Audio Frequency Response 16. Audio Low-Pass Filter Response 17. Conducted Spurious Emissions, 146.0125MHz @ 5W 18. Conducted Spurious Emissions, 160.0125MHz @ 5W 19. Conducted Spurious Emissions, 173.9875MHz @ 5W 20. Conducted Spurious Emissions, 146.0125MHz @ 1W 21. Conducted Spurious Emissions, 160.0125MHz @ 1W 22. Conducted Spurious Emissions, 173.9875MHz @ 1W 23. Conducted Spurious Emissions, Receiver 24 Transient Behavior 25. Radiated Spurious Emissions, 146.0125MHz @ 5W 26. Radiated Spurious Emissions, 160.0125MHz @ 5W 27. Radiated Spurious Emissions, 173.9875MHz @ 5W Sheet 1. Radiated Spurious Emissions, Receiver J. FIGURE 1. TEST SET-UP TECHNICAL DATA Model Name: SC-280 Sample Number: Sample 1 Specification is Refererced: EIA/TIA-603 Emi…
