O7J-GL2411MP-MP11Mbps WLAN Mini PCI Card

11Mbps Wireless Network PCI Adapter User Manual version 1.0 Manufacturer's Disclaimer Statement The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. This document contains materials protected by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any form, by any means or for any purpose without expressed written consent of its authors. Product names appearing in this document are mentioned for identification purchases only. All trademarks, product names or brand names appearing in this document are registered property of their respective owners. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re- evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example : Access Point). The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: O7J-GL2411MP-MP”. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co- located or operating in conjunction with any other antenna or transmitter. 3 Table of Contents: TABLE OF CONTENTS:................................................................................................................3 INTRODUCTION............................................................................................................................4 PRODUCT FEATURES.......................................................................................................................4 SYSTEM REQUIREMENTS................................................................................................................4 ONE CD-ROM DRIVEGETTING STARTED..................................................................4 GETTING STARTED.........................................................................................................5 GETTING TO KNOW THE 11MBPS WIRELESS NETW…

Text truncated - open the document above for the full version.

50 20. The certificate is issued by the server, click “Install this certificate” to download and store the certificate to your local computer. 21. Click “Yes” to store the certificate to your local computer. 51 22. Certificate is now installed. All the configuration and certificate download are now complete. Let’s try to connect to the Access Point using 802.1x TLS Authentication. 52 23. Windows XP will prompt you to select a certificate for wireless network connection. Click on the network connection icon in the system tray to continue. 53 24. Select the certificate that was issued by the server (WirelessCA), and click “OK” to continue. 25. Check the server to make sure that it’s the server that issues certificate, and click “OK” to complete the authentication process. 54 MD5 Authentication 26. Select “Data encryption (WEP enabled)” option, but leave other option unselected. 27. Select the key format that you want to use to key in your Network key. ASCII characters: 0~9, a~z and A~Z HEX characters: 0~9, a~f 28. Select the key length that you wish to use 40 bits (5 characters for ASCII, 10 characters for HEX) 104 bits (13 characters for ASCII, 26 characters for HEX) 29. After deciding the key format and key length that you wish to use for network key. Enter the network key in “Network key” text box. Please note that that value of Network key entered, and key format/length used, must be the same as that used in the Access Point. Although there are 4 set of keys can be set in the Access Point WEP configuration, it’s the first set of key that must be the same as that we used by the supplicant wireless client. 30. Click “OK” to close the Wireless Network Properties window, thus make the changes effective. 55 31. Select “Authentication” tab. 32. Select “Enable network access control using IEEE 802.1X” to enable 802.1x authentication. 33. Select “MD-5 Challenge” from the drop-down list box for EAP type. 34. Click “OK” to close Wireless Network Connection Properties window, thus make all the changes effective. 56 Unlike TLS, which uses digital certificate for validation, the MD-5 Authentication is based on the user account/password. Therefore, you must have a valid account used by the server for validation. 35. WindowsXP will prompt you to enter your user name and password. Click on the network connection icon in the system tray to continue. 57 36. Enter the user name, password and the logon domain that your account belongs if you have one or more network domain exist in your network. 37. Click “OK” to complete the validation process. 58 Authenticator: Wireless Network Access Point This is the web page configuration in the Access Point that we use. 1. Enable 802.1x security by selecting “Enable”. 2. If MD5 EAP methods is used then you can skip step 3 and go to step 4. 3. Select the Encryption Key Length Size ranging from 64 to 256 Bits that you would like to use. Select the Lifetime of the Encryption Key from 5 Minutes to 1 Day. As soon as the lifetime of the Encryption Key is over, the Encryption Key will be renewed by the Radius server. 4. Enter the IP address of and the Port used by the Primary Radius Server Enter the Shared Secret, which is used by the Radius Server. 5. Enter the IP address of, Port and Shared Secret used by the Secondary Radius Server. 6. Click “Apply” button for the 802.1x settings to take effect after Access Point reboots itself. 59 Note!: As soon as 802.1x security is enabled, all the wireless client stations that are connected to the Access Point currently will be disconnected. The wireless clients must be configured manually to authenticate themselves with the Radius server to be reconnected. 60 Radius Server: Window2000 Server This section to help those who has Windows 2000 Server installed and wants to setup Windows2000 Server for 802.1x authentication, which includes setting up Certificate Service for TLS Authentication, and enable EAP-methods. 1. Login into your Windows 2000 Server as Administrator, or account that has Administrator authority. 2. Go to Start > Control Panel, and double-click “Add or Remove Programs” 3. Click on “Add/Remove Windows components” 4. Check “Certificate Services”, and click “Next” to continue. 61 5. Select “Enterprise root CA”, and click “Next” to continue. 6. Enter the information that you want for your Certificate Service, and click “Next” to continue. 62 7. Go to Start > Program > Administrative Tools > Certificate Authority 8. Right-click on the “Policy Setting”, select “new” 9. Select “Certificate to Issue” 10. Select “Authenticated Session” and “Smartcard Logon” by holding down to the Ctrl key, and click “OK” to continue. 63 11. Go to Start > Program > Administrative Tools > Active Directory Users and Computers. 12. Right-click on domain, and select ”Properties” to continue. 13. Select “Group Policy” tab and click “Properties” to continue. 64 14. Go to “Computer Configuration” > “Security Settings” > “Public Key Policies” 15. Right-click “Automatic Certificate Request Setting”, and select “New” 16. Click “Automatic Certificate Request ...” 65 17. The Automatic Certificate Request Setup Wizard will guide you through the Automatic Certificate Request setup, simply click “Next” through to the last step. 18. Click “Finish” to complete the Automatic Certificate Request Setup 19. Go to Start > Run, and type “command” and click “Enter” to open Command Prompt. 20. Type “secedit/refreshpolicy machine_policy” to refresh policy. 66 Adding Internet Authentication Service 21. Go to Start > Control Panel > Add or Remove Programs 22. Select “Add/Remove Windows Components” from the panel on the left. 23. Select “Internet Authentication Service”, and click “OK” to install. 67 Setting Internet Authentication Service 24. Go to Start > Program > Administrative Tools > Internet Authentication Service 25. Right-click “Client”, and select “New Client” 68 26. Enter the IP address of the Access Point in the Client address text field, a memorable name for …

Text truncated - open the document above for the full version.

FCC ID: O7J-GL2411MP-MP ADT No.920422R04 Modular Approval Request Letter Advance Data Technology May 14, 2003 Dear Application Examiner, Global Sun Technology, Inc.’s 11Mbps WLAN Mini PCI Card, FCC ID: O7J- GL2411MP-MP, would like to have your authorization as a limited modular approval specific to the mobile device such as Access Point and Router. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip IPN2120a. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 2.5V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is AME8801. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: O7J-GL2411MP-MP ADT No.920422R04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Dr. Alan Lane J. VP Advance Data Technology

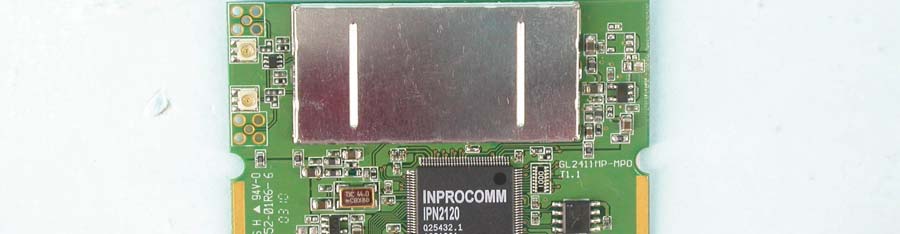

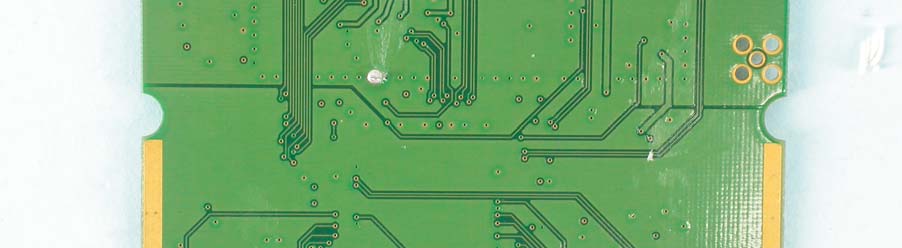

Page 1 ANNEX PHOTOGRAPHS OF EUT

Page 4 Antenna Item 1 Antenna Item 2 Page 5 Antenna Item 3 Antenna Item 4

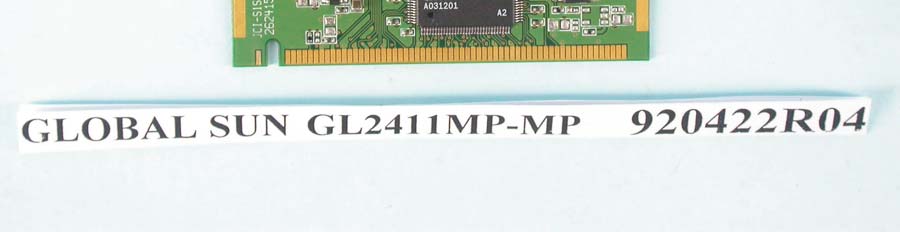

Label location_GL2411MP-MP (640x480x16M jpeg)

Product Name: 11Mbps WLAN Mini PCI Card Model: GL2411MP-MP Tested To Comply With FCC Standards Made in Taiwan Rating: 3.3V FOR HOME OR OFFICE USE FCC ID: O7J-GL2411MP-MP 49mm 19mm

Page 2 Page 3

FCC ID: O7J-GL2411MP-MP ADT No.920422R04 Operational Description The transmitter of the EUT is powered by host equipment. The antennas used in this product are Dipole antenna and Inverted-F antenna. There is no antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

Report No: 920422R04 1 RF EXPOSURE REPORT REPORT NO.: RF920422R04 MODEL NO.: GL2411MP-MP ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Global Sun Technology, Inc. ADDRESS: No.13, Tung Yuan Rd., Jung Li Industrial Park, Jung Li City, Taoyuan Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 Report No: 920422R04 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No: 920422R04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in access point or router which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. Report No: 920422R04 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2dBi or 1.584 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241298.1740.0311.0 6243797.2740.0311.0 11246296.6050.0301.0

FCC ID: O7J-GL2411MP-MP Report No.: RF920422R041Issued: May 14, 2003 FCC TEST REPORT REPORT NO.: RF920422R04 MODEL NO.: GL2411MP-MP RECEIVED: Apr. 22, 2003 TESTED: May 5 ~ May 8, 2003 APPLICANT: Global Sun Technology, Inc. ADDRESS: No.13, Tung Yuan Rd., Jung Li Industrial Park, Jung Li City, Taoyuan Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 61 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: O7J-GL2411MP-MP Report No.: RF920422R042Issued: May 14, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS (A) .................................................................................... 22 4.2.7TEST RESULTS (B) .................................................................................... 27 4.2.8TEST RESULTS (C).................................................................................... 32 4.36dB BANDWIDTH MEASUREMENT .......................................................... 37 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 37 4.3.2TEST INSTRUMENTS ................................................................................ 37 4.3.3TEST PROCEDURE ................................................................................... 38 4.3.4TEST SETUP .............................................................................................. 38 4.3.5EUT OPERATING CONDITIONS................................................................ 38 4.3.6TEST RESULTS.......................................................................................... 39 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 43 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 43 4.4.2TEST INSTRUMENTS ................................................................................ 43 4.4.3TEST PROCEDURES................................................................................. 44 FCC ID: O7J-GL2411MP-MP Report No.: RF920422R043Issued: May 14, 2003 4.4.4TEST SETUP .............................................................................................. 44 4.4.5EUT OPERATING CONDITIONS................................................................ 44 4.4.6TEST RESULTS.......................................................................................... 45 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 46 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 46 4.5.2TEST INSTRUMENTS ................................................................................ 46 4.5.3TEST PROCEDURE ................................................................................... 47 4.5.4TEST SETUP .............................................................................................. 47 4.5.5EUT OPERATING CONDITIONS................................................................ 47 4.5.6TEST RESULTS.......................................................................................... 48 4.6BAND EDGES MEASUREMENT ................................................................ 52 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 52 4.6.2TEST INSTRUMENTS ................................................................................ 52 4.6.3TEST PROCEDURE ................................................................................... 52 4.6.4EUT OPERATING CONDITION .................................................................. 52 4.6.5TEST RESULTS.......…

Text truncated - open the document above for the full version.

FCC ID: O7J-GL2411MP-MP Report No.: RF920422R0457Issued: May 14, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: O7J-GL2411MP-MP Report No.: RF920422R0458Issued: May 14, 2003 FCC ID: O7J-GL2411MP-MP Report No.: RF920422R0459Issued: May 14, 2003 RADIATED EMISSION TEST FCC ID: O7J-GL2411MP-MP Report No.: RF920422R0460Issued: May 14, 2003
