O7J-GL242201-MTWireless 22Mbps PC card

1 CONTENTS 1. PRODUCT GENERAL INFORMATION...........................................................2 1.1. Product Description.................................................................................................2 1.2. Product Feature......................................................................................................2 1.3. Product Application......................................................................................................2 2. PRODUCT GENERAL................................................................................3 2.1. General Specifications...................................................................................... 3 2.2. LED Indicator.....................................................................................................3 2.3. Interface............................................................................................................3 3. PRODUCT HARDWARE SPECIFICATION......................................................3 3.1. RF Specification.........................................................................................................3 3.1.1. General........................................................................................................3 3.1.2. Transmitter...................................................................................................3 3.1.3. Receiver.....................................................................................................4 3.1.4. Antenna Type................................................................................................4 3.1.5. Typical Operating Range.................................................................................4 3.2. H/W Specification.....................................................................................................4 3.2.1. MAC Controller..............................................................................................4 3.2.2. Memory........................................................................................................4 3.2.3. Power..........................................................................................................4 4. PRODUCT SOFTWARE SPECIFICATION.......................................................4 4.1. Driver......................................................................................................................4 4.2. Configuration Utility..................................................................................................4 5. PRODUCT COMPLIANCE...........................................................................5 6. OPERATING CONDITION......................................................................5 6.1. Drop and Vibration test...................................................................................5 6.1.1. Anti-Static Voltage...........................................................................................5 6.1.2. Vibration Test................................................................................................5 6.1.3. Package Drop Test..........................................................................................5 6.2. Operation Environment ..............................................................................................5 6.2.1. Temperature Range........................................................................................5 6.2.2. Reliability Test.............................................................................5 6.2.3. Humidity........................................................................................................5 7. INSTALLATION AND CONFIGURATION......................................................6 7.1. Installation................................................................................................6 7.2. Configuration.......................................................................................................6 2 WLAN PC Card 1. Product General Information 1.1. Product Description GL242201, the wireless Ethernet adapter for Card bus- compliant notebook PCs, is fully compatible with IEEE 802.11b standard and supporting higher data rate to 22Mbps. Using Direct Sequence spread spectrum technology for immunity from interference, it will automatically fallback to lower data rate in the environment of interference. 22Mbps data rate is designed by the Packet Binary Convolution Code (PBCC) modulation technique. The software supports Windows OS such as Win98, Win2000, WinME and WinXP. The PC card for your laptop is designed with an integrated diversity antenna which would increase the receiving and transmitting sensitivity. 1.2. Product Feature ● IEEE 802.11b Direct Sequence high rate compatible. ● Based on DSSS Technology and support the modulation of PBCC mode ● High-Speed wireless connection up to 22Mbps data rate, and supports 11/5.5/2/1 Mbps 802.11b standard ● Advanced Power Management supports power saving mode for battery device ● Auto fallback data rate in the environment of interference ● 64/128/256 Bits WEP Encryption function ● High through-put supports multi-media data bandwidth requirement ● Built-in PCB patch diversity antenna or external antenna support. ● Supports Card Bus interface 1.3. Product Application ● Wireless Networking in Enterprise, SOHO and Home environment ● Wireless Networking Access in Hot Spot area such as Airport, Hotel, School, Convention center, Coffee shop, ... etc. ● Mobile media through wireless LAN ● Mobile networking for notebook PC, and Mobile devices ● Wireless access to devices such as Printer, Scanner, WebCAM, ... etc. ● Build system in Ad-Hoc for Host-Client appliance or Infrastructure mode for multi-access 3 2. PRODUCT GENERAL 2.1. General Specifications Standards:IEEE802.11b Compliant PC Card standard Ver 7.0 Data Rate:22Mbps / 11Mbps / 5.5 Mbps / 2Mbps / 1 Mbps auto fallback Security:64/128/256 bit Wired Equivalent Pri…

Text truncated - open the document above for the full version.

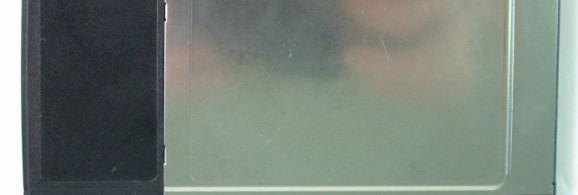

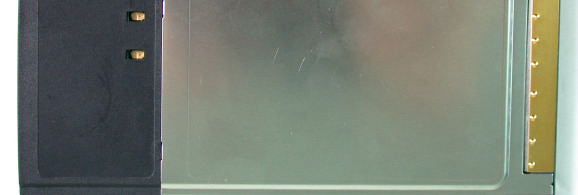

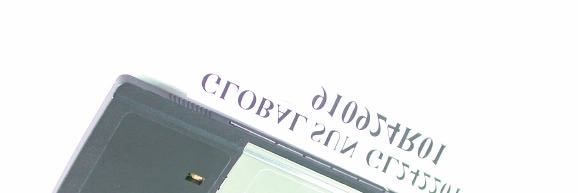

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

LABEL LOCATION FOR FCC ID

64 mm 4 1 m m Model No: GL242201-MT FCC ID: O7J-GL242201-MT IC: XXXXXXXXXX Model No: DWL-650+ FCC ID: O7J-GL242201-MT Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Model No: SMC 2435W FCC ID: O7J-GL242201-MT Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

Page 3 Page 4 Page 5

FCC ID: O7J-GL242201-MT ADT No.910924R01 Operational Description The transmitter of the EUT (Wireless 22Mbps PC Card) is powered by host equipment. The antenna is Printed antenna, and there is no antenna connector. Under normal use condition, the user has to keep at least 2.5cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate. The bit rates are 1,2,5.5,11,22Mbps, the symbol rates are 1,1,1.375,1.375,1.375 Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8,8,and16 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: O7J-GL242201-MT Report No.: RF910924R011Issued: September 27, 2002 FCC TEST REPORT REPORT NO.: RF910924R01 MODEL NO.: GL242201-MT OEM MODEL NO.: SMC2435W, DWL-650+ RECEIVED: Sept. 24, 2002 TESTED: Sept. 25 ~ Sept. 26, 2002 APPLICANT: GLOBAL SUN TECHNOLOGY, INC. ADDRESS: No. 13, Tung Yuan Rd., Jung Li Industrial Park, Jung Li City, Tao Yuan Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: O7J-GL242201-MT Report No.: RF910924R012Issued: September 27, 2002 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS.......................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT .......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 27 4.3.2TEST INSTRUMENTS ................................................................................ 27 4.3.3TEST PROCEDURE ................................................................................... 28 4.3.4TEST SETUP .............................................................................................. 28 4.3.5EUT OPERATING CONDITIONS................................................................ 28 4.3.6TEST RESULTS.......................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 33 4.4.2TEST INSTRUMENTS ................................................................................ 33 4.4.3TEST PROCEDURES................................................................................. 34 4.4.4TEST SETUP .............................................................................................. 34 4.4.5EUT OPERATING CONDITIONS................................................................ 34 FCC ID: O7J-GL242201-MT Report No.: RF910924R013Issued: September 27, 2002 4.4.6TEST RESULTS.......................................................................................... 35 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 36 4.5.2TEST INSTRUMENTS ................................................................................ 36 4.5.3TEST PROCEDURE ................................................................................... 37 4.5.4TEST SETUP .............................................................................................. 37 4.5.5EUT OPERATING CONDITIONS................................................................ 37 4.5.6TEST RESULTS.......................................................................................... 38 4.6BAND EDGES MEASUREMENT ................................................................ 42 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 42 4.6.2TEST INSTRUMENTS ................................................................................ 42 4.6.3TEST PROCEDURE ................................................................................... 42 4.6.4EUT OPERATING CONDITION .................................................................. 43 4.6.5TEST RESULTS.......................................................................................... 43 4.7ANTENNA REQUIREMENT................................................…

Text truncated - open the document above for the full version.

FCC ID: O7J-GL242201-MT Report No.: RF910924R0147Issued: September 27, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: O7J-GL242201-MT Report No.: RF910924R0148Issued: September 27, 2002 RADIATED EMISSION TEST
