O7J-GL242201-MT0Wireless 22Mbps PC Card

22Mbps Wireless Network PC Card User Manual Model:GL242201-MT version 2.1 2 Manufacturer's Disclaimer Statement The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. This document contains materials protected by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any form, by any means or for any purpose without expressed written consent of its authors. Product names appearing in this document are mentioned for identification purchases only. All trademarks, product names or brand names appearing in this document are registered property of their respective owners. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 3 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 4 Table of Contents: TABLE OF CONTENTS:...................................................................................................................... 4 INTRODUCTION.................................................................................................................................. 5 P RODUCT F EATURES ............................................................................................................................. 5 S YSTEM R EQUIREMENTS ...................................................................................................................... 6 GETTING STARTED............................................................................................................................ 7 G ETTING T O K NOW T HE 22M BPS W IRELESS PC C ARD ........................................................................ 7 WIRELESS NETWORK PC Card’S LEDs...................................................................................... 7 S ETTING U P T HE W IRELESS N ETWORK ................................................................................................ 7 I NSTALLING Y OUR 22M BPS W IRELESS N ETWORK PC C ARD ................................................................ 9 CONFIGURING YOUR WIRELESS NETWORK PC CARD....................................................... 14 Link Info. Page.............................................................................................................................. 14 Configuration Page....................................................................................................................... 15 Security Page................................................................................................................................17 SiteSurvey Page............................................................................................................................ 18 About Page.................................................................................................................................... 20 APPENDIX A: TROUBLESHOOTING............................................................................................ 21 APPENDIX B: NETWORKING BASIS.......................................................................26 APPENDIX C: 802.1X AUTHENTICATION SETUP ......................................................45 APPENDIX D: GLOSSARY.....................................................................................40 APPENDIX E: TECHNICAL SPECIFICATION............................................................................. 90 5 INTRODUCTION The 22Mbps Wireless PC Card delivers enhanced IEEE 802.11b high performance for up to 22Mbps, which is double of that offered by most of the current wireless products in the market. The 22Mbps high data rate is made possible by the latest advanced TI wireless t…

Text truncated - open the document above for the full version.

21 APPENDIX A: TROUBLESHOOTING This chapter provides solutions to frequently encountered problems that can occur during the installation and operation of the 22Mbps Wireless Network PC Card. Please read through the following to solve your problems. 1. The wireless clients cannot access the network in the infrastructure mode. ¾ Check that the wireless network device is being installed and working properly. Go to “Start” > Right mouse click on “My Computer” > “Properties” 22 Go to “Device Manager” Go to “Hardware” 23 Right mouse click on the wireless network adapter 22Mbps WLAN Adapter Go to “Properties” 22Mbps WLAN Adapter 24 2. What is the difference between 22Mbps and 11Mbps wireless products? What’s the benefit of 22Mbps Wireless Access Point? The 22Mbps is made possible by the new modulation method called PBCC developed by TI, which is different from the current CCK modulation method for 11Mbps. The 22Mbps Wireless Access Point offers double data rate than that of 11Mbps with 20% more distance coverage. The 22Mbps wireless products also operate in the 2.4GHz ISM band and they are backward compatible with 11Mbps wireless products. 3. What is Roaming? Roaming is the ability of portable computers, e.g., Packet PC and notebook, to have consistent and continuous data transmission/reception throughout an area covered by more than one Wireless Access Point. In order to achieve seamless connectivity, all the wireless clients and Access Points must be set to use the same SSID. When a user walked out of the coverage area of one AP into another, the wireless client network device will automatically reestablish connection with the new AP. 4. What is a MAC Address? The Media Access Control (MAC) address is a unique number assigned by the manufacturer to any Ethernet networking devices, e.g. a network adapter, that Check and make sure that the network adapter is working properly 22Mbps WLAN Adapter 25 allows the network to identify it at the hardware level. Unlike IP addresses, which can be changed or dynamically assigned by the network, the MAC address of a networking device is permanent. 5. What is WEP? Wired Equivalent Privacy (WEP) is a type of data encryption mechanism described in the IEEE 802.11 standard. The 22Mbps Wireless Access Point supports 64/128/256 bit shared key for WEP. 6. Would the information be transmitted securely in the air? WLAN offers two layers of protection for security. First layer is on the hardware level. As with Direct Sequence Spread Spectrum (DSSS) technology, it has the inherent security feature of scrambling. Second of all, on the software level, the security control is made possible by Wired Equivalent Privacy (WEP) for access control. 7. What is ISM band? The FCC and their counterparts outside of the U.S. have set aside bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical) band. The 2.4GHz unlicensed ISM band is available worldwide, which presents the opportunity for the global market of 802.11b high speed wireless products. 26 APPENDIX B: NETWORKING BASIS This chapter will help you learn the basics of home networking. Using the Windows XP Network Setup Wizard Go to Start menu > Control Panel > Network Connections In the menu on the left side of the window, select “Set up a home or small office network” Click “Next” to procced Click “Next” to continue 27 Select the option that best describes how you connect your computer to the Internet. In the case of using router in the network, choose the second option. Click “Next” to continue. 1. Enter a short description for your computer. 2. Enter a name for your computer to be recognized among the network. 3. Click “Next” to continue. 28 Enter “Workgroup name” for your home network. Click “Next” to continue” Click “Next” and wait for the wizard to apply the settings. 29 You may create a network setup disk which saves you the trouble of having to configure every PCs in your network. Select the first choice, and insert a floppy disk into your disk drive Click “Next” to continue. 30 Click “Format Disk” if you wish to format the disk. Click “Next” to copy the necessary files to the disk. Click “Next” to continue with the Network Setup Wizard 31 !Note: Now you may use the Network Setup Disk you just created in any PCs in your network that you wish to setup. Simply insert the Network Setup Disk into the disk drive of a PC, and open to browse the content of the disk with “My Computer” or “Windows File Manager”. Double-click and run the file “netsetup” for the program to handle the rest. Click “Finish” to complete the Network Setup Wizard. System will now have to restart in order for the new settings to be effective. Click “Ye s” to restart the computer 32 Checking IP Address of Your Computer In Windows XP Sometimes you will need to know the IP address of the computer that you are using. For example, when you want to make sure that your computer is in the same network domain as that of your Access Point for you can configure and access the AP. When the command prompt window appears, type command “ipconfig /all” and press Enter. This command will display the IP addresses of all the network adapters in your computer. In this case, the IP address of your network adapter is 192.168.0.23, which means your Access Point must have an IP address of 192.168.0.xxx in order for you to be able to access it. If the IP address is assigned by DHCP server on the network, there are chances you might have to release the IP and acquire it from DHCP server again. Here is how you do it. Go to Start menu > Run > type “command” Click “OK” 33 Type command, “ipconfig /renew” in the command prompt window and press Enter. This command releases the current IP address and acquire it from the network, i.e. DHCP server, once more. In this case, the IP address that we acquired is the same as previous one, 192. 168.0.23. However, it’s often that the acquired IP address of the network adapter might would not be the same. !Note: To renew IP …

Text truncated - open the document above for the full version.

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Wireless 22Mbps PC Card (Receiver Part) MODEL NO.: GL242201-MT TRADE NAME: GLOBAL SUN IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D920127R01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION： ManufacturerUSA Local Representative Company name: GLOBAL SUN Technology, INC. To Be Determined. Address: NO.13 Tung Yuan Rd., Jung Li Industrial Park Jung Li City, Tao Yuan Hsien, Taiwan Contact Person: Alan Lin Title: Director Tel/Fax: Tel: +886-2-8522-7155 Fax: +886-2-8522-7156

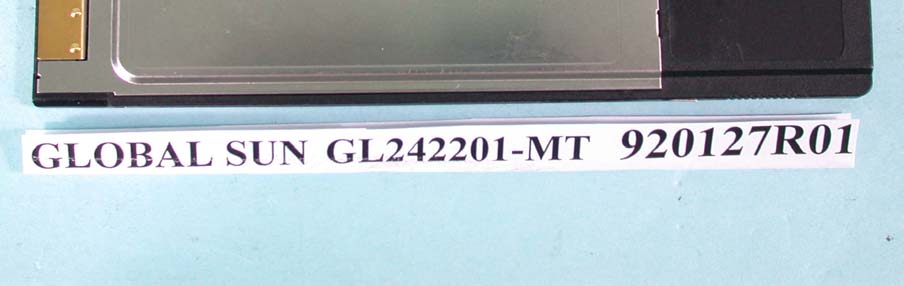

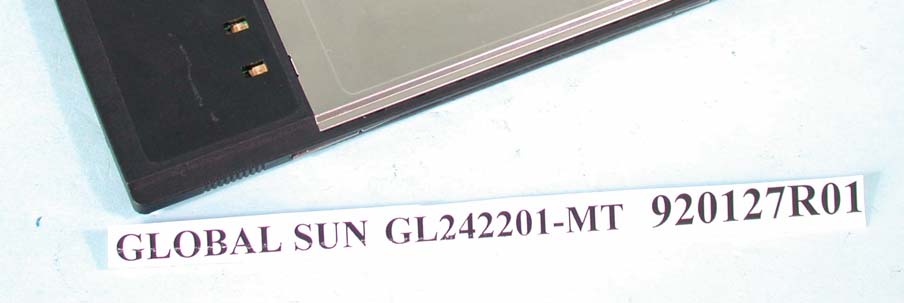

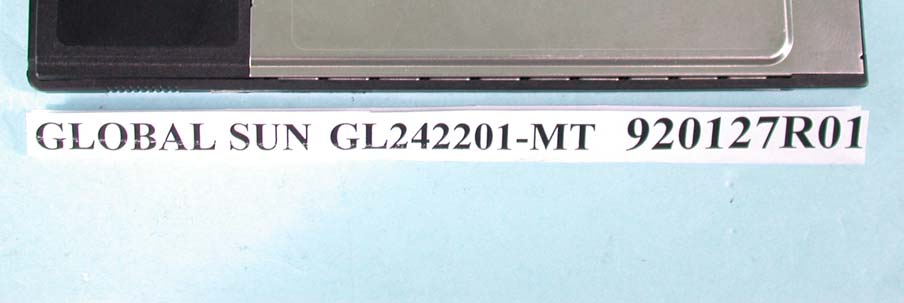

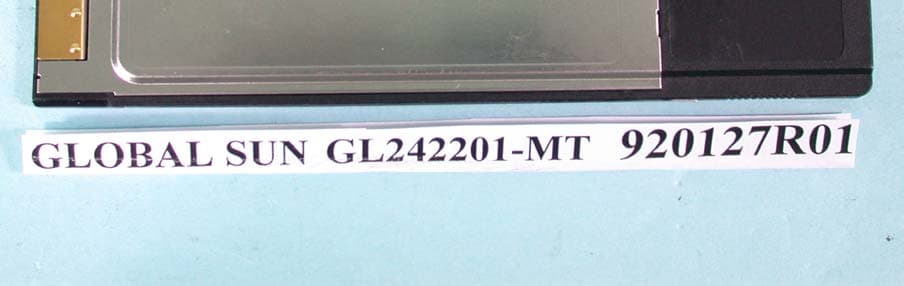

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

64 mm 4 1 m m Model No: GL242201-MT1 FCC ID: O7J-GL242201-MT0 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Rating: 3.3V

Page 3 Page 4 Page 5

Page 3 Page 4 Page 5

FCC ID: O7J-GL242201-MT0 ADT No.920127R01 Operational Description The transmitter of the EUT (Wireless 22Mbps PC Card) is powered by host equipment. The antenna is Patch antenna, and there is no antenna connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate. The bit rates are 1,2,5.5,11,22Mbps, the symbol rates are 1,1,1.375,1.375,1.375 Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8,8,and16 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: O7J-GL242201-MT0 Report No.: SA920127R011Issued: Feb. 11 th 2003 SAR TEST REPORT REPORT NO.: SA920127R01 MODEL NO.: GL242201-MT RECEIVED: Jan. 27, 2003 TESTED: Jan. 30, 2003 APPLICANT: Global Sun Technology, Inc. ADDRESS: No. 13, Tung Yuan Rd., Jung Li Industrial Park, Jung Li City, Tao Yuan Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 16 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: O7J-GL242201-MT0 Report No.: SA920127R012Issued: Feb. 11 th 2003 Table of Contents 1.CERTIFICATION .................................................................................................................3 2.GENERAL INFORMATION ................................................................................................. 4 2.1GENERAL DESCRIPTION OF EUT ................................................................................... 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................... 4 2.3GENERAL INOFRMATION OF THE SAR SYSTEM........................................................... 5 2.4GENERAL DESCRIPTION OF THE PROBE SCAN RULE ................................................ 7 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ........................................... 8 4.DESCRIPTION OF SUPPORT UNITS ............................................................................... 9 5.TEST RESULTS ................................................................................................................ 10 5.1TEST PROCEDURES....................................................................................................... 10 5.2MEASURED SAR RESULT .............................................................................................. 10 5.3SAR LIMITS ...................................................................................................................... 12 5.4EUT CONDUCTED POWER VARIATION ........................................................................ 12 5.5TISSUE ............................................................................................................................. 13 5.6TEST EQUIPMENT FOR TISSUE PROPERTY ............................................................... 13 6.SYSTEM VALIDATION...................................................................................................... 14 7.MEASUREMENT UNCERTAINTIES................................................................................. 15 8.INFORMATION ON THE TESTING LABORATORIES ..................................................... 16 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: O7J-GL242201-MT0 Report No.: SA920127R013Issued: Feb. 11 th 2003 1. CERTIFICATION PRODUCT : Wireless 22Mbps PC Card MODEL NO. : GL242201-MT BRAND NAME : GLOBAL SUN APPLICANT : Global Sun Technology, Inc. STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on 30 th Jan. 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: O7J-GL242201-MT0 Report No.: SA920127R014Issued: Feb. 11 th 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless 22Mbps PC Card MODEL NO. GL242201-MT POWER SUPPLY 3.3VDC powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, PBCC RADIO TECHNOLOGY DSSS TRANSFER RATE 1/2/5.5/11/22Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 CONDUCTED OUTPUT POWER 61.52mW ANTENNA TYPE Patch antenna PEAK SAR 0.205W/kg DATA CABLE NA I/O PORTS PCMCIA ASSOCIATED DEVICES NA NOTE: 1. The EUT was designed with two kinds of Pre Amplifier. The details as below: ItemBrand nameModel name 1MAXIMMAX2242 2GATAXGA2P4W22 2. The test result PA1 stands was for amplifier with model MAX2242 and the test result PA2 stands was for model GA2P4W22. Also refer to note 1 on page 8 please. 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS According to the specifications of the manufacturer, this product must comply with the requirements of the following standards: FCC 47 CFR Part 2 (2.1093) FCC OET Bulletin 65, Supplement C (01- 01) RSS-102 All tests have been performed and recorded as per the above standards. FCC ID: O7J-GL242201-MT0 Report No.: SA920127R015Issued: Feb. 11 th 2003 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM DASY3 (software 3.1d) consists of high precision robtics system, probe alignment sensor, phantom, robot controller, controlled PC and near-field probe. The robot includes six axis that can move to the precision position of the DASY3 software defined. The DASY3 software can define the area which is detected by the probe. The robot is connected to controlled box. Controlled PC is connected to the controlled robot box. The DAE includes amplifier, signal multiplexing, AD converter, offset measurement, surface detection. It is connected to the Electro-optical coupler (ECO). The ECO performs the conversion form the optical into digital electric signal of the DAE and transfers data to the PC. ET3DV6 ISOTROPIC E…

Text truncated - open the document above for the full version.

FCC ID: O7J-GL242201-MT0 Report No.: RF920127R011Issued: February 11, 2003 FCC TEST REPORT REPORT NO.: RF920127R01 MODEL NO.: GL242201-MT RECEIVED: Jan. 27, 2003 TESTED: Jan. 27 ~ Feb. 6, 2003 APPLICANT: GLOBAL SUN TECHNOLOGY, INC. ADDRESS: No. 13, Tung Yuan Rd., Jung Li Industrial Park, Jung Li City, Tao Yuan Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 71 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: O7J-GL242201-MT0 Report No.: RF920127R012Issued: February 11, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS (A) .................................................................................... 12 4.1.7TEST RESULTS (B) .................................................................................... 18 4.2RADIATED EMISSION MEASUREMENT ................................................... 24 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 24 4.2.2TEST INSTRUMENTS ................................................................................ 25 4.2.3TEST PROCEDURES................................................................................. 26 4.2.4TEST SETUP .............................................................................................. 27 4.2.5EUT OPERATING CONDITIONS................................................................ 27 4.2.6TEST RESULTS (A) .................................................................................... 28 4.2.7TEST RESULTS (B) .................................................................................... 33 4.36dB BANDWIDTH MEASUREMENT .......................................................... 38 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 38 4.3.2TEST INSTRUMENTS ................................................................................ 38 4.3.3TEST PROCEDURE ................................................................................... 39 4.3.4TEST SETUP .............................................................................................. 39 4.3.5EUT OPERATING CONDITIONS................................................................ 39 4.3.6TEST RESULTS (A) .................................................................................... 40 4.3.7TEST RESULTS (B) .................................................................................... 44 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 48 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 48 4.4.2TEST INSTRUMENTS ................................................................................ 48 FCC ID: O7J-GL242201-MT0 Report No.: RF920127R013Issued: February 11, 2003 4.4.3TEST PROCEDURES................................................................................. 49 4.4.4TEST SETUP .............................................................................................. 49 4.4.5EUT OPERATING CONDITIONS................................................................ 49 4.4.6TEST RESULTS (A) .................................................................................... 50 4.4.7TEST RESULTS (B) .................................................................................... 50 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 51 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 51 4.5.2TEST INSTRUMENTS ................................................................................ 51 4.5.3TEST PROCEDURE ................................................................................... 52 4.5.4TEST SETUP .............................................................................................. 52 4.5.5EUT OPERATING CONDITIONS................................................................ 52 4.5.6TEST RESULTS (A) .................................................................................... 53 4.5.7TEST RESULTS (B) .................................................................................... 57 4.6BAND EDGES MEASUREMENT ................................................................ 61 4.6.1LIMITS OF BAND EDGES MEASUREMENT ....................................…

Text truncated - open the document above for the full version.

FCC ID: O7J-GL242201-MT0 Report No.: RF920127R0169Issued: February 11, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: O7J-GL242201-MT0 Report No.: RF920127R0170Issued: February 11, 2003 RADIATED EMISSION TEST
