O7J-GL2422MP-0TWireless 22Mbps Mini PCI Card

WLAN 22Mbps Mini PCI Card USER MANUAL Version 1.0. June 7, 2002 Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. If this equipment is not installed and used in accordance with the manufacturer's instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by during the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Manufacturer's Disclaimer Statement The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. This document contains materials protected by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any form, by any means or for any purpose without expressed written consent of its authors. Product names appearing in this document are mentioned for identification purchases only. All trademarks, product names or brand names appearing in this document are registered property of their respective owners. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users (for example access points, routers, wireless ADSL modems, and similar equipment). The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: O7J-GL2422MP-0T”. Printed in Taiwan PCI C ARD D RIVER S ETUP 1. Insert the WLAN 22MBPS Mini PCI CARD into Mini PCI Socket and conduct to the antenna, as described in the preceding section. Then insert the driver CD into the CD-ROM. 2. Windows ® will automatically detect the Card and prompt you to install the necessary driver. Click “Next” to begin the installation. 3. Select “Search for a suitable driver...” and click “Next” to find the WLAN 22MBPS PCI CARD driver. 4. Windows ® will automatically scan the driver. After acknowledge of Windows ® , please click "Next". 5. Windows ® will show a windows information dialog. Click “Yes”. Windows ® will install the driver. As the driver files are being copied to the appropriate location, you will be prompted to insert the Windows ® CD. Then Windows ® will show a windows information dialog. Click “Finish”. 6. Open up “Device Manager” and double click the device. 7. Click “Configure” to configure the CARD. 9. From the “Properties” menu, please select the “Advanced” tab. 10. Select “Adhoc Demo Mode” and select “Enable” or leave it default for “Disable”. 1. Select “Authentication Algorithm” and set up the default value: WECA Compliant, Automatic based on WEP setting or Must use shared with WEP. (See Appendix B Glossary). 2. Select “Fragmentation Threshold” and set up the default value: 2432 (See Appendix B Glossary). 3. Select “Network Type”, and choose “Infrastructure” or “802.11b Ad-Hoc” as the “Value”. NOTE: “Infrastructure” mode allows a wireless CARD to communicate with a wired network, while “802.11b Ad-Hoc” mode allows wireless-to-wireless communication. Consult your System Administrator for information about your network communication type. For more information about Infrastructure and Ad-Hoc networks. 4. Select “Power Save Mode” and choose a “Value” for “Enabled” or “Disabled”. NOTE: To allow uninterrupted data communication, choose “Disabled” as the ”Value”. Choosing “Enabled” allows your notebook to enter “sleep” mode, however, this will interrupt data communication. Consult your System Administrator to find out the best setting for your network type. For more information about Power Save Mode, see the chapter entitled “PRISM Configuration Utility” in this manual. 5. Select “Preamble Mode” and set up the defa…

Text truncated - open the document above for the full version.

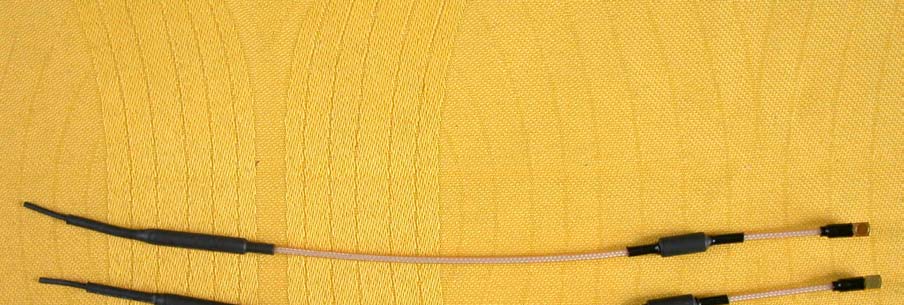

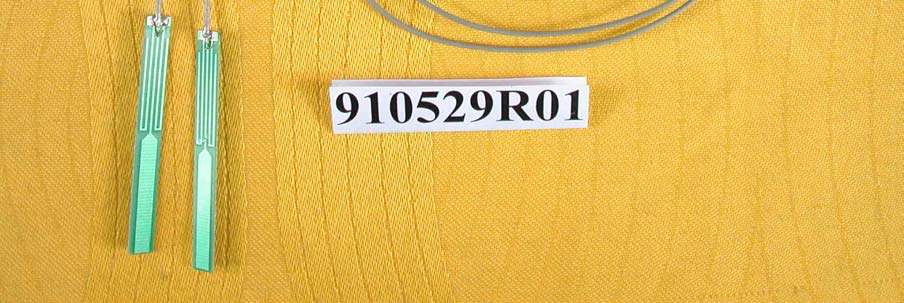

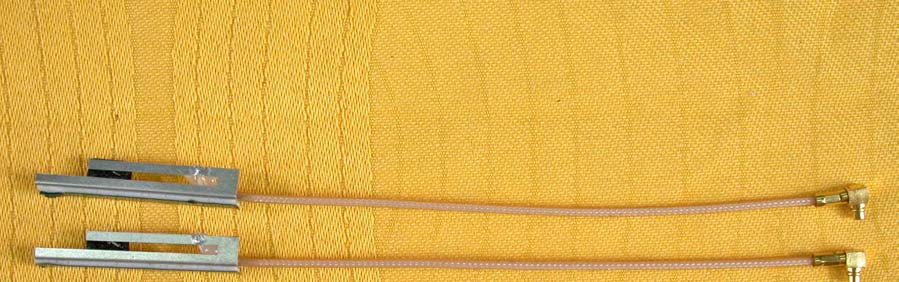

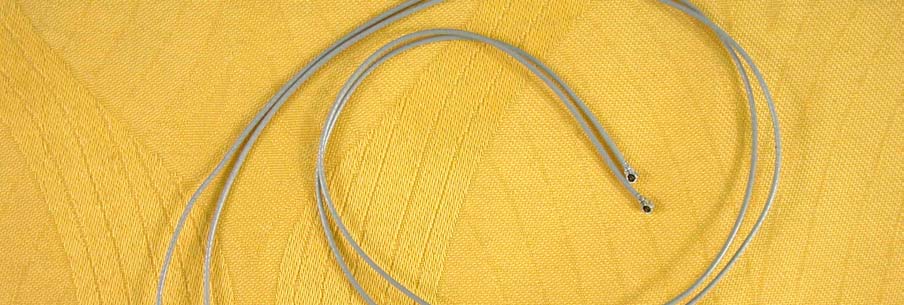

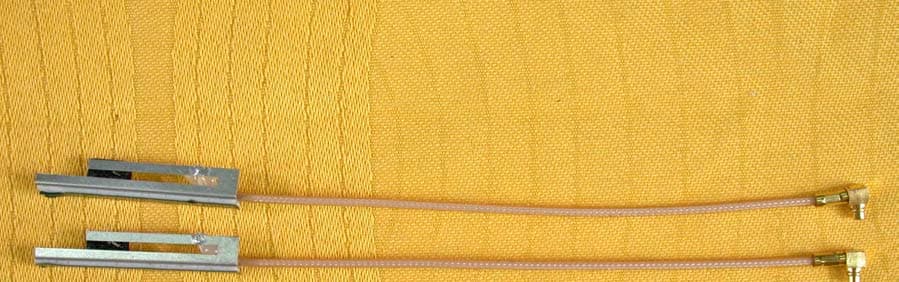

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

Page 7 Page 8

FCC ID: O7J-GL2422MP-0T ADT No.910529R01 Operational Description The transmitter of the EUT is seeking for Limited Module Approval specific to the host equipment such as Access Point and Wireless Router. The antenna types are Dipole antenna, Inverted F antenna, Metal L antenna and Printed antenna. The antenna connector are UFL and MMCX. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate. The bit rates are 1,2,5.5,11,22Mbps, the symbol rates are 1,1,1.375,1.375,1.375 Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8,8,and16 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: O7J-GL2422MP-0T ADT No.: 910529R01 FCC TEST REPORT REPORT NO.: RF910529R01 MODEL NO.: GL2422MP-0T ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:GLOBAL SUN TECHNOLOGY, INC. ADDRESS: No.13, Tung Yuan Rd., Jung Li Industrial Park, Jung Li City, Tao Yuan Hsien, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: O7J-GL2422MP-0T ADT No.: 910529R01 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: O7J-GL2422MP-0T ADT No.: 910529R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: O7J-GL2422MP-0T ADT No.: 910529R01 5. Test Results 5.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5 dBi or 3.16 (numeric). 5.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241230.482.77 6243729.922.74 11246230.202.76 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20cm separation distance with the antenna.

FCC ID: O7J-GL2422MP-0T Report No.: RF910529R011Issued: June 8, 2002 FCC TEST REPORT REPORT NO.: RF910529R01 MODEL NO.: GL2422MP-0T RECEIVED: May 29, 2002 TESTED: May 30 ~ June 7, 2002 APPLICANT: GLOBAL SUN TECHNOLOGY, INC. ADDRESS: NO.13 Tung Yuan Rd., Jung Li Industrial Park Jung Li City, Tao Yuan Hsien, Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 106 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: O7J-GL2422MP-0T Report No.: RF910529R012Issued: June 8, 2002 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 48 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 48 4.2.2TEST INSTRUMENTS ................................................................................ 49 4.2.3TEST PROCEDURES................................................................................. 50 4.2.4TEST SETUP .............................................................................................. 51 4.2.5EUT OPERATING CONDITIONS................................................................ 51 4.2.6TEST RESULTS.......................................................................................... 52 4.36dB BANDWIDTH MEASUREMENT .......................................................... 82 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 82 4.3.2TEST INSTRUMENTS ................................................................................ 82 4.3.3TEST PROCEDURE ................................................................................... 83 4.3.4TEST SETUP .............................................................................................. 83 4.3.5EUT OPERATING CONDITIONS................................................................ 83 4.3.6TEST RESULTS.......................................................................................... 84 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 88 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 88 4.4.2TEST INSTRUMENTS ................................................................................ 88 4.4.3TEST PROCEDURES................................................................................. 89 4.4.4TEST SETUP .............................................................................................. 89 4.4.5EUT OPERATING CONDITIONS................................................................ 89 FCC ID: O7J-GL2422MP-0T Report No.: RF910529R013Issued: June 8, 2002 4.4.6TEST RESULTS.......................................................................................... 90 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 91 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 91 4.5.2TEST INSTRUMENTS ................................................................................ 91 4.5.3TEST PROCEDURE ................................................................................... 92 4.5.4TEST SETUP .............................................................................................. 92 4.5.5EUT OPERATING CONDITIONS................................................................ 92 4.5.6TEST RESULTS.......................................................................................... 93 4.6BAND EDGES MEASUREMENT ................................................................ 97 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 97 4.6.2TEST INSTRUMENTS ................................................................................ 97 4.6.3TEST PROCEDURE ................................................................................... 97 4.6.4EUT OPERATING CONDITION .................................................................. 98 4.6.5TEST RESULTS.......................................................................................... 98 4.7ANTENNA REQUIREMENT.......................................................................101 4.7.1STANDARD APPLICABLE ................…
