54Mbps Wireless Network Access Point USER’S MANUAL Model Name: GL2454AP-QA Version: 1.1 Date: 11/11/03 Contents 1. Overview................................................................................................................3 1.1 Product Feature ..........................................................................................3 1.2 System Requirements.................................................................................3 2. Getting Start ...........................................................................................................3 2.1 Know the 54Mbps Wireless Network Access Point ..................................3 2.2 Connect to the 54Mbps Wireless Network Access Point...........................4 2.3 Quick Setup with Wizard ...........................................................................4 2.3.1 Access the Setting Menu................................................................4 2.3.2 Setup with Wizard..........................................................................7 3. Configuration .......................................................................................................10 3.1 Status........................................................................................................10 3.2 Basic Setting ............................................................................................12 3.3 IP Setting..................................................................................................13 3.4 Advanced Setting .....................................................................................14 3.5 Security ....................................................................................................16 3.6 802.1x.......................................................................................................17 3.7 Tools.........................................................................................................18 4. Glossary ...............................................................................................................19 1. Overview 1.1 Product Feature Compliance with IEEE 802.11g and 802.11b standards Highly efficient design mechanism to provide unbeatable performance Achieving data rate up to 54Mbps for 802.11g and 11Mps for 802.11b with wide range coverage Strong network security with WEP and 802.1X encryption Quick and easy setup with Web-based management utility. 1.2 System Requirements Windows 98, 98SE, Millennium Edition (ME), 2000 and XP operating systems Microsoft Internet Explorer 5.5 or higher One CD-ROM drive At least one RJ-45 Ethernet network adapter installed. 2. Getting Start 2.1 Know the 54Mbps Wireless Network Access Point Ports: ● Power Receptor ● Reset Button ● RJ-45 Ethernet Port Straight through cable is required to connect with router or switch Cross-over cable is required to connect to computer directly LEDs: ● Power LED: ON when the unit is powered up ● LAN LED: ON indicates LAN connection; BLINK indicates LAN activity ● WLAN LED: ON indicates WLAN is working; BLINK indicates wireless activity. 2.2 Connect to the 54Mbps Wireless Network Access Point Build the Infrastructure Mode In order to setup an Infrastructure of a wireless network such as the example shown above, you will need the following: 1. A broadband Internet connection. 2. ADSL or Cable modem provided by your ISP as part of the broadband connection installation. 3. A Router that connects to the ADSL/Cable modem for Internet connection sharing. 4. An Access Point to connect with the Router to form a wireless infrastructure network. 5. Wireless clients equipped with wireless networking devices such as wireless PC Card for wireless connection. 2.3 Quick Setup with Wizard 2.3.1 Access the Setting Menu You could start to access the configuration menu anytime by opening a web browser window by typing the IP address of this access point. The default IP is 192.168.1.1. The below window will popup. Please enter the user name and password. Both of the default is “admin”. Now, the main menu screen is popup. 2.3.2 Setup with Wizard Setup wizard is provided as the part of the web configuration utility. You can simply follow the step-by-step process to get your Access Point configuration ready to run in 4 easy steps by clicking on the “Wizard” button on the function menu. The following screen will appear. Please click “Next” to continue. Step 1: Set Password You can change the password as you like and then click “Next” to continue. Step2: Set WLAN Connection Please type the name of SSID you like and select the channel. Then, click “Next” to continue. Step 3: Set WEP Encryption If you like to enable WEP, please click “Enabled”. Then, select the key size of WEP encryption and enter the key value in the key text box. Please click “Next” to continue. Step 4: Restart The Setup wizard is now completed. The new settings will be effective after the Access Point restarted. Please click “Restart” to reboot the Access Point. If you do not want to make any changes, please click “exit” to quit without any changes. You also can go back to modify the setting by clicking “Back”. 3. Configuration 3.1 Status This page as below shows you the following information. Firmware Version: Shows the current firmware version. LAN: Shows the Mac address, IP address (default: 192.168.1.1), Subnet Mask, Gateway Address. The current LAN traffic calculated in terms of number of packets sent and received by AP through wired connection is also displayed. Wireless: Shows the Mac address, current ESSID, the status of Encryption Function (Enable or Disable), the current using channel. The current wireless traffic calculated in terms of number of packets sent and received by AP through wireless communication is also displayed. View Log: Upon clicked, the page will change to log page. The log page records every event and the time that it happens. You may clear the entries recorded in the log by clicking the “C…

Text truncated - open the document above for the full version.

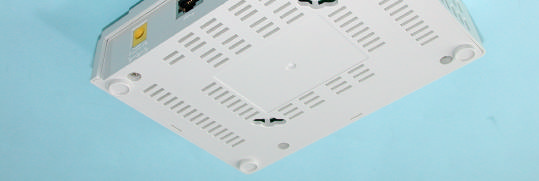

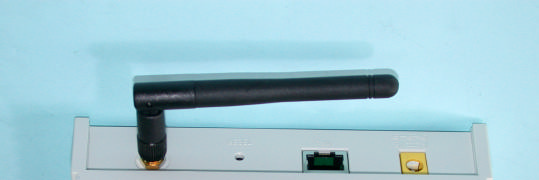

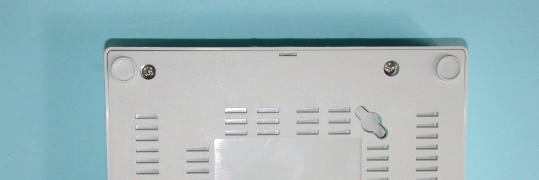

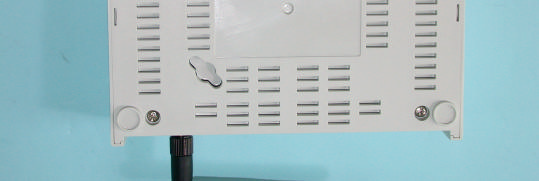

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 2 FCC Label Location

O7J-GL2454AP-QA Tested To Comply With FCC Standards FOR HOME OR OFFICE USE GL2454AP-QA

Page 5 Page 6 Page 7 Page 8

Page 9 Page 10 Page 11

FCC ID: O7J-GL2454AP-QA Report No. RF920923R01A Operational Description This device operates in the 2.4Ghz frequency band. The maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by power adapter. The antenna type is Dipole antenna without connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: O7J-GL2454AP-QA Report No: RF920923R01A 1 FCC TEST REPORT REPORT NO.: RF920923R01A MODEL NO.: GL2454AP-QA BRAND NO.: GLOBAL SUN RECEIVED: Sept. 23, 2003 TESTED: Sept. 23, 2003 ~ Oct. 7, 2003 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:GLOBAL SUN TECHNOLOGY INC. ADDRESS:NO.13 Tung Yuan Rd., Jung Li Industrial Park Jung Li City, Tao Yuan Hsien, Taiwan ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: O7J-GL2454AP-QA Report No: RF920923R01A 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: O7J-GL2454AP-QA Report No: RF920923R01A 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, for normal use, it is easy to be re- located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: O7J-GL2454AP-QA Report No: RF920923R01A 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric). 6.2 Output Power Into Antenna & MPE value at distance 20cm: Mode CCK Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241249.4310.0161.0 6243749.6590.0161.0 11246249.2040.0161.0 Mode OFDM Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241242.0730.0131.0 6243742.8550.0141.0 11246244.0550.0241.0

FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A1Issued: Nov. 10, 2003 Reference No.: RF920923R01 FCC TEST REPORT REPORT NO.: RF920923R01A MODEL NO.: GL2454AP-QA (refer to page 6 for other models) BRAND NO.: GLOBAL SUN (refer to page 6 for other brands) RECEIVED: NA TESTED: Sept. 23, 2003 ~ Oct. 7, 2003 APPLICANT:GLOBAL SUN TECHNOLOGY INC. ADDRESS:NO.13 Tung Yuan Rd., Jung Li Industrial Park Jung Li City, Tao Yuan Hsien, Taiwan ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A2Issued: Nov. 10, 2003 Reference No.: RF920923R01 Table of Contents 1CERTIFICATION..........................................................................................4 2SUMMARY OF TEST RESULTS..................................................................5 3GENERAL INFORMATION...........................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................6 3.2DESCRIPTION OF TEST MODES...............................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..............................7 3.4DESCRIPTION OF SUPPORT UNITS.........................................................8 3.5CONFIGURATION OF SYSTEM UNDER TEST..........................................9 4TEST TYPES AND RESULTS....................................................................10 4.1CONDUCTED EMISSION MEASUREMENT.............................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT...........................10 4.1.2TEST INSTRUMENTS...............................................................................10 4.1.3TEST PROCEDURES................................................................................11 4.1.4DEVIATION FROM TEST STANDARD......................................................11 4.1.5TEST SETUP.............................................................................................12 4.1.6EUT OPERATING CONDITIONS...............................................................12 4.1.7TEST RESULTS.........................................................................................13 4.2RADIATED EMISSION MEASUREMENT..................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................19 4.2.2TEST INSTRUMENTS...............................................................................20 4.2.3TEST PROCEDURES................................................................................21 4.2.4DEVIATION FROM TEST STANDARD......................................................21 4.2.5TEST SETUP.............................................................................................22 4.2.6EUT OPERATING CONDITIONS...............................................................22 4.2.7TEST RESULTS.........................................................................................23 4.36dB BANDWIDTH MEASUREMENT..........................................................30 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT.......................................30 4.3.2TEST INSTRUMENTS...............................................................................30 4.3.3TEST PROCEDURE..................................................................................30 4.3.4DEVIATION FROM TEST STANDARD......................................................30 4.3.5TEST SETUP.............................................................................................31 4.3.6EUT OPERATING CONDITIONS...............................................................31 FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A3Issued: Nov. 10, 2003 Reference No.: RF920923R01 4.3.7TEST RESULTS.........................................................................................32 4.4MAXIMUM PEAK OUTPUT POWER.........................................................40 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........40 4.4.2TEST INSTRUMENTS...............................................................................40 4.4.3TEST PROCEDURES................................................................................41 4.4.4DEVIATION FROM TEST STANDARD......................................................41 4.4.5TEST SETUP.............................................................................................41 4.4.6EUT OPERATING CONDITIONS...............................................................41 4.4.7TEST RESULTS.........................................................................................42 4.5POWER SPECTRAL DENSITY MEASUREMENT.....................................43 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..................43 4.5.2TEST INSTRUMENTS...............................................................................43 4.5.3TEST PROCEDURE..................................................................................44 4.5.4DEVIATION FROM TEST STANDARD......................................................44 4.5.5TEST SETUP.............................................................................................44 4.5.6EUT OPERATING CONDITIONS...............................................................44 4.5.7TEST RESULTS.........................................................................................45 4.6BAND EDGES MEASUREMENT...............................................................53 4.6.1LIMITS OF BAND EDGES MEASUREMENT......................…

Text truncated - open the document above for the full version.

FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A51Issued: Nov. 10, 2003 Reference No.: RF920923R01 CH6 FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A52Issued: Nov. 10, 2003 Reference No.: RF920923R01 CH11 FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A53Issued: Nov. 10, 2003 Reference No.: RF920923R01 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz for CCK technique and RBW = 1MHz and VBW = 300Hz for OFDM technique with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A54Issued: Nov. 10, 2003 Reference No.: RF920923R01 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 4.6.6 TEST RESULTS The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE 1: The band edge emission plot of the CCK technique on the following two pages show 54.07dB/56.09dB delta between carrier maximum power and local maximum emission in restrict band (2.3840GHz/2.4839GHz). The emission of carrier strength list in the test result of channel 1 and 11 at the item 4.2.7 are 101.70dBuV/m and 101.20dBuV/m, so the maximum field strength in restrict band is 101.70-54.07=47.63dBuV/m which is under 54dBuV/m limit. FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A55Issued: Nov. 10, 2003 Reference No.: RF920923R01 FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A56Issued: Nov. 10, 2003 Reference No.: RF920923R01 FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A57Issued: Nov. 10, 2003 Reference No.: RF920923R01 NOTE 2: The band edge emission plot of the OFDM technique on the following two pages show 49.39dB/48.39dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz/2.4837GHz). The emission of carrier strength list in the test result of channel 1 and 11 at the item 4.2.7 are 99.80dBuV/m and 100.30dBuV/m, so the maximum field strength in restrict band is 100.3-48.39=51.91dBuV/m which is under 54dBuV/m limit. FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A58Issued: Nov. 10, 2003 Reference No.: RF920923R01 FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A59Issued: Nov. 10, 2003 Reference No.: RF920923R01 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION The antenna type used in this product is Dipole Antenna without antenna connector. The maximum Gain of this antenna is only 2dBi. FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A60Issued: Nov. 10, 2003 Reference No.: RF920923R01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A61Issued: Nov. 10, 2003 Reference No.: RF920923R01 RADIATED EMISSION TEST FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A62Issued: Nov. 10, 2003 Reference No.: RF920923R01 6 INFORMATION ON THE TESTING LABORATORIES We, ADT Corp., were founded in 1988 to provide our best service in EMC and Safety consultation. Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025, Guide 25 or EN 45001: USAFCC, NVLAP GermanyTUV Rheinland JapanVCCI New ZealandMoC NorwayNEMKO R.O.C.BSMI, DGT, CNLA Copies of accreditation certificates of our laboratories obtained from approval agencies can be downloaded from our web site: www.adt.com.tw/index.5/phtml. If you have any comments, please feel free to contact us at the following: Lin Kou EMC Lab: Tel: 886-2-26052180 Fax: 886-2-26052943 Hsin Chu EMC Lab: Tel: 886-35-935343 Fax: 886-35-935342 Lin Kou Safety Lab: Tel: 886-2-26093195 Fax: 886-2-26093184 Lin Kou RF&Telecom Lab Tel: 886-3-3270910 Fax: 886-3-3270892 Email: [email protected] Web Site: www.adt.com.tw The address and road map of all our labs can be found in our web site also.

FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A60Issued: Nov. 10, 2003 Reference No.: RF920923R01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: O7J-GL2454AP-QA Report No.: RF920923R01A61Issued: Nov. 10, 2003 Reference No.: RF920923R01 RADIATED EMISSION TEST
