54Mbps Wireless Network PCI Adapter USER’S MANUAL Model Name: GL2454VP-1A Version: 1.0 Date: 11/11/03 Contents 1. Introduction............................................................................................................3 1.1 Product Feature..........................................................................................3 1.2 System Requirement..................................................................................3 2. Getting Start...........................................................................................................3 2.1 LED Indicators...........................................................................................3 2.2 Install the 54Mbps Wireless Network PCI Adapter...................................3 2.2.1 Utility Installation..........................................................................3 2.2.2 Driver Installation..........................................................................7 3. Configuration.............................................................................................................9 3.1 Link Information..............................................................................................9 3.2 Configuration.................................................................................................10 3.3 Advance..........................................................................................................12 3.4 Site Survey.....................................................................................................13 3.5 About US........................................................................................................15 4. Glossary...................................................................................................................16 1. Introduction 1.1 Product Feature Compliance with IEEE 802.11g and 802.11b standards Highly efficient design mechanism to provide unbeatable performance Achieving data rate up to 54Mbps for 802.11g and 11Mps for 802.11b with wide range coverage Strong network security with WEP and WPA support Auto-switch between the two standards, IEEE 802.11b and 802.11g Driver/Utility support most commonly used operating systems including Windows 98SE/ME/200/XP. 1.2 System Requirement Windows 98, 98SE, Millennium Edition (ME), 2000 and XP operating systems PC with Pentium III 600MHz system or above is recommended Equipped with at least one PCI slot. One CD-ROM drive 2. Getting Start 2.1 LED Indicators The LED will be ON when the unit is powered up. The LED will be Blinking indicates a WLAN connection. 2.2 Install the 54Mbps Wireless Network PCI Adapter 2.2.1 Utility Installation 1. Before insert PCI Adapter into the PCI slot of your computer, please install the Utility Program first. Make sure that the 54Mbps wireless Network PCI Adapter is NOT inserted into the cardbus slot. NOTE: all the snapped images of installation mentioned in this manual are based on Windows XP. For other windows operating system, all the procedures are the same but the screens are not the exactly same. 2. Turn on the computer. Insert the CD into the CD-ROM Drive. Please select “PC Card/ PCI Card” and then click the “Install”. 3. InstallShield Wizard will automatically start. Please click “Next” to continue. 4. Please click “Finish” 5. Please make sure TURN OFF your computer and remove the power cord from your PC. Open the computer case and then please insert the 54Mbps Wireless PCI Adapter into the empty PCI slot of your computer system. Once the 54Mbps Wireless PCI Adapter is installed, place the computer case back. Turn ON your computer. 2.2.2 Driver Installation 1. Please select the second option and click “Next”. 2. Please click “Continue Anyway” 3. Please click “Finish” 4. To make sure if the installation is successful, you could check it through the device management. 5. Once the installation is successful, a utility program icon will show on your desktop. To lunch the utility, just double click the icon. 3. Configuration 3.1 Link Information The default page is as below after you launch the Utility program. Status: Shows the BSSID associated, which can be used to identify the wireless network. SSID: Shows current SSID, which must be the same for the wireless client and AP in order for communication to be established. Frequency: Shows the current frequency used for wireless network. Wireless Mode: Shows the current wireless mode used for wireless communication. Encryption: Shows the current encryption mode used for wireless network. TxRate: Shows the current data rate used for transmitting. Channel: Shows the current channel for communication. Link Quality: Shows the link quality of the 54Mbps wireless network PCI Adapter with the Access Point when operating under Infrastructure mode. Signal Strength: Shows the wireless signal strength of the connection between the 54Mbps wireless network PCI Adapter with the Access Point. Data Rate: Shows the statistics of data transfer, and the calculation is based on the number of packets transmitted and received. 3.2 Configuration This is the page where you can change the basic settings of the Access Point with the minimum amount of effort to implement a secure wireless network environment. SSID: Service Set Identifier, which is a unique name shared among all clients and nodes in a wireless network. The SSID must be identical for each clients and nodes in the wireless network. Wireless Mode: There are two types available for selection ●Infrastructure – to establish wireless communication with LAN and other wireless clients through the use the Access Points. ●Ad-Hoc – to establish point-to-point wireless communication directly with other wireless client devices such as wireless network PCI Adapter. AdHoc Band: There are two bands available for selection- 11B and 11G Channel: The value of channel that AP will operate in. You can select the channel range of 1 to 11 for North America (FCC) domai…

Text truncated - open the document above for the full version.

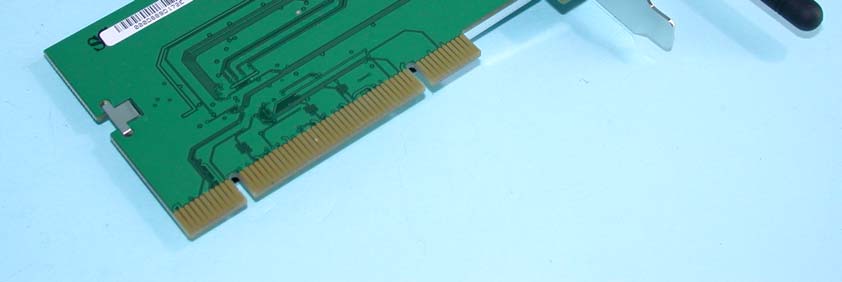

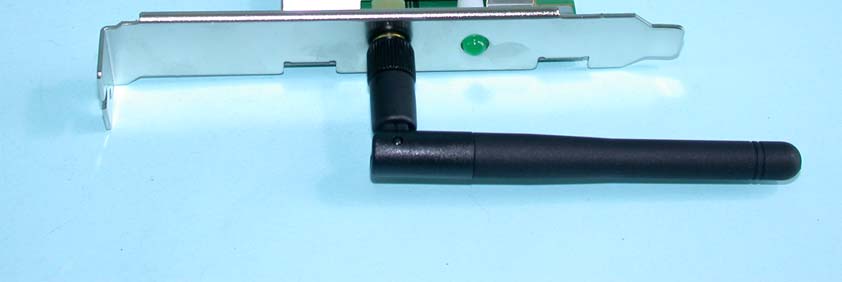

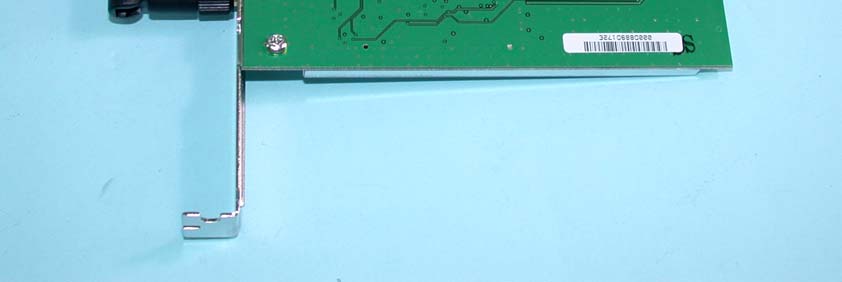

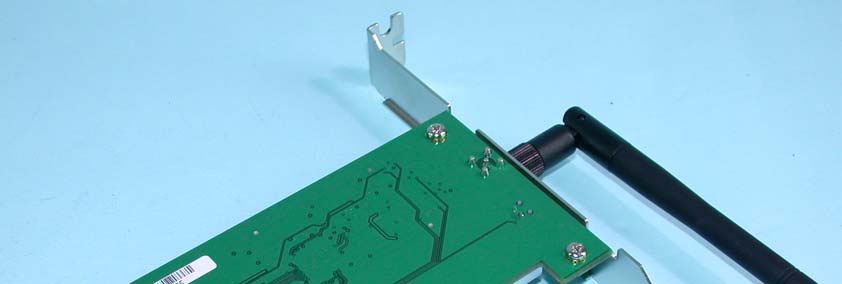

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID Label Location

Tested To Comply With FCC Standards Made in Taiwan Rating: 5V FOR HOME OR OFFICE USE 0560 MAC: Model: GL2454VP-1A FCC ID: O7J-GL2454VP-1A

Page 4 Page 5 Page 6

FCC ID: O7J-GL2454VP-1A Report No.920917R01A Operational Description This device is a 802.11g 54M PCI Adapter which operates in the 2.4Ghz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCI interface. The antenna is Dipole antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: O7J-GL2454VP-1A Report No.: 920917R01A RF EXPOSURE REPORT REPORT NO.: RF920917R01A MODEL NO.: GL2454VP-1A ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: GLOBAL SUN TECHNOLOGY INC. ADDRESS: NO.13 Tung Yuan Rd., Jung Li Industrial Park Jung Li City, Tao Yuan Hsien, Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: O7J-GL2454VP-1A Report No.: 920917R01A RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm-separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: O7J-GL2454VP-1A Report No.: 920917R01A LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at the distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: O7J-GL2454VP-1A Report No.: 920917R01A 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric). 6.2 Output Power Into Antenna & RF Exposure at distance 20cm: For 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241241.6870.0131.0 6243756.2340.0181.0 11246242.1700.0131.0 For 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241253.0880.0171.0 6243763.0960.0201.0 11246256.2340.0181.0

FCC ID: O7J-GL2454VP-1A Report No.: RF920917R01A1Issued: November 10, 2003 Reference No.: RF920917R01 FCC TEST REPORT REPORT NO.: RF920917R01A MODEL NO.: GL2454VP-1A (For other model names please refer to page 6) RECEIVED: NA TESTED: September 17 ~ September 18, 2003 APPLICANT: GLOBAL SUN TECHNOLOGY INC. ADDRESS: NO.13 Tung Yuan Rd., Jung Li Industrial Park Jung Li City, Tao Yuan Hsien, Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 65 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: O7J-GL2454VP-1A Report No.: RF920917R01A2Issued: November 10, 2003 Reference No.: RF920917R01 Table of Contents 1CERTIFICATION ........................................................................................ 4 2SUMMARY OF TEST RESULTS................................................................ 5 3GENERAL INFORMATION ........................................................................ 6 3.1GENERAL DESCRIPTION OF EUT........................................................... 6 3.2DESCRIPTION OF TEST MODES............................................................. 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................ 7 3.4DESCRIPTION OF SUPPORT UNITS ....................................................... 8 4TEST TYPES AND RESULTS.................................................................. 10 4.1CONDUCTED EMISSION MEASUREMENT ........................................... 10 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................... 10 4.1.2 TEST INSTRUMENTS ............................................................................. 10 4.1.3 TEST PROCEDURES.............................................................................. 11 4.1.4 DEVIATION FROM TEST STANDARD .................................................... 11 4.1.5 TEST SETUP ........................................................................................... 12 4.1.6 EUT OPERATING CONDITIONS............................................................. 12 4.1.7 TEST RESULTS....................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................ 19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.............................. 19 4.2.2 TEST INSTRUMENTS ............................................................................. 20 4.2.3 TEST PROCEDURES.............................................................................. 21 4.2.4 DEVIATION FROM TEST STANDARD .................................................... 21 4.2.5 TEST SETUP ........................................................................................... 22 4.2.6 EUT OPERATING CONDITIONS............................................................. 22 4.2.7 TEST RESULTS....................................................................................... 23 4.36dB BANDWIDTH MEASUREMENT ....................................................... 31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ..................................... 31 4.3.2TEST INSTRUMENTS ............................................................................. 31 4.3.3TEST PROCEDURE ................................................................................ 32 4.3.4DEVIATION FROM TEST STANDARD .................................................... 32 4.3.5TEST SETUP ........................................................................................... 32 4.3.6EUT OPERATING CONDITIONS............................................................. 32 4.3.7TEST RESULTS....................................................................................... 33 FCC ID: O7J-GL2454VP-1A Report No.: RF920917R01A3Issued: November 10, 2003 Reference No.: RF920917R01 4.4MAXIMUM PEAK OUTPUT POWER ....................................................... 41 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........ 41 4.4.2TEST INSTRUMENTS ............................................................................. 41 4.4.3TEST PROCEDURES.............................................................................. 42 4.4.4DEVIATION FROM TEST STANDARD .................................................... 42 4.4.5TEST SETUP ........................................................................................... 42 4.4.6EUT OPERATING CONDITIONS............................................................. 42 4.4.7TEST RESULTS....................................................................................... 43 4.5POWER SPECTRAL DENSITY MEASUREMENT................................... 45 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................ 45 4.5.2TEST INSTRUMENTS ............................................................................. 45 4.5.3TEST PROCEDURE ................................................................................ 46 4.5.4DEVIATION FROM TEST STANDARD .................................................... 46 4.5.5TEST SETUP ........................................................................................... 46 4.5.6EUT OPERATING CONDITIONS............................................................. 46 4.5.7TEST RESULTS....................................................................................... 47 4.6BAND EDGES MEASUREMENT ............................................................. 55 4.6.1LIMITS OF BAND EDGES MEASUREMENT.......................................... 55 4.6.2TEST INSTRUMENTS ....................................................................…

Text truncated - open the document above for the full version.

FCC ID: O7J-GL2454VP-1A Report No.: RF920917R01A63Issued: November 10, 2003 Reference No.: RF920917R01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: O7J-GL2454VP-1A Report No.: RF920917R01A64Issued: November 10, 2003 Reference No.: RF920917R01 RADIATED EMISSION TEST
