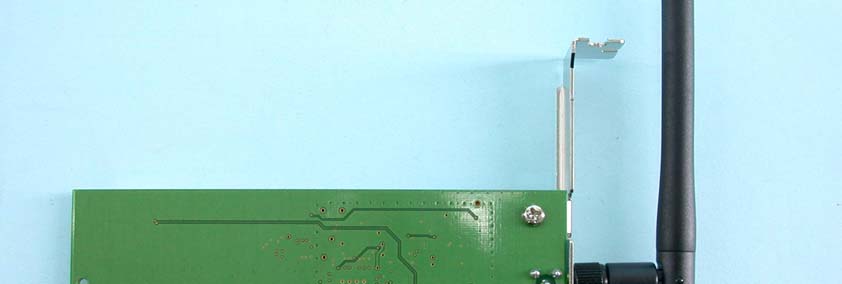

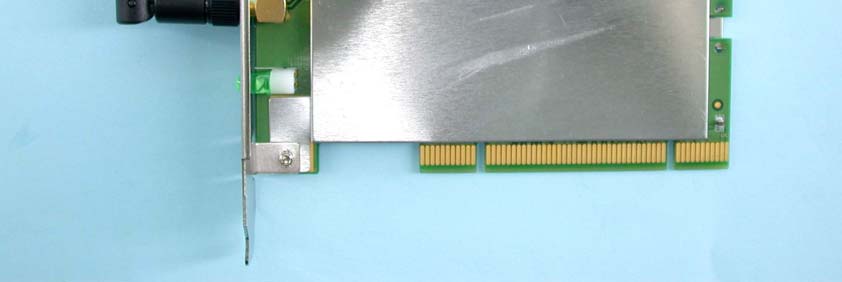

Page 1 CONSTRUCTION PHOTOS OF EUT GLOBAL SUN GL2454VP-2A 921204R02

LABEL LOCATION FOR FCC ID

Page 2 Page 3 Page 4 Page 5

FCC ID: O7J-GL2454VP-2A Report No.921204R02 Operational Description This device is a 108Mbps Wireless LAN PCI Card which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique (turbo mode:108Mbps) will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCI interface. The antenna is Dipole antenna with Reversed SMA connector. The other instruction, please have a look at the users manual.

FCC ID: O7J-GL2454VP-2A Report No: 921204R02 1 RF EXPOSURE REPORT REPORT NO.: RF921204R02 MODEL NO.: GL2454VP-2A (for other models please refer to FCC test report) ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Global Sun Technology, Inc. ADDRESS: No.13, Tung Yuan Rd., Jung Li Industrial Park, Jung Li City, Taoyuan Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: O7J-GL2454VP-2A Report No: 921204R02 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: O7J-GL2454VP-2A Report No: 921204R02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: O7J-GL2454VP-2A Report No: 921204R02 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241279.800.0251.0 6243777.980.0251.0 11246277.630.0241.0 For 802.11g (Normal mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.680.0201.0 6243764.570.0201.0 11246264.570.0201.0 For 802.11g (Turbo mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243768.230.0221.0

FCC ID: O7J-GL2454VP-2A Report No.: RF921204R021Issued: December 11, 2003 FCC TEST REPORT REPORT NO.: RF921204R02 MODEL NO.: GL2454VP-2A (for other models please refer to page 6) RECEIVED: Nov. 27, 2003 TESTED: Nov. 27 ~ Dec. 9, 2003 APPLICANT: Global Sun Technology, Inc. ADDRESS: No.13, Tung Yuan Rd., Jung Li Industrial Park, Jung Li City, Taoyuan Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 72 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: O7J-GL2454VP-2A Report No.: RF921204R022Issued: December 11, 2003 Table of Contents 1CERTIFICATION ..................................................................................................................... 4 2SUMMARY OF TEST RESULTS ............................................................................................ 5 3GENERAL INFORMATION ..................................................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ....................................................................................... 6 3.2DESCRIPTION OF TEST MODES ......................................................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................ 7 3.4DESCRIPTION OF SUPPORT UNITS ................................................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST .................................................................... 9 4TEST TYPES AND RESULTS............................................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT ....................................................................... 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................................... 10 4.1.2TEST INSTRUMENTS ..........................................................................................................10 4.1.3TEST PROCEDURES............................................................................................................11 4.1.4DEVIATION FROM TEST STANDARD..................................................................................11 4.1.5TEST SETUP ........................................................................................................................ 12 4.1.6EUT OPERATING CONDITIONS ......................................................................................... 12 4.1.7TEST RESULTS .................................................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT............................................................................. 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT .......................................................... 19 4.2.2TEST INSTRUMENTS ..........................................................................................................20 4.2.3TEST PROCEDURES...........................................................................................................21 4.2.4DEVIATION FROM TEST STANDARD................................................................................. 21 4.2.5TEST SETUP ........................................................................................................................ 22 4.2.6EUT OPERATING CONDITIONS ......................................................................................... 22 4.2.7TEST RESULTS .................................................................................................................... 23 4.2.8TEST RESULTS (A) .............................................................................................................. 25 4.2.9TEST RESULTS (B) .............................................................................................................. 28 4.36dB BANDWIDTH MEASUREMENT .................................................................................... 32 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................. 32 4.3.2TEST INSTRUMENTS ..........................................................................................................32 4.3.3TEST PROCEDURE .............................................................................................................32 4.3.4DEVIATION FROM TEST STANDARD................................................................................. 33 4.3.5TEST SETUP ........................................................................................................................ 33 4.3.6EUT OPERATING CONDITIONS ......................................................................................... 33 4.3.7TEST RESULTS (A) .............................................................................................................. 34 4.3.8TEST RESULTS (B) .............................................................................................................. 38 4.4MAXIMUM PEAK OUTPUT POWER.................................................................................... 44 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .................................... 44 4.4.2TEST INSTRUMENTS ..........................................................................................................44 4.4.3TEST PROCEDURES...........................................................................................................45 4.4.4DEVIATION FROM TEST STANDARD..............…
