O7J-GL2BSS75Bluetooth Stereo Transmitter Adapter

Bluetooth Wireless Speaker Users Manual CONTENTS 1. Product General Information ................................................................................2 1.1 Production Description .................................................................................2 2. Product General Specifications ............................................................................2 2.1 General Specifications ..................................................................................2 2.2 Function Indicators/Interface ..........................................................................3 3. Regulation Compliance .......................................................................................5 4. Environment Requirement ...................................................................................5 4.1 Drop and Vibration .......................................................................................5 4.1.1 Anti-Static Voltage .............................................................................5 4.1.2 Vibration Test ...................................................................................5 4.1.3 Package Drop Test ............................................................................5 4.2 Usage Condition ..........................................................................................5 4.2.1 Temperature Range ...........................................................................5 4.2.2 Temperature Shock ...........................................................................5 4.2.3 Humidity ..........................................................................................5 5. Instructions ......................................................................................................6 5.1 How to connect ...........................................................................................6 1. Product General Information 1.1 Product Description GL2BSS75, the Stereo Receiver with Audio-out jack and GL2BSI75 the Stereo Sender with Audio-In jack for Multimedia Speaker in wireless (Bluetooth enabled) or rear speakers of 5.1 channel. The application scenario is shown the wireless audio streaming to be built as cable-free on supporting 3D quality level of MP3, AC3 and WMA. In terms of combination with multimedia or 5.1 channel speaker on Stereo sound in wireless, the technology of Bluetooth in frequency hopping is much more reliable on streaming and interference avoidance. Plug n play mechanism is the key of accessing to media application. The stereo Audio receiver/sender enables Plug n Play mechanism on connecting to CD Player or PC BT stereo transmitter set automatically. The set configuration would help user on experiencing Stereo with Bluetooth (wireless) without setting trouble and. And good quality of 3D sound will initialize audio streaming into consumer electronics successfully. 2. Product General 2.1 General Specifications Standards: Bluetooth v1.1 Compliant Chipset: GCT GDM 1202 Bluetooth Digital Audio Streaming IC Integrated 128MHz embedded processor to support digital audio codec Integrated analog combo codec supporting dual mode operation of 16-bits 32/44.1/48KHz stereo audio DAC (for Audio-in/out set) GCT GDM 1002 Bluetooth Zero-IF Radio Transmitter IC Module dimension : 30 x 24 x 2.0 mm Emission Type Frequency Hopping Spread Spectrum (FHSS) RF Frequency 2400MHz – 2483.5 MHz – SA / Europe / Japan 2446.5MHz – 2483.5MHz – France Transmission output power Typically 1 dBm Receiving Sensitivity : Typically -82dBm Antenna : 1 dBi external dipole antenna Channel Numbers : 79 (f= 2402 + k MHz, k = 1, 2 ,...78) 33 (f= 2447 + k MHz, k = 1, 2..,32) Operation Range : Typically 10m, up to 30m Power Consumption Power Voltage - 5 Volt DC+ 10% 500 mA / 5V power adapter Max. 120 mA @ TX Max. 100 mA @ RX Reliability Requirement MTBF est. 25000 hrs 2.2 Function Indicators/Interface a. GL2BSS75: z Indicators： LEDs States Power LED LinkLED Power off Unlighted X Power on Bright X Disconnect X Flash Connect X Bright z Interface： Link LEDPower LED 3.5 Φ Audio OUT Jack ANTENNA Reset DC 5V in GL2BSS75 b. GL2BSI75 z Indicators： LEDs States Power LED LinkLED Power off Unlighted X Power on Bright X Disconnect X Flash Connect X Bright z Interface： Link LEDPower LED 3.5 Φ Audio IN Jack ANTENNA Reset DC 5V in 3. Regulation Compliance Compliantwith Bluetooth Test Specification v1.1 compliant.(To be confirmed) 4. Environment Requirement 4.1 Drop and Vibration 4.1.1 Anti-Static Voltage 4KV air charge, 8KV conductive charge 4.1.2 Vibration Test The vibration test is under the frequency and amplitude 10-25 Hz 1mm in vertical and horizontal direction by 30 minutes that should not cause any damage on product. 4.1.3 Package Drop Test Dropping the package from the height of 50cm for each of the six(6) faces onto the hard-wood floor should not cause any damage on product. 4.2 Usage Condition 4.2.1 Temperature Range Operating 0 to +55°C°C in ambient temperature Storage -20 to +75 °C°C 4.2.2 Temperature Shock 4.2.3 Humidity Humidity 5 ~ 95% 5. Instructions 5.1 How to connect Block diagram: Steps: a. Power on GL2BSS72 and GL2BSI72 b. Insert the audio source cable to GL2BSI72 Audio In jack c. Insert the speaker cable to GL2BSS72 Audio Out jack d. When GL2BSS72 and GL2BSI72 is connect the Link LED will Bright 3.5 Φ Stereo Cable 3.5 Φ Stereo Cable 3.5 Φ Stereo Cable DC 5V in GL2BSS72 GL2BSI72

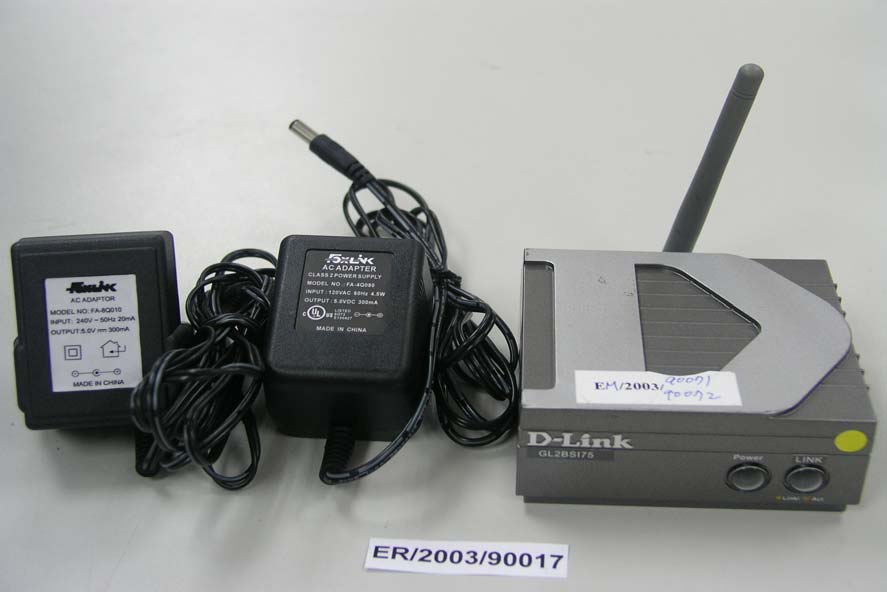

REPORT NO: ER/2003/90017 ID: O7J-GL2BSS75 DATE: Oct. 21, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT REPORT NO: ER/2003/90017 ID: O7J-GL2BSS75 DATE: Oct. 21, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All of EUT Front View of EUT REPORT NO: ER/2003/90017 ID: O7J-GL2BSS75 DATE: Oct. 21, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT Bottom View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Global Sun Technology Inc. FCC ID: O7J-GL2BSS75 FCC ID: O7J-GL2BSS75 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

REPORT NO: ER/2003/90017 ID: O7J-GL2BSS75 DATE: Oct. 21, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT REPORT NO: ER/2003/90017 ID: O7J-GL2BSS75 DATE: Oct. 21, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Internal of EUT -1 REPORT NO: ER/2003/90017 ID: O7J-GL2BSS75 DATE: Oct. 21, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT -2

REPORT NO: ER/2003/90017 ID: O7J-GL2BSS75 DATE: Oct. 21, 2003 Page: 1 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Bluetooth Stereo Adapter Model Name: DSM100 Brand Name: Global Sun FCC ID:O7J-GL2BSS75 REPORT NO: ER/2003/90017 ISSUE DATE: Oct. 21, 2003 Prepared for Global Sun Technology Inc. No 13. Tung Yuan Rd., Jung Li Industrial Park Jung Li City, Taoyuan Hsien,Taiwan , R.O.C. Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. TEL: 886-2-22993939 FAX: 886-2-22982698 Note: This report shall not be reproduced except in full, without the written approval of SGS Tai- wan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. REPORT NO: ER/2003/90017 ID: O7J-GL2BSS75 DATE: Oct. 21, 2003 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: Global Sun Technology Inc. No 13. Tung Yuan Rd., Jung Li Industrial Park Jung Li City, Taoyuan Hsien, Taiwan, R.O.C. Equipment Under Test: Bluetooth Stereo Adapter BRAND NAME: Global Sun FCC ID Number: O7J-GL2BSS75 MODEL No.: DSM100 Model Difference: N/A File Number: ER/2003/90017 Date of test: Oct. 02, 2003 ~ Oct. 17, 2003 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Oct. 21, 2003 Alex Hsieh Approved By Date Oct. 21, 2003 Vincent Su REPORT NO: ER/2003/90017 ID: O7J-GL2BSS75 DATE: Oct. 21, 2003 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION .........................................................................................................5 1.1 Product Description ............................................................................................................................5 1.2 Related Submittal(s) / Grant (s) ..........................................................................................................5 1.3 Test Methodology ...............................................................................................................................5 1.4 Test Facility.........................................................................................................................................5 1.5 Special Accessories .............................................................................................................................5 1.6 Equipment Modifications....................................................................................................................5 2. SYSTEM TEST CONFIGURATION ............................................................................................6 2.1 EUT Configuration .............................................................................................................................6 2.2 EUT Exercise ......................................................................................................................................6 2.3 Test Procedure.....................................................................................................................................6 2.4 Configuration of Tested System..........................................................................................................7 3. SUMMARY OF TEST RESULTS .................................................................................................8 4. DESCRIPTION OF TEST MODES ..............................................................................................8 5. CONDUCTED EMISSION TEST..................................................................................................9 5.1 Standard Applicable ............................................................................................................................9 5.2 EUT Setup...........................................................................................................................................9 5.3 Measurement Procedure......................................................................................................................9 5.4 Measurement Equipment Used: ........................................................................................................10 5.5 Measurement Result..........................................................................................................................10 6. PEAK OUTPUT POWER MEASUREMENT............................................................................13 6.1 Standard Applicable ..................…
