Bluetooth Wireless Speaker Users Manual CONTENTS 1. Product General Information ................................................................................2 1.1 Production Description .................................................................................2 2. Product General Specifications ............................................................................2 2.1 General Specifications ..................................................................................2 2.2 Function Indicators/Interface ..........................................................................3 3. Regulation Compliance .......................................................................................5 4. Environment Requirement ...................................................................................5 4.1 Drop and Vibration .......................................................................................5 4.1.1 Anti-Static Voltage .............................................................................5 4.1.2 Vibration Test ...................................................................................5 4.1.3 Package Drop Test ............................................................................5 4.2 Usage Condition ..........................................................................................5 4.2.1 Temperature Range ...........................................................................5 4.2.2 Temperature Shock ...........................................................................5 4.2.3 Humidity ..........................................................................................5 5. Instructions ......................................................................................................6 5.1 How to connect ...........................................................................................6 1. Product General Information 1.1 Product Description GL2BSS72, the Stereo Receiver with Audio-out jack and GL2BSU75 the Stereo Sender with USB jack for Multimedia Speaker in wireless (Bluetooth enabled) or rear speakers of 5.1 channel. The application scenario is shown the wireless audio streaming to be built as cable-free on supporting 3D quality level of MP3, AC3 and WMA. In terms of combination with multimedia or 5.1 channel speaker on Stereo sound in wireless, the technology of Bluetooth in frequency hopping is much more reliable on streaming and interference avoidance. Plug n play mechanism is the key of accessing to media application. The stereo Audio receiver/sender enables Plug n Play mechanism on connecting to CD Player or PC BT stereo transmitter set automatically. The set configuration would help user on experiencing Stereo with Bluetooth (wireless) without setting trouble and. And good quality of 3D sound will initialize audio streaming into consumer electronics successfully. 2. Product General 2.1 General Specifications Standards: Bluetooth v1.1 Compliant Chipset: GCT GDM 1202 Bluetooth Digital Audio Streaming IC Integrated 128MHz embedded processor to support digital audio codec Integrated analog combo codec supporting dual mode operation of 16-bits 32/44.1/48KHz stereo audio DAC (for Audio-in/out set) GCT GDM 1002 Bluetooth Zero-IF Radio Transmitter IC Module dimension : 30 x 24 x 2.0 mm Emission Type Frequency Hopping Spread Spectrum (FHSS) RF Frequency 2400MHz – 2483.5 MHz – SA / Europe / Japan 2446.5MHz – 2483.5MHz – France Transmission output power Typically 4 dBm Receiving Sensitivity : Typically -82dBm Antenna : 1.5 dBi external dipole antenna Channel Numbers : 79 (f= 2402 + k MHz, k = 1, 2 ,...78) 33 (f= 2447 + k MHz, k = 1, 2..,32) Operation Range : Typically 10m, up to 30m Power Consumption Power Voltage - 5 Volt DC+ 10% 500 mA / 5V power adapter Max. 120 mA @ TX Max. 100 mA @ RX Reliability Requirement MTBF est. 25000 hrs 2.2 Function Indicators/Interface a. GL2BSS72: z Indicators： LEDs States Power LED LinkLED Power off Unlighted X Power on Bright X Disconnect X Flash Connect X Bright z Interface： Link LEDPower LED 3.5 Φ Audio OUT Jack ANTENNA Reset DC 5V in b. GL2BSU75 z Indicators： LEDs States Power LED LinkLED Power off Unlighted X Power on Bright X Disconnect X Flash Connect X Bright z Interface： Link LEDPower LED USB IN 3. Regulation Compliance Compliantwith Bluetooth Test Specification v1.1 compliant.(To be confirmed) 4. Environment Requirement 4.1 Drop and Vibration 4.1.1 Anti-Static Voltage 4KV air charge, 8KV conductive charge 4.1.2 Vibration Test The vibration test is under the frequency and amplitude 10-25 Hz 1mm in vertical and horizontal direction by 30 minutes that should not cause any damage on product. 4.1.3 Package Drop Test Dropping the package from the height of 50cm for each of the six(6) faces onto the hard-wood floor should not cause any damage on product. 4.2 Usage Condition 4.2.1 Temperature Range Operating 0 to +55°C°C in ambient temperature Storage -20 to +75 °C°C 4.2.2 Temperature Shock 4.2.3 Humidity Humidity 5 ~ 95% 5. Instructions 5.1 How to connect Block diagram: Steps: a. Power on GL2BSS72 and GL2BSU75 b. Insert the computer USB cable to GL2BSU75 mini-USB jack c. Insert the speaker cable to GL2BSS72 Audio Out jack d. When GL2BSS72 and GL2BSU75 is connect the Link LED will Bright 3.5 Φ Stereo Cable 3.5 Φ Stereo Cable GL2BSS72 GL2BSU73 7 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if t not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm…

Text truncated - open the document above for the full version.

D BC A 3412 A B C D 1 234 電 路 圖圖形 GLOBAL SUN TECHNOLOGY,INC.陽 慶 電 子 股 份 有 限 公 司 繪 製 確 認 審 核 圖號料號 ANT TONU KUAN MARK TUNG SST39VF400A FLASH ROM GDM1202BASEBAND IC 2.7V REGULATOR1.8V REGULATOR BLOCK DIAGRAM GL2BSU7 D- +5V D+ GL2BMU07 GND TONU KUAN GDM1002 RF IC 3.3V REGULATOR MINI-USB CONNECTOR POWER LEDLINK LED

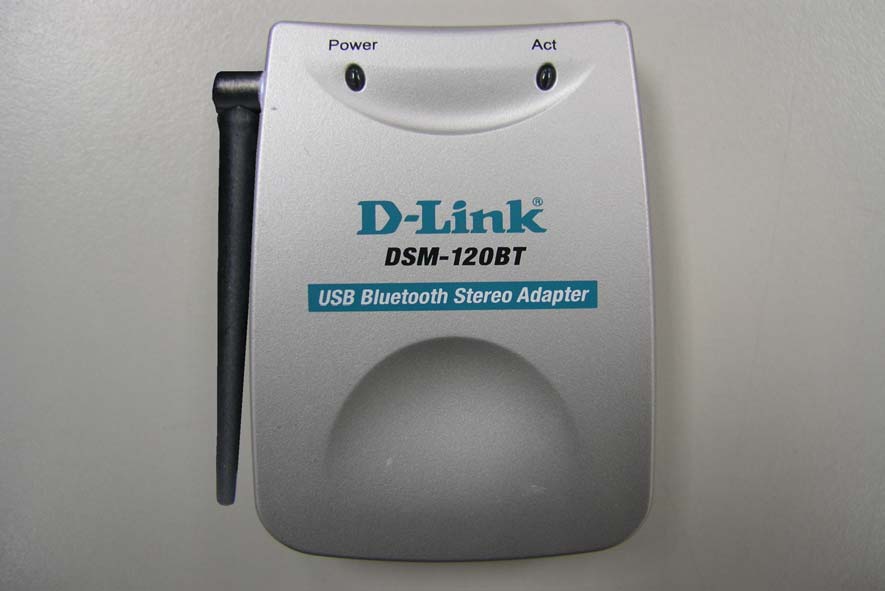

REPORT NO: ER/2003/90022 ID: O7J-GL2BSU75 DATE: Oct. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136 之1 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT REPORT NO: ER/2003/90022 ID: O7J-GL2BSU75 DATE: Oct. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136 之1 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Front View of EUT Back View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Global Sun Technology Inc. FCC ID: O7J-GL2BSU75 FCC ID: O7J-GL2BSU75 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

REPORT NO: ER/2003/90022 ID: O7J-GL2BSU75 DATE: Oct. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136 之1 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT REPORT NO: ER/2003/90022 ID: O7J-GL2BSU75 DATE: Oct. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136 之1 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Internal of EUT -1 REPORT NO: ER/2003/90022 ID: O7J-GL2BSU75 DATE: Oct. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136 之1 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT -2

REPORT NO: ER/2003/90022 ID: O7J-GL2BSU75 DATE: Oct. 20, 2003 Page: 1 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136 之1 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF USB Bluetooth Stereo Adapter Model Name: DSM120 Brand Name: Global Sun FCC ID:O7J-GL2BSU75 REPORT NO: ER/2003/90022 ISSUE DATE: Oct. 20, 2003 Prepared for Global Sun Technology Inc. No 13. Tung Yuan Rd., Jung Li Industrial Park Jung Li City , Taoyuan Hsien,Taiwan , R.O.C. Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. TEL: 886-2-22993939 FAX: 886-2-22982698 Note: This report shall not be reproduced except in full, without the written approval of SGS Tai- wan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. REPORT NO: ER/2003/90022 ID: O7J-GL2BSU75 DATE: Oct. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136 之1 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: Global Sun Technology Inc. No 13. Tung Yuan Rd., Jung Li Industrial Park Jung Li City, Taoyuan Hsien, Taiwan, R.O.C. Equipment Under Test: USB Bluetooth Stereo Adapter BRAND NAME: Global Sun FCC ID Number: O7J-GL2BSU75 MODEL No.: DSM120 Model Difference: N/A File Number: ER/2003/90022 Date of test: Oct. 02, 2003 ~ Oct. 17, 2003 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Oct. 20, 2003 Alex Hsieh Approved By Date Oct. 20, 2003 Vincent Su REPORT NO: ER/2003/90022 ID: O7J-GL2BSU75 DATE: Oct. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136 之1 號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION .........................................................................................................5 1.1 Product Description ............................................................................................................................5 1.2 Related Submittal(s) / Grant (s) ..........................................................................................................5 1.3 Test Methodology ...............................................................................................................................5 1.4 Test Facility.........................................................................................................................................5 1.5 Special Accessories .............................................................................................................................5 1.6 Equipment Modifications....................................................................................................................5 2. SYSTEM TEST CONFIGURATION ............................................................................................6 2.1 EUT Configuration .............................................................................................................................6 2.2 EUT Exercise ......................................................................................................................................6 2.3 Test Procedure.....................................................................................................................................6 2.4 Configuration of Tested System..........................................................................................................7 3. SUMMARY OF TEST RESULTS .................................................................................................8 4. DESCRIPTION OF TEST MODES ..............................................................................................8 5. CONDUCTED EMISSION TEST..................................................................................................9 5.1 Standard Applicable ............................................................................................................................9 5.2 EUT Setup...........................................................................................................................................9 5.3 Measurement Procedure......................................................................................................................9 5.4 Measurement Equipment Used: ........................................................................................................10 5.5 Measurement Result..........................................................................................................................10 6. PEAK OUTPUT POWER MEASUREMENT............................................…
