O7J-GP0000100C02GPRS PC Card

1 mobile PhoneTools User’s Guide Contents Requirements ...........................................................................................2 Before Installing........................................................................................3 Installing mobile PhoneTools ....................................................................4 Mobile phone installation and configuration .............................................5 Online registration ....................................................................................7 Uninstalling mobile PhoneTools................................................................7 mobile PhoneTools main window .............................................................8 mobile PhoneTools functions panel ..........................................................9 Additional information .............................................................................10 mobile PhoneTools - Quick Start 2 Requirements mobile PhoneTools requires Windows® 98, 2000, Millennium, NT™ 4.0, or XP. For other operating systems and any information concerning upgrades, contact BVRP Software or your distributor. For mobile PhoneTools to operate properly, please verify the following: • A PC with a Pentium® II 233 MHz computer, connected to your mobile phone (with a cable, an infrared port, or a Bluetooth adaptator). • One available USB or serial port if using a cable connection or an active Bluetooth adapter or a fully working Infared port. • Local hard drive with 20MB free space. • Mobile phone or Device that is compatible with mobile PhoneTools. • Data/fax option included in the subscription contract with your cell phone operator (to allow fax and e-mails transmission and reception). • High speed data networks (GPRS, CDMA 1X and WCDMA) options included in the subscription contract with your mobile phone operator (for high speed e-mail and Internet use on the mobile phone network); data service is a network and subscription dependant feature that may not be available in all areas. Please contact your wireless service provider for details. • Minimum active memory: 32MB of RAM under Windows® 98, Millennium, and NT™ 4.0; 64MB of RAM under Windows® 2000 and XP. mobile PhoneTools - Quick Start 3 Before Installing Screen Shots The screen shots in this guide correspond to the use of mobile PhoneTools in a Windows XP environment. When running the application in other Windows operating systems, the aspect of the screens may change. This will not impair the software’s functionality. Online Help mobile PhoneTools has a context sensitive online help that can be accessed by clicking the help button or by pressing F1 on your keyboard. Complete information on how to use mobile PhoneTools can be found in the help files. mobile PhoneTools - Quick Start 4 Installing mobile PhoneTools Important! You need to install the software before connecting the device to the PC. To install mobile PhoneTools on your hard drive, insert the CD-ROM containing the program in the appropriate drive. When installing mobile PhoneTools from the CD- Rom, the installation process starts automatically. Should the installation program not start, execute the following instructions: 1. Select the Run command from the Start menu (accessible from the task bar). 2. Select the drive that contains the CD or type D:SETUP (D: represents the CD-Rom drive). 3. Click OK to run the file. An installation wizard will guide you step-by-step through the installation process, prompting for information where needed. During the installation process the content of the CD-Rom is copied onto your hard drive and a program group is created to hold the application icons for mobile PhoneTools. After installation, the online registration wizard is automatically launched (see Online registration, page 7). The registration is necessary to benefit from the guarantee, the technical assistance, and free upgrades. Depending on the operating system, when the installation process is completed, the installation wizard asks you to restart your computer so that all system changes take effect. The mobile PhoneTools program group is then accessible from the Start menu (from the task bar) and the following icon is automatically added to your desktop : mobilePhoneTools mobile PhoneTools - Quick Start 5 Mobile Device installation and configuration Important! Please do not connect your mobile or your mobile device to your PC until instructed to do so by the MPT software installation wizard. 1. Normally your software has be setup to work automatically with your mobile phone or device, so this step is automatic.However if we do not detect the connection type we will display the device configuration wizard screen: 2. Select how you will be connecting your phone to your PC. mobile PhoneTools - Quick Start 6 3. Click on Next. The following screen appears : 4. Connect your phone to your PC, your phone will be detected and setup automatically. The application will be launched at the end of the installation process. mobile PhoneTools - Quick Start 7 Online registration To benefit from the guarantee, the BVRP Software technical assistance, andfree upgrades, register online with our services. The online registration wizard is automatically launched at the end of the installation process. Simply follow the instructions displayed on the screens. Check that your Internet access is avalaible and properly set up to ensure an automatic Internet connection. If online registration could not be completed during installation, you can also register at any other time using the online help (F1 keyboard button or the main window ? button). Uninstalling mobile PhoneTools 1. In the Windows task bar, click the Start menu and select the Settings> Control Panel. The Control Panel window opens. 2. In the list, double-click the Add/Remove program option. 3. Highlight the mobile PhoneTools program group and click the Modify/ Delete button. The uninstallation process s…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 29, 2004 RE: FCC ID: O7J-GP0000100C02_ATCB001306 Attention: Ellis Wu I have a few comments on this Application. 1. Please provide the test report for this application. 2. Please provide that manual for this application. 3. Please provide the SAR report for this application. 4. Please note that further comments and questions may arise after the above items have been provided. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 29, 2004 RE: FCC ID: O7J-GP0000100C02_ATCB001306 Attention: Ellis Wu I have a few comments on this Application. 1. Please note that the results in the first table on page 61 of the report (the horizontal 3 meter data) does not agree with the listed values nor with the stated formula provided (i.e. Power Value (dBm = SG Power Value (dBm) + correction Factor (dB). For example, the first result should be - 35.12dBm not -48.87dBm as reported. Please provide a report with accurate results and data. Please also note that while the other tables appear to be correct, you should check those for accuracy as well. 2. Please note that the manual does not address the rf exposure requirements. Please provide a manual that contains the proper rf exposure statements. 3. FYI - Please note that as this is a PCMCIA device which plugs into a PC it is also a computer peripheral. However, the manual contains none of the part 15 statements as required by both certification and DoC approval. While this application is strictly for part 24, the manual must still address all rule parts that are applicable. This includes the non-modification statement, and information to the user. This would also include the 2 condition statement required to be on the product itself. 4. Please note that the SAR report section 2.1 reports a maximum SAR of 0.78w/kg, however, note 2 just below the table shows what appears to be three antennae used with the EUT and SAR values produced by those antennae and the EUT. The results in the table of note 2 shows a 1g SAR of 1.41w/kg. Please explain why the ‘pretest’ data in this table is so much higher. How was the pretest conducted? What power levels were used? Was the EUT the source of power to the antennae or was some other source providing power. If the EUT was the source, please explain why there is so much disagreement between the pretest and test SAR data levels. 5. Please note that system checks must be done within 100MHz of the center frequency of the operating range of the device. 1528 states “ The system check must be performed using the specified tissue-equivalent liquid and at a chosen fixed frequency that is within ± 10% of the compliance test mid-band frequency.” Please note that from the information on pages 23 and 24 of the SAR report it appears that you have used an incorrect tissue solution and incorrect parameters. It appears that the solution and system check was done using a solution and parameters for 2450MHz. As the center frequency of the device is in the 1880MHz range your system validation/check is a full 570MHz removed from the center frequency of the EUT operating band. Also, please note that the conductivity values appear to be far in excess of 5%. Please provide system check data within the required 100MHz of the operating center frequency of the device. Please retest SAR using the appropriate solution and parameters for the 1880MHz range of the device. 6. Please note that until item 5 has been addressed I cannot continue with the SAR report evaluation as the results are not for the proper solution and parameters. Once the SAR issues in item 5 have been addressed, I can continue with the evaluation. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. z Page 2 April 29, 2004 Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 2, 2004 RE: FCC ID: O7J-GP0000100C02_ATCB001306 Attention: Ellis Wu I have a few comments on this Application. 1. Please note that the SAR report 1 section 6.1 and SAR report 4 states that a 2450MHz dipole model number D2450V2 was used for the system check / system validation. Please note that SAR report 1 section 6.3 states that the frequency of validation and system check was 1900MHz. The proper dipole at this frequency is the D1900V2 as stated in the dipole kit information on page 7 of SAR report 1 rev2. Please note that if the 2450MHz dipole model D2450V2 was used during a system check or validation at 1900MHz the test was performed incorrectly. Please provide evidence, consistent data and equipment information to validate report results. This would include properly listing the dipole used and providing the proper dipole calibration certificates for the correct dipole used. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Between the revised report and the original report, we change on page: Page 4: Because of the comment 4, we found our specialist, which type the report misunderstanding the distance between the EUT and flat phantom. The engineer told us that the pre-test SAR value is more than final one is because the distance between the tip of EUT and the bottom of the flat phantom they used is 0mm. Page 13, 14: Also because of the comment 4, we found our engineer didn’t show the distance clearly on our raw data. So I asked they to do it, and revised all the distance on page 13 and 14. Page 23, 24: According to comment 5, I have no idea when I got the comment. And after checking with our reviewer, he found the mistake. It is our typing error. We used the wrong example report. The report we used is for 2.4GHz WLAN Card. And this is our first time on GPRS WLAN Card. Page 24: Our specialist only paid attention on changing on the frequency, she didn’t know the liquid type is different between 2.4GHz WLAN Card and GPRS WLAN Card. Between the revised 2 report and the revised report, we change on page: Page 29: Showed the wrong liquid type. We didn’t realize on this page when first revised. And after the phone call on Friday night, checking with our engineer we found the error again. We also attached the raw data from our engineer when testing. We promised we actually did the test. All the fault is from our typing specialist. We will not make the same mistake. We have the example report on the GPRS WLAN Card.

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

FCC ID: O7J-GP0000100C02 ADT No.: 930407l06 Operational Description This device is the GPRS PC Card and operated frequency in the 1.9GHz (PCS) band. When GSMK technique will be applied under the transmission data. In addition, the GPRS transmission rate is the class 10. The transmitter of the EUT is powered by host equipement. The antenna is External antenna. There is no antenna connector. The other instruction, please have a look at the users manual.

FCC ID: O7J-GP0000100C02 Report No.: SA930407L061Issued: 23 April, 2004 SAR TEST REPORT REPORT NO.: SA930407L06 MODEL NO.: GP00001-00C02 RECEIVED: 07 April, 2004 TESTED: 12 April, 2004 APPLICANT: GLOBAL SUN TECHNOLOGY INC. ADDRESS: NO.13 Tung Yuan Rd., Jung Li Industrial Park Jung Li City, Tao Yuan Hsien, Taiwan, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 37 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: O7J-GP0000100C02 Report No.: SA930407L062Issued: 23 April, 2004 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.DESCRIPTION OF SUPPORT UNITS ......................................................................15 5.TEST RESULTS ........................................................................................................16 5.1 TEST PROCEDURES ...............................................................................................16 5.2 MEASURED SAR RESULT .......................................................................................17 5.3 SAR LIMITS...............................................................................................................22 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................22 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................25 6.SYSTEM VALIDATION ..............................................................................................26 6.1 TEST EQUIPMENT ...................................................................................................26 6.2 TEST PROCEDURE .................................................................................................26 6.3 VALIDATION RESULT...............................................................................................29 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................30 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................31 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................31 7.2 ISOTROPY UNCERTAINTY......................................................................................31 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................32 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................32 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................32 7.6 RESPONSE TIME UNCERTAINTY...........................................................................33 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................33 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................34 7.9 PROBE POSITIONING .............................................................................................34 7.10 PHANTOM UNCERTAINTY ......................................................................................35 7.11 DASY4 UNCERTAINTY BUDGET.............................................................................36 8.INFORMATION ON THE TESTING LABORATORIES ..............................................37 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: O7J-GP0000100C02 Report No.: SA930407L063Issued: 23 April, 2004 1. CERTIFICATION PRODUCT : GPRS PC Card MODEL NO. : GP00001-00C02 BRAND NAME : GLOBAL SUN APPLICANT : GLOBAL SUN TECHNOLOGY INC. TEST ITEM : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on 12 April, 2004. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. PREPARED BY:, DATE: 23 April, 2004 APPROVED BY: Stacy Hsieh , DATE: 23 April, 2004 Cody Chang / Supervisor FCC ID: O7J-GP0000100C02 Report No.: SA930407L064Issued: 23 April, 2004 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCTGPRS PC Card MODEL NO.GP00001-00C02 POWER SUPPLY3.3Vdc powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE GMSK RADIO TECHNOLOGY Tx Frequency： 1850.2MHz~1909.8MHz (PCS band) Rx Frequency： 1930.2MHz~1989.8MHz (PCS band) MAXIMUN CONDUCTED OUTPUT POWER 28.60dBm ANTENNA TYPEDipole antenna AVERAGE SAR (1g)0.78 W/kg DATA CABLENA I/O PORTSPCMCIA, Earphone ASSOCIATED DEVICESEa…

Text truncated - open the document above for the full version.

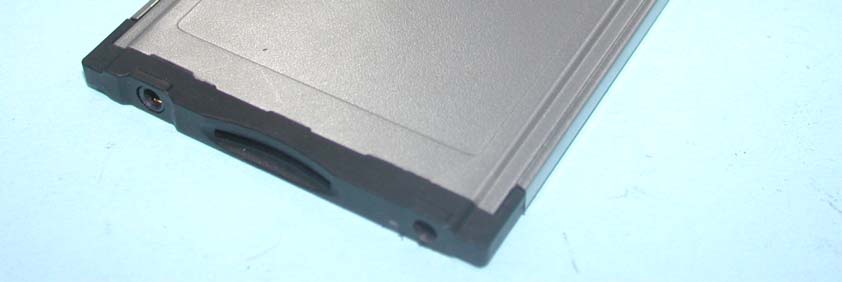

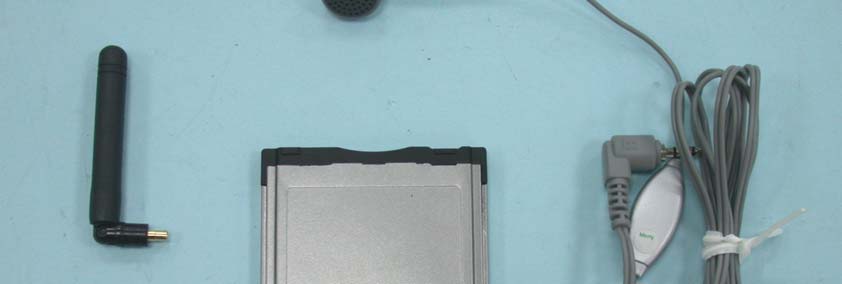

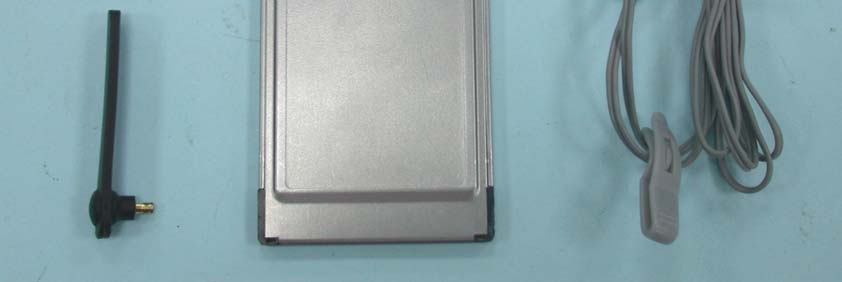

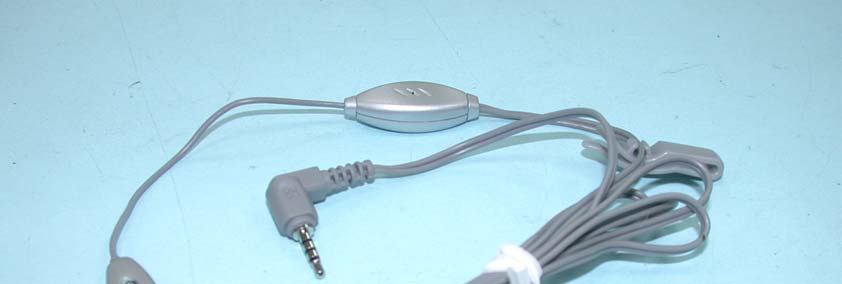

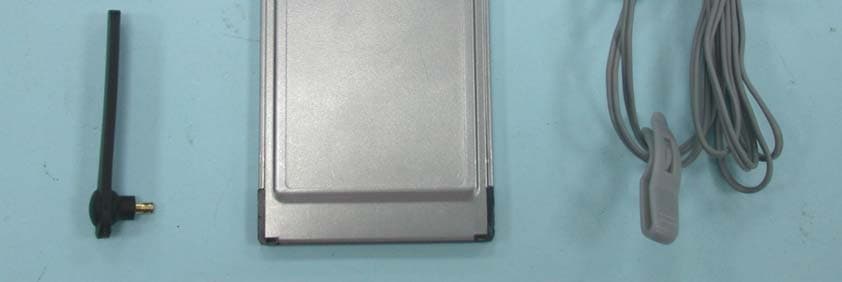

Page 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Mode 1 Dell Inspiron 3800 The bottom of the EUT to the phantom distance is 11mm Page 2 Mode 2 Dell Inspiron 3800 The tip of the EUT to the phantom distance is 0mm Page 3 Mode 3 Dell Inspiron 3800 The front of the EUT to the phantom distance is 8mm Page 4 Mode 4 Evo N800C The bottom of the EUT to the phantom distance is 10mm Page 5 Mode 5 Evo N800C The tip of the EUT to the phantom distance is 0mm Page 6 Mode 6 Evo N800C The front of the EUT to the phantom distance is 8mm Page 7 Mode 7 Dell C600 The bottom of the EUT to the phantom distance is 11mm Page 8 Mode 8 Dell C600 The tip of the EUT to the phantom distance is 0mm Page 9 Mode 9 Dell C600 The front of the EUT to the phantom distance is 8mm Page 10 EUT Photo Page 11 Page 12 Page 13 Liquid Level Photo 2450MHz D=155mm Date/Time: 04/12/04 10:28:50 Test Laboratory: Advance Data Technology GPRS PC Card Inspiron 3800 Bottom Mode 1 DUT: GPRS PC Card ; Type: GP00001-00C02 ; Test Channel Frequency: 1850.2 MHz Communication System: PCS 1900 ; Frequency: 1850.2 MHz; Duty Cycle: 1:8.3; Modulation type: GMSK Medium: MSL1900 (σ = 1.519 mho/m, ε r = 52.5814, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 11mm(The bottom side of the EUT to the Phantom) Antenna type : External Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.9, 4.9, 4.9); Calibrated: 11/24/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 512/Area Scan (9x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 14.4 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.523 mW/g Channel 512/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.721 W/kg SAR(1 g) = 0.442 mW/g; SAR(10 g) = 0.238 mW/g Reference Value = 14.4 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.489 mW/g Date/Time: 04/12/04 10:58:06 Test Laboratory: Advance Data Technology GPRS PC Card Inspiron 3800 Bottom Mode 1 DUT: GPRS PC Card ; Type: GP00001-00C02 ; Test Channel Frequency: 1880 MHz Communication System: PCS 1900 ; Frequency: 1880 MHz; Duty Cycle: 1:8.3; Modulation type: GMSK Medium: MSL1900 (σ = 1.551 mho/m, ε r = 52.4458, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 11mm(The bottom side of the EUT to the Phantom) Antenna type : External Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.9, 4.9, 4.9); Calibrated: 11/24/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 661/Area Scan (9x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 12 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.347 mW/g Channel 661/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.468 W/kg SAR(1 g) = 0.297 mW/g; SAR(10 g) = 0.163 mW/g Reference Value = 12 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.328 mW/g Date/Time: 04/12/04 11:30:11 Test Laboratory: Advance Data Technology GPRS PC Card Inspiron 3800 Bottom Mode 1 DUT: GPRS PC Card ; Type: GP00001-00C02 ; Test Channel Frequency: 1909.8 MHz Communication System: PCS 1900 ; Frequency: 1909.8 MHz; Duty Cycle: 1:8.3; Modulation type: GMSK Medium: MSL1900 (σ = 1.588 mho/m, ε r = 52.1957, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 11mm(The bottom side of the EUT to the Phantom) Antenna type : External Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.9, 4.9, 4.9); Calibrated: 11/24/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 810/Area Scan (9x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 8.74 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.195 mW/g Channel 810/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.254 W/kg SAR(1 g) = 0.165 mW/g; SAR(10 g) = 0.0904 mW/g Reference Value = 8.74 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.184 mW/g Date/Time: 04/12/04 11:58:36 Test Laboratory: Advance Data Technology GPRS PC Card Inspiron 3800 Tip Mode 2 DUT: GPRS PC Card ; Type: GP00001-00C02 ; Test Channel Frequency: 1850.2 MHz Communication System: PCS 1900 ; Frequency: 1850.2 MHz; Duty Cycle: 1:8.3; Modulation type: GMSK Medium: MSL1900 (σ = 1.519 mho/m, ε r = 52.5814, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 0mm(The tip of the EUT to the Phantom) Antenna type : External Antenna ; Air temp. : 23 degrees ; Liquid temp. : 22 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.9, 4.9, 4.9); Calibrated: 11/24/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 6/2/2003 - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 512/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 22.2 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.7 mW/g Channel 512/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.587 mW/g; SAR(10 g) = 0.24 mW/g Reference Value = 22.2 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.695 mW/g Date/Time…

Text truncated - open the document above for the full version.

Date/Time: 04/12/04 14:57:46 Test Laboratory: Advance Data Technology GPRS PC Card EVO N800C Bottom Mode 4 DUT: GPRS PC Card ; Type: GP00001-00C02 ; Test Channel Frequency: 1850.2 MHz Communication System: PCS 1900 ; Frequency: 1850.2 MHz; Duty Cycle: 1:8.3; Modulation type: GMSK Medium: MSL1900 (σ = 1.519 mho/m, ε r = 52.5814, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 10mm(The bottom side of the EUT to the Phantom) Antenna type : External Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.9, 4.9, 4.9); Calibrated: 11/24/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 512/Area Scan (9x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 15 V/m Power Drift = -0.02 dB Maximum value of SAR = 0.385 mW/g Channel 512/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.668 W/kg SAR(1 g) = 0.356 mW/g; SAR(10 g) = 0.187 mW/g Reference Value = 15 V/m Power Drift = -0.02 dB Maximum value of SAR = 0.391 mW/g Date/Time: 04/12/04 15:27:41 Test Laboratory: Advance Data Technology GPRS PC Card EVO N800C Bottom Mode 4 DUT: GPRS PC Card ; Type: GP00001-00C02 ; Test Channel Frequency: 1880 MHz Communication System: PCS 1900 ; Frequency: 1880 MHz; Duty Cycle: 1:8.3; Modulation type: GMSK Medium: MSL1900 (σ = 1.551 mho/m, ε r = 52.4458, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 10mm(The bottom side of the EUT to the Phantom) Antenna type : External Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.9, 4.9, 4.9); Calibrated: 11/24/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 661/Area Scan (9x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 13 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.282 mW/g Channel 661/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.495 W/kg SAR(1 g) = 0.265 mW/g; SAR(10 g) = 0.139 mW/g Reference Value = 13 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.289 mW/g Date/Time: 04/12/04 15:57:16 Test Laboratory: Advance Data Technology GPRS PC Card EVO N800C Bottom Mode 4 DUT: GPRS PC Card ; Type: GP00001-00C02 ; Test Channel Frequency: 1909.8 MHz Communication System: PCS 1900 ; Frequency: 1909.8 MHz; Duty Cycle: 1:8.3; Modulation type: GMSK Medium…

Text truncated - open the document above for the full version.
