O7J-WLAP2454-NM802.11g Wireless Access Point

54Mbps Wireless Network Access Point USER MANUAL Contents 1. Overview................................................................................................................3 1.1 Product Feature..........................................................................................3 1.2 System Requirements.................................................................................3 2. Getting Start...........................................................................................................3 2.1 Know the 54Mbps Wireless Network Access Point..................................3 2.2 Connect to the 54Mbps Wireless Network Access Point...........................4 2.3 Quick Setup with Wizard...........................................................................4 2.3.1 Access the Setting Menu................................................................4 2.3.2 Setup with Wizard....................................................................................6 3. Configuration through WEB Browser.................................................................10 3.1 Status........................................................................................................10 3.2 Basic Setting............................................................................................12 3.3 IP Setting..................................................................................................14 3.4 Advanced Setting.....................................................................................15 3.5 Security..........................................................................................................17 3.6 Tools.........................................................................................................18 Configuration through AP Utility................................................................................19 4.1 Link Information......................................................................................19 4.2 AP Settings...............................................................................................20 4.3 IP Setting..................................................................................................22 4.4 WEP Setting.............................................................................................23 4.5 MAC Filter Setting..................................................................................24 Glossary.......................................................................................................................25 1. Overview 1.1 Product Feature ● Compliance with IEEE 802.11g and 802.11b standards ● Highly efficient design mechanism to provide unbeatable performance ● Achieving data rate up to 54Mbps for 802.11g and 11Mps for 802.11b with wide range coverage ● Strong network security with WEP encryption ● Quick and easy setup with Web-based management utility. 1.2 System Requirements ● Windows 98, 98SE, Millennium Edition (ME), 2000 and XP operating systems ● Microsoft Internet Explorer 5.5 or higher ● One CD-ROM drive ● At least one RJ-45 Ethernet network adapter installed. 2. Getting Start 2.1 Know the 54Mbps Wireless Network Access Point Ports: ● Power Receptor ● Reset Button ● RJ-45 Ethernet Port Straight through cable is required to connect with router or switch Cross-over cable is required to connect to computer directly LEDs: ● Power LED: ON when the unit is powered up ● LAN LED: ON indicates LAN connection; BLINK indicates LAN activity ● WLAN LED: ON indicates WLAN is working; BLINK indicates wireless activity. 2.2 Connect to the 54Mbps Wireless Network Access Point Build the Infrastructure Mode In order to setup an Infrastructure of a wireless network such as the example shown above, you will need the following: 1. A broadband Internet connection. 2. ADSL or Cable modem provided by your ISP as part of the broadband connection installation. 3. A Router that connects to the ADSL/Cable modem for Internet connection sharing. 4. An Access Point to connect with the Router to form a wireless infrastructure network. 5. Wireless clients equipped with wireless networking devices such as wireless PC Card for wireless connection. 2.3 Quick Setup with Wizard 2.3.1 Access the Setting Menu You could start to access the configuration menu anytime by opening a web browser window by typing the IP address of this access point. The default IP is 192.168.1.1. The below window will popup. Please enter the user name and password. Both of the default is “admin”. Now, the main menu screen is popup. 2.3.2 Setup with Wizard Setup wizard is provided as the part of the web configuration utility. You can simply follow the step-by-step process to get your Access Point configuration ready to run in 4 easy steps by clicking on the “Wizard” button on the function menu. The following screen will appear. Please click “Next” to continue. Step 1: Set Password You can change the password as you like and then click “Next” to continue. Step2: Set WLAN Connection Please type the name of SSID you like and select the channel. Then, click “Next” to continue. Step 3: Set WEP Encryption If you like to enable WEP, please click “Enabled”. Then, select the key size of WEP encryption and enter the key value in the key text box. Please click “Next” to continue. Step 4: Restart The Setup wizard is now completed. The new settings will be effective after the Access Point restarted. Please click “Restart” to reboot the Access Point. If you do not want to make any changes, please click “exit” to quit without any changes. You also can go back to modify the setting by clicking “Back”. 3. Configuration through WEB Browser 3.1 Status This page as below shows you the following information. Firmware Version: Shows the current firmware version. LAN: Shows the Mac address, IP address (default: 192.168.1.1), Subnet Mask, Gateway Address. The current LAN traffic calculated in terms of number of packets sent a…

Text truncated - open the document above for the full version.

FCC DoC.JPG (1653 x 2338 x 8)

Confidentiality letter.JPG (1653 x 2338 x 8)

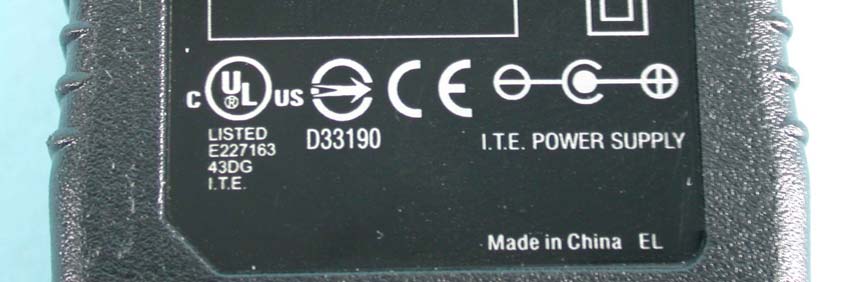

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID Label Location

64 mm 4 0 m m Model:WL AP 2454 NM FCC ID: O7J-WLAP2454-NM Rating: 3.3V

Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

FCC ID: O7J-WLAP2454-NM Report No.RF930209R02 Operational Description This device is an 802.11g Wireless Access Point which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC adapters and connected with managing computer through RJ45 port. The antenna is Dipole & PIFA antenna with Reverse SMA antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

Report No: SA930209R02 1 RF EXPOSURE REPORT REPORT NO.: SA930209R02 MODEL NO.: WL AP 2454 NM OEM MODEL NO.: AOI-882, WAP-9003, WAP-4010, WLL- 3710M, EWA-0102-G, Skyr@cer AP 554G, TL-WA500, TW-AP54M ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: GLOBAL SUN TECHNOLOGY INC. ADDRESS: No.13, Tung Yuan Rd., Jung Li Industrial Park, Jung Li City, Taoyuan Hsien, Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. Report No: SA930209R02 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No: SA930209R02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. Report No: SA930209R02 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2dBi or 1.584 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For CCK technique Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241241.9760.0131.0 6243747.2060.0151.0 11246242.4620.0131.0 For OFDM technique Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241236.0580.0111.0 6243736.6440.0121.0 11246234.5940.0111.0

FCC ID: O7J-WLAP2454-NM Report No.: RF930209R021Issued: March 2, 2004 FCC TEST REPORT REPORT NO.: RF930209R02 MODEL NO.: WL AP 2454 NM (Please refer to page 6 for other model names) RECEIVED: February 6, 2004 TESTED: February 6, 2004 ~ February 27, 2004 APPLICANT: GLOBAL SUN TECHNOLOGY INC. ADDRESS: NO.13 Tung Yuan Rd., Jung Li Industrial Park Jung Li City, Tao Yuan Hsien, Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 73 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: O7J-WLAP2454-NM Report No.: RF930209R022Issued: March 2, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST........................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5TEST SETUP ...............................................................................................11 4.1.6EUT OPERATING CONDITIONS.................................................................11 4.1.7TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 20 4.2.5TEST SETUP .............................................................................................. 21 4.2.6EUT OPERATING CONDITIONS................................................................ 21 4.2.7TEST RESULTS.......................................................................................... 22 4.2.8TEST RESULTS (FOR CCK)...................................................................... 24 4.2.9TEST RESULTS (FOR OFDM) ................................................................... 30 4.36dB BANDWIDTH MEASUREMENT .......................................................... 36 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 36 4.3.2TEST INSTRUMENTS ................................................................................ 36 4.3.3TEST PROCEDURE ................................................................................... 37 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 37 4.3.5TEST SETUP .............................................................................................. 37 FCC ID: O7J-WLAP2454-NM Report No.: RF930209R023Issued: March 2, 2004 4.3.6EUT OPERATING CONDITIONS................................................................ 37 4.3.7TEST RESULTS.......................................................................................... 38 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 46 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 46 4.4.2TEST INSTRUMENTS ................................................................................ 46 4.4.3TEST PROCEDURES................................................................................. 47 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 47 4.4.5TEST SETUP .............................................................................................. 47 4.4.6EUT OPERATING CONDITIONS................................................................ 47 4.4.7TEST RESULTS.......................................................................................... 48 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 49 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 49 4.5.2TEST INSTRUMENTS ................................................................................ 49 4.5.3TEST PROCEDURE ................................................................................... 50 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 50 4.5.5TEST SETUP .............................................................................................. 50 4.5.6EUT OPERATING CONDITIONS................................................................ 50 4.5.7TEST RESULTS............................................…

Text truncated - open the document above for the full version.

FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0261Issued: March 2, 2004 FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0262Issued: March 2, 2004 FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0263Issued: March 2, 2004 FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0264Issued: March 2, 2004 FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0265Issued: March 2, 2004 4.6.7 TEST RESULTS ( FOR OFDM) The spectrum plots are attached on the following 4 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE 1: The band edge emission plot on the following 1-2 pages shows 49.28dB delta between carrier maximum power and local maximum emission in restrict band (2.3540GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.9 is 96.84dBuV/m, so the maximum field strength in restrict band is 96.84-49.28=47.56dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot on the following 3-4 pages shows 45.57dB delta between carrier maximum power and local maximum emission in restrict band (2.5000GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.9 is 96.91dBuV/m, so the maximum field strength in restrict band is 96.91-45.57=51.34dBuV/m which is under 54dBuV/m limit. FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0266Issued: March 2, 2004 FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0267Issued: March 2, 2004 FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0268Issued: March 2, 2004 FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0269Issued: March 2, 2004 FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0270Issued: March 2, 2004 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION The antenna type used in this product is Dipole & PIFA Antenna with Reverse SMA antenna connector. The maximum Gain of this antenna is only 2.0dBi. FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0271Issued: March 2, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0272Issued: March 2, 2004 RADIATED EMISSION TEST FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0273Issued: March 2, 2004 6 INFORMATION ON THE TESTING LABORATORIES We, ADT Corp., were founded in 1988 to provide our best service in EMC, Radio, Telecom and Safety consultation. Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025, Guide 25 or EN 45001: USA FCC, NVLAP, UL Germany TUV Rheinland Japan VCCI Norway NEMKO Canada INDUSTRY CANADA , CSA R.O.C. CNLA, BSMI, DGT Netherlands Telefication Singapore PSB , GOST-ASIA(MOU) Russia CERTIS(MOU) Copies of accreditation certificates of our laboratories obtained from approval agencies can be downloaded from our web site: www.adt.com.tw/index.5/phtml. If you have any comments, please feel free to contact us at the following: Linko EMC/RF Lab: Tel: 886-2-26052180 Fax: 886-2-26052943 Hsin Chu EMC/RF Lab: Tel: 886-3-5935343 Fax: 886-3-5935342 Hwa Ya EMC/RF/Safety Lab: Tel: 886-3-3183232 Fax: 886-3-3185050 Linko RF & Telecom Lab. Tel: 886-3-3270910 Fax: 886-3-3270892 Email: [email protected] Web Site: www.adt.com.tw The address and road map of all our labs can be found in our web site also.

FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0271Issued: March 2, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: O7J-WLAP2454-NM Report No.: RF930209R0272Issued: March 2, 2004 RADIATED EMISSION TEST
