802.11g Wireless Network PCI Adapter USER MANUAL Contents 1. Introduction............................................................................................................3 1.1 Product Feature..........................................................................................3 1.2 System Requirement..................................................................................3 2. Getting Start...........................................................................................................3 2.1 LED Indicators...........................................................................................3 2.2 Install the 802.11g Wireless Network Adapter..........................................3 2.2.1 Utility Installation..........................................................................3 2.2.2 Driver Installation..........................................................................6 3. Configuration.............................................................................................................9 3.1 Link Information..............................................................................................9 3.2 Configuration.................................................................................................10 3.3 Advanced........................................................................................................ 11 3.4 Site Survey.....................................................................................................13 3.5 About US........................................................................................................16 4. Glossary...................................................................................................................16 2 1. Introduction 1.1 Product Feature ● Compliance with IEEE 802.11g and 802.11b standards ● Highly efficient design mechanism to provide unbeatable performance ● Achieving data rate up to 54Mbps for 802.11g and 11Mps for 802.11b with wide range coverage ● Network security with WEP and WPA-PSK support ● Auto-switch between the two standards, IEEE 802.11b and 802.11g ● Driver/Utility support most commonly used operating systems including Windows 98SE/ME/200/XP. 1.2 System Requirement ● Windows 98, 98SE, Millennium Edition (ME), 2000 and XP operating systems ● PC with Pentium III 600MHz system or above is recommended ● Equipped with at least one PCI slot. ● One CD-ROM drive 2. Getting Start 2.1 LED Indicators The Power LED will be ON when the unit is powered up. The Link LED will be Blinking indicates a WLAN connection. 2.2 Install the 802.11g Wireless Network PC Card 2.2.1 Utility Installation 1. Before insert PCI adapter into the PCI slot of your computer, please install the 3 Utility Program first. Make sure that the 108Mbps wireless Network PCI Adapter is NOT inserted into the PCI slot. NOTE: all the snapped images of installation mentioned in this manual are based on Windows XP. For other windows operating system, all the procedures are the same but the screens are not the exactly same. 2. Turn on the computer. Insert the CD into the CD-ROM Drive. Please select click the “Install”. 4 3. InstallShield Wizard will automatically start. Please click “Next” to continue. 5 4. Please click “Finish” 5. Please make sure TURN OFF your computer and remove the power cord from your PC. Open the computer case and then please insert the Wireless PCI Adapter into the empty PCI slot of your computer system. Once the Wireless PCI Adapter is installed, place the computer case back. Turn ON your computer 2.2.2 Driver Installation 1. Please select the second option and click “Next”. 6 2. Please click “Continue Anyway” 3. Please click “Finish” 7 4. To make sure if the installation is successful, you could check it through the device management. 8 5. Once the installation is successful, a utility program icon will show on your desktop. To lunch the utility, just double click the icon. 3. Configuration 3.1 Link Information The default page is as below after you launch the Utility program. Status: Shows the BSSID associated, which can be used to identify the wireless network. SSID: Shows current SSID, which must be the same for the wireless client and AP in order for communication to be established. TxRate: Shows the current data rate used for transmitting. Channel: Shows the current channel for communication. Link Quality: Shows the link quality of the 802.11g wireless Network adapter with 9 the Access Point when operating under Infrastructure mode. Signal Strength: Shows the wireless signal strength of the connection between the 802.11g wireless Network Adapter with the Access Point. Data Rate: Shows the statistics of data transfer, and the calculation is based on the number of packets transmitted and received. 3.2 Configuration This is the page where you can change the basic settings of the Access Point with the minimum amount of effort to implement a secure wireless network environment. SSID: Service Set Identifier, which is a unique name shared among all clients and nodes in a wireless network. The SSID must be identical for each clients and nodes in the wireless network. BSS Type: There are two types available for selection ●Infrastructure – to establish wireless communication with LAN and other wireless clients through the use the Access Points. ●Ad-Hoc – to establish point-to-point wireless communication directly with other wireless client devices such as wireless network PCI Adapter. Channel: The value of channel that AP will operate in. Tx Rate: Select the data rate for data transmission. Power Mode: There are 3 modes to choose. 10 ●Continuous Access Mode (default) – the PCI adapter is constantly operating with full power and it consumes the most power. ●Maximum Power Save – the PCI adapter consumes the least power and only operates when there is wireless network activity. ●Power Save – the PCI adapter consumes the moderate level of power. Preamble: Select…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 5, 2004 RE: FCC ID: O7J-WLVP2454-NM_ATCB001177 Attention: Ellis Wu I have a few comments on this Application. 1. Please remove the shield from the PCMCIA card and provide a photo of what it underneath. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

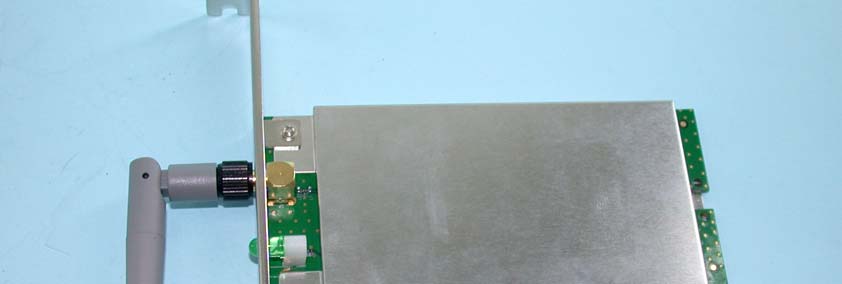

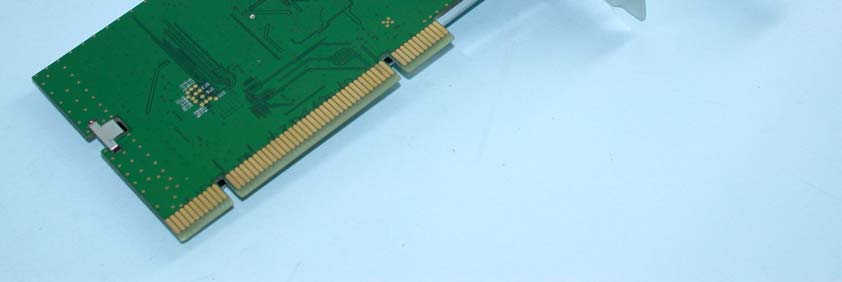

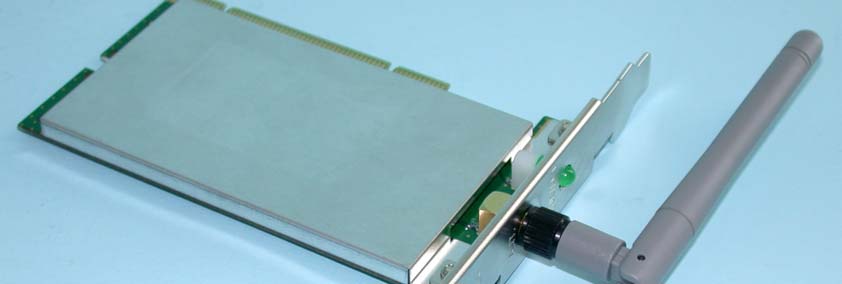

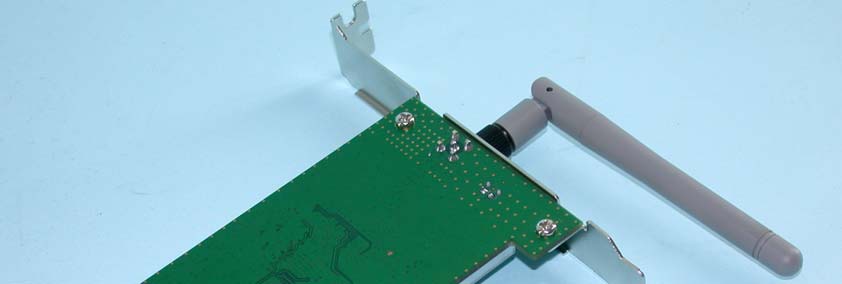

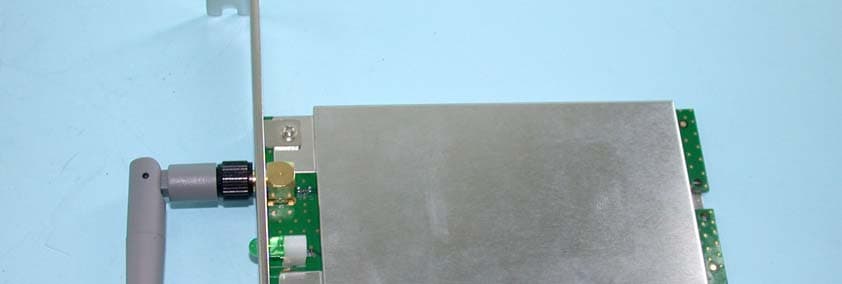

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Label Location

Page 3 Page 4 Page 5 Page 6

FCC ID: O7J-WLVP2454-NM Report No. 921231R01A Operational Description This device is a 802.11g Wireless PCI Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCI interface. The antenna is Dipole antenna with Reverse SMA connector. The other instruction, please have a look at the users manual.

FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A 1 RF EXPOSURE REPORT REPORT NO.: RF921231R01A MODEL NO.: WL VP 2454 NM ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: GLOBAL SUN TECHNOLOGY INC. ADDRESS: NO.13 Tung Yuan Rd., Jung Li Industrial Park, Jung Li City, Tao Yuan Hsien, Taiwan. R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A 2 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A 3 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 2.5cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A 4 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6230.0101.0 6243733.1130.0101.0 11246234.6740.0111.0 For 802.11g Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6230.0101.0 6243739.8110.0131.0 11246233.1130.0101.0

FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A1Issued: February 10, 2004 Reference No.: RF921231R01 FCC TEST REPORT REPORT NO.: RF921231R01A MODEL NO.: WL VP 2454 NM (Refer to page 6 for the other models) RECEIVED: NA TESTED: January 10 ~ January 14, 2004 APPLICANT: GLOBAL SUN TECHNOLOGY INC. ADDRESS: NO.13 Tung Yuan Rd., Jung Li Industrial Park, Jung Li City, Tao Yuan Hsien, Taiwan. R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 74 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A2Issued: February 10, 2004 Reference No.: RF921231R01 Table of Contents 1CERTIFICATION ........................................................................................ 4 2SUMMARY OF TEST RESULTS................................................................ 5 3GENERAL INFORMATION ........................................................................ 6 3.1GENERAL DESCRIPTION OF EUT........................................................... 6 3.2DESCRIPTION OF TEST MODES............................................................. 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................ 7 3.4DESCRIPTION OF SUPPORT UNITS ....................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST........................................ 9 4TEST TYPES AND RESULTS.................................................................. 10 4.1CONDUCTED EMISSION MEASUREMENT ........................................... 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................... 10 4.1.2TEST INSTRUMENTS ............................................................................. 10 4.1.3TEST PROCEDURES.............................................................................. 11 4.1.4DEVIATION FROM TEST STANDARD .................................................... 11 4.1.5TEST SETUP ........................................................................................... 12 4.1.6EUT OPERATING CONDITIONS............................................................. 12 4.1.7TEST RESULTS....................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................ 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................. 19 4.2.2TEST INSTRUMENTS ............................................................................. 20 4.2.3TEST PROCEDURES.............................................................................. 21 4.2.4DEVIATION FROM TEST STANDARD .................................................... 21 4.2.5TEST SETUP ........................................................................................... 22 4.2.6EUT OPERATING CONDITIONS............................................................. 22 4.2.7TEST RESULTS....................................................................................... 23 4.36dB BANDWIDTH MEASUREMENT ....................................................... 37 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ..................................... 37 4.3.2TEST INSTRUMENTS ............................................................................. 37 4.3.3TEST PROCEDURE ................................................................................ 38 4.3.4DEVIATION FROM TEST STANDARD .................................................... 38 4.3.5TEST SETUP ........................................................................................... 38 FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A3Issued: February 10, 2004 Reference No.: RF921231R01 4.3.6EUT OPERATING CONDITIONS............................................................. 38 4.3.7TEST RESULTS....................................................................................... 39 4.4MAXIMUM PEAK OUTPUT POWER ....................................................... 47 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........ 47 4.4.2TEST INSTRUMENTS ............................................................................. 47 4.4.3TEST PROCEDURES.............................................................................. 48 4.4.4DEVIATION FROM TEST STANDARD .................................................... 48 4.4.5TEST SETUP ........................................................................................... 48 4.4.6EUT OPERATING CONDITIONS............................................................. 48 4.4.7TEST RESULTS....................................................................................... 49 4.5POWER SPECTRAL DENSITY MEASUREMENT................................... 51 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................ 51 4.5.2TEST INSTRUMENTS ............................................................................. 51 4.5.3TEST PROCEDURE ................................................................................ 52 4.5.4DEVIATION FROM TEST STANDARD .................................................... 52 4.5.5TEST SETUP ........................................................................................... 52 4.5.6EUT OPERATING CONDITIONS............................................................. 52 4.5.7TEST RESULTS....................................................................................... 53 4.6BAND EDGES MEASUREMENT ............................................................. 61 4.6.1LIMITS OF BAND EDGES MEASUREMENT.......................................... 61 4.6.2TEST INSTRUMENTS .............................…

Text truncated - open the document above for the full version.

FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A37Issued: February 10, 2004 Reference No.: RF921231R01 4.3 6dB BANDWIDTH MEASUREMENT 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 4.3.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated On SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A38Issued: February 10, 2004 Reference No.: RF921231R01 4.3.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator. The bandwidth of the fundamental frequency was measured by spectrum analyzer with 100kHz RBW and 100kHz VBW. The 6dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6dB. 4.3.4 DEVIATION FROM TEST STANDARD No deviation 4.3.5 TEST SETUP For the actual test configuration, please refer to the related Item – Photographs of the Test Configuration. 4.3.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A39Issued: February 10, 2004 Reference No.: RF921231R01 4.3.7 TEST RESULTS EUT 802.11g Wireless PCI Adapter MODEL WL VP 2454 NM MODE CCK ENVIRONMENTAL CONDITIONS 20deg. C, 60%RH, 991hPa INPUT POWER (SYSTEM) 120Vac, 60 HzTESTED BY: Jamison Chan CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 124129.840.5PASS 624379.920.5PASS 1124629.240.5PASS FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A40Issued: February 10, 2004 Reference No.: RF921231R01 CH1 FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A41Issued: February 10, 2004 Reference No.: RF921231R01 CH6 FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A42Issued: February 10, 2004 Reference No.: RF921231R01 CH11 FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A43Issued: February 10, 2004 Reference No.: RF921231R01 EUT 802.11g Wireless PCI Adapter MODEL WL VP 2454 NM MODE OFDM ENVIRONMENTAL CONDITIONS 23deg. C, 64%RH, 991hPa INPUT POWER (SYSTEM) 120Vac, 60 HzTESTED BY: Hardaway Lee CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241215.520.5PASS 6243715.560.5PASS 11246215.440.5PASS FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A44Issued: February 10, 2004 Reference No.: RF921231R01 CH1 FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A45Issued: February 10, 2004 Reference No.: RF921231R01 CH6 FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A46Issued: February 10, 2004 Reference No.: RF921231R01 CH11 FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A47Issued: February 10, 2004 Reference No.: RF921231R01 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated On R&S SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 R&S SIGNAL GENERATORSMP04100011May 28, 2004 TEKTRONIX OSCILLOSCOPETDS 220B048470Mar. 05, 2004 NARDA DETECTOR4503AFSCM99899NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A48Issued: February 10, 2004 Reference No.: RF921231R01 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the response of the detector. 2. Replaced the EUT by the signal generator . The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same reading on oscilloscope. Record the power level. 4.4.4 DEVIATION FROM TEST STANDARD No deviation 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6 EUT or S.G OSCILLOSCOPE DETECTOR FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A49Issued: February 10, 2004 Reference No.: RF921231R01 4.4.7 TEST RESULTS EUT 802.11g Wireless PCI Adapter MODEL WL VP 2454 NM MODE CCK ENVIRONMENTAL CONDITIONS 23deg. C, 64%RH, 991hPa INPUT POWER (SYSTEM) 120Vac, 60 HzTESTED BY: Jamison Chan CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241215.0030PASS 6243715.2030PASS 11246215.4030PASS FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A50Issued: February 10, 2004 Reference No.: RF921231R01 EUT 802.11g Wireless PCI Adapter MODEL WL VP 2454 NM MODE OFDM ENVIRONMENTAL CONDITIONS 23deg. C, 64%RH, 991hPa INPUT POWER (SYSTEM) 120Vac, 60 HzTESTED BY: Hardaway Lee CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241215.0030PASS 6243716.0030PASS 11246215.2030PASS FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A51Issued: February 10, 2004 Reference No.: RF921231R01 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated On SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: O7J-WLVP2454-NM Report No.: RF921231R01A52Issued: February 10, 2004 Reference No.: RF921231R01 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITIONS Same as 4.3.6…

Text truncated - open the document above for the full version.

CONDUCTED EMISSION TEST RADIATED EMISSION TEST
