O7JGL2BDG91Bluetooth USB Dongle

Bluetooth Class1 Dongle Specification Preliminary Product Name GST class 1 Bluetooth Dongle Product ID GL2BDG91 Hardware Version Rev.01 FEATURE z Comply with Bluetooth Specification V1.1 z Support Bluetooth Class1 z Built-in Link controller and Link Manager Protocol z HCI interface over USB z USB interface fits desktop/laptop PCs z Compliant with USB 1.1 standard. z Built-in flash memory、system clock . z Easy to use-makes wireless networking simple. z Easy to follow-friendly user interface provides an easy way to connect other Bluetooth devices . APPLICATIONS: Notebook、PCs FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation . “FCC RF Exposure requirements: This device and its antenna(s) must not be co-located or operation in conjunction With any other antenna or transmitter.” NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. 1 Hardware Specification ITEMS SPECIFICATION Standard Bluetooth V 1.1 Interface USB(Type A) Link Mode ACL,SCO Data Rate ACL:723.2kbps/SCO:57.6kbps Frequency Band 2.4GHz Compatible OS Microsoft Windows 98 / 2000 / ME / XP Bluetooth Profile support GAP, SPP, FTP, DUN, LAP, OPP, GOEP, SYNC, FAX, PAN, HCRP, Audio/Headset. Receiving Signal Range Better than -75dBm @ 0.1%FER Operation current 155mA(max) Operating Distance Up to 70 meters Output Interface USB Operation Temperature -0 o C ~ +55 o C Storage Temperature -20 o C ~ +70 o C Operation Humidity 0% to 70% Storage Temperature 0% to 95% Non-condensing Modulation GFSK(Gaussian Frequency Shift Keying) USB Specification Ver 1.1 Spectrum FHSS(Frequency Hopping Spread Spectrum) Security Provided Pairing,Encryption,Authentication Dimension 59.57mm x 19.83mm x 13.86 2 GL2BDG91 Block Diagram Pin Description (Wire to Board connector) 1 +5V 2 D- 3 D+ 4 GND Pin Name NO I/O Description +5V 1 --- Vcc USB_D- 2 I Asynchronous serial data RTS/USB Data+ USB_D+ 3 O Asynchronous serial data RTS/USB Data- GND 4 --- Ground 3

Bluetooth Module Design Application Product Name GST class 1 Bluetooth module Product ID GL2BMU01 Hardware Version Rev.01 Firmware Version 15.3 OVERVIEW GL2BMU01 is a highly integrated Bluetooth module includes Radio, Baseband, Link Manager, and Host Control Interface. Due to its sufficient pin definitions, high receiving sensitivity, low power consumption, and low cost, GL2BMU01 is suitable for numerous electronic devices, such as Notebook PC, PDA, Modem, Router, Joystick, USB/UART adapter.... FEATURE z Comply with Bluetooth Specification V1.1 z Support up to 7 ACL connection and 3 SCO connection z Up to 12 PIO/ 2 AIO pin definitions is ideally suited for rapid embedded development any kind of products. z 13 bit PCM interface z UART interface with programmable baud rate z Compact size (25x14.5x2.2mm) can be fit any type of product z RF output power +18 dBm (class 1). z High receiving sensitivity (-88 dBm 0.1%BER). z Pin to pin compatible with GL2BMU02 class 2 module for cost reduction. z Output interface over USB/UART/PCM/SPI. z Alternative built-in 4M or 8M flash memory. APPLICATIONS: Notebook PC, PDA, Access Point, USB dongle, Headset, UART adapter, router, modem, Mouse, Keyboard, PC peripherals, embedded products.... 1 GENERAL SPECIFICATION ITEMS SPECIFICATION Supply Voltage VDD: 3.3V+/-0.3V Regulated supply voltage Carrier Frequency 2400MHz to 2483.5MHz(USA,Spain,France) Modulation Method GFSK,1Mbps,0.5BT Gaussian Maximum Data Rate Asynchronous:723.2kbps/57.6kbps Synchronous:433.9kbps/433.9kbps Transmission Power +18dBm to –12dBm; Power control 6 stage Hopping 1600hops/sec, 1MHz channel space Receiving Signal Range -88dBm to -20 dBm Receiver IF Frequency 1.5MHz center frequency Baseband Crystal OSC 16MHz Output Interface USB,PCM,SPI,UART Operation Temperature -20 to +85 degree Absolute Max Supply Voltage 3.6V for VDD,other VDD +0.3V Storage Temperature -40 to +85 degree Bluetooth Specification Ver1.1 USB Specification Ver 1.1 2 ELECTRICAL CHARACTERISTICS 1) Transmitter Section ITMES MinTypMaxUnitCondition Transmission power ETC1 -14+16+18dBm Longest supported packet Initial Frequency Accuracy -75 75 KHz Hopping ON/OFF Continuous TX In-band spurious ETC1 M +/- 500 kHz |M-N|=2 |M-N|≧3 Exception NOTE5 -20 -20 -40 -20 dBc dBm dBm dBm Max hold and 100kHz Out of band spurious ETC1 (Operation mode) 30MHz to 1GHz 1GHz to 12.75GHz 1.8GHz to 1.9GHz 5.1GHz to 5.3GHz -36 -30 -47 -47 dBm dBm dBm dBm 100kHz RBW Adjacent Channel Power +/-2MHz >+/-3MHz -20 -40 dB dB F1AVG 140 175KHz 00001111,Hopping off DH1 F2MIN 115 KHz 01010101,Hopping off DH1 Modulation Characteristics NTC F2AVG/F1AVG0.8 Frequency Drift ±25 ±40 ±40 KHz KHz KHz DH1 DH3 DH5 Max Drift rate:400Hz/10us Operation current ETC1 150mA Peak Current during bust 3 2)Receiver Section ITMES Min Typ MaxUnit Condition Sensitivity Single slot packet Multi slot packet -90 -90 -88 -88 -85 -85 dBm dBm BER 10E-3,hopping off/1600K returned payload bit Multi slot packets uses DH5 Maximum received signal NTC -20 dBm BER 10E-3,hopping off 1600K returned payload bit ,multi slot packet,DH1 Out-band blocking NTC 30MHz to 2000MHz 2000MHz to 2399MHz 2498MHz to 3000MHz 3000MHz to 12.75GHz (idle mode) 30MHz to 1GHz 1GHz to 12.75GHz 1.8GHz to 1.9GHz 5.15GHz to 5.3GHz -10 -27 -27 -10 -57 -47 -47 -47 dBm dBm dBm dBm dBm dBm dBm dBm Hopping off,BER 10E-3 Intermodulation NTC -39dBm Hopping off,BER 10E-3 Interference Performance Co-channel Image frequency Adjacent(1MHz) to In-band image 14 -6 -16 dB dB dB NTC,BER 10E-3 Measured at hopping off. 4 PIN DEFINITION 5 PIN Name No I/ODescription GND 36 Ground GND 35 Ground GND 34 Ground GND 33 Ground AIO0 32 I/OProgrammable Input/Output line AIO1 31 I/OProgrammable Input/Output line RESET 30 Reset if high SPI_MISO 29 O Synchronous Serial Interface Data Input SPI_CSB 28 I Chip select for Synchronous Serial Interface SPI_CLK 27 I Synchronous Serial Interface Clock SPI_MOSI 26 I Synchronous Serial Interface Data Input UART_CTS 25 I UART clear to send UART_TX 24 O Asynchronous Serial Data Output UART_RTS 23 O UART ready to send UART_RX 22 I Asynchronous Serial Data 1V8 21 For BlueCore2 CORE GND 19 Ground VSUP 20 I 3V3 for RF circuit PCM_OUT 18 O Synchronous Data Output PCM_SYNC 17 I/OSynchronous Data SYNC PCM_IN 16 I Synchronous Data Input PCM_CLK 15 I/OSynchronous Data Clock USB_DP 14 I/OUSB Data+ USB_DN 13 I/OUSB Data- PIO11 12 I/OProgrammable Input/Output Line PIO10 11 I/OProgrammable Input/Output Line PIO9 10 I/OProgrammable Input/Output Line PIO8 9 I/OProgrammable Input/Output Line PIO7 8 I/OProgrammable Input/Output Line PIO6/CLK_REQ 7 I/OPIO line or clock request output to enable external Clock fro external clock line PIO5/USB_DETACH 6 I/O PIO line or chip detaches from USB when this input is high PIO4/USB_ON 5 I/OPIO or USB on (input senses when VBUS is high, wakes BlueCore2-External) PIO3/USB_Wake_Up 4 I/OPIO or Output goes high to wake up PC when in USB mode PIO2/USB_Pull_Up 3 I/OPIO or USB pull-up GND 2 Ground ANT 1 I/OTransmitter out and receiver input PIO1/TXEN 37 I/OControl output for external PA class 1 only PIO0/RXEN 38 I/OControl output for external LNA(if fitted) GND 39 Ground GL2BMU01 Block Diagram 6 GL2BMU01 PIO Placement 7

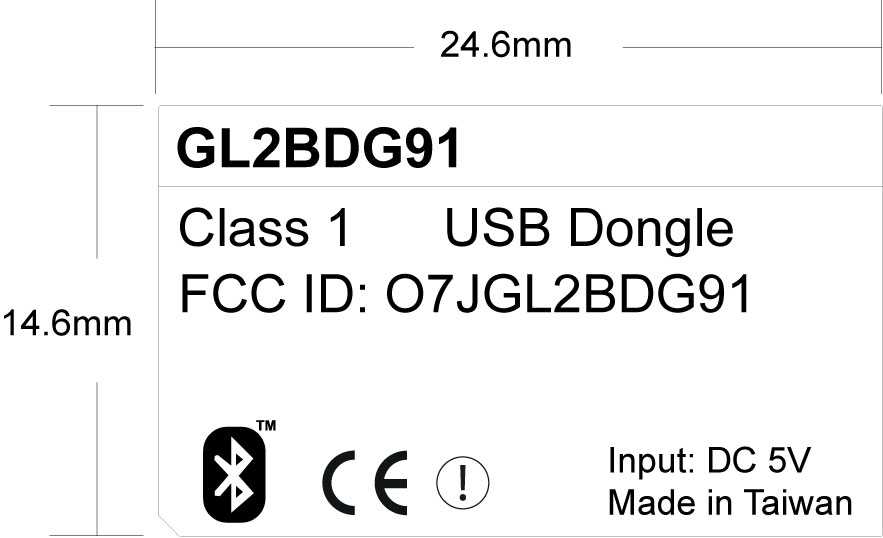

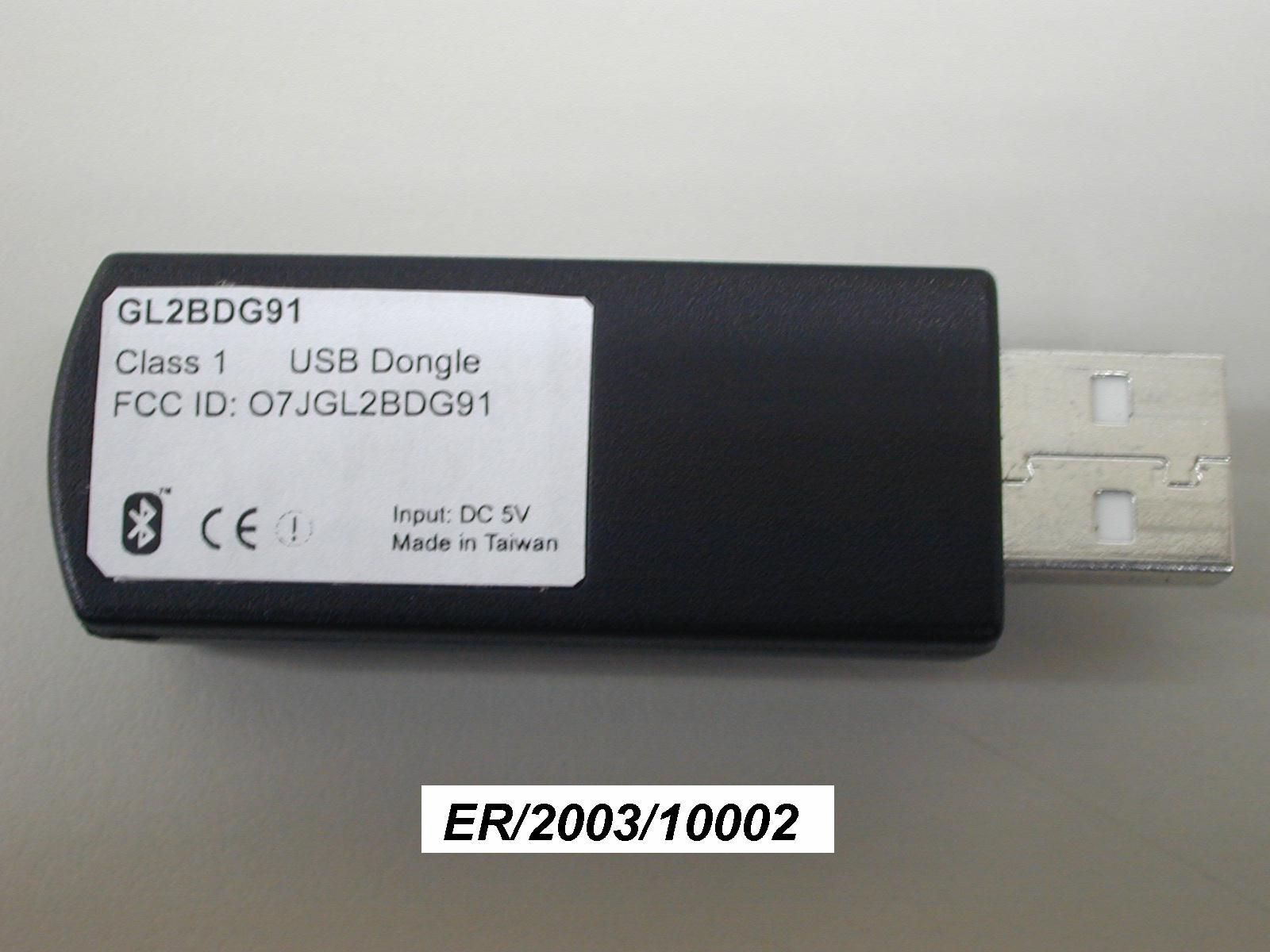

External Photos

Internal Photos

Internal Photos

Operation description Bluetooth 1. Purpose: The purpose of this document is to describe key component operations on Bluetooth. 2. Key components: CSR BlueCore 02 External BC212015B, Bluetooth Single Chip, AMD AM29LV400B(or AM29LV800B), Flash Memory, XC6204B182MR, XC6204B332MR High Speed LDO Regulators,PA2423L POWER AMPLIFIER,XM2400LB-PM0601 LOW NOISE AMPLIFIER,HWS-314 RF SWITCH. 3. Operation Principle: CSR BlueCore 02 External BC212015B, Bluetooth Single Chip BlueCore2-External is a single chip radio and baseband IC for Bluetooth 2.4GHz systems. It is implemented in 0.18μm CMOS technology. When used with external flash containing the CSR Bluetooth software stack, it provides a fully compliant Bluetooth system for data and voice communications. Operation at 2.7 ~ 3.3V supply. Operation clock is provided by 16MHz oscillator. Key Features Radio -Operation with common TX/RX terminals simplifies external matching circuitry and eliminates external antenna switch -Extensive built-in self-test minimizes production test time -No external trimming is required in production -Full RF reference designs are available Transmitter -Up to +4dBm RF transmit power with level control from the on-chip 6-bit DAC over a dynamic range greater than 30dB -Supports Class 2 and Class 3 radios without the need for an external power amplifier or TX/RX switch -Support Class 1 radio with an external power amplifier (PA2423L) up to 21mW provided by a power control terminal controlled by an internal 8-bit voltage DAC and an external RF TX/RX switch (HWS-314) Receiver -Support Class1 radio with an external low noise amplifier (XM2400LB-PM0601) -Integrated channel filters -Digital demodulator for improved sensitivity and co-channel rejection -Digitized RSSI available in real time over the HCI interface -Fast AGC for enhanced dynamic range Synthesizer -Fully integrated synthesizer, no external VCO varactor diode or resonator -Compatible with crystals between 8 and 32MHz (in multiples of 250KHz) or an external clock Auxiliary Features -Crystal oscillator with built-in digital trimming -Power management includes digital shut down and wake up commands and an integrated low power oscillator for ultra-low Park/Sniff/Hold mode power consumption -Devices can be used with an external Master oscillator and provides a clock request signal. To control external clock source. -Uncommitted 8-bit ADC and 8-bit DAC are available to application programs Baseband and software -External 8Mbit flash for complete system solution and application flexibility -32kbyte on-chip RAM allows full speed Bluetooth data transfer, mixed voice and data, plus full 7 slaves Pico net operation -Dedicated logic for forward error correction, header error control, access code correlation, demodulation, cyclic redundancy check, encryption bit-stream generation, whitening and transmit pulse shaping -Transponders for A-law, μ-law and linear voice rom host and A-law, μ-law and CVSD voice over air Physical Interfaces -Synchronous serial interface up to 4MBaud -UART interface with programmable Baud rate up to 1.5MBaud -Full speed USB interface supports OHCI and UHCI host interfaces. Compliant with USB v1.1 -Synchronous bi-directional serial programmable audio interface -Operational l-CTM Compatible interface Bluetooth Stack Running on an Internal Micro-controller CSR.s Bluetooth Protocol Stack runs on-chip in a variety of configurations: -Standard HCI (UART or USB) -Fully embedded to RFCOMM, thus reducing host CPU load AMD AM29LV400B(AM29LV800B), Flash Memory The Am29LV400B is a 4(8) Mbit, 3.0 volt-only Flash memory organized as 524,288 (1,048,576)bytes or 262,144(524,288) words. The devices are offered in 48-ball FBGA. The word-wide data (x16) appears on DQ15-DQ0; the byte-wide (x8) data appears on DQ7-DQ0. This device is designed to be programmed in-system using only a single 3.0 volt VCC supply. No Vpp is required for write or erase operations. The device can also be programmed in standard EEPROM programmers. XC6204B182MR, High Speed LDO Regulators The XC6204 series are highly precise, low noise, positive voltage LDO regulators Maximum Output Current: 150mA manufactured using CMOS processes. The series achieves high ripple rejection Dropout Voltage: 200mV (IOUT = 100mA) and low dropout and consists of a standard voltage source, an error correction, Maximum Operation Voltage: 10V current limiter and a phase compensation circuit plus a driver transistor. Output Voltage Range: 1.8V - 6.0V in 50mV increments Output voltage is selectable in 50mV increments within a range of 1.8V ~ 6.0V. Highly Accurate: ±2% the series is also compatible with low ESR ceramic capacitors which give added Low Power Consumption: TYP 70μA output stability. This stability can be maintained even during load fluctuations due Standby Current: less than 0.1μA to the excellent transient response of the series. High ripple Rejection: 70dB (10kHz) The Current limiter’s feedback circuit also operates as a short protect for the output Low Output Noise: 30μVrms current limiter and the output pin. Operating Temperature Range: -40 ~ +85 The CE function enables the output to be turned off, resulting in greatly reduced Low ESR Capacitor Compatible: Ceramic capacitor power consumption.

NOnameSpecificationModel Qty. Placement 1ChipsetBluetooth Core BGABC212015BDN-E41U1 2MemoryFlash Memory 4M bit FBGA AM29LV400BB-90-WAI 4M bit 1U2 3RF-switchRF-Switch SPDT SOT363HWS3141U4 4LNALow Noise Amplifier SOT236XM2400LB-PM06011U5 5Voltage regulatorRegulator 1.8V SOT235XC6204B182MR1U3 6FilterBand Pass Filter 2.4GMHzMDR741F1F1 7PAPower Amplifier 2.4GMHzPA2423L1U6 8BalunBalun 2.4GHzHHM-15171T1 9Crystal 16MHz ± 10ppm 9p 4X2.5mm(-10~+60) CX-4025S1Y1 10Inductor1.8nH ± 0.2nH SMD 0402LL1005-FH1N8S1L7 11Inductor2.7nH ± 0.2nH SMD 0402LL1005-FH2N7S3L6 12Inductor3.9nH ± 0.2nH SMD 0402LL1005-FH3N9S3L1 , L2 , L3 , L4 13Inductor27nH ± 5% SMD 0402LL1005-FH27NK1L5 14Resistor 0 ±5% SMD 0402 WR04X000PT2R1 , R3 , R11 15Resistor 2.2±5% SMD 0402 WR04X2R2JT1R8 16Resistor 22 ±1% SMD 0402 WR04X220JT3R4 , R5 , R6 17Resistor 47 ±1% SMD 0402 WR04X470JT1R9 , R10 18Resistor 1K ±1% SMD 0402 WR04X102FT1R7 19Resistor 180K ±1% SMD 0402 WR04X184FT1R2 20capacitor1pF ±0.25pF 50V COG SMD 0402GRP1555C1H1R0C1C29 21capacitor1.8pF ±0.25pF 50V COG SMD 0402GRP1555C1H1R8C2C1 , C2 22capacitor2.7pF ±0.25pF 50V COG SMD 0402GRP1555C1H2R7C2C26 23capacitor3.3pF ±0.25pF 50V COG SMD 0402GRP1555C1H3R3C1C11 24capacitor4.7pF ±0.25pF 50V COG SMD 0402GRP1555C1H4R7C1C27 25capacitor5.6pF ±0.25pF 50V COG SMD 0402GRP1555C1H5R6C2C17 26capacitor10pF ±0.5pF 50V COG SMD 0402GRP1555C1H100J4C6 , C12 , C24 , C30 , C33 27capacitor15pF ±0.5pF 50V COG SMD 0402GRP1555C1H150J3C21 , C23 , C32 28capacitor47pF ±5% 50V COG SMD 0402GRP1555C1H470J2C9 , C18 29capacitor220pF ±5% 50V COG SMD 0603GRP1885C1H221J1C7 30capacitor1000pF ±10% 50V X7R SMD 0402GPR155R71H102K2C19 , C20 31capacitor0.027uF ±10% 50V X7R SMD 0402GRP1555C1273C1C25 32capacitor0.01uF ±10% 25V X7R SMD 0402GRP155R71E103K5C4 , C5 , C10 , C13 , C15 33capacitor0.1uF ±10% 10V X5R SMD 0402GRP155R61A104K3C16 , C31 , C34 34capacitor2.2uF ±10% 16V X7R SMD 0805GRM40Y5V225Z252C8 , C14 35PCB4 Layer FR4 8.0mm Class 1103G4005A1 1moduleGL2BMU01Class1 module U3 BOM of the Module GL2BMU01 BOM of the USB dongle GL2BDG91 2PCBPCB GL2BDG92 G132L017A01 3connector Connector UAR10-4W2100 ACON UAR10-4W21001CON1 4Voltage regulatorRegulator XC6204B332MRXC6204B332MR1U2 5capacitor2.2uF ±10% 16V X7R SMD 0805GRM40Y5V225Z252C1 , C3 6capacitor0.1uF ±10% 16V X7R SMD 0603GM188R71C104K1C2 7Resistor 470±1% SMD 0603 WR06X4700FT1R4 8Resistor 10K±5% SMD 0603 WR06X103JT1R1 9LED LED KP-1608SGC KP-1608SGC1D1 10transistorTransistor NPN SOT23MMBT39041Q1 11antennaAntenna C-BR04-169 C-BR04-1691ANT

D BC A 3412 A B C D 1 234 電 路 圖圖形 GLOBAL SUN TECHNOLOGY,INC.陽 慶 電 子 股 份 有 限 公 司 繪 製 確 認 審 核 圖號料號 Mark CY Cheng GL2BMU01-102 D BC A 3412 A B C D 1 234 電 路 圖圖形 GLOBAL SUN TECHNOLOGY,INC.陽 慶 電 子 股 份 有 限 公 司 繪 製 確 認 審 核 圖號料號 D BC A 3412 A B C D 1 234 電 路 圖圖形 GLOBAL SUN TECHNOLOGY,INC.陽 慶 電 子 股 份 有 限 公 司 繪 製 確 認 審 核 圖號料號 TONY KUAN A 1 010702100001 SBW-SC-901-01 MARK TUNG TONY KUAN

D BC A 3412 A B C D 1 234 電 路 圖圖形 GLOBAL SUN TECHNOLOGY,INC.陽 慶 電 子 股 份 有 限 公 司 繪 製 確 認 審 核 圖號料號 D BC A 3412 A B C D 1 234 電 路 圖圖形 GLOBAL SUN TECHNOLOGY,INC.陽 慶 電 子 股 份 有 限 公 司 繪 製 確 認 審 核 圖號料號 TONY KUAN MARK TUNG

Report No. : ER/2003/10002 Page : 1 of 35 FCC TEST REPORT quipment Under Test : Bluetooth USB Dongle Model No. : GL2BDG91 Applicant : Global Sun Technology Inc. No.13, Tung Yuan Rd., Jung Li Industrial Park, Jung Li city, Tao Yuan Hsien, Taiwan, R.O. C. Address of Applicant : Standards: FCC Part 15 subpart C In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Taiwan E&E Services or testing done by SGS Taiwan E&E Services in connection with distribution or use of the product described in this report must be approved by SGS Taiwan E&E Services in writing. Tested by : Alex Lee Date : Jan. 23,2003 Approved by : Jason Lin Date : Jan. 30,2003 Report No. : ER/2003/10002 Page : 2 of 35 Contents 1. General Information 1.1 Testing Laboratory 3 1.2 Details of Applicant 3 1.3 Description of EUT(s) 3 1.4 Operation Procedure 4 2. Summary of Results 5 3. Instruments List 6 4. Measurements 7 4.1 Conducted Limits 7 4.2 Radiated emission Limits, general requirement 9 4.3 Channel Spacing 14 4.4 20db bandwidth / No. of channels 16 4.5 Average time of Occupacy 22 4.6 Peak outpot power 24 4.7 Band-edge emission 26 4.8 Spurious Emission under 25Ghz 28 APPENDIX Photographs of Test Setup 32 Photographs of EUT 33-34 Report No. : ER/2003/10002 Page : 3 of 35 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. ( FCC Registration number: 573967 ) 1F, No. 134, Wukung Road, Wuku industrial zone Taipei county , Taiwan , R.O.C. Telephone : +886-2-2299-3279 Fax : +886-2-2298-2698 Internet : http://www.sgs.com.tw 1.2 Details of Applicant Name : Global Sun Technology Inc. Address No.13, Tung Yuan Rd., Jung Li Industrial Park, Jung Li city, Tao Yuan Hsien, Taiwan, R.O. C. Contact : Miss. Amber Huang Telephone : +886-2-85227155 ext. 666 1.3 Description of EUT(s) 1 Product name Bluetooth USB Dongle 2 Product ID GL2BDG91 3 Supply Voltage USB Power Supply 5V10% 4 Carrier Frequency 2402MHz to 2480MHz 5 Modulation Method GFSK,1Mbps,0.5BT Gaussian 6 Hopping 1600hops/sec, 1MHz channel space 7 Output Interface USB 8 Operation Temperature -20 to +70 degree 9 Compliant Bluetooth Specification Ver1.1 10 Storage Temperature -40 to +85 degree Report No. : ER/2003/10002 Page : 4 of 35 1.4 Operation Procedure Since Bluetooth is a FHSS system, it is difficult to measure the parameters under hopping mode. The output power and operating frequency are NOT End-user adjustable. Applicant offer a engineering software “BlueSuite” to control the EUT. Setting of the software parameters are set as default. Operating frequency are set as testing required. The output power is set as Ext=255, Int=60 (at max. power) The lowest operating frequency within Bluetooth specification is 2402Mhz, and highest operating frequency is 2480Mhz. So the frequency above are used as the lowest and highest frequency in the testing, and the middle frequency is set as 2441Mhz. Due to cable loss, the real value will equal to measured value(show on the instrument) add cable loss. Report No. : ER/2003/10002 Page : 5 of 35 2.Summary of Results subclause Parameter to be measures Verdict Page 15.207 Conducted Limits PASS 7 15.209 Radiated emission Limits, general requirement PASS 9 15.247(a)(1) Channel Spacing PASS 14 15.247(a)(1)(ii) 20db bandwidth / No. of channels PASS 15 15.247(a)(1)(ii) Average Time of Occupacy PASS 19 15.247(b)(1) Peak Output power PASS 21 15.247(c) Band-Edge Emission PASS 22 15.247(c) Spurious Emission under 25Ghz PASS 24 Report No. : ER/2003/10002 Page : 6 of 35 3. Instruments List Instrument Model Serial number Calibration date Desktop PC Acer Veriton 7200N/A N/A Spectrum Analyzer Agilent 7405A US40240202 May 22, 2002 Climatic chamber Terchy MHG-120L911009 Oct. 15, 2002 Antenna Schwarzbeck BBHA9120A 309/320 July 01, 2002 Antenna Schwarzbeck VULB9163 152 July 01, 2002 RF Signal generator Agilent 83752A 3601A02720 Sep. 04, 2002 EMC Analyzer HP 8594EM 3624A00203 Dec. 13, 2002 EMI Test Receiver R&S ESCS 30 828985/004 Oct. 11, 2002 Transient Limiter HP 11947A 3107A02062 Jul. 24, 2002 L.I.S.N Rolf-Heine NNB-2/16Z 99012 Oct. 08, 2002 Report No. : ER/2003/10002 Page : 7 of 35 4. Measurements 4.1 Conducted Limits SUBCLAUSE 15.207 Line Neural Report No. : ER/2003/10002 Page : 8 of 35 4.1.1 Limits (EN55022) Limits dB(uV) Frequency range Mhz Quasi-peak Average 0.15 to 0.5 66 to 56 56 to 46 0.5 to 5 56 46 5 to 30 60 50 Report No. : ER/2003/10002 Page : 9 of 35 4.2 Radiated emission Limits, general requirement SUBCLAUSE 15.209 Part 1: 30Mhz-300Mhz Vertical Report No. : ER/2003/10002 Page : 10 of 35 Horizontal Report No. : ER/2003/10002 Page : 11 of 35 Part2: 300Mhz- 1Ghz Vertical Report No. : ER/2003/10002 Page : 12 of 35 Horizontal Report No. : ER/2003/10002 Page : 13 of 35 4.2.1 Limits Report No. : ER/2003/10002 Page : 14 of 35 4.3 Channel Spacing SUBCLAUSE15.247(a)(1) Report No. : ER/2003/10002 Page : 15 of 35 4.4 No. of carrier frequency / 20db Bandwidth SUBCLAUSE15.247(a)(1)(ii) Report No. : ER/2003/10002 Page : 16 of 35 Split the whole frequency band into two. Report No. : ER/2003/10002 Page : 17 of 35 20dB bandwidth at lowest (2402Mhz), middle(2441Mhz), highest channel(2480Mhz) Channel bandwidth = 775KHZ Report No. : ER/2003/10002 Page : 18 of 35 Channel bandwidth = 780KHZ Report No. : ER/2003/10002 Page : 19 of 35 Channel bandwidth = 750KHZ Report No. : ER/2003/10002 Page : 20 of 35 4.5 Average Time of Occupancy SUBCLAUSE15.247(a)(1)(ii) Report No. : ER/2003…

Text truncated - open the document above for the full version.

Test Setup Photos
