O7N-CWFB1XX-XXX2.4G AP PCBA

ChipSiP Technology Co.,Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Sep 09, 2012
Application Purpose: Original Equipment
Date of Application: Sep 04, 2012
Equipment Note: 2.4G AP PCBA
Frequency Range: 2412.00000000 - 2462.00000000
Company: ChipSiP Technology Co.,Ltd.
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CWFB1XX-XXX Specification Revision 01 2012/06/06 Prepared By: Jeff Hsieh Revision History Revision Date Notes Owner 01 2012/06/06 Initial Release Jeff Hsieh 1. Wireless Spec. WLAN: 1X1 Frequency Range: 802.11b/g/n HT20: 2412 – 2462MHz 802.11n HT40: 2422 – 2452MHz Channel number: 802.11b/g/n HT20: 11 channels 802.11n HT40: 7 channels Transmit Power: 802.11b: 20.68dBm 802.11g: 23.14dBm 802.11n HT20 : 22.60dBm 802.11n HT40 : 22.61dBm Modulation Technology 11b/g: DSSS, OFDM 11n: OFDM Modulation type: CCK, DQPSK, DBPSK for DSSS 64QAM. 16QAM, QPSK, BPSK for OFDM Transition Rate: 802.11 b: 1/2/5.5/11 Mbps 802.11 g: 6/9/12/18/24/36/48/54 Mbps 802.11 n HT20MHz: 6.5 – 65Mbps 802.11 n HT40MHz: 13.5 – 135Mbps Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. This device is intended for OEM integrators only. Please see the full Grant of Equipment document for other restrictions. This device must be operated and used with a locally approved access point. End Product Labeling: The final end product must be labeled in a visible area with the following: “Contains FCC ID: O7N-CWFB1XX-XXX”.

Cover Letter(s)

Modular Approval Request Letter 8/22/2012 Dear Application Examiner, ChipSip Technology Co., Ltd. / FCC ID: O7N-CWFB1XX-XXX would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes, The EUT provides the RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has its buffered modulation. Please see the Schematic Diagram. 3. The modular transmitter must have its own power supply regulation. The EUT has its own power supply regulation, please see the Schematic Diagram. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The EUT meets the FCC antenna requirements; unique antenna connector and photo of antenna are shown in the test report. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes. Please see section photographs of test configuration in the test report. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: O7N-CWFB1XX-XXX” or “Contains FCC ID: O7N-CWFB1XX-XXX.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please see exhibition label sample for the FCC ID of this module. And also in the exhibition Users manual, there are instructions give to the OEM on how to label the end product. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are give in the User Manual.

Cover Letter(s)

p 08/2412012 Federal Communications Commission Authorization anel Evaluation Division Dear Regulatory Authority, We, the undersigned, hereby declare that Declaration of Conformity procedures will be applied to the digital device portion of the following product: . Product name: 2.40 AP PCBA Model: CWFB102, CWFB102-AOl, CWFB102-0S, CWFBI02-06, CWFBI02-01, CWFBI02-02, CWFB102-03, CWFBI08, CWFBI08-01 , CWFBI07, CWFBI07-01 , CWFBI07-02, CWFBllS-01, CWFBllS-02, CWFBllS-03, CWFBI09-POO, CWFBI09-POl , CWFBl13-P01, CWFB113-01, CWFBl12-POl , CWFBl12-P02, CWFBI10-AOO, CWFB110-BOO, CWFB 110-B01, CWFB111-AOO, CWFBll1-BOO, CWFB111-B01, CWFBll1-B02" CWFBll1-B03, CWFBll1-BOS, CWFBI11-B06, CWFBIll-B07, CWFBll1-B08, CWFB117-BOO, CWFFI0l Test repOli: ISL-12LE323FBC ( Product Identification) It is herewith confim1eel and found to comply with the requirements set up by ANSI C63.4 & FCC PART 15 regulations for the evaluation of electromagnetic compatibility. This Device complies with Part 15 of the FCC rules, operation is subject to the following two conditions. This device may not cause haID1ful interference and, This device must accept any interference received, including interference that may cause undesired operation. TEST LABORATORY International Standards Laboratory Lung-TanHsiang, Tao Yuan County 325, Taiwan FCC Registration Number: TWI036. TAF Accreditation No.: 0997; IC: IC4067B-3, BSMI MRA Test Lab. Sincerely, Bryan Su ChipSip Technology Co., Ltd. anager

External Photos

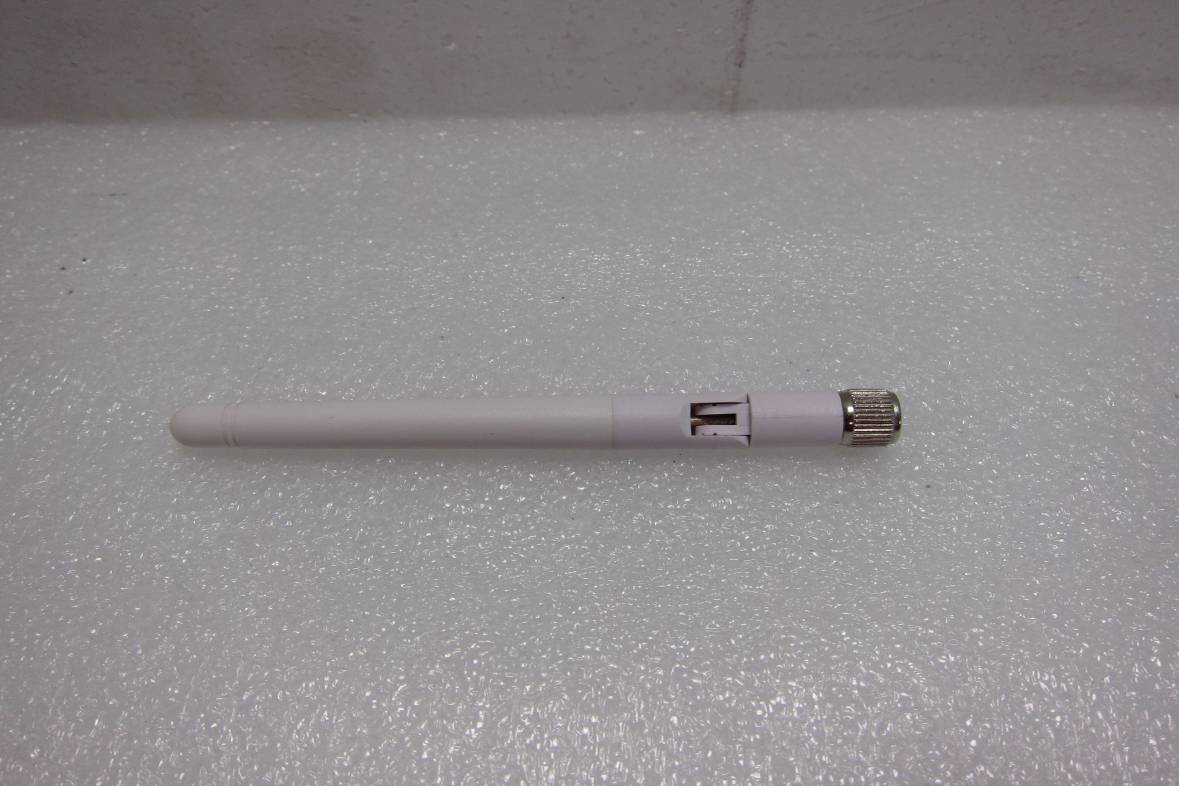

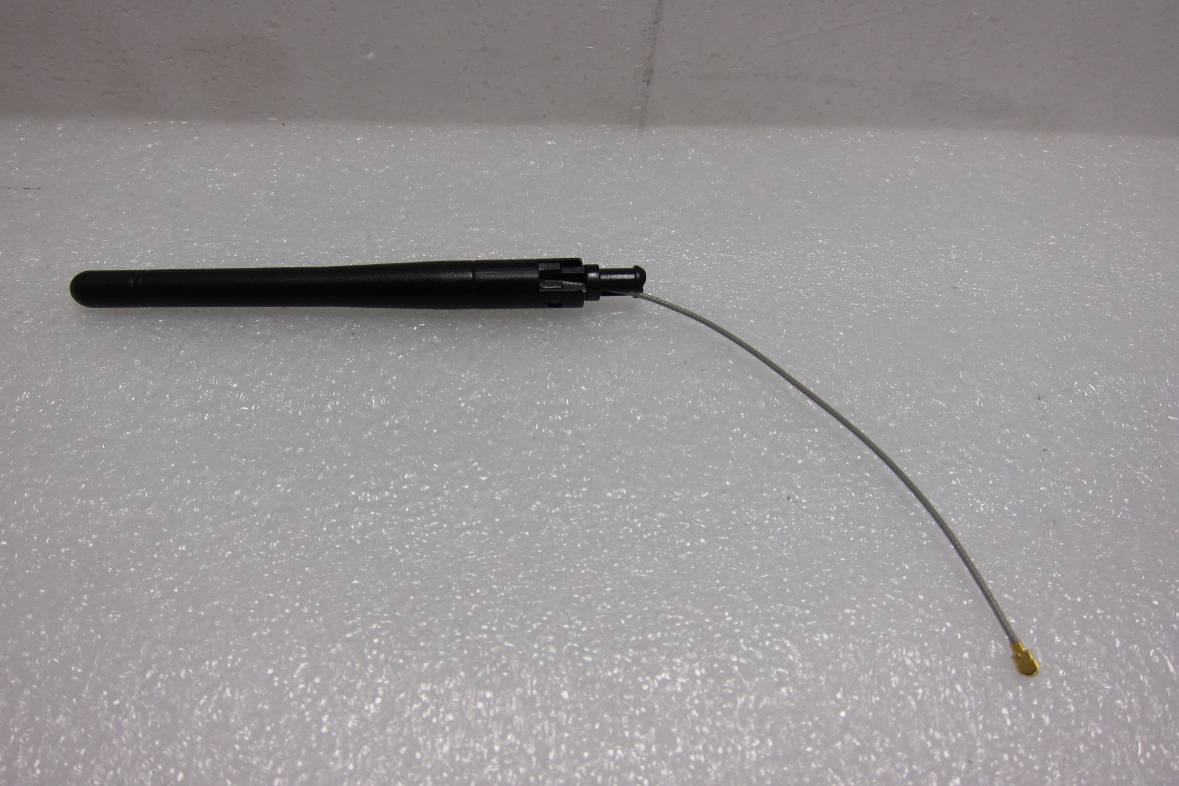

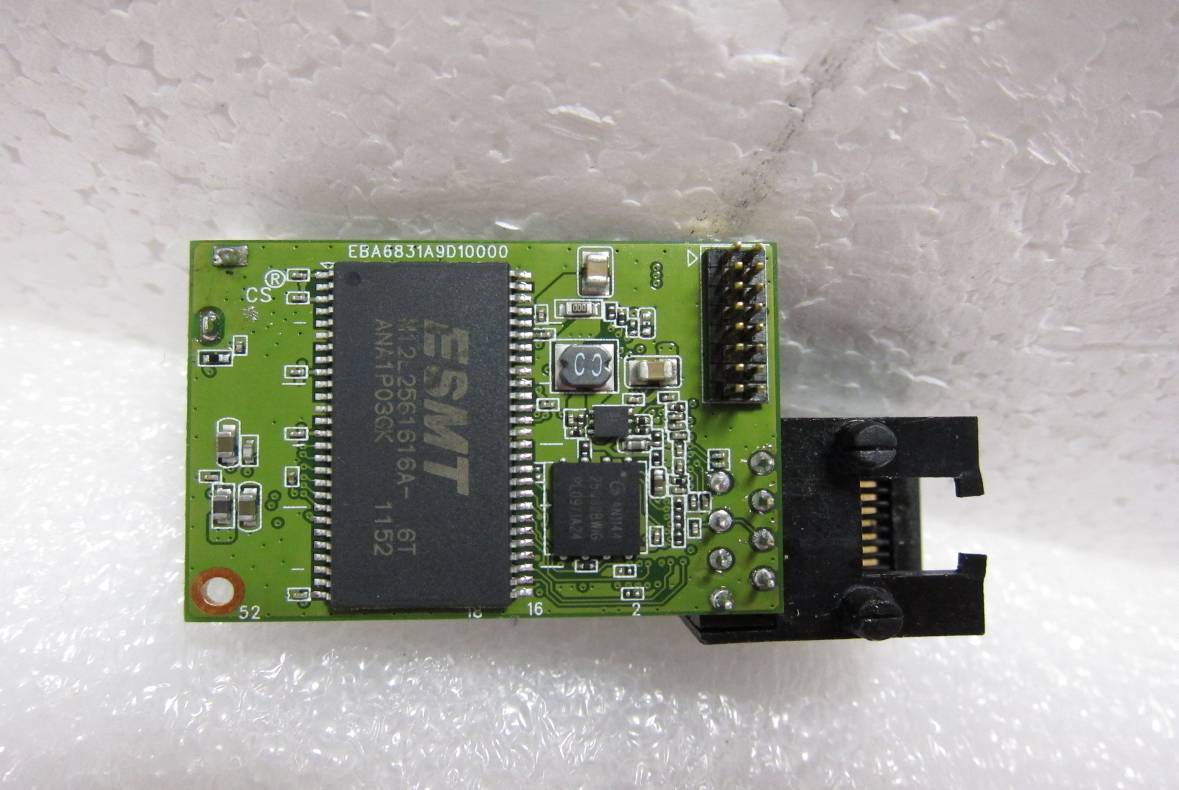

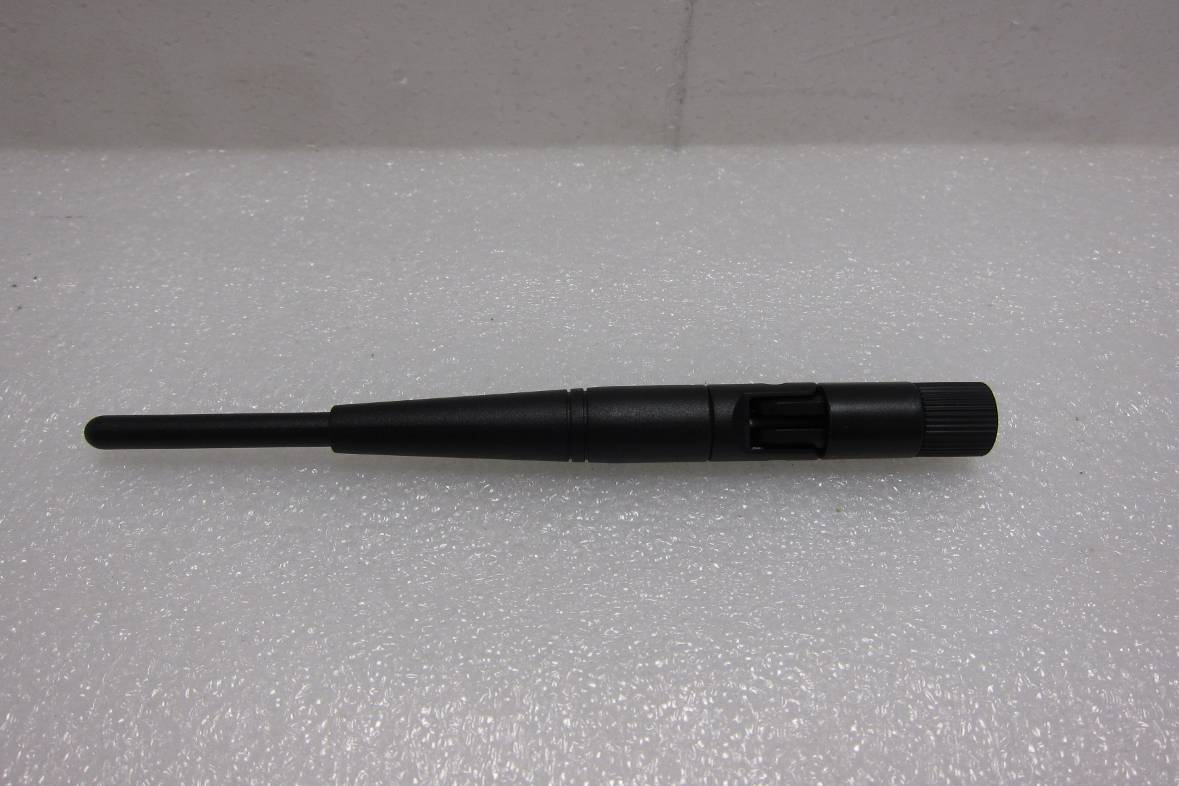

FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC PHOTOGRAPHS OF EUT FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC EUT – 1 (mother board 1) EUT – 2 (mother board 2) FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC EUT – 3 EUT – 4 FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC ANT 1 (RFA-25-C2S1-70-90 / 2dBi) ANT 2 (EDA-8709-25GR2-A4-RM / 2dBi) FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC ANT 3 (A-2408W 2dBi) ANT 4 (RFA-05-2-L14M3-B70-1 / 2dBi) FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC ANT 5 (SD001-201003-A101 / 2dBi) ANT 6 (H2P566WKBA0100 / 2.3dBi) FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC ANT 7 (26-52-01800G / 4dBi) ANT 8 (R831A-H / 3.06dBi)

ID Label/Location Info

FCC ID LABEL FORMAT AND LOCATION Applicant: ChipSip Technology Co., Ltd. FCC ID: O7N-CWFB1XX-XXX

Internal Photos

RF Exposure Info

-1 of 5- FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC Maximum Permissible Exposure (MPE) Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density -2 of 5- FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC Maximum Permissible Exposure (MPE) Evaluation 802.11b Cable loss = 0 Output Power Limit CH Frequency (MHz) Detector (dBm) PK AV (dBm) (dBm) 1 2412 20.68 17.82 30 6 2437 20.06 17.76 11 2462 19.84 17.53 MPE Prediction (802.11b) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum p eak ou tp ut p ower at antenn a in put termin al: 20 .68 (dBm) Maximum p eak ou tp ut p ower at antenn a in put termin al: 11 6.9 49 939 1 (mW) Duty cycle: 100 (%) Maximum Pav : 116.9499391 (mW) Antenna gain (typical): 4 (dBi) Maximum an tenn a gain: 2.5 11 88 643 2 (numer ic) Prediction distance: 20 (cm) Prediction frequency: 2412 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.0584723 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.0585 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 2412MHz. -3 of 5- FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC 802.11g Cable loss = 0 Output Power Limit CH Frequency (MHz) Detector (dBm) PK AV (dBm) (dBm) 1 2412 23.14 14.7 30 6 2437 23.05 14.41 11 2462 22.54 13.6 MPE Prediction (802.11g) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum p eak ou tp ut p ower at antenn a in put termin al: 23 .14 (dBm) Maximum p eak ou tp ut p ower at antenn a in put termin al: 20 6.0 62 991 3 (mW) Duty cycle: 100 (%) Maximum Pav : 206.0629913 (mW) Antenna gain (typical): 4 (dBi) Maximum an tenn a gain: 2.5 11 88 643 2 (numer ic) Prediction distance: 20 (cm) Prediction frequency: 2412 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.1030268 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.103 mW/cm2. This is below the uncontrolled exposure limit of 1 mW/cm2 at 2412. -4 of 5- FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC 802.11N 20MHz Cable loss = 0 Output Power Limit CH Frequency (MHz) Detector (dBm) PK AV (dBm) (dBm) 1 2412 22.6 14.31 30 6 2437 22.51 14.08 11 2462 22.47 13.83 MPE Prediction (802.11n_20M) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum p eak ou tp ut p ower at antenn a in put termin al: 22 .6 (dBm) Maximum p eak ou tp ut p ower at antenn a in put termin al: 18 1.9 70 085 9 (mW) Duty cycle: 100 (%) Maximum Pav : 181.9700859 (mW) Antenna gain (typical): 4 (dBi) Maximum an tenn a gain: 2.5 11 88 643 2 (numer ic) Prediction distance: 20 (cm) Prediction frequency: 2412 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.0909809 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.091 mW/cm2. This is below the uncontrolled exposure limit of 1 mW/cm2 at 2412. -5 of 5- FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC 802.11N 40MHz Cable loss = 0 Output Power Limit CH Frequency (MHz) Detector (dBm) PK AV (dBm) (dBm) 3 2422 22.57 13.8 30 6 2437 22.59 13.82 9 2452 22.61 13.69 MPE Prediction (802.11n_40M) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum p eak ou tp ut p ower at antenn a in put termin al: 22 .61 (dBm) Maximum p eak ou tp ut p ower at antenn a in put termin al: 18 2.3 89 570 2 (mW) Duty cycle: 100 (%) Maximum Pav : 182.3895702 (mW) Antenna gain (typical): 4 (dBi) Maximum an tenn a gain: 2.5 11 88 643 2 (numer ic) Prediction distance: 20 (cm) Prediction frequency: 2452 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.0911907 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.091 mW/cm2. This is below the uncontrolled exposure limit of 1 mW/cm2 at 2452.

Test Report

Page: 1 of 88 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Full Modular Approval Product : 2.4G AP PCBA Brand: ChipSip Model: CWFB102, CWFB102-A01, CWFB102-05, CWFB102-06, CWFB102-01, CWFB102-02, CWFB102-03, CWFB108, CWFB108-01, CWFB107, CWFB107-01, CWFB107-02, CWFB115-01, CWFB115-02, CWFB115-03, CWFB109-P00, CWFB109-P01, CWFB113-P01, CWFB113-01, CWFB112-P01, CWFB112-P02 Model Difference: Market Segmentation FCC ID: O7N-CWFB1XX-XXX, it identifies a single equipment “X” is letter of the alphabet FCC Rule Part: §15.247, Cat: DTS Applicant: ChipSip Technology Co., Ltd. Address: 8F-1, No.186, Jian 1st Rd., Zhonghe District., New Tai- pei City, 235 Taiwan Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-12LR118FC Issue Date : 2012/08/23 Test results given in this report apply only to the specifi sample(s) tested and are traceable to national or interna- tional standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Gov- ernment. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 88- FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC VERIFICATION OF COMPLIANCE Applicant: ChipSip Technology Co., Ltd. Product Description: 2.4G AP PCBA Brand Name: ChipSip Model No.: CWFB102, CWFB102-A01, CWFB102-05, CWFB102-06, CWFB102-01, CWFB102-02, CWFB102-03, CWFB108, CWFB108-01, CWFB107, CWFB107-01, CWFB107-02, CWFB115-01, CWFB115-02, CWFB115-03, CWFB109-P00, CWFB109-P01, CWFB113-P01, CWFB113-01, CWFB112-P01, CWFB112-P02 Model Difference: Market Segmentation FCC ID: O7N-CWFB1XX-XXX, it identifies a single equipment “X” is letter of the alphabet Date of test: 2012/07/17 ~ 2012/08/10 Date of EUT Received: 2012/07/17 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2012/08/23 Dion Chang / Engineer Prepared By: Date: 2012/08/23 Eva Kao / Technical Supervisor Approved By: Date: 2012/08/23 Vincent Su / Technical Manager -3 of 88- FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC Version Version No. Date Description 00 2012/08/23 Initial creation of document -4 of 88- FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 8 1.2 Test Methodology .......................................................................................................................... 8 1.3 Test Facility .................................................................................................................................... 8 1.4 Special Accessories ........................................................................................................................ 8 1.5 Equipment Modifications ............................................................................................................... 8 2 SYSTEM TEST CONFIGURATION ....................................................................................... 9 2.1 EUT Configuration ........................................................................................................................ 9 2.2 EUT Exercise ................................................................................................................................. 9 2.3 Test Procedure ................................................................................................................................ 9 2.4 Configuration of Tested System ................................................................................................... 10 3 SUMMARY OF TEST RESULTS .......................................................................................... 11 4 DESCRIPTION OF TEST MODES ....................................................................................... 11 5 CONDUCTED EMISSION TEST........................................................................................... 12 5.1 Standard Applicable: .................................................................................................................... 12 5.2 Measurement Equipment Used: ................................................................................................... 12 5.3 EUT Setup: ................................................................................................................................... 12 5.4 Measurement Procedure: ............................................................................................................. 13 5.5 Measurement Result: ................................................................................................................... 13 6 PEAK OUTPUT POWER MEASUREMENT ....................................................................... 16 6.1 Standard Applicable: ......................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC PHOTOGRAPHS OF SET UP FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC Radiated Emission Set up Photo FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC Conducted Emission Set up Photo FCC ID: O7N-CWFB1XX-XXX International Standards Laboratory Report Number: ISL-12LR118FC

Contact Information

Applicant

Dio Lin(Senior Manager)

[email protected]886-2-82271799Fax: 886-2-82271798

Technical Contact

International Stantards LaboratoryVincent Su

[email protected]886-2-26462550

No. 120, Lane 180, San Ho Tsuen,Hsin Ho · Taiwan

Non-Technical Contact

International Stantards LaboratoryVincent Su

[email protected]

Test Firm

International Standards Laboratory Corp.Benson Chen

[email protected]886-3-263-8888Fax: 886-3-263-8899

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	210.00 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Power output listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. The antenna's as listed in this application must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users may not be provided with the module installation instructions. OEM integrators and end-users must be provided with transmitter operating conditions for satisfying RF exposure compliance.
