O7N-CWFB211-XXX5G +2.4G 2T/2R WLAN FMC

CWFB211-XXX Specification Revision 01 2012/09/12 Prepared By: Jeff Hsieh Revision History Revision Date Notes Owner 01 2012/09/12 Initial Release Jeff Hsieh 1. Wireless Spec. WLAN: 2X2 MIMO Wi-Fi Frequency Range (MHz) Channels Peak Rated Power Modulation Technology 802.11b 2412 – 2462(DTS) 11 19.52dBm DSSS 802.11g 2412 – 2462(DTS) 11 23.87dBm DSSS, OFDM 802.11n HT20 2412 – 2462(DTS) 11 23.77dBm OFDM HT40 2422 – 2452(DTS) 7 23.71dBm 802.11a 5180 – 5240(NII) 4 9.19dBm OFDM 5745 – 5825(DTS) 5 23.88dBm 802.11n HT20 5180 – 5240(NII) 4 8.65dBm OFDM HT20 5745 – 5825(DTS) 5 24.81dBm HT40 5190 – 5230(NII) 2 10.93dBm HT40 5755 – 5795(DTS) 2 24.60dBm Modulation type CCK, DQPSK, DBPSK for DSSS 64QAM. 16QAM, QPSK, BPSK for OFDM Transition Rate: Upto 300Mbps Antenna Designation: Manufacturer Model No. Connector Type Type Gain (2.4GHz) Gain (5GHz) Ant 1 Airwave Technologies INC. EDA-8709-25GR2-A4-RM Revise SMA, unique Dipole Ant 2 dBi 2 dBi Ant 2 ARISTRTLE RFA-25-C2S1-70-90 unique Dipole Ant 2 dBi 2 dBi Ant 3 Tranwo technology corp. SD001-201003-A101 Revise SMA, unique Dipole Ant 2dBi 2 dBi Ant 3-1 Tranwo technology corp. RFA-05-2-L14M3-B70-1 Revise SMA, unique Dipole Ant 2dBi 2 dBi Ant 3-2 Tranwo technology corp. 202-000442-00 unique Patch Ant 0 dBi -1 dBi Ant 3-3 Tranwo technology corp. 202-000441-00 unique Patch Ant 0.5 dBi -0.5 dBi Ant 4 UDM Group Technology Co., Ltd 26-52-01800G unique PCB Ant (Green) 2.5 dBi 4 dBi Ant 5 Unictron Technologies Corporation H2P566WKBA0100 unique PCB Ant (Blue) 2.3 dBi 4dBi This antenna list table could be used for CWFB211-XXX.. The max gain of 2.4G: 2.5dBi. The max gain of 5G: 4dBi. Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter and this equipment should be installed and operated with minimum distance 20cm between the radiator & your body. When suing IEEE 802.11a wireless LAN, this product is restricted to indoor use, due to its operation in the 5.15 to 5.25GHz frequency range. The FCC requires this product to be used indoors for the frequency range of 5.15 to 5.25GHz to reduce the potential for harmful interference to co channel mobile satellite systems. The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove. This RF module in the user’s manual of the end product which integrates this module. The user’s manual for OEM Integrators must include the following information in a prominent location End Product Labeling: The final end product must be labeled in a visible area with the following: “Contains FCC ID: O7N-CWFB211-XXX”.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: ChipSip Technology Co.,Ltd. Address : 8F-1, No. 186, Jian 1st Rd., Zhonghe District., City: New Taipei City Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: O7N-CWFB211-XXX Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 02/21/2013 Name and signature of applicant: Bryan Su Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FC APPENDIX 2 PHOTOGRAPHS OF EUT FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FC EUT 1

FCC ID LABEL FORMAT AND LOCATION Applicant: ChipSip Technology Co., Ltd. FCC ID: O7N-CWFB211-XXX CWFB210 FCC ID: O7N-CWFB211-XXX WAN MAC: 7472F200AEA3 LAN MAC: 7472F200AEA4

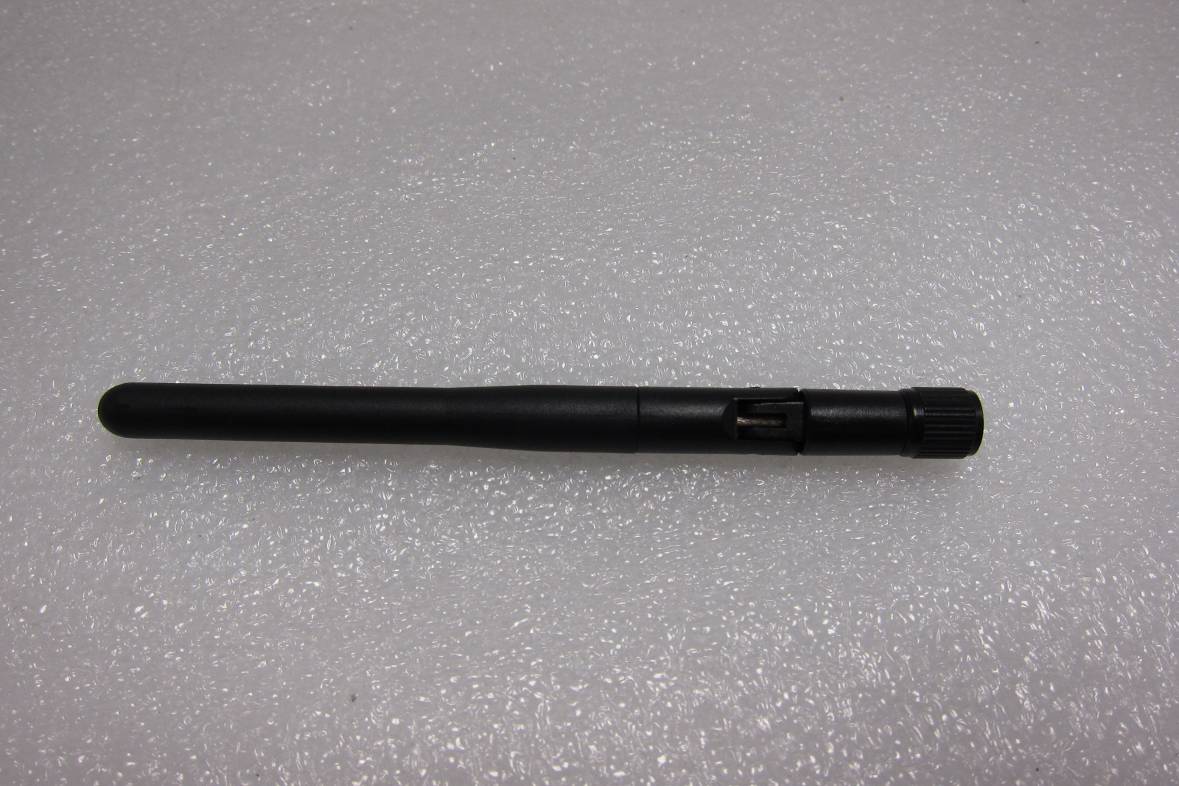

FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FC APPENDIX 2 PHOTOGRAPHS OF EUT FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FC EUT 2 EUT 3 FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FC EUT 4 (antenna 1 ) EUT 5 (antenna 2) FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FC EUT 6 (antenna 3) EUT 7 (antenna 3-1) FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FC EUT 8 (antenna 3-2) EUT 9 (antenna 3-2) FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FC EUT 10 (antenna 3-3) EUT 11 (antenna 3-3) FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FC EUT 12 (antenna 4) EUT 13 (antenna 5) -

FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FC 15. Maximum Permissible Exposure (MPE) 15.1 Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be op- erated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FC 15.2 Maximum Permissible Exposure (MPE) Evaluation MPE Prediction (802.11n HT40) (worst case) Power measurement: Mode Freq(MHz) channel Output Chain (dBm) Combine Peak Output Power (dBm) Limit(dBm) Result Chain Achain B N HT40 5190 38 8.02 7.81 10.93 16.98 Pass 5230 46 7.59 7.33 10.47 16.98 Pass Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum p eak ou tp ut p ower at antenn a in put termin al: 10 .93 (dBm) Maximum p eak ou tp ut p ower at antenn a in put termin al: 12 .38 79 658 7 (mW) Duty cycle: 100 (%) Maximum P av : 12 .38 79 658 7 (mW) Antenna gain (typical): 4 (dBi) Maximum an tenn a gain: 2.5 11 88 643 2 (nu mer ic) Prediction distan ce: 20 (cm) Prediction freq uency: 51 90 (MHz) MPE limit fo r u ncon trolled expo sur e at p rediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.0061937 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.00619 mW/cm 2 . This is below the uncon- trolled exposure limit of 1 mW/cm 2 at 5190MHz.

Page: 1 of 89 TEST REPORT of FCC PART 15 SUBPART E New Application; Class I PC; Class II PC Full Modular Approval Product : 5G +2.4G 2T/2R WLAN FMC Brand: Nane Model: Detail please refer to page 6 Model Difference: Market Segmentation FCC ID: O7N-CWFB211-XXX it identifies a single equipment “X” is letter of the alphabet FCC Rule Part: §15.407 Applicant: ChipSiP Technology CO., Ltd. Address: 8F.-1, No.186, Jian 1st Rd., Zhonghe Dist., New Taipei City 235, Taiwan Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-13LR006FE Issue Date : 2013/02/21 Test results given in this report apply only to the specific sample(s) tested and are traceable to nation- al or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 89- FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FE VERIFICATION OF COMPLIANCE Applicant: ChipSiP Technology CO., Ltd. Product Description: 5G +2.4G 2T/2R WLAN FMC Brand Name: Nane Model No.: Detail please refer to page 6 Model Difference: Market segmentation FCC ID: O7N-CWFB211-XXX, it identifies a single equipment “X” is letter of the alphabet FCC Rule Part: §15.407 Date of test: 2013/01/07 ~ 2013/01/19 Date of EUT Received: 2013/01/07 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2013/02/21 Dion Chang / Engineer Prepared By: Date: 2013/02/21 Eva Kao / Technical Supervisor Approved By: Date: 2013/02/21 Vincent Su / Technical Manager -3 of 89- FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FE Version Version No. Date Description 00 2013/02/21 Initial creation of document -4 of 89- FCC ID: O7N-CWFB211-XXX International Standards Laboratory Report Number: ISL-13LR006FE Table of Contents 1. GENERAL INFORMATION .................................................................................................... 6 1.1. Product Description ....................................................................................................................... 6 1.2. Related Submittal(s) / Grant (s) ..................................................................................................... 8 1.3. Test Methodology .......................................................................................................................... 8 1.4. Test Facility .................................................................................................................................... 8 1.5. Special Accessories ........................................................................................................................ 8 1.6. Equipment Modifications ............................................................................................................... 8 2. SYSTEM TEST CONFIGURATION ....................................................................................... 9 2.1. EUT Configuration ........................................................................................................................ 9 2.2. EUT Exercise ................................................................................................................................. 9 2.3. Test Procedure ................................................................................................................................ 9 2.4. Configuration of Tested System ................................................................................................... 10 3. SUMMARY OF TEST RESULT ............................................................................................ 11 4. DESCRIPTION OF TEST MODES ....................................................................................... 11 5. AC POWER LINE CONDUCTED EMISSION TEST ......................................................... 12 5.1. Standard Applicable ..................................................................................................................... 12 5.2. Measurement Equipment Used: ................................................................................................... 12 5.3. EUT Setup: ................................................................................................................................... 12 5.4. Measurement Procedure: ............................................................................................................. 13 5.5. Measurement Result: ................................................................................................................... 13 6. PEAK OUTPUT POWER MEASUREMENT ....................................................................... 16 6.1 Standard Applicable ..................................................................................................................... 16 6.2 Measurement Procedure ............................................................................................................... 16 6.3 Measurement Equipment Used: ..........................................…
