CWFF202 Series User’s Manual (Only for Internal Reference) Revision 01 2013/07/30 Prepared By: Alex Cheng Revision History Revision Date Notes Owner 01 2013/ 07/ 30 Initial Release Alex Cheng TABLE OF CONTENT 1. Install and start the application on your system .........................................4 2. Product specification ........................................................................6 3. FCC Statement ..............................................................................9 1. Install and start the application on your system (1) Please install the product Driver. (2) After installed the Driver, you will see the REALTEK USB Wireless LAN Utility on you system. (3) Plug in the WiFi dongle on your system. (4) Double click it to execute “REALTEK USB Wireless LAN Utility” (5) Select an available Access Point ,and then connect it. (6) Check the network quality 2. Product specification Chipsip Solution is a small-sized, 802.11abgn USB that achieves a data rate up to 300Mbps. It is 6 times faster than the legacy 11abg but is good performance. This product supports Client mode. It is ideal for multi-purpose installation in Windows and, Linux environment to share wireless connection. By supporting 64/128-bits WEP, TKIP, WPA, WPA2 and WPS, helps to protect your data and privacy during transmission. This module could be used for Desktop/NB and embedded platform that need 5GHz frequency band and could be mounted on system board like IPTV, STB, Media Player, Femto, XDSL, Cable Modem, Industrial PC, Ethernet Switch, Printer Connected TV, Smart Phone which have USB host device.
Realtek RTL8192DU chipset with USB 2.0 slave interface.
Date Rate up to 300Mbps
Security: 64/128-bits WEP, T KIP,WPA, WPA2, AES
Windows/Linux driver supported Description Features Hardware Features: Standard IEEE 802.11 a/b/g/n Wireless LAN 2T2R mode ( 5GHz 1x1 and 2.4GHz 1x1 ) Antenna Print antenna on board ( 2 dBi ) Interface USB slave port Frequency Range 802.11a 5.180~5240 GHz(babd1)、5.745~5825 GHz(babd4) 8 02.11b/g 2.4~2.484GHz 802.11n 2.4~2.484GHz and 5.180~5240 GHz(babd1)、5.745~5825 GHz(babd4) Data Rate 802.11b: 1, 2, 5,5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps Receiver Sensitivity 11an/gn -66dBm at HT40 ( MCS7 ) 11an/gn -67dBm at HT20 ( MCS15 ) 11a/g -72dBm at 54Mpbs 11b -80dBm at 11Mpbs Software Supports Windows XP/ Vista/ Windows 7/ Linux driver Range Indoors: up to 50~100 meters indoor Power Requirement DC 5V/ 0.5A Max through USB voltage Operating Temperature 0 ~ 45°C Dimension 75.5 x 26 x 9.6 mm Certifications FCC/CE by request Specification Product Dimension and Drawing Product outline size: about 75.5 x 26.0 mm Mechanical Drawing: (unit: mm, tolerance: ±0.15mm ) 3. FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver i s connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only.

Report No.:371641 SPORTON International Inc. PAGE NUMBER : 1 OF 1 TEL : 886-3-656-9065 ISSUED DATE : Aug. 12, 2013 FAX : 886-3-656-9085 Photographs of EUT

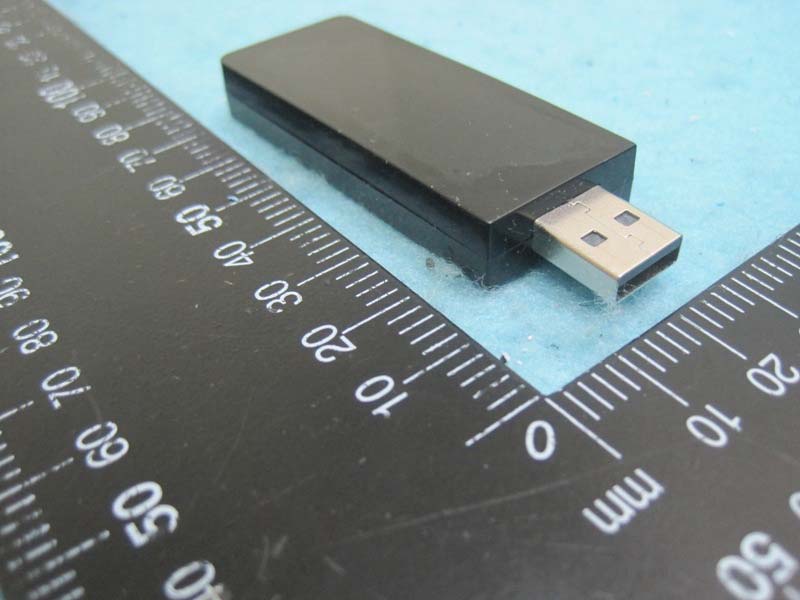

Report No.:371641 SPORTON International Inc. PAGE NUMBER : 1 OF 5 TEL : 886-3-656-9065 ISSUED DATE : Aug. 12, 2013 FAX : 886-3-656-9085 Photographs of EUT Report No.:371641 SPORTON International Inc. PAGE NUMBER : 2 OF 5 TEL : 886-3-656-9065 ISSUED DATE : Aug. 12, 2013 FAX : 886-3-656-9085 Report No.:371641 SPORTON International Inc. PAGE NUMBER : 3 OF 5 TEL : 886-3-656-9065 ISSUED DATE : Aug. 12, 2013 FAX : 886-3-656-9085 Report No.:371641 SPORTON International Inc. PAGE NUMBER : 4 OF 5 TEL : 886-3-656-9065 ISSUED DATE : Aug. 12, 2013 FAX : 886-3-656-9085 Report No.:371641 SPORTON International Inc. PAGE NUMBER : 5 OF 5 TEL : 886-3-656-9065 ISSUED DATE : Aug. 12, 2013 FAX : 886-3-656-9085

Report No.: FR371641 FCC ID: O7N-CWFF202 Page No. : B1 of B2 Appendix B. RF Exposure Report Report No.: FR371641 FCC ID: O7N-CWFF202 Page No. : B2 of B2 1. RF Exposure Report 1.1. Applicable Standard In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992, and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. 1.2. SAR evaluation The output power is less than the SAR exclusion threshold. Therefore SAR is not required.

SPORTON International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Ph: 886-3-656-9065 / FAX: 886-3-656-9085 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company ChipSiP Technology Co., Ltd Applicant Address 8F-1, No. 186, Jian 1st Road, Zhonghe District., New Taipei City 235, Taiwan FCC ID O7N-CWFF202 Manufacturer’s company ChipSiP Technology Co., Ltd Manufacturer Address 8F-1, No. 186, Jian 1st Road, Zhonghe District., New Taipei City 235, Taiwan Product Name dual band USB dongle Brand Name CHIPSIP Model No. CWFF202 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Jul. 09, 2013 Final Test Date Aug. 16, 2013 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03 and KDB 662911 D01 v02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR371641AA Report Format Version: 01 Page No. : i of ii FCC ID: O7N-CWFF202 Issued Date : Aug. 20, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................9 3.7. Table for Supporting Units ...................................................................................................................................................................9 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.9. EUT Operation during Test .................................................................................................................................................................10 3.10. Duty Cycle ........................................................................................................................................................................................11 3.11. Test Configurations ...........................................................................................................................................................................15 4. TEST RESULT ................................................................................................................................................... 17 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................17 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................21 4.3. Power Spectral Density Measurement ..............................................................................................................................................24 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................32 4.5. Radiated Emissions Measurement ....................................................................................................................................................39 4.6. Emissions Measurement ....................................................................................................................................................................66 4.7. Antenna Requirements .....................................................................................................................................................................90 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 91 6. TEST LOCATION.............................................................................................................................................. 93 7. MEASURE…

Text truncated - open the document above for the full version.

Report No.: FR371641 FCC ID: O7N-CWFF202 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR371641 FCC ID: O7N-CWFF202 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR371641 FCC ID: O7N-CWFF202 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR371641 FCC ID: O7N-CWFF202 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR371641 FCC ID: O7N-CWFF202 Page No. : A5 of A5 Test Configuration: Above 1GHz Test Mode: 2 FRONT VIEW REAR VIEW
