O7X-569888Low Power Video Game Base Module

Instructions for operation 1. Install the 4 AAA batteries (enclosed). Make sure to insert batteries properly as illustrated in the battery compartment. Always use high quality long lasting alkaline batteries. 2. Make sure Playstation® 2 is turned off. Install receiver into Playstation® 2 console. The antennas on the Receiver are to improve reception. Make sure they are separated and pointing down and slightly forward. 3. Power-on Freedom Shock 2 by pressing the Power Button - a green LED will illuminate. Note: Power Button only powers-on Freedom Shock 2. 4.Freedom Shock 2 will shut down automatically after 5 minutes of non use. 5. To increase battery life you may choose to turn off vibration motors. You may do this by pressing Select and Start at the same time, repeat procedure to turn Freedom Shock 2 back on. 6. You are now ready to use your Freedom Shock 2. . Operating Two Freedom Shock 2 Controllers Simultaneously 1. Make sure you have purchased one Channel A frequency Freedom Shock 2 and one Channel B Freedom Shock 2. This is indicated on the security tape of the packaging as well as on the bottom of each controller. 2. Link Channel A receiver to Channel B receiver with the link cable found in the Channel B Freedom Shock 2. 3. You are ready to play. Programmable Functions: 1. Press the program key, the yellow LED lights up. Touch the button to be programmed, the LED flashes, then press the button you would like to relocate and the LED will turn off. (For example, if you would like to relocate the X button function to the button, you would hit Program, then X. Now the X button function is controlled by the button.) LEDs: Pressing the mode button activates Digital and Analog Mode. Red LED indicates Analog Mod Green LED indicates Digital Yellow LED indicates Program Mode Changes or modifications not expressly approved by the manufacture could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Request for Confidentiality 8-14-00 American Telecommunications Certification Body, Inc 6731 Whittier Avenue Suite C110 Mclean, VA 22101 RE: Certification Application For Freedom Shock 2 Base Unit/Dongle FCC ID # 07X-569888 Please be advised that the following information is to be held confidential and behalf of Pelican Accessories. • Schematics • Block diagram • Theory of Operation The application contains technical information which Pelican Accessories deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thanks for you attention to this matter. Jason Biheller Product Manager Pelican Accessories 1840 East 27 th Street Vernon, Ca 90058

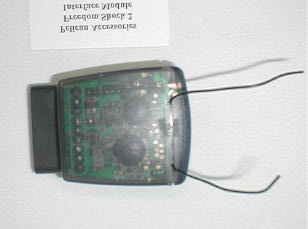

Top View Bottom View Front View

FCC-ID: 07X-569888

Disassembled PCB Top PCB Top, Small Board Removed PCB Bottom, Small Board Removed

FCC CERTIFICATION TEST REPORT for Pelican Accessories 1840 East 27 th Street Vernon, CA 90058 FCC ID: 07X-569888 October 11, 2000 WLL PROJECT #: 6031X DON This report may not be reproduced, except in full, without the prior written consent of Washington Laboratories, Ltd. Pelican Accessories FCC ID: 07X-569888 WLL Project #:6031X DON i TABLE OF CONTENTS Statement of Qualifications 1.0 INTRODUCTION...........................................................................................................................................................1 1.1 SUMMARY......................................................................................................................................................................1 2.0 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT).................................................................1 2.1 ON-BOARD OSCILLATORS...........................................................................................................................................1 3.0 TEST CONFIGURATION............................................................................................................................................2 3.1 TESTING ALGORITHM.................................................................................................................................................2 3.2 CONDUCTED EMISSIONS TESTING...........................................................................................................................2 3.3 RADIATED EMISSIONS TESTING...............................................................................................................................2 3.3.1 Radiated Data Reduction and Reporting........................................................................................................3 Tables Table 1. Conducted Emissions Results Table 2. Radiated Emissions Results Table 3. System Under Test Table 4. Interface Cables Used Table 5. Measurement Equipment Used Appendices Appendix A. Statement of Measurement Uncertainty Pelican Accessories FCC ID: 07X-569888 WLL Project #:6031X DON ii STATEMENT OF QUALIFICATIONS for Steven Koster Washington Laboratories, Ltd. I am a NARTE-Accredited EMC Test Laboratory Engineer with over nineteen years of electronics experience, the last ten years being directly involved in EMI testing. I am qualified to perform EMC testing to the methods described in this test report. The measurements taken within this report are accurate within my ability to perform the tests and within the tolerance of the measuring instrumentation. By: _______________________ Steven Koster Compliance Engineer Date: October 9, 2000 Pelican Accessories FCC ID: 07X-569888 WLL Project #:6031X DON 1 FCC CERTIFICATION TEST REPORT for FCC ID: O7X-569888 1.0 Introduction This report has been prepared on behalf of Pelican Accessories to support the attached Application for Equipment Authorization. The test and application are submitted for a Intentional Radiator under Part 15.249 of the FCC Rules and Regulations. The Equipment Under Test was the Freedom Shock 2 Interface/Dongle. All measurements herein were performed according to the 1992 version of ANSI C63.4. The measurement equipment conforms to ANSI C63.2 Specifications for Electromagnetic Noise and field Strength Instrumentation. Calibration checks are made periodically to verify proper performance of the measuring instrumentation. All measurements are performed at Washington Laboratories, Ltd. test center in Gaithersburg, MD. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. All results reported herein relate only to the equipment tested. The measurement uncertainty of the data contained herein is ±2.3 dB. Refer to Appendix A for Statement of Measurement Uncertainty. This report shall not be used to claim product endorsement by NVLAP or any agency of the US Government. 1.1 Summary The Pelican Accessories Freedom Shock 2 Interface/Dongle complies with the limits for an Intentional Radiator under Part 15.249 of the FCC Rules and Regulations. 2.0 Description of Equipment Under Test (EUT) The Pelican Accessories Freedom Shock 2 Interface/Dongle (EUT) is a 900 MHz Wireless RF Interface used to replace existing hard-wired video game system controllers. The Interface/Dongle connects directly to the input of the game system base. Upon activation of the game the unit transmits a “ping” to the hand-held pad controller (Separate certification, FCC ID: O7X-569888) using OOK On-Off Keying at 916.5 MHz. The pad controller responds and data is then transmitted to the Interface/Dongle for game control. The EUT is powered via 5 Vdc supplied by the game system. The EUT will also be available at operating frequencies of 907 MHz and 926 MHz, however, these frequencies have not been tested as of the date indicated on the front of this report. 2.1 On-board Oscillators The Pelican Accessories Freedom Shock 2 Interface/Dongle contains the following oscillators: 14.3203125 MHz, 7.124 MHz, 14.31818 MHz. Pelican Accessories FCC ID: 07X-569888 WLL Project #:6031X DON 2 3.0 Test Configuration To complete the test configuration required by the FCC, the transmitter was tested in a game system. A Sony Play Station 2 was used for the testing. All testing was performed at 120 VAC. 3.1 Testing Algorithm The transmitter was turned on and constantly transmitting. The unit was used in conjunction with a video game system to verify operation. Worst case emissions are recorded in the data tables. 3.2 Conducted Emissions Testing The Freedom Shock 2 Interface/Dongle was tested while installed on a host Sony Playstation 2 game unit. The EUT was placed on an 80 cm high 1 x 1.5 m non-conductive table above a ground plane. Power to the CPU wa…
