O7X-G3-1Wireless Game Controller

Instruction for Operation: Wireless with Rumble LIMITED WARRANTY Pelican Accessories warrants to the original consumer purchaser that the product will be free from defects in materials and / or workmanship for a period of 120 days from the date of purchase. If a defect covered by this warranty occurs during this period, Pelican Accessories at its option will repair or replace, at no charge, any part that Pelican Accessories determines to be defective. To obtain warranty service during the warranty period, send the defective product postage pre-paid, with a money order for $4.00 to cover the return postage and handling, along with proof of purchase and the date of purchase to: PELICAN ACCESSORIES 1840 East 27th Street Vernon, CA 90058 This warranty shall not apply if the product has been damaged by abuse, misuses, negligence, accident, modification, tampering or by any other causes unrelated to defective materials and / or workmanship. Repair or replacement as provided under this warranty is Pelican Accessories' exclusive prerogative. ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HERBY LIMITED TO 120 DAYS FROM THE DATE OF PURCHASE AN ARE SUBJECT TO THE CONDITIONS SET FORTH IN THIS LIMITED WARRANTY. IN NO EVENT SHALL PELICAN ACCESSORIES OR INCIDENTAL DAMAGES RESULT FROM THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights, and you may also have other legal rights, Which vary from state to state. Pelican and its logo are registered trademarks. GameCube™ is a registered trademark of Nintendo of America, Inc. This product is not desgined, manufactured, sponsored or endorsed by Nintendo of America, Inc. Instruction for Operation: PL-7008 Wireless with Rumble Our products are developed, tested, and approved by gamers for gamers. Pelican’s Gamer’s Guarantee states: If you are not 100% satisfied with your new G3 Wireless controller we will replace it or replace it with an equal valued item. SIGNAL CHANNEL 1 2 3 4 OFF ON RUMBLE START / PAUSE OFF RL 4 3 2 1 SIGNAL POWER B A BAND Left & Right Triggers Turbo Button Analog Stick D-Pad Power On/Off-rumble Off Switch A/B Band Switch Channel Switch Action Buttons Signal LED (Yellow) Start/ Pause Analog Stick A B BAND Link LED (Green) Signal LED (Yellow) Power LED (Red) Channel Switch Band Switch PRODUCT OVERVIEW: G3 Wireless Controller uses advance technology which gives you the ability to play without the limitations of a typical corded controller, hence there are a few switches and LED (lights) not found on your basic GameCube™ Controller. Channel Switch (Receiver and Controller): This switch selects the broadcast channel of the radio frequency. There are four positions; 1, 2, 3 and 4. There is a corresponding Channel Switch on the receiver Band Switch (Receiver and Controller): This switch selects the bandwidth. There are two positions; A and B. There is a corresponding Band Switch on the receiver Power Switch (Controller): This switch selects the power mode. There are 3 positions; Off, On, and Rumble Off Signal LED (Yellow, Receiver and Controller): When on or flickering data is being transmitted between Controller and Receiver Power LED (Red, Receiver): When on indicates Receiver is operating correctly Link LED (Green, Receiver): When on indicates Controller and Receiver are linked and communicating. If flickering the Controller and Receiver are not communicating INSTRUCTIONS: 1. Insert Batteries: Remove the battery lid and place the two AA batteries (included) into the G3 Wireless Controller. Make sure they are inserted as shown in the battery compartment. The batteries included are not long life. 2. Plug in the Receiver: With the GameCube™ turned off, plug the receiver into controller port one (far left port.) 3. Check Band setting: Confirm that the Band Switch is set to A on both the controller and the receiver. Note:the only time you would ever change this switch is if you experienced a drop off in the signal, causing game play to be suspended. If this happens repeatedly we suggest you switch to Band B on both the Controller and Receiver. 4. Select a Channel on the Controller: You may select any channel you desire 1, 2, 3 or 4. 5. Select a Channel on the Receiver: This must match the channel selected on the Controller. Note:If using more then one controller you must use different channel settings, i.e., the first controller and receiver are set to Channel 1, the second controller and receiver are set to Channel 2. The channel position selected on the G3 Controller and Receiver have no relation to the GameCube™ controller ports. 6. Turn on the Controller: Move the Power Switch to On, the signal LED will light. Note:If you wish to extend battery life select the Rumble Off position. This will turn off the rumble effect in game play resulting in a doubling of your battery life. OTHER FEATURES: Multiple Players: You may play with up to four G3 Wireless controllers. Check to see that the channel switches are set as outlined above. Power Save Mode: When not in use the G3 controller automatically goes into a sleep mode to conserve batteries. A touch of any button puts the controller back into play mode. Note: Turn off the controller when not in use to extend your battery life. Turbo Function: This feature allows rapid fire of any selected fire button. To turn on, press the Turbo button, and then while still holding down the Turbo button press the fire button that you wish to have the Turbo feature. To return the button back to a normal fire button repeat the above process or turn on and off the controller. For technical questions please visit http://www.pelicanacc.com or call us directly at 1-800-331-3844 Gamer’s Guarantee Changes or modifications not expressly approved by the manufacture could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi…

Text truncated - open the document above for the full version.

ANT Block Diagram K9993P G3 Cube RF Pad Digital Driven Solutions Revision 2 August 2002 BUTTON & JOYSTICK DATA MOTOR CONTROL CONTROL IC CHANNEL SELECTION 14.7456MHz Crystal RF IN/OUT INTERNAL - LOW FREQUENCY I.F. STAGE DEMOD MIXERAMP VCO DATA & CONTROL ANT TRANSCEIVER MODULE Notes: RF IN/OUT consists of a 80mm PCB design antenna and a 78mm U shaped WHIP antenna . Crystal Locked PLL Superheterodyne design

Response to ATCB Comments FCC ID: O7X-G3-1 1 Washington Laboratories, Ltd. 7560 LINDBERGH DRIVE GAITHERSBURG, MD 20879 (301) 417 – 0220 FAX # (301) 417 - 9069 January 24, 2003 Mr. Tim Johnson American Telecommunications Certification Body Inc. 6731 Whittier Ave McLean, VA 22101 RE: Comments of January 19, 2003 APPLICATION: O7X-G3-1 Pelican Accessories Dear Mr. Johnson: Below are the comments that you have provided regarding the application for certification referenced above. Our responses to those comments are in bold italic. Many responses refer you to additional exhibit(s) which has been uploaded to the application folder at the ATCB website. Thank you for your attention. Please feel free to contact us for any additional information that you may require. Regards, Gregory M. Snyder Chief EMC Engineer, Wireless/Telco Services Manager Brian J. Dettling Documentation Specialist WLL Project: 7150 January 19, 2003 RE: Pelican Accessories FCC ID: O7X-G3-1 1) The parts list provided does not reference a different manufacturer. Please update the BOM to reference the OEM manufacturer. FYI. The BOM is uploaded to the FCC site, but is listed as confidential. Therefore only the FCC is capable of viewing the file once it has been uploaded. R. The identification of the manufacturer for the radio module has been added to the BOM. Please see exhibit “Revised BOM - CUBE RF Pad Host K9993.pdf”. Response to ATCB Comments FCC ID: O7X-G3-1 2 2) Since this device contains a RX and digital device, the users manual should also include the information specified by 15.105. R. As required for the certification, the statement of 15.19(3) has been included in the User’s Manual to warn the user of interference. Previous devices of this nature have not required the additional statement of 15.105, however, the client has been notified to add this statement to future manuals. 3) Please confirm that digital device and RX portion of this product have been approved under a DoC authorization as shown on the labeling information. R. The RX and digital portions of the device have been tested and approved under the DoC process. 4) The Game Cube host transceiver does not appear to be referenced on the 731 form. Has this portion of the system been granted? Please note that the FCC expects both devices as part of a system to be submitted within 5 days of each other. R. The application for the host is currently with ATCB for review.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 19, 2003 RE: Pelican Accessories FCC ID: O7X-G3-1 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The parts list provided does not reference a different manufacturer. Please update the BOM to reference the OEM manufacturer. FYI. The BOM is uploaded to the FCC site, but is listed as confidential. Therefore only the FCC is capable of viewing the file once it has been uploaded. 2) Since this device contains a RX and digital device, the users manual should also include the information specified by 15.105. 3) Please confirm that digital device and RX portion of this product have been approved under a DoC authorization as shown on the labeling information. 4) The Game Cube host transceiver does not appear to be referenced on the 731 form. Has this portion of the system been granted? Please note that the FCC expects both devices as part of a system to be submitted within 5 days of each other. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

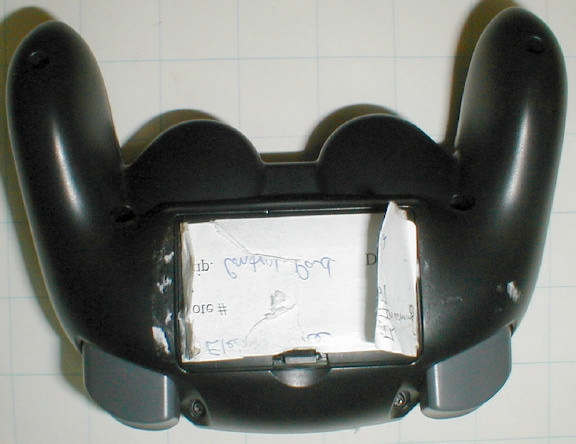

Top Bottom Front Side Back Side

Label Location FCC Label Location

Housing Open Functional Board, Top Functional Board, Top Detail No additional components or traces on underside of board Functional Board, Bottom Functional Board, Bottom Detail

Document 7150-01, Rev. 0 FCC ID: O7X-G3-1 FCC Certification Test Report Washington Laboratories, Ltd January 2003 FCC Certification Test Report for Pelican Accessories O7X-G3-1 January 17, 2003 Prepared for: Pelican Accessories 1840 East 27th Street Vernon, CA 90058 Prepared By: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, Maryland 20879 FCC Certification Test Report Document 7150-01, Rev. 0 FCC ID: O7X-G3-1 FCC Certification Test Report Washington Laboratories, Ltd January 2003 FCC Certification Test Program FCC Certification Test Report for the Pelican Accessories K9993P/PL-7008 Nintendo® Game Cube™ Wireless Controller O7X-G3-1 January 17, 2003 WLL JOB# 7150 Prepared by: Brian J. Dettling Documentation Specialist Reviewed by: Gregory M. Snyder Wireless/Telco Services Manager & Chief EMC Engineer Document 7150-01, Rev. 0 FCC ID: O7X-G3-1 FCC Certification Test Report Washington Laboratories, Ltd January 2003 ii Abstract This report has been prepared on behalf of Pelican Accessories to support the attached Application for Equipment Authorization. The test report and application are submitted for a Intentional Radiator under Part 15.249 of the FCC Rules and Regulations. This Federal Communication Commission (FCC) Certification Test Report documents the test configuration and test results for a Pelican Accessories K9993P/PL-7008 Nintendo® Game Cube™ Wireless Controller. Testing was performed on an Open Area Test Site (OATS) of Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. The Pelican Accessories K9993P/PL-7008 Nintendo® Game Cube™ Wireless Controller complies with the limits for a Intentional Radiator device under Part 15.249 of the FCC Rules and Regulations. Document 7150-01, Rev. 0 FCC ID: O7X-G3-1 FCC Certification Test Report Washington Laboratories, Ltd January 2003 iii Table of Contents Abstract......................................................................................................ii 1 Introduction...............................................................................................................1 1.1 Compliance Statement............................................................................................1 1.2 Test Scope............................................................................................................1 1.3 Contract Information..............................................................................................1 1.4 Test Dates.............................................................................................................1 1.5 Test and Support Personnel....................................................................................1 1.6 Abbreviations.........................................................................................................2 2 Equipment Under Test................................................................................................3 2.1 EUT Identification & Description............................................................................3 2.2 Test Configuration..................................................................................................3 2.3 Testing Algorithm...................................................................................................3 2.4 Test Location.........................................................................................................4 2.5 Measurements........................................................................................................4 2.5.1 References.....................................................................................................4 2.6 Measurement Uncertainty.......................................................................................4 3 Test Equipment..........................................................................................................5 4 Test Results...............................................................................................................6 4.1 Duty Cycle Correction...........................................................................................6 4.2 Occupied Bandwidth: (FCC Part §2.1049)............................................................9 4.3 Radiated Emissions: (FCC Part §2.1053).............................................................13 4.3.1 Test Procedure..........................................................................................13 Document 7150-01, Rev. 0 FCC ID: O7X-G3-1 FCC Certification Test Report Washington Laboratories, Ltd January 2003 iv List of Tables Table 1. Device Summary....................................................................................................3 Table 2: Test Equipment List................................................................................................5 Table 3. Occupied Bandwidth Results................................................................................13 Table 4. Radiated Emissions Limits.....................................................................................13 Table 5. Radiated Emissions Test Data...............................................................................15 Table 6: Radiated Emission Test Data, Average Data Above 1GHz.....................................16 Table 7: Radiated Emission Test Data, Peak Data Above 1GHz..........................................21 List of Figures Figure 1. Duty Cycle Plot – Worst Case 100ms and Pulse Train...........................................7 Figure 2. Duty Cycle Plot – Pulse Width...............................................................................8 Figure 3. Occupi…

Text truncated - open the document above for the full version.

Emission Test Configuration
