O7X-SW-1Wireless Controller

PRODUCT OVERVIEW: ShockWave Wireless Controller uses advance technology which gives you the ability to play without the limitations of a typical corded controller, hence there are a few switches and LED (lights) not found on your basic PlayStation® 2 Controller. Channel Switch This switch selects the broadcast channel of the radio frequency. There are four positions; 1,2,3 and 4. There is a corresponding Channel Switch on the receiver. Rumble ON/OFF Button: The rumble feature automatically turns on when the ShockWave is powered On. To turn Off the Rumble feature, press the Rumble button. Press the button again to turn the feature back On. The motors will rumble to signify when the Rumble featured has been turned On. Power Button This button turns your ShockWave wireless controller on. Press button to turn on. Signal LED (Green, Receiver and Controller): When on or flickering data is being transmitted between Controller and Receiver. Mode LED (Red, Controller) The Mode LED is Off for Digital Mode, On for Analog Mode, if the LED flashes, press the analog button again to enter a mode. Analog Button Press the analog button to cycle through modes. To turn off the controller press and hold the analog button until the two LEDs flicker together then release and the controller will power off. INSTRUCTIONS: 1. Insert Batteries: Remove the battery lid and place the four AAA batteries (included) into the ShockWave Wireless Controller. Make sure they are inserted as shown in the battery compartment. The batteries included are not long life. 2. Plug in the Receiver: With the PlayStation® 2 turned off, plug the receiver into controller port one (far left port). 3. Select a Channel on the Controller: You may select any channel you desire 1,2,3, or 4. 4. Select a Channel on the Receiver: This must match the channel selected on the Controller. Note:If using more than one controller you must use different channel settings, i.e., the first controller and receiver are set to Channel 1, the second controller and receiver are set to channel 2. The channel position selected on the WaveStation controller and Receiver have no relation to the PlayStation® 2 controller ports. 5. Turn on the Controller: Press the Power button to turn ShockWave On, the signal LED will light. Note:If you wish to extend battery life press the Rumble Off button. This will turn off the rumble effect in game play resulting in a doubling of your battery life. To turn the rumble back on, press the rumble button again. The motor will vibrate indicating the rumble feature has been turned on. 6. Turn off the controller: Press and hold the analog button until the two LEDs flicker together. Release the button and the controller will turn off. OTHER FEATURES: Multiple Players: You may play with up to four ShockWave Wireless controllers with the use of a MultiTap. Check to see that the channel switches are set as outlined above. Power Save Mode: When not in use the ShockWave controller automatically goes into a sleep mode to conserve batteries. A touch of any button puts the controller back into play mode. Note: Turn off the controller when not in use to extend your battery life. Instruction for Operation: LIMITED WARRANTY Pelican Accessories warrants to the original consumer purchaser that the product will be free from defects in materials and / or workmanship for a period of 120 days from the date of purchase. If a defect covered by this warranty occurs during this period, Pelican Accessories at its option will repair or replace, at no charge, any part that Pelican Accessories determines to be defective. To obtain warranty service during the warranty period, send the defective product postage pre-paid, with a money order for $4.00 to cover the return postage and handling, along with proof of purchase and the date of purchase to: PELICAN ACCESSORIES 1840 East 27th Street Vernon, CA 90058 This warranty shall not apply if the product has been damaged by abuse, misuses, negligence, accident, modification, tampering or by any other causes unrelated to defective materials and / or workmanship. Repair or replacement as provided under this warranty is Pelican Accessories' exclusive prerogative. ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HERBY LIMITED TO 120 DAYS FROM THE DATE OF PURCHASE AN ARE SUBJECT TO THE CONDITIONS SET FORTH IN THIS LIMITED WARRANTY. IN NO EVENT SHALL PELICAN ACCESSORIES OR INCIDENTAL DAMAGES RESULT FROM THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights, and you may also have other legal rights, Which vary from state to state. Instruction for Operation: PL-651 Our products are developed, tested, and approved by gamers for gamers. Pelican’s Gamer’s Guarantee states: If you are not 100% satisfied with your new ShockWave Wireless Controller we will replace it or replace it with an equal valued item. For technical questions please visit http://www.pelicanacc.com or call us directly at 1-800-331-3844 Gamer’s Guarantee Pelican and its logo are registered trademarks. Sony is a registered trademark of Sony Corp. PlayStation® 2 is registered trademarks of Sony Computer Entertainment Inc. This product is not designed, manufactured, sponsored or endorsed by Sony Computer Entertainment Inc. ANALOG SELECT START POWER RUMBLE 1 2 3 4 CHANNEL CHANNEL 1 2 3 4 Changes or modifications not expressly approved by the manufacture could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ShockWave Controller ShockWave Receiver Power Button L1 / L2 Rumble Button Direction Buttons Select Buttons Analog Stick Channel R1 / R2 Analog Button Start Button Function Buttons Ch…

Text truncated - open the document above for the full version.

ANT Block Diagram D2028H Shockwave PS2 RF Host Digital Driven Solutions Revision 2 August 2002 PORT CONTROL IC RF CONTROL IC CHANNEL SELECTION 14.7456MHz Crystal RF IN/OUT INTERNAL - LOW FREQUENCY I.F. STAGE DEMOD MIXERAMP VCO DATA & CONTROL ANT TRANSCEIVER MODULE CONSOLE INTERFACE Notes: RF IN/OUT consists of a 84mm WHIP antenna shaped correctly inside tooling and up out through the antenna casing. Crystal Locked PLL Superheterodyne design

Response to ATCB Comments FCC ID: 07X-SW-1 1 Washington Laboratories, Ltd. 7560 LINDBERGH DRIVE GAITHERSBURG, MD 20879 (301) 417 – 0220 FAX # (301) 417 - 9069 January 9, 2003 Mr. Tim Johnson American Telecommunications Certification Body Inc. 6731 Whittier Ave McLean, VA 22101 RE: Comments of December 24, 2002 APPLICATION: O7X-SW-1 Pelican Accessories Dear Mr. Johnson: Below are the comments that you have provided regarding the application for certification referenced above. Our responses to those comments are in bold italic. Many responses refer you to additional exhibit(s) which has been uploaded to the application folder at the ATCB website. Thank you for your attention. Please feel free to contact us for any additional information that you may require. Regards, Gregory M. Snyder Chief EMC Engineer, Wireless/Telco Services Manager Brian J. Dettling Documentation Specialist WLL Project: 7299 December 24, 2002 RE: Pelican Accessories. FCC ID: 07X-SW-1 1) Regarding the Transmitter Schematics, please provide one of the following: a) A schematic of the RF portion. b) Alternatively, if the radio is a modular component from a different manufacturer, you may instead provide a parts list that shows the RF Module as a part from a different manufacturer. If the parts list is provided, please be sure to let us know if confidentiality is requested on it and update the confidentiality letter if necessary. Response to ATCB Comments FCC ID: 07X-SW-1 2 R. The radio module is provided from a different manufacturer. The Parts List of the unit showing this module has been uploaded. Please see exhibit “SW-1 SW-2 Parts List (Confidential).pdf”. Confidentiality has been requested of the Parts List. A revised Request for Confidentiality has been uploaded. Please see exhibit “SW-1 Revised RFC Letter.pdf”. 2) If the TX module is built by the applicant, please provide a block diagram that shows the frequencies of all the oscillators in the TX portion of the device (CFR 2.1033(a)(5)). R. The block diagram shows the module that is provided by a different manufacturer and listed in the parts list. 3) Since this device contains a RX and digital device, the users manual should also include the information specified by 15.105. R. As required for the certification, the statement of 15.19(3) has been included in the User’s Manual to warn the user of interference. Previous devices of this nature have not required the additional statement of 15.105. As per our discussion the client has been notified to add this statement to future manuals. 4) Please confirm that digital device and RX portion of this product have been approved under a DoC authorization as shown on the labeling information. R. The Rx and digital portions of the product have been tested and approved under the DoC process. 5) The 731 form & Test report show the frequency range as 906-927 MHz, but the theory of operation provided shows 903-926.536 MHz. Note that test report shows 906 as channel 1 which does not match the theory of operation. Please comment and correct the affected exhibits. Note that Table 5 in the test report also states 903 MHz, but the lowest frequency measured appears to be 906 MHz. FYI: The FCC expects the testing to be performed at lowest and highest channels available, unless this is extremely difficult for some reason. R. The unit only has 4 available channels from 906M to 927MHz. The theory of operation was referring to the module which has the capability of 8 channels over 2 bands, however, this unit only uses 4 and the end user only be able to select among the 4 channels. The Theory of Operation has been changed to reflect the actual operating frequencies for this certification. Please see exhibit “ANT Technical Datasheet-Rev5.pdf”. The test report Table 5 was in error due to a previous test version of this unit. Table 5 has been corrected and a new Test Report has been uploaded. Please see exhibit “SW-1 Revised Test Report.pdf”. 6) The theory of operation shows 8 channels, while the test report states that only 4 channels are selectable. Please explain and correct the affected exhibits. R. The Theory of Operation has been changed to reflect the actual operating frequencies for this certification. 7) The duty cycle plot provided does not show even spacing between all data packets. Is this a nature of the equipment or a factor of how the plot was taken? For this measurement it is best to use a single trace mode of the spectrum analyzer to ensure proper measurement. Response to ATCB Comments FCC ID: 07X-SW-1 3 R. This is the correct operation of the unit. The unit was fully functional and all buttons were pressed to verify worst case operation. 8) Because the device is a portable piece of equipment, emissions must be measured with the EUT positioned in each of 3 axis. It can not be determined if this was performed. R. The unit was tested in three orthogonal planes with the worst case emissions reported. Page 13 of the test reports states that the 3 orthogonal planes were tested. Also some of the data in the notes column lists an X, Y or Z referring to the position. Column width limitations in the data above 1GHz did not allow the notes column to appear. 9) It appears that the data in Table 6 & 7 included a preamp in the calculations? Please confirm that a preamp was used. Note that the calculation information given in 4.3.1 doesn't mention a preamp. R. Table 6 and 7 do include correction of a preamp that was used above 1GHz The preamp is listed at the top of the data sheet. Future data sheets have the preamp listed as a separate column within the data sheet. The sample calculation in Section 4.3.1 shows the gain correction.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 24, 2002 RE: Pelican Accessories FCC ID: O7X-SW-1 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Regarding the Transmitter Schematics, please provide one of the following: a) A schematic of the RF portion. b) Alternatively, if the radio is a modular component from a different manufacturer, you may instead provide a parts list that shows the RF Module as a part from a different manufacturer. If the parts list is provided, please be sure to let us know if confidentiality is requested on it and update the confidentiality letter if necessary. 2) If the TX module is built by the applicant, please provide a block diagram that shows the frequencies of all the oscillators in the TX portion of the device (CFR 2.1033(a)(5)). 3) Since this device contains a RX and digital device, the users manual should also include the information specified by 15.105. 4) Please confirm that digital device and RX portion of this product have been approved under a DoC authorization as shown on the labeling information. 5) The 731 form & Test report show the frequency range as 906-927 MHz, but the theory of operation provided shows 903-926.536 MHz. Note that test report shows 906 as channel 1 which does not match the theory of operation. Please comment and correct the affected exhibits. Note that Table 5 in the test report also states 903 MHz, but the lowest frequency measured appears to be 906 MHz. FYI: The FCC expects the testing to be performed at lowest and highest channels available, unless this is extremely difficult for some reason. 6) The theory of operation shows 8 channels, while the test report states that only 4 channels are selectable. Please explain and correct the affected exhibits. 7) The duty cycle plot provided does not show even spacing between all data packets. Is this a nature of the equipment or a factor of how the plot was taken? For this measurement it is best to use a single trace mode of the spectrum analyzer to ensure proper measurement. 8) Because the device is a portable piece of equipment, emissions must be measured with the EUT positioned in each of 3 axis. It can not be determined if this was performed. 9) It appears that the data in Table 6 & 7 included a preamp in the calculations? Please confirm that a preamp was used. Note that the calculation information given in 4.3.1 doesn't mention a preamp. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. z Page 2December 24, 2002 Any questions about the content of this correspondence should be directed to the sender.

Request for Confidentiality 12-31-02 American Telecommunications Certification Body, Inc 6731 Whittier Avenue Suite C110 Mclean, VA 22101 RE: Certification Application For ShockWave PL-651 FCC ID # 07X-SW-1 Please be advised that the following information is to be held confidential and behalf of Pelican Accessories. • Schematics • BOM information • Theory of Operation The application contains technical information which Pelican Accessories deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thanks for you attention to this matter. Jason Biheller Product Manager Pelican Accessories 1840 East 27 th Street Vernon, Ca 90058

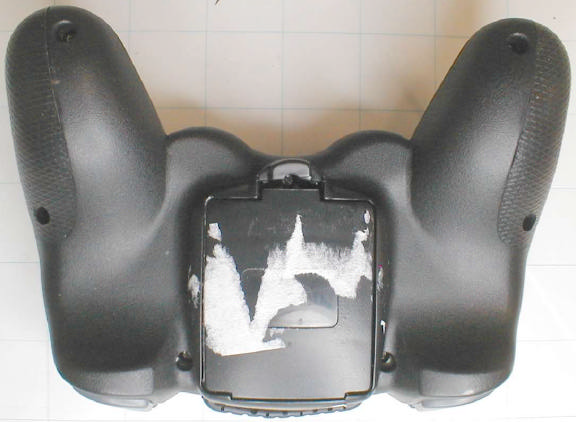

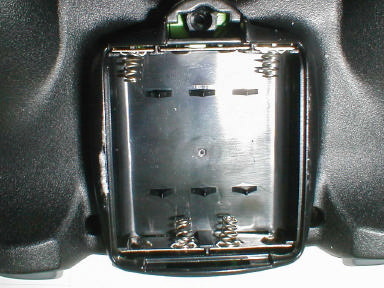

Top Bottom Front Back Battery Compartment

Label Location Label Material: Vinyl Adhesive: Pressure sensitive permanent Label Location

Disassembled Antenna Cover Removed Radio Board in Place on Function Board Radio Board Removed from Function Board Radio Board Top Radio Board Bottom

Document 7299-01, Rev. 0 FCC ID: 07X-SW-1 FCC Certification Test Report Washington Laboratories, Ltd December 2002 FCC Certification Test Report for Pelican Accessories 07X-SW-1 December 16, 2002 Prepared for: Pelican Accessories 1840 East 27th Street Vernon, CA 90058 Prepared By: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, Maryland 20879 FCC Certification Test Report Document 7299-01, Rev. 0 FCC ID: 07X-SW-1 FCC Certification Test Report Washington Laboratories, Ltd December 2002 FCC Certification Test Program FCC Certification Test Report for the Pelican Accessories D2028P (PL651) PS2 Wireless Controller 07X-SW-1 December 16, 2002 WLL JOB# 7299 Prepared by: Brian J. Dettling Documentation Specialist Reviewed by: Gregory M. Snyder Wireless/Telco Services Manager & Chief EMC Engineer Document 7299-01, Rev. 0 FCC ID: 07X-SW-1 FCC Certification Test Report Washington Laboratories, Ltd December 2002 ii Abstract This report has been prepared on behalf of Pelican Accessories to support the attached Application for Equipment Authorization. The test report and application are submitted for a Intentional Radiator under Part 15.249 of the FCC Rules and Regulations. This Federal Communication Commission (FCC) Certification Test Report documents the test configuration and test results for a Pelican Accessories D2028P (PL651) PS2 Wireless Controller. Testing was performed on an Open Area Test Site (OATS) of Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. The Pelican Accessories D2028P (PL651) PS2 Wireless Controller complies with the limits for a Intentional Radiator device under Part 15.249 of the FCC Rules and Regulations. Document 7299-01, Rev. 0 FCC ID: 07X-SW-1 FCC Certification Test Report Washington Laboratories, Ltd December 2002 iii Table of Contents Abstract......................................................................................................ii 1 Introduction...................................................................................................................1 1.1 Compliance Statement............................................................................................1 1.2 Test Scope............................................................................................................1 1.3 Contract Information..............................................................................................1 1.4 Test Dates.............................................................................................................1 1.5 Test and Support Personnel....................................................................................1 1.6 Abbreviations.........................................................................................................2 2 Equipment Under Test....................................................................................................3 2.1 EUT Identification & Description............................................................................3 2.2 Test Configuration..................................................................................................3 2.3 Testing Algorithm...................................................................................................3 2.4 Test Location.........................................................................................................4 2.5 Measurements........................................................................................................4 2.5.1 References.....................................................................................................4 2.6 Measurement Uncertainty.......................................................................................4 3 Test Equipment..............................................................................................................5 4 Test Results...................................................................................................................6 4.1 Duty Cycle Correction...........................................................................................6 4.2 Occupied Bandwidth: (FCC Part §2.1049)............................................................8 4.3 Radiated Emissions: (FCC Part §2.1053).............................................................12 4.3.1 Test Procedure..........................................................................................12 List of Tables Table 1. Device Summary....................................................................................................3 Table 2: Test Equipment List...............................................................................................5 Table 3. Occupied Bandwidth Results................................................................................12 Table 4. Radiated Emissions Limits.....................................................................................12 Table 5. Radiated Emissions Test Data...............................................................................14 Table 6: Radiated Emission Test Data, Average Data Above 1GHz.....................................15 Table 7: Radiated Emission Test Data, Peak Data Above 1GHz.........................................17 List of Figures Figure 1. Duty Cycle Plot Full Period....................................................................................7 Figure 2. Occupied Bandwidth, Low....................................................................................9 Figure 3. Occupied Bandwidth, Mid...................................................................................10 Figure 4. Occupied Bandwidth…

Text truncated - open the document above for the full version.

Emission Test Configuration
