O7X-WAVE1Wireless Docking Station

WaveStation For PlayStation 2, PlayStation, & PSone Instruction Manual WaveStation Features • Wireless docking station with RF • (Radio frequency) 900 MHz Technology • Compatible with all PlayStation 2 / PSone (and Original PlayStation) controllers • WaveStation is also compatible with PlayStation 2’s Analog Touch and Dual Shock Technologies • Up to 50 feet of freedom • 50 hours of battery life with 4 C batteries (not included) • Optional 6 volt AC adapter (not included) WaveStation Receiving Unit Layout Rubber Spacer Connects to PS2 or PSone Signal LED The Signal LED indicates signal Strength. A consistent flicker indicates a strong signal Solid LED Flashing LED P2 LED Controller 2 has connectivity Controller 2 has no connectivity P1 LED Controller 1 has connectivity Controller 1has no connectivity P2 LED P1 LED Signal LED WaveStation Docking Unit Layout P1 / P2 LED have a simple function. They flash when there are no peripherals plugged in or when the peripheral in not recognized. They remain ON when a recognized peripheral is plugged into controller port 1 or 2. The Signal LED indicates valid received rumble data from the Game Console to the Docking Unit. A solid LED indicates valid rumble data received from the game console. If the LED flashes quickly, it indicates that rumble data did not make it to the controller. This is not serious as rumble data is updated many times per second. If the LED remains OFF for a long period of time then rumble update is being reduced. This could be due to range limitations or RF noise on the channel being used. Controller Port 1 Controller Port 2 Rumble Function On/Off Switch. Off Position Powers down the WaveStation P1 LED P2 LED Signal LED PS2 / PS1 Switch for Players 1 & 2 NEGCON On/Off Switch For Players 1 & 2 6 volt AC Adapter input Thank you for purchasing the WaveStation Instruction for operation 1. Make sure the power is turned off on your PlayStation® 2 or PSone® and insert the WaveStation Receiving Unit into both controller ports When using PSone® or original PlayStation® game system, remove the rubber spacer on the Receiving Unit, slide the Controller port 2 on the Receiving Unit right, and place the rubber spacer in the space between the two controller ports. 2. Insert 4 C batteries (not included) into the WaveStation Docking Unit 3. Plug controller(s) into the controller port of the WaveStation Docking Unit 4. Adjust controller switches to match the controllers standards 5. Turn on the WaveStation via the on/off switch on the docking unit. You are now ready to enjoy the wireless freedom of WaveStation NEGCON Controller On Off NEGCON Switch PS2 / PS1 PS1 Controller Off PS1 PS2 Controller Off PS2 Rubber Spacer Controller port 2 Controller port 1 WaveStation Advance User Instructions WaveStation has the ability to use 6 different channels to ensure there is no signal interference. NOTE: Leave these settings set to the factory settings unless you are experiencing signal interference. There is a channel selector on the bottom of the Receiving Unit and inside the battery compartment of the Docking Unit. If the channels are changed they must be the same on both units. DIP Switch Channel Settings Channel 1 – Only DIP switch 2 ON Channel 2 – Only DIP switch 3 ON Channel 3 – Only DIP switch 4 ON Channel 4 – Only DIP switch 1 ON Channel 5 – DIP switches 1 & 3 ON Channel 6 – DIP switches 1 & 4 ON (Note: Only 1 of the DIP switches 2,3,4 can ever be ON at any one time.) Troubleshooting If you are experiencing a weak signal first check your batteries, if it continues change the channel on both WaveStation units. If WaveStation is not functioning properly confirm the Receiver unit is plugged in and the controller(s) are properly connected to the Docking Unit. For technical questions please visit http://www.pelicanacc.com or call us directly at 1-800-331-3844 Changes or modifications not expressly approved by the manufacture could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. LIMITED WARRANTY Pelican Accessories warrants to the original consumer purchaser that the product will be free from defects in materials and / or workmanship for a period of 120 days from the date of purchase. If a defect covered by this warranty occurs during this period, Pelican Accessories at its option will repair or replace, at no charge, any part that Pelican Accessories determines to be defective. To obtain warranty service during the warranty period, send the defective product postage pre-paid, with a money order for $4.00 to cover the return postage and handling, along with proof of purchase and the date of purchase to: PELICAN ACCESSORIES 1840 East 27th Street Vernon, CA 90058 This warranty shall not apply if the product has been damaged by abuse, misuses, negligence, accident, modification, tampering or by any other causes unrelated to defective materials and / or workmanship. Repair or replacement as provided under this warranty is Pelican Accessories' exclusive prerogative. ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HERBY LIMITED TO 120 DAYS FROM THE DATE OF PURCHASE AN ARE SUBJECT TO THE CONDITIONS SET FORTH IN THIS LIMITED WARRANTY. IN NO EVENT SHALL PELICAN ACCESSORIES OR INCIDENTAL DAMAGES RESULT FROM THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights, and you may also have other legal rights, Which vary from state to state. Pelican and its logo are registered trademarks. Sony is a registered trademark of Sony Corp. PlayStation 2, PlayStation, & PSone are registered trademarks of Sony Computer Entertainment Inc.

ANT Block Diagram K9875FC Wavestation Console End Digital Driven Solutions Revision 1 July 2002 PORT CONTROL ICPORT CONTROL IC RF CONTROL IC CHANNEL SELECTION 14.7456MHz Crystal RF IN/OUT INTERNAL - LOW FREQUENCY I.F. STAGE DEMOD MIXERAMP VCO DATA & CONTROL ANT TRANSCEIVER MODULE CONSOLE INTERFACE Notes: RF IN/OUT consists of a 84mm WHIP antenna or a 84mm PCB design antenna. Crystal Locked PLL Superheterodyne design

RE: Pelican Accessories FCC ID: O7X-WAVE1 Following is the response to your comments of June 26, 2002 for the above referenced application. 1.) A detailed Block Diagram conforming to the requirements of 2.1033(b)(5) is needed for this device. R. Block diagram has been uploaded. Please see exhibit “K9875FC-FCC Block Diagram- 12Jul.pdf”. 2.) The Test Report shows Occupied Bandwidth plots which extend above the Reference Level. This is a no-no for any spectrum analyzer as it has the potential to report incorrect readings. Please review and correct. R: New bandwidth plots have been placed in the revised test report. See exhibit “ELE7144X_0602 PL-621 new.pdf”. 3.) Band Edge plots are not shown. Compliance with the radiated provisions of 15.249(c) must be shown. R. Band edge plots have been placed in the revised test report. See exhibit “ELE7144X_0602 PL-621 new.pdf”. The selectable channels have been reduced from 8 to 6 for the device to comply with the band edge requirements. All documentation referring to the selectable channels has been revised and/or uploaded. These files are the revised Test Report, 731 Form (exhibit “ATCB Form 731 WLL new.pdf”), Operational Description and User’s Manual. 4.) Are emissions above 1GHz Peak or Average? R: Data tables in the test report list both Peak and Average emission measurements above 1GHz. 5.) No Manual is provided. R: User Manual has been uploaded. Please see exhibit “WaveStation Manual.pdf”. 6.) Device is larger than the palm of the hand. Therefore, it must carry a label which conforms to the requirements of 15.19(a)(3). R: The labeling requirements of 15.19(a)(3) have been added to the device. New artwork of the label and a photo of the label placement have been uploaded. Please see exhibit “New Label-Location.pdf”. 7.) Schematics and Parts List are marked Confidential, but no Confidentiality Request letter is uploaded. FYI: If Block Diagram is to be held Confidential, be sure to list this item. R: A Confidential Request letter has been uploaded. Please see exhibit “WAVE1 RFC Letter.pdf”. 8.) Existing Operational Description does not conform to the level of detail requirement to be held Confidential. Please review. R. The grantee has reviewed the Operation Description and feels that some of the information contained in the description is of significant proprietary value and should be withheld from public viewing. 9.) RF Module internal photos are not large enough or clear enough. Please supply additional photos of this device. R: New photos of the RF module have been uploaded. Please see exhibit “Radio Module Detail Photos.pdf”.

Request for Confidentiality 6-14-02 American Telecommunications Certification Body, Inc 6731 Whittier Avenue Suite C110 Mclean, VA 22101 RE: Certification Application For WaveStation PL-621 FCC ID # 07X-WAVE1 Please be advised that the following information is to be held confidential and behalf of Pelican Accessories. • Schematics • BOM information • Theory of Operation The application contains technical information which Pelican Accessories deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thanks for you attention to this matter. Jason Biheller Product Manager Pelican Accessories 1840 East 27 th Street Vernon, Ca 90058

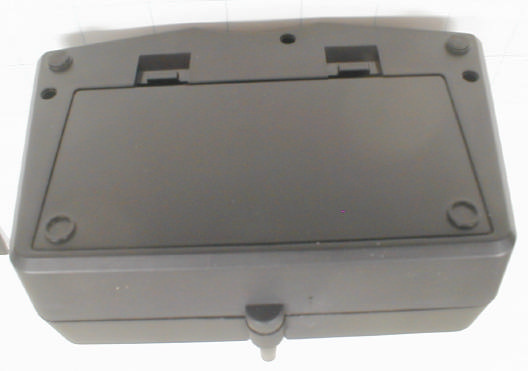

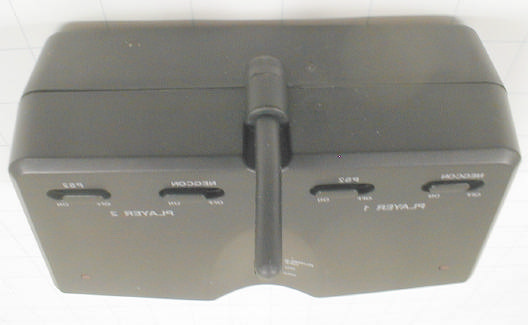

Front View Side View Rear View Bottom View

FCC Label Statement Label FCC Label Location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Statement Label Location

Cover Removed Top View of PC Board with Radio Module Top View of PC Board Without Radio Module Radio Module Top Radio Module Bottom Bottom View of PC Board

Radio Module Top View Radio Module Bottom View
