O89RG1XRadio Frequency Dongle

RG1X Wireless Radio Frequency Dongle User Manual 1. APPEARANCE Port Function 1 +5V Power supply positive 2 GND Power supply negative 3 RXD (in) Data receive 4 TXD (out) Data dispatch 2. FEATURES ★ Carrier frequency: ISM frequency such as RG1M 433MHz. ★ communication ports RS-232 ★ 64 communication channels, and can be extended to meet customers’ needs. ★ Transmission speed: 9600bps. ★ Data format: 8N1. ★ Combined function of receive and dispatch, with half-duplex working mode. 4. INTERFACE DEFINITION RS-232 Port Definition (4P4C) 3. TECHNICAL SPECIFICATIONS ★ Power supply: RS232 port ★ Working currency: 30mA ★ Void distance: RG1M≤100m ★ Working temperature: 0°C~40°C ★ Working humidity: 5％~90%R.H. ★ antenna impedance: 50Ω ★ Operating frequency: 8MHz 5. ACCESSORIES 1. One RG1wireless transceiver 2. One user manual and one CD 3. One RG1X wireless transceiver user manual. Note: RS232 model should match with PC connection accessory (optional). 6. APPLICATIONS RG1M:433MHZ is used in the field of far distance, such as the equipment connection of restaurant, factory, wharf and the connection between ECR and loadometer scale, the connection among the restaurant calling services equipment. RS232 model Pinnacle Technology Corp. Add: North 4F, Guangxia Building, Torch High-tech Zone, Xiamen, Fujian, China. Service hot-line: +86 0592-5710087 Web: http://www.aclas.com 7. SOFTWARE SETUP 8 Notice: wireless signal will be effected by impediment ( such as the wall of building) and people group, leading to short the communication distance, so please try best to avoid this situation. This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules . Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 4）PS/2 Port Definition LOCAL IP: input the dongle’s IP Target Dongle IP: target IP, i.e. the equipment IP matches with it. Store code: shop code COM port: choose the COM port according to practice. Stream CTRL: flow control, ‘none’ indicates no flow control, ‘hard’ indicates hardware flow control, ‘Xon/off’ indicates software flow control. Note: 1. Click ‘Download’ , if parameter setup success, system prompts ‘download ok’, please pull out and reinsert dongle; if system prompts ‘fail’, please check whether COM connection is correct or whether COM has been used by other equipment. 2. RS232 model should match with PC connection accessory (optional).

port Inner Receive decode IC Antenna RS232 level translator IC

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Location

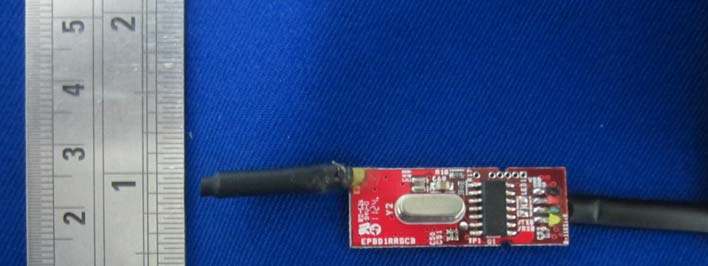

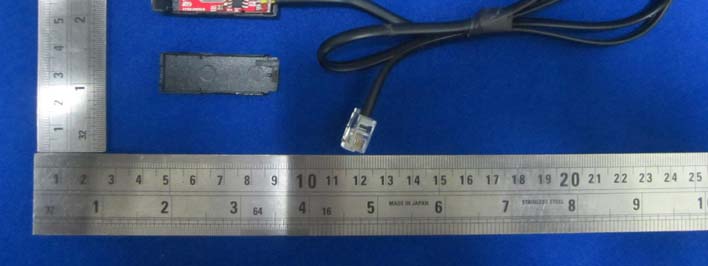

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT –Uncover View EUT –Cover off View EUT - Main Board Top View EUT – Main Board Bottom View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15B, CLASS B MEASUREMENT AND TEST REPORT For Xiamen Pinnacle Electrical Co., Ltd. 4F Guang Xia Building, Torch High-Tech Zone, Xiamen, Fujian, China FCC ID: O89RG1X Report Type: Original Report Product Type: Radio Freqency Dongle Test Engineer: Leon Chen Report Number: R1XM120716050-00 Report Date: 2012-08-13 Reviewed By: Ivan Cao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1XM120716050-00 FCC Part 15B Class B Page 2 of 13 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................4 SUMMARY OF TEST RESULTS ...............................................................................................................................5 FCC §15.107 – AC LINE CONDUCTED EMISSIONS .............................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................7 FCC §15.109 - RADIATED EMISSIONS .................................................................................................................10 MEASUREMENT UNCERTAINTY..................................................................................................................................10 EUT SETUP................................................................................................................................................................10 EMI TEST RECEIVER SETUP.......................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................11 TEST RESULTS SUMMARY..........................................................................................................................................11 TEST DATA................................................................................................................................................................12 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1XM120716050-00 FCC Part 15B Class B Page 3 of 13 GENERAL INFORMATION Product Description for Equipment under Test (EUT) The …

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions – Side View Radiated Emission -Front View Radiated Emission - Rear View
