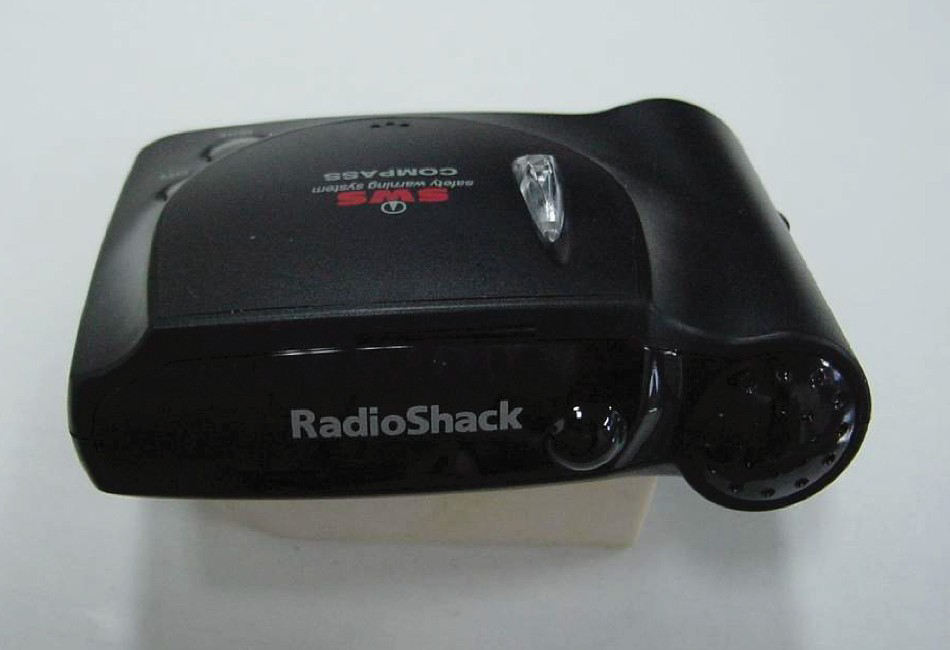

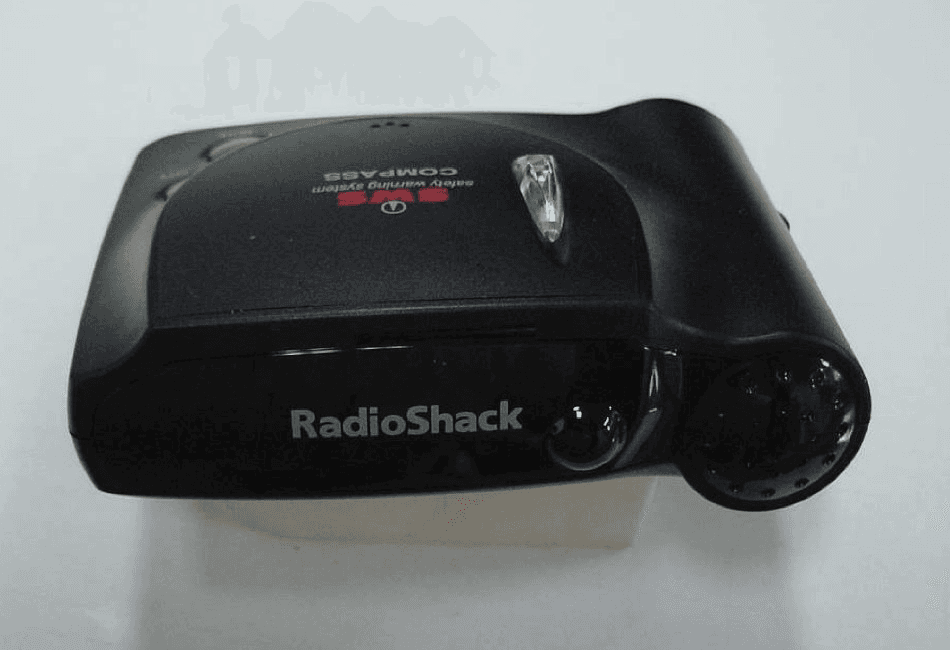

Owner’s ManualPlease read before using this equipment. 360° Laser Radar Detector with VG-2 Guard 22-1684.fm Page 1 Thursday, March 2, 2000 4:37 PM 2 Contents Features ................................................................................. 3 Safety Warning System ................................................... 4 A Quick Look ......................................................................... 6 Installation ............................................................................. 7 Selecting a Mounting Location ........................................ 7 Windshield Mounting ....................................................... 8 Hook-and-Loop Mounting ................................................ 9 Connecting Power ......................................................... 10 Calibrating the Electronic Compass ............................... 11 Operation ............................................................................. 12 Turning On the Detector ................................................ 12 Adjusting the Volume ..................................................... 13 Using the Tutorial .......................................................... 13 Operation Settings ......................................................... 14 Selecting the City and Highway Modes .................. 14 Selecting Display Brightness .................................. 14 Muting the Audio Alert ............................................ 15 Selecting VG-2 Mode ............................................. 15 Receiving and Identifying Radar, Laser, and Safety Alert Signals ................................................ 15 SWS Categories and Messages ............................ 16 Troubleshooting .................................................................. 20 Care and Maintenance ........................................................ 21 FCC Statement ..... ............................................................... 24 Replacing the Fuse ........................................................ 22 © 2000 Tandy Corporation. All Rights Reserved. RadioShack and RadioShack.com are trademarks used by Tandy Corporation. The compass technology used in this product is licensed under US patent numbers 4,851,777 and 5,239,264 from Precision Navigation, Inc. 22-1684.fm Page 2 T hursday, March 2, 2000 4: 37 PM 3 Features àFeatures Your RadioShack 360° Laser/Radar Detector can alert you to all known police traffic radar and laser systems with its distinct visual and audio alerts. It receives X-, K-, and Ka-band radar signals, and detects both the instant-on and laser systems many police departments use to measure vehicle speed. Your detector can also give you advance warning of potential road hazards by detecting signals from transmitters that broad- cast Safety Warning System alerts. Note: Before reading this Owner’s Manual read the supplied booklet Questions and Answers About Vehicle Speed Detection to familiarize yourself with the terms. Your detector’s features include: Electronic Compass — provides accurate heading information with alphanumeric display and LED panel. 360° Detection — detects laser signals from all around your ve- hicle. Ultralyte, X-, K-, Ka-Band, and Laser Signal Detection — warns you when it detects signals from traffic radar or laser de- vices. Different tones and visual indicators let you know the type of signal received. Safety Warning System Detection — alerts you to the pres- ence of potential road hazards and emergency vehicles sig- naled by a Safety Warning System transmission. 22-1684.fm Page 3 Thursday, March 2, 2000 4:37 PM 4 Features VG-2 Protection — makes your detector invisible to the VG-2 radar-detector when it senses VG-2 operation. City/Highway Modes — let you minimize alerts when you are in areas that have false radar sources. City/Highway Selector and City/Highway Indicator — dis- plays the mode currently selected. FAST    (False Alert Suppression Technology) — helps pre- vent false alarms caused by non-traffic radar sources. Tutorial Mode — helps you learn to recognize the detector’s tones and displays. Memory Retention —holds settings in memory when you turn off power. Instant On or Pulse Radar — alerts you to sudden high level laser signals. SAFETY WARNING SYSTEM The Safety Warning System (SWS) is approved by the Federal Communications Commission (FCC) to operate on the 24.05– 24.25 GHz band for highway safety alerting and traffic signal control purposes. The Safety Warning System employs low-powered transmitters used by some emergency services and road crews to alert driv- ers to hazardous road conditions. The SWS can indicate many different emergency or hazardous conditions in the area (61 different messages are currently defined, with 3 additional for future use). 22-1684.fm Page 4 Thursday, March 2, 2000 4:37 PM 5 Features The system has the potential to dramatically decrease the oc- currence of traffic accidents by increasing drivers’ awareness of local road hazards. Having this safety alert compatible radar/la- ser detector will ensure that you can benefit from this system wherever it is in use. Your radar/laser detector includes the following items: • coiled power cord • windshield bracket with suction cups • hook and loop tape • stand for hook and loop mounting • spare fuse • Booklet, Questions and Answers About Vehicle Speed Detection Important: Some areas have laws regulating the use of radar detectors. Check with your local law enforcement agency about the laws in your area. 22-1684.fm Page 5 Thursday, March 2, 2000 4:37 PM 6 A Quick Look àA Quick Look 360° Laser Eye — receives incoming laser signals directed at your vehicle from all directions DC 12V Jack — the power cord connection DIM — controls the brightness of the display MUTE — silences the alert tone for about 20 seconds after the current signal is lost CITY (City/Highway) — switches between the city and highway modes LED Compass — indicates your headi…

Text truncated - open the document above for the full version.

( 22-1684 Theory of Operation ) 1. SELF TEST . 1) POWER ON. (DIAL VOLUME) 2) DOT MATRIX DISPLAYS.(X → K → KA → VG2 → SWS) 3) SOUND TONES.(KEY TONE) 4) TIME (2SECONDS) 5) VISUAL & AUDIBLE. 2. STANDARD FRAME (1 ST & 2 nd local)  ← 130ms →← 130ms → ← 120ms → l STANDARD frame 10ms → ← * 1 ST LOCAL SWP(TP3) *2 nd LOCAL : (TP4) VG2 KaW X/K/Ka l Radar SIGNAL INPUT * TC SPEC. 4.9 〈 TC ≤ 14ms (X – BAND) 3.6 ≤ TC ≤ 4.9ms (K – BAND) 2.5 ≤ TC ≤ 3.ms (Ka – BAND) 3. VG-2  ← 130ms →← 130ms → ← 120ms → * STANDARD frame 10ms → ← * NOMAL : (TP4) * SIGNAL INPUT VG-2 : (TP11) (TP3) LOW FIXED : 11.670GHz (TP4) HIGH FIXED : 280MHz 4. SAFETY ALERT SIGNAL. l EMERGENCY VEHICE(EV). F1 : 24.110GHz F2 : 24.230GHz l ROAD HAZARD (RH) F1 : 24.070GHz F2 : 24.110GHz l RAIL ROAD (RR) F1 : 24.110GHz F2 : 24.190GHz  ← 130ms →← 130ms → ← 120ms → * NORMAL (TP6) 10ms → ← (TP4) * SIGNAL INPUT (TP5): EV/RH/RR (TP3) HIGH FIXED : 11.670GHz (NO SWEEP) (TP4) LOW FIXED : 1030MHz 5. KEY OPERATION (A) MUTE KEY(SW1) Mute : with a received signal present, pressing this button mutes the audio alarm(audio off) (B) DIM KEY (SW2) Each push of the button will reduce the illumination level of the display to the next lower preset level, or if the brightness is already set to the lowest level will restore the display illumination to Full Bright. (C) HWY / City KEY (SW3) - HWY Mode. - “C” LED will be turned off in “HWY” mode. - While in Highway Mode the unit actuate normally. CITY Mode. - “ C ” LED will be turned on in “ CITY ” mode. - While in City Mode the unit must not actuate an audio alarm for a X-band signal(only) Unit the signal strength reaches the preset City Mode level(-90dBm/).

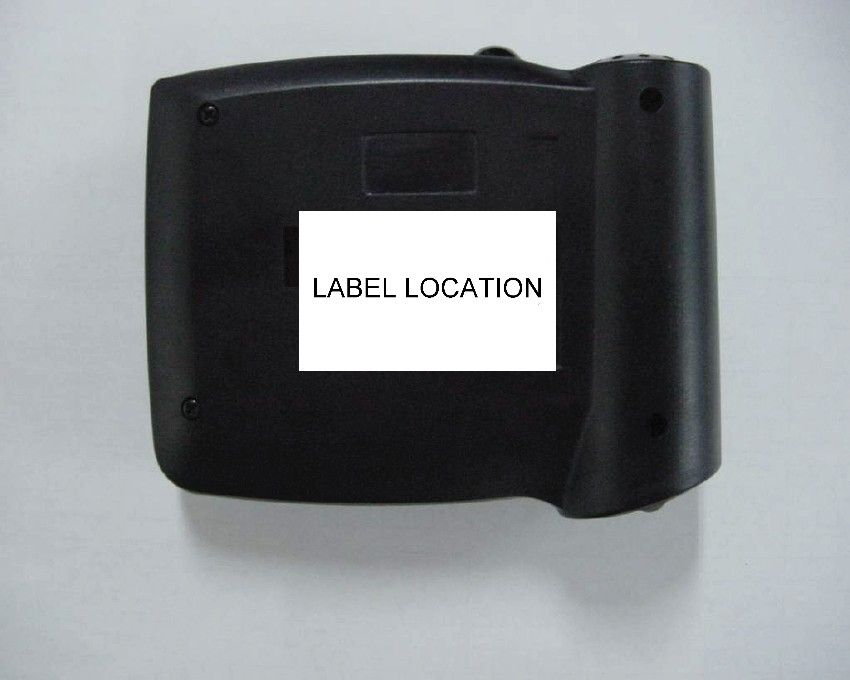

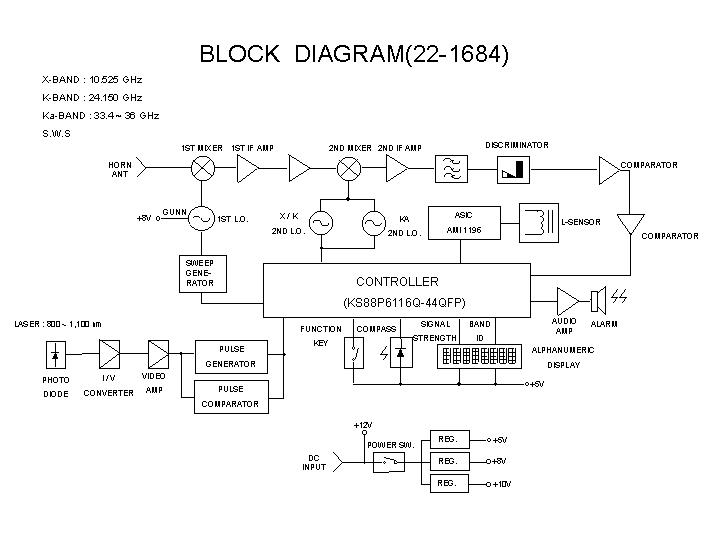

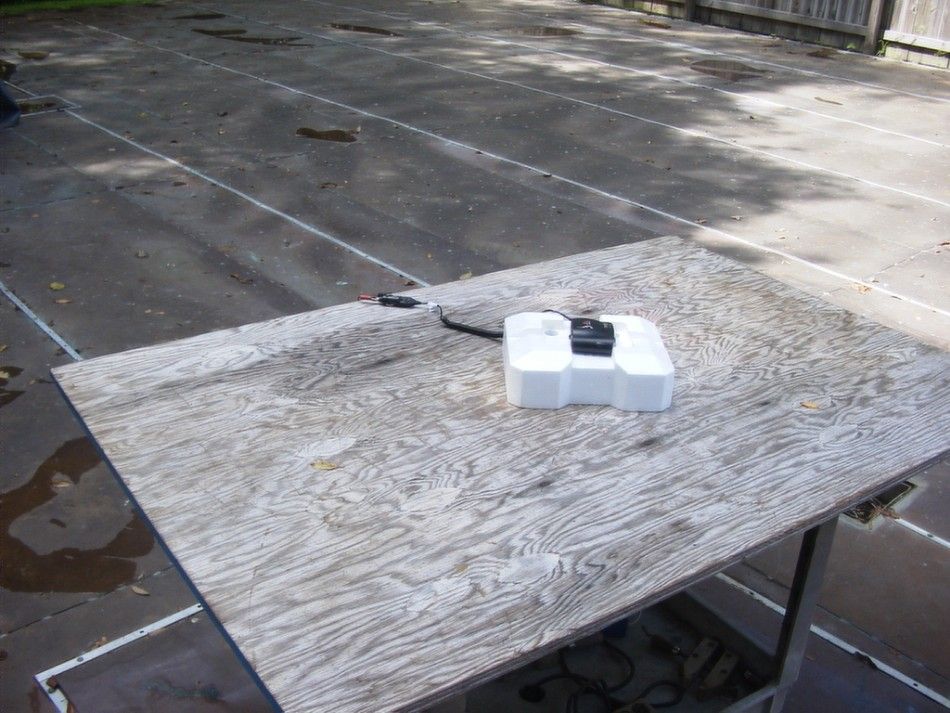

APPLICANT: SK GLOBAL FCC ID : O8B2201684 REPORT #: S\SK_GLOBAL\861KT2\861KT2TestReport.doc TABLE OF CONTENTS LIST TABLE OF CONTENTS LIST APPLICANT: SK GLOBAL FCC ID : O8B2201684 TEST REPORT CONTAINING: PAGE 1-3....TEST EQUIPMENT LIST PAGE 4-5....TEST PROCEDURES PAGE 6......RADIATION INTERFERENCE TEST DATA PAGE 7......VERTICAL MEASUREMENT PLOT PAGE 8......HORIZONTAL MEASURMENT PLOT EXHIBITS CONTAINING: EXHIBIT 1............FCC ID LABEL SAMPLE EXHIBIT 2............SKETCH OF LABEL LOCATION EXHIBIT 3............BLOCK DIAGRAM EXHIBIT 4............SCHEMATIC EXHIBIT 5............USERS MANUAL EXHIBIT 6............EXTERNAL PHOTOS EXHIBIT 7............INTERNAL PHOTOS EXHIBIT 8............CIRCUIT DESCRIPTION EXHIBIT 9............TEST SET UP PHOTO APPLICANT: SK GLOBAL FCC ID : O8B2201684 REPORT #: S\SK_GLOBAL\861KT2\861KT2TestReport.doc Page 1 of 8 EMC Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 12/22/99 12/22/02 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 Receiver, Beige Tower Spectrum Analyzer (Tan) HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 RF Preselector (Tan) HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Quasi-Peak Adapter (Tan) HP 85650A 3303A01690 CAL 8/31/01 8/31/03 X Receiver, Blue Tower X Spectrum Analyzer (Blue) HP 8568B 2928A04729 2848A18049 CHAR 10/22/01 10/22/03 X RF Preselector (Blue) HP 85685A 2926A00983 CHAR 10/22/01 10/22/03 X Quasi-Peak Adapter (Blue) HP 85650A 2811A01279 CHAR 10/22/01 10/22/03 X Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Eaton 94455-1 1057 CHAR 3/15/00 3/15/02 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro-Metrics LPA-30 409 CHAR 10/16/01 10/16/03 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CHAR 11/24/00 11/24/03 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 12/19/01 12/19/03 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/21/01 3/21/03 Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/03 APPLICANT: SK GLOBAL FCC ID : O8B2201684 REPORT #: S\SK_GLOBAL\861KT2\861KT2TestReport.doc Page 2 of 8 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/16/01 3/16/03 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 5/25/01 Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 12/12/01 12/12/03 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/03 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/04 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/03 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/03 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/03 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/04 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/04 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/04 Multimeter Fluke FLUKE-77-3 79510405 CAL 9/26/01 9/26/03 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/03 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/04 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/04 X Temp/Humidity gauge EXTech 44577F E000901 CHAR 1/22/02 1/22/04 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/03 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 1/26/01 1/26/03 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/02 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 5/12/02 5/12/04 Signal Generator HP 8640B 2308A21464 CAL 11/15/01 11/15/03 Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/03 APPLICANT: SK GLOBAL FCC ID : O8B2201684 REPORT #: S\SK_GLOBAL\861KT2\861KT2TestReport.doc Page 3 of 8 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/03 BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 5BR4-10525/ 900-S Z1 CHAR 3/2/01 3/2/03 High Pas Filter Microlab HA-10N CHAR 10/4/01 10/4/03 Audio Oscillator HP 653A 832-00260 CHAR 3/1/01 3/1/03 Frequency Counter HP 5382A 1620A03535 CHAR 3/2/01 3/2/03 Frequency Counter HP 5385A 3242A07460 CHAR 12/11/01 12/11/03 Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/03 Amplifier HP 11975A 2738A01969 CHAR 3/1/01 3/1/03 Egg Timer Unk CHAR 8/31/01 8/31/03 Measuring Tape, 20M Kraftixx 0631-20 CHAR 2/1/02 2/1/04 Measuring Tape, 7.5M Kraftixx 7.5M PROFI 2/1/02 2/1/04 Coaxial Cable #51 Insulated Wire Inc. NPS 2251-2880 Timco #51 CHAR 1/23/02 1/23/04 Coaxial Cable #64 Semflex Inc. 60637 Timco #64 CHAR 1/24/02 1/24/04 Coaxial Cable #65 General Cable Co. E9917 RG233/U Timco #65 CHAR 1/23/02 1/23/04 Coaxial Cable #106 Unknown Unknown Timco #106 CHAR 1/23/02 1/23/04 APPLICANT: SK GLOBAL FCC ID : O8B2201684 REPORT #: S\SK_GLOBAL\861KT2\861KT2TestReport.doc Page 4 of 8 TEST PROCEDURES GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: Testing was done in accordance with ANSI C63.4-2001. Section 15.35(b)specifies the use of an average detector in this band. In addition, the peak level of an emissions shall not exceed the average limit by more than 20 dB using a minimum Resolution Bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the local oscillator within the band of interest along with any additional spurious emissions caused by other circuitry within the device. 1) Determine the fre…
