O8B2201695Radar Detector

OWNER’S MANUAL Please read before using this equipment. www.radioshack.com SM SAFETY ALERT SYSTEMThe Safety Alert System employs low-poweredtransmitters used by some emergency services androad crews to alert drivers to hazardous roadconditions. The system can indicate stationary,moving, or railroad hazards.The system has the potential to dramaticallydecrease the occurrence of traffic accidents byincreasing drivers’ awareness of local road hazards.Having this safety alert compatible radar/laserdetector will ensure that you are ready to benefit fromthis system wherever it is in use. D ASHBOARD M OUNTING In some vehicles, the dashboard may be the best location tomount the detector. Use the supplied hook-and-loop tape tomount your radar detector to the dash. 1. Use a damp cloth to clean the bottom of the detector and the dashboard. Let both surfaces dry. 2. Remove the tape’s paper backing and stick the tape to the bottom of thedetector. 3. Remove the backing from the other side of the tape and firmly press yourdetector onto the dashboard. Thank you for purchasing a RadioShack RadarDetector with Safety Alert. Your radar detectorcan alert you to many traffic radar and lasersystems with its distinct visual and audio alerts.It receives X-, K-, and Ka-band radar signals,and detects both the instant-on and lasersystems many law enforcement agencies use tomeasure vehicle speed. Plus, your detector cangive you advance warning of potential roadhazards by detecting signals from transmitters thatbroadcast Safety Alert System™ alerts. Radar Detector with Safety Alert 22-1695 PACKAGE CONTENTS Ô Dashboard Mounting Notes Ô • The tape’s adhesive might not stick to a surface treated with vinyl cleaner or protectant. • Do not place the hook-and-loop tape over the detector’s serial number. • On a curved dashboard, cut the supplied strip in half and use one strip on each side of the bottom of the detector. • Be sure to place the detector out of view when you leave the vehicle. This keeps the detector out of sight of thieves and preventsexposure to extremely high temperatures, which can temporarilyimpair your detector’s performance. Ô Note Ô Before reading this Owner’s Manual, read the suppliedbooklet Questions and Answers About Vehicle Speed Detection to familiarize yourself with the terms and uses associated with your detector. S ELECTING A M OUNTING L OCATION For the best performance, select a location where thedetector has a direct view of the road. The detector’sradar antenna is at the opposite end of the indicators.Mounting Guidelines • Choose a location that does not blockthe driver’s view ofthe road. • Mount the detector in a level positionwith a clear view ofboth the front and rear of your vehicle. • Choose a location that gives the detector a view unobstructed by metal objects. • Some vehicles have InstaClear ® or ElectriClear ® defogging windshields, which have metal coatings that block signals. Check your vehicle’s owner’s manual tosee if your vehicle has one of these features. A detector installed in a vehiclewith one of these features might not detect a signal. • Since window tinting reduces the received strength of laser signals, you should not mount the detector behind any tinted glass. • Do not mount the detector where the driver or a passenger might hit it in a sudden stop or accident. W INDSHIELD M OUNTING 1. Clean the selected windshield area, position the bracket on the windshield,and press firmly on each suction cup tosecure the bracket. 2. Slide the detector’s bracket slot onto the bracket until it snaps into place.  CAUTION  Do not use the mountingbracket in a vehicle thathas a plastic safetycoating on the inside ofthe windshield designedto protect passengersduring an accident. If youuse the bracket on thistype of windshield, youmight permanently marthe windshield’s surface.Mount the radar detectoron the dashboardinstead. Ô Note Ô Though the detector has a360° laser and radar detectionrange, the radar detection ismost sensitive in the frontrange. Questions and Answers AboutVehicle Speed Detection Booklet Hook andLoop TapeWindshieldBracket withSuction Cups Radar DetectorCoiled Power Cord Adjusting the BracketIf the mounted detector is not at the optimumviewing angle, you can adjust the mountingbracket for better viewing. Carefully bend thebracket to adjust it to the desired angle. Bracket Slot Plug the supplied power cord’sbarrel plug into the detector’s12V DC jack. Then plug the cord’scigarette-lighter plug into yourvehicle’s cigarette-lighter socket.  CAUTION  • Use only the supplied 12V DC, Positive (+) Tip power cord. Use ofany other power source may causedamage. • Before plugging the power cord’s cigarette-lighter plug into yourvehicle’s cigarette-lighter socket,make sure the plug’s tip is screwedfirmly onto the plug. Ô Note Ô • To prevent the detector from draining your vehicle’s battery if you leave thedetector on when you turn off theignition, unplug the power cord fromyour vehicle’s cigarette lighter socket. • If the detector does not operate when you turn it on, remove the cigarette-lighter plug from your vehicle’s socketand check the socket for debris. Also,check the fuse in the detector’s plugand your vehicle’s cigarette lighterfuse. 12V DC Jack 360° Laser Eye — receives incoming laser signalsdirected at your vehicle fromall directions.Dim — controls the brightness of theindicators Mute — silences the alert tone. City (City/Highway) — switches between cityand highway modes. VG-2 VOLUME/OFF — turns the detector on and off and letsyou adjust the volume. IndicatorsVG-2 — lights when a VG-2 signal is detected. C (City) — lights when the detector is in city mode. O (Moving Train) — both indicators under O (M and S) flash when the detector encounters a signal relatedto a moving train from a safety alert transmitter. • M (Emergency Vehicle) — flashes when the detector encounters a signal related to anemergency vehicle from a safety alert transmitter. • S (Stationary Road Hazard Si…

Text truncated - open the document above for the full version.

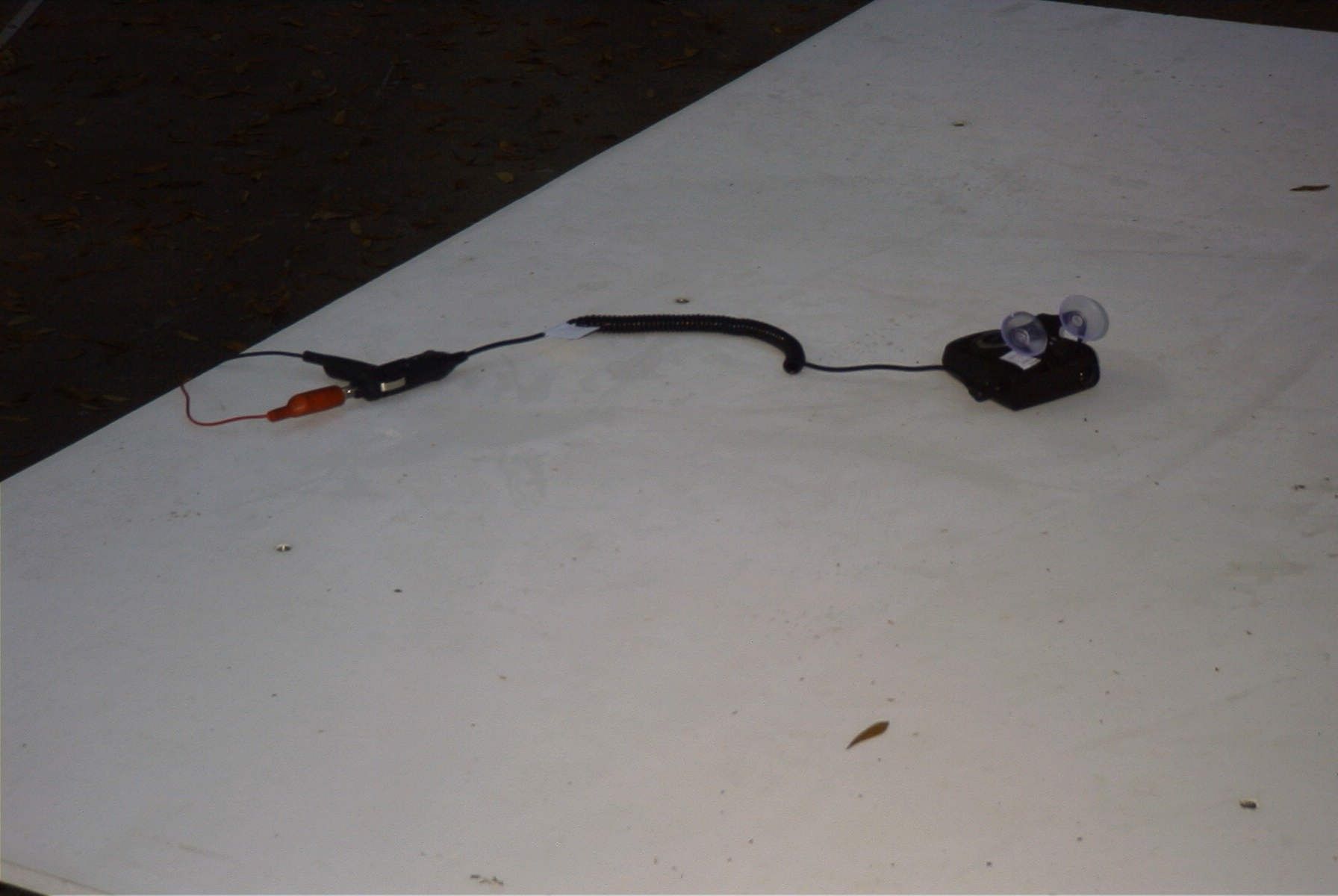

APPLICANT: SK GLOBAL FCC ID : O8B2201695 REPORT #: S\SK_GLOBAL\317UT3\317UT3TestReport.doc TABLE OF CONTENTS LIST TABLE OF CONTENTS LIST APPLICANT: SK GLOBAL FCC ID : O8B2201695 TEST REPORT CONTAINING: PAGE 1-3....TEST EQUIPMENT LIST PAGE 4-5....TEST PROCEDURES PAGE 6......RADIATION INTERFERENCE TEST DATA PAGE 7......VERTICAL MEASUREMENT PLOT PAGE 8......HORIZONTAL MEASUREMENT PLOT EXHIBITS CONTAINING: EXHIBIT 1............CONFIDENTIALITY LETTER EXHIBIT 2............FCC ID LABEL SAMPLE EXHIBIT 3............SKETCH OF LABEL LOCATION EXHIBIT 4............BLOCK DIAGRAM EXHIBIT 5............SCHEMATIC EXHIBIT 6............USERS MANUAL EXHIBIT 7............EXTERNAL PHOTOGRAPHS EXHIBIT 8............INTERNAL PHOTOGRAPHS EXHIBIT 9............THEORY OF OPERATION EXHIBIT 10...........TEST SET UP PHOTO APPLICANT: SK GLOBAL FCC ID : O8B2201695 REPORT #: S\SK_GLOBAL\317UT3\317UT3TestReport.doc TABLE OF CONTENTS LIST EMC Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 12/22/99 12/22/02 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 Receiver, Beige Tower Spectrum Analyzer (Tan) HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 RF Preselector (Tan) HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Quasi-Peak Adapter (Tan) HP 85650A 3303A01690 CAL 8/31/01 8/31/03 X Receiver, Blue Tower X Spectrum Analyzer (Blue) HP 8568B 2928A04729 2848A18049 CHAR 10/22/01 10/22/03 X RF Preselector (Blue) HP 85685A 2926A00983 CHAR 10/22/01 10/22/03 X Quasi-Peak Adapter (Blue) HP 85650A 2811A01279 CHAR 10/22/01 10/22/03 X Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Eaton 94455-1 1057 CHAR 3/15/00 3/15/02 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro-Metrics LPA-30 409 CHAR 10/16/01 10/16/03 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CHAR 11/24/00 11/24/03 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 12/19/01 12/19/03 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/21/01 3/21/03 Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/03 APPLICANT: SK GLOBAL FCC ID : O8B2201695 REPORT #: S\SK_GLOBAL\317UT3\317UT3TestReport.doc Page 2 of 8 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/16/01 3/16/03 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 5/25/01 Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 12/12/01 12/12/03 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/03 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/04 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/03 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/03 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/03 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/04 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/04 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/04 Multimeter Fluke FLUKE-77-3 79510405 CAL 9/26/01 9/26/03 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/03 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/04 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/04 X Temp/Humidity gauge EXTech 44577F E000901 CHAR 1/22/02 1/22/04 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/03 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 1/26/01 1/26/03 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/02 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 5/12/02 5/12/04 Signal Generator HP 8640B 2308A21464 CAL 11/15/01 11/15/03 Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/03 APPLICANT: SK GLOBAL FCC ID : O8B2201695 REPORT #: S\SK_GLOBAL\317UT3\317UT3TestReport.doc Page 3 of 8 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/03 BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 5BR4-10525/ 900-S Z1 CHAR 3/2/01 3/2/03 High Pas Filter Microlab HA-10N CHAR 10/4/01 10/4/03 Audio Oscillator HP 653A 832-00260 CHAR 3/1/01 3/1/03 Frequency Counter HP 5382A 1620A03535 CHAR 3/2/01 3/2/03 Frequency Counter HP 5385A 3242A07460 CHAR 12/11/01 12/11/03 Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/03 Amplifier HP 11975A 2738A01969 CHAR 3/1/01 3/1/03 Egg Timer Unk CHAR 8/31/01 8/31/03 Measuring Tape, 20M Kraftixx 0631-20 CHAR 2/1/02 2/1/04 Measuring Tape, 7.5M Kraftixx 7.5M PROFI 2/1/02 2/1/04 Coaxial Cable #51 Insulated Wire Inc. NPS 2251-2880 Timco #51 CHAR 1/23/02 1/23/04 Coaxial Cable #64 Semflex Inc. 60637 Timco #64 CHAR 1/24/02 1/24/04 Coaxial Cable #65 General Cable Co. E9917 RG233/U Timco #65 CHAR 1/23/02 1/23/04 Coaxial Cable #106 Unknown Unknown Timco #106 CHAR 1/23/02 1/23/04 APPLICANT: SK GLOBAL FCC ID : O8B2201695 REPORT #: S\SK_GLOBAL\317UT3\317UT3TestReport.doc Page 4 of 8 TEST PROCEDURES GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: Testing was done in accordance with ANSI C63.4-2001. Section 15.35(b)specifies the use of an average detector in this band. In addition, the peak level of an emissions shall not exceed the average limit by more than 20 dB using a minimum Resolution Bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the local oscillator within the band of interest along with any additional spurious emissions…

Text truncated - open the document above for the full version.
