SISTEMATICA S.p.A. REV.3a Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715 http://www.sistematica.it e-mail: [email protected] 28/03/2012 EASYRTX - TRENDRTX RADIO REMOTE CONTROL TRANSMITTER USER AND MAINTENANCE MANUAL WARNINGS This manual is an essential part of the device and it should be thoroughly kept for later consultation. Carefully read the warnings contained in this manual, concerning safety and a proper preservation of the product. These warnings are ALWAYS to be carefully read before using the device. SISTEMATICA S.p.A. declines all responsibility for any trouble arising from the non-compliance with these warnings. • AVOID ATTEMPTING TO REPAIR THE DEVICE BY YOURSELF. REPAIRS PERFORMED BY UNSKILLED PEOPLE CAN CAUSE SERIOUS DAMAGES OR FAILURES. FOR ASSISTANCE, APPLY TO YOUR LOCAL AUTHORIZED SERVICE CENTRE. USE ONLY ORIGINAL SPARE PARTS. • ALWAYS KEEP AT A SAFE DISTANCE FROM THE MOVING PARTS. • KEEP THE RADIO CONTROL OUT OF THE CHILDREN’S REACH. SISTEMATICA S.p.A. Pag. 2/4 Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715 http://www.sistematica.it e-mail: [email protected] TECHNICAL FEATURES EASYRTX • Manufacturer: SISTEMATICA S.p.A. • Number of commands: da 2 a 6 • Dimension (in mm): 109 x 56 x 30 • IP protection: IP67 • Operating temperature: -20°C ÷ +70°C • Battery supply: n°2 AAA Alkaline 1,5V cell • Quiescent absorption: 1 μA • Back lighted keypad • Safetypoint • Tilting-hand • Buzzer • Working distance: 100÷150 m in free fiel condition TRENDRTX • Manufacturer: SISTEMATICA S.p.A. • Number of commands: da 4 a 24 • Dimension (in mm): 165 x 80 x 40 • IP protection: IP67 • Operating temprature: -20°C ÷ +70°C • Battery supply: n°2 AA Alkaline 1,5V cell • Quiescent absorption: 5 μA • Back lighted keypad • Active Safetypoint • Tilting-hand • Buzzer • Working distance: 100÷150 m in free fiel condition INSTRUCTIONS FOR USE RADIO REMOTE CONTROL 6÷14 FUNZIONI (EASYRTX E TRENDRTX) RADIO REMOTE CONTROL UP TO 24 FUNZIONI (ONLY TRENDRTX) 1. Switch on the receiver; 2. Wait for a few second (self testing); 3. Press START key to allow the system to receive the transmission (the system stay active for n.2 minutes after the last control has been given, after wich it reset.. Then press START key again to restart the system); 4. Press the required key on the trasmitter to activate the related output on the receiver EXAMPLE: KEY 1 → OUT1 + M.O. + EM. ↓ EXAMPLE: KEY 6 → OUT6 + M.O. + EM. ↓ EXAMPLE: KEY 14 → OUT14 + M.O. + EM. 5. Press the STOP key to inhibit the controls reception. In this phase all the controls are reset. To activate again the system press START. EASYRTX TRENDRTX 1. Switch on the receiver; 2. Wait for a few second (self testing); 3. Press START key and key 1 at the same time to enable the output on the receiver unit from 1 to 12 (I° page); press the required key on the transmitter to activate the related output on the receiver: EXAMPLE: KEY 1 → OUT1 + M.O. + EM. ↓ EXAMPLE: KEY 12 → OUT12 + M.O. + EM. 4. Press START key and key 2 at the same time to enable the output on the receiver unit from 13 to 24 (II° page); press the required key on the transmitter to activate the related output on the receiver: EXAMPLE: KEY 13 → OUT13 + M.O. + EM. ↓ EXAMPLE: KEY 24 → OUT24 + M.O. + EM. 5. Press the STOP key to inhibit the controls reception. In this phase all the controls are reset. To activate again the system press START and key 1 or key 2 depend on output want activate. NOTE: The 24 function transmitter is composed by 2 pages. First page enable first 12 outputs (OUT 1 ÷ OUT 12); second page enable last 12 outputs (OUT 13 ÷ OUT 24). SISTEMATICA S.p.A. Pag. 3/4 Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715 http://www.sistematica.it e-mail: [email protected] MEANING OF THE TRANSMITTER LED The remote control has 3 leds used to indicate the operation of the system. The following table descrive the various meanings. LED OPERATION MEANING Flashes Button pressed Flashes each 5 sec. Link radio e START OK Flashes each 3 sec. Button held down Flashes once per sec. Link radio KO GREEN Flashes twice per sec. Link radio loss Flash Transmitter out of the magnetic field SafetyPoint- Plate by pressing a button on safetypoint SAFETYPOINT Flash Transmitter for 5 sec in the magnetic field Safetypoin-plate without pressure of any key Flashes once every 2,5 sec. I° page selected YWLLOW CAMBIO PAGINA Flashes twice every 2,5 sec. II° page selected Flashes once per sec. if button held down Low battery RED On if button held down Low battery (replace battery) SYSTEM CODING Coding the system is an operation that is only necessary when the receiver has to be replaced or you want to use it with a different SISTEMATICA radio remote control from the one it is coupled with at the time of purchase. To recode the system, consult the user manual of the receiver coupled with the transmitter. REPLACING THE BATTERIES IN THE TRANSMITTER If the red LED on the handset flashes when the key is held down, it means that the batteries are almost flat (<2,5 V). In this situation, replace the batteries as soon as possible since the system performance may be impaired. When the voltage reaches values lower than 2,2 V, the red LED stays on when the key is pressed. In this situation, replace the batteries, as it is not possible to give commands to the output ports. To replace the batteries follow these instructions: 1. Obtain n°2 “AA” 1.5V alkaline batteries; 2. Open the battery compartment by unscrewing the two screws; 3. Remove the flat batteries from their holder; 4. Insert the new batteries paying attention to the polarity shown on the end. Before going ahead with closing the battery compartment, made sure the green LED emits a flash each time a key is pressed; 5. After checking that the transmitter is working properly, colse the container. The remote control contains miniaturized electronic circu…
Text truncated - open the document above for the full version.
BATTERY PACK - Battery reverse protection VOLTAGE REGULATION CPU 32.764kHZ INTERNAL CLOCK SOURCE-1024x through internal PLL-33.550MHz BUSCLOCK ACCELEROMETER RF TRANSCEIVER 16 MHz LF OSCILLATORRefer to Nordic nFR905 Product specification V1.5 OTHER PERIPHERALS: -Buzzer -Backlight -Vibracall 650 kHz step up DC DC converter USER INTERFACE: -Keyboard -LED RTX EASY - RTX TREND BLOCK DIAGRAM
022311 – 6 Request for Confidentiality Date: 06 22 2012 Subject: Confidentiality Request for: O8IRTXTREND Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ _____SISTEMATICA S.pA.____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ Stefano Baudino (Signature/Title 3 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.
IMQ S.p.A. con socio unico Via Quintiliano, 43 20138 MILANO - I Test Report No. ARSL00185/5 Date: 2012-02-03 Page 23 of 24 T TT T ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS & && & T TT T ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR T TT T RANSPORTS RANSPORTSRANSPORTS RANSPORTS L LL L ABORATORY ABORATORYABORATORY ABORATORY 10. PHOTOGRAPHIC DOCUMENTATION EUT IDENTIFICATION

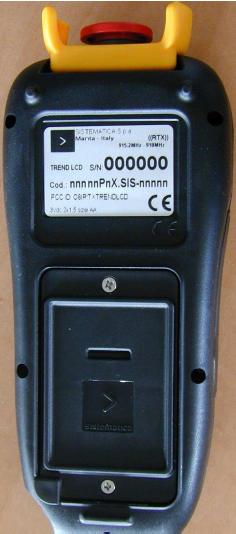

SISTEMATICA S.p.A.: FCC Labels positioning Data: 2012-06-04 Pagina 1/3 RTX EASY - FCC ID: O8IRTXEASY RTX TREND - FCC ID: O8IRTXTREND

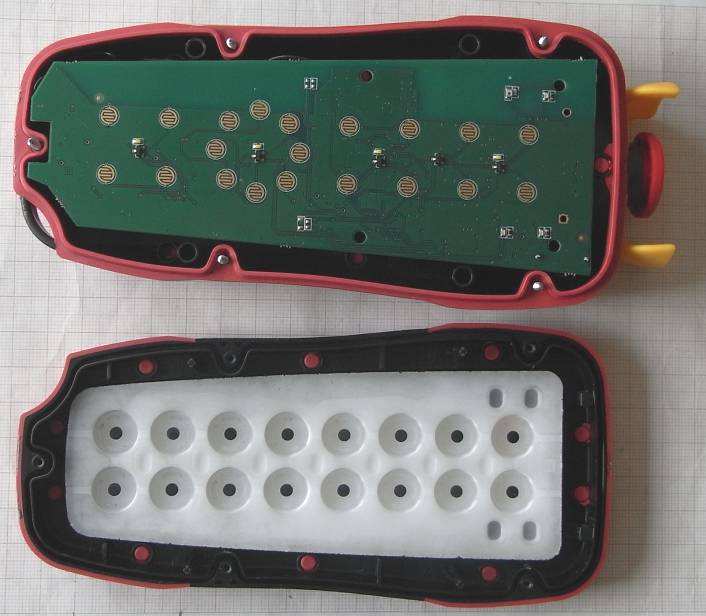

Sistematica S.p.A. O8IRTXTREND: internal photos
RTX TREND Operational Description Date: 2011-10-28 R1 Pagina 1 di 2 REV. DATE DESCRIPTION AUTHOR APPROVED R1 2011-10-28 First issues SB 1. Overview The RTX TREND handheld is a professional remote control suitable for industrial and/or vehicle applications. Its main features are: • Supply voltage: 3Vdc, 2xAA Alkaline batteries • Up to 14 function keys other than + START e STOP • Current consumption: < 10 uA in stand-by status • Backlighted keyboard • Passive Safety-Point • Active Safety-Point (RFID integrated Tag-Reader) • Tilting Hand capability through 3 axis accelerometer • Emergency STOP mushroom • Buzzer or vibration as user feedback • Battery indication LED • Transmission indication LED • Operating distance: up to 150m in line of sight and free field conditions • Operating temperature: -20 ÷ +70 °C • Enclosure protection: IP67 • Shock proof • Operating frequency: 915 MHz RTX TREND Operational Description Date: 2011-10-28 R1 Pagina 2 di 2 2. Operational description The RTX TREND remote control is used in conjunction with Sistematica S.p.A CONTROLLER devices that acts the command sent by the user with the RTX TREND. Each RTX TREND is produced with a unique 32 bit identification number lasered into the device memory. This number allow a pairing function between the remote control and the receiver which will accept commands only from the paired remote control. The remote control has two main buttons, START and STOP allowing the user to start a new working session. The session normally will ends when the user push the STOP button or automatically at a timeout expiration from the last command sent (button 1 to 14). The START command is always need before start working using the function button 1 to 14. This command is used to establish the radio link with the receiver. The STOP button close the working session and produce the switch off of all the active outputs on the receiver side. The integrity of the transmitted commands (START, STOP or function commands) is achieved through e 32 bit polynomial CRC. Feedback of the right transmission and reception of the command is given to the user through specific green LED, buzzer beep or vibration. A red LED warn the user about the status of the battery charge when it became too low for a proper function of the device.
