O8IRTXTRENDLCDProfessional Remote Control suitable for Industrial and/or Vehicle Applications

SISTEMATICA S.p.A. REV.1 Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715 http://www.sistematica.it e-mail: [email protected] 12/04/2012 TRENDRTX WITH DISPLAY RADIO REMOTE CONTROL TRANSMITTER USER AND MAINTENANCE MANUAL WARNINGS This manual is an essential part of the device and it should be thoroughly kept for later consultation. Carefully read the warnings contained in this manual, concerning safety and a proper preservation of the product. These warnings are ALWAYS to be carefully read before using the device. SISTEMATICA S.p.A. declines all responsibility for any trouble arising from the non-compliance with these warnings. • AVOID ATTEMPTING TO REPAIR THE DEVICE BY YOURSELF. REPAIRS PERFORMED BY UNSKILLED PEOPLE CAN CAUSE SERIOUS DAMAGES OR FAILURES. FOR ASSISTANCE, APPLY TO YOUR LOCAL AUTHORIZED SERVICE CENTRE. USE ONLY ORIGINAL SPARE PARTS. • ALWAYS KEEP AT A SAFE DISTANCE FROM THE MOVING PARTS. • KEEP THE RADIO CONTROL OUT OF THE CHILDREN’S REACH. SISTEMATICA S.p.A. Pag. 2/3 Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715 http://www.sistematica.it e-mail: [email protected] TECHNICAL FEATURES • Manufacturer: SISTEMATICA S.p.A. • Dimension (in mm): 180 x 78 x 40 • IP protection: IP67 • Operating temperature: -20°C ÷ +70°C • Battery supply: lithium polymer batteries (Li-Pol) single cell 3,7V 1200 mAh • Quiescent absorption: 20 μA • Active and passive Safetypoint • Keyboard (2 possibilities – both with backlight) - 8 keys - 4 keys + 4 joy-pad keys • 3-axis accelerometer for tilting-hand • Buzzer • Display 128x128 COG-FSTN blue backlight • Working distance: 100÷150 m in free fiel condition • CRADLE – battery charge TRANSMITTER LED The transmitter is equipe with a meduse to indicate the charge status of the system. The following table descrive the meaning: LED FUNCTION MEANING RED ON Transmitter in charge SYSTEM CODING Coding the system is an operation that is only necessary when the receiver has to be replaced or you want to use it with a different SISTEMATICA radio remote control from the one it is coupled with at the time of purchase. To recode the system, consult the user manual of the receiver coupled with the transmitter. CRADLE INSTALLATION The cradle (battery charger interface) has to be installed less to 1 meter far from the vehicle cigarette lighter socket. Since it is provided with a standard vehicular battery charger with 1m cord. To power the cralde: - insert the battery charger in the cigarette lighter socket - plug the battery charger micro-USB output connector into the cradle micro-USB socket The cradle can be powered with any standard vehicular battery charger with mirco-USB output connector. BATTERY MANAGEMENT AND RECHARGE The remote control is equipped with a single cell Li-Po battery which can be recharged without the need to remove it from the device. During the use of the remote control, an icon on the display indicates the status of the battery through four segments. The charge process start automatically once the remote control is placed in its cralde, the battery icon, together with the red led indicate that the charge is in progress. Once the charge is complete the battery icon indicates the complete full battery status and all the four segments of the battery icon are lighted. Figura 1. Palmare in carica SISTEMATICA S.p.A. Pag. 3/3 Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715 http://www.sistematica.it e-mail: [email protected] PRODUCT IDENTIFYNG LABELS INTERNAL EXTERNAL Product serial number TREND LCD: product model S/N: product serial number Cod.: product identification number PROBLEM IDENTIFICATION AND SOLUTION PROBLEM POSSIBLE CAUSES SOLUTIONS Flat batteries -Charge the battery (see “BATTERY MANAGEMENT AND RECHARGE”) The system does not respond to the control System not coded -Re-code the system (vedi “CODIFICA DEL SISTEMA”) CE MARK Declaration of conformity for Sistematica S.p.A. products can be required at: [email protected] This product may be subjected to usage restriction. Please contact [email protected] for any further questions. FCC STATEMENTS These devices complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) these devices may not cause harmful interference and (2) these devices must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to these equipment. Such modifications could void the user’s authority to operate the equipments. SISTEMATICA S.p.A. Grantee Code: O8I TRENDRTX LCD label example FCC ID: O8IRTXTRENDLCD

July 2, 2012 RE: ATCB012225 –Original Equipment Certification Application FCC ID: O8IRTXTRENDLCD for Sistematica S.p.A. You can find our answers after your comments. Thank you. Francesco Barbieri 2. The submitted user manuals appear to be incomplete because they both contain no information on how to operate this transmitter. Please address. (Please note that this is a repeat of question 12 from my request for additional information dated June 5, 2012.) IMQ: The reason of the absence of the specific part “functional description” is due to the customizable approach of this application; the firmware loaded in the device is the result of agreement between the customer and his client. The firmware is built in order to assign particular mean to each button command, but don’t change radio details . In this way, the manual is personalized for each application.

BATTERY PACK - Battery reverse protection VOLTAGE REGULATION CPU 32.764kHZ INTERNAL CLOCK SOURCE-1024x through internal PLL-33.550MHz BUSCLOCK ACCELEROMETER RF TRANSCEIVER 16 MHz LF OSCILLATORRefer to Nordic nFR905 Product specification V1.5 OTHER PERIPHERALS: -Buzzer -Vibracall USER INTERFACE: -Keyboard -LED BATTERY CHARGE CONTROL GRAPHIC LCD 128x128 pixels BACKLIGHT 650 kHz step up DC DC converter RTX TREND LCD BLOCK DIAGRAM

022311 – 6 Request for Confidentiality Date: 06 22 2012 Subject: Confidentiality Request for: O8IRTXTRENDLCD Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ _____SISTEMATICA S.pA.____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: ______________________ Stefano Baudino (Signature/Title 3 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

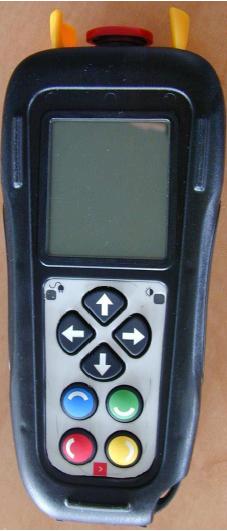

Sistematica S.p.A. O8IRTXTRENDLCD: external photos

Sistematica S.p.A. O8IRTXTRENDLCD: external photos

Sistematica S.p.A. O8IRTXTRENDLCD: internal photos

RTX TREND-LCD Operational Description Date: 2012-06-22 R3 Pagina 1 di 2 REV. DATE DESCRIPTION AUTHOR APPROVED R1 2011-10-28 First issues SB R2 2012-06-04 SB R3 2012-06-22 SB 1. Overview The RTX TREND-LCD handheld is a professional remote control suitable for industrial and/or vehicle applications. Its main features are: • Power supply: single cell LiPO battery 3,7Vdc, 1200mAh • Current consumption: < 20 uA in stand-by status • Double keyboard layout available, up to 8 function key or 4 button joy-pad other than 4 standard round function key • Graphic display 128x128 pixel COG-FSTN with blue backlight • Backlighted keyboard • Passive Safety-Point • Active Safety-Point (RFID integrated Tag-Reader) • Tilting Hand capability through 3 axis accelerometer • Emergency STOP mushroom • Buzzer or vibration as user feedback other than display • Operating distance: up to 150 m in line of sight and free field conditions • Operating temperature: -20 ÷ +70 °C • Enclosure protection: IP65 • Operating frequency: 915 - 918 MHz • Type of communication: bidirectional half-duplex • RF Chipset: NORDIC nRF905 Transceiver RTX TREND-LCD Operational Description Date: 2012-06-22 R3 Pagina 2 di 2 2. Operational description The RTX TREND-LCD remote control is used in conjunction with Sistematica S.p.A CONTROLLER devices that acts the command sent by the user with the RTX TREND-LCD. Each RTX TREND-LCD is produced with a unique 32 bit identification number lasered into the device memory. This number allow a pairing function between the remote control and the receiver which will accept commands only from the paired remote control. The integrity of the transmitted commands is achieved through e 32 bit polynomial CRC. Feedback of the right transmission and reception of the command is given to the user through specific icons on the display. The LCD give the possibility to the user to receive information from the CONTROLLER about the status of the machinery on which it is installed. The basic information given to the user through the display are: • Status of the battery • Radio link established or not. The RTX TREND-LCD function menu, the usage operation, the LCD layout and the information displayed on it are defined time to time by customer demand.

IMQ S.p.A. con socio unico Via Quintiliano, 43 20138 MILANO - I Test Report No. ARSL00185/6 Date: 2012-07-03 Page 2 of 26 T TT T ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS & && & T TT T ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR T TT T RANSPORTS RANSPORTSRANSPORTS RANSPORTS L LL L ABORATORY ABORATORYABORATORY ABORATORY 1. GENERAL DATA SAMPLE Samples received on 2011-09-26 (item sent and sampling by applicant) IMQ reference samples BEM 61025 Samples tested No. 1 Object under analysis recognition Not carried out Except where stated, characteristics of products were taken from client description and were not verified by the laboratory TEST LOCATION Testing dates 2011-09-26 ÷ 2012-02-02 Testing laboratory. IMQ S.p.A. - Via Quintiliano, 43 – I-20138 Milano Testing site Viale Lombardia, 20 – I-20021 Bollate (MI) ENVIRONMENTAL CONDITIONING Parameter Measured Ambient Temperature 25 ÷ 35 °C Relative Humidity 50 ÷ 60 % Atmospheric Pressure 900 ÷ 1000 mbar IMQ S.p.A. con socio unico Via Quintiliano, 43 20138 MILANO - I Test Report No. ARSL00185/6 Date: 2012-07-03 Page 3 of 26 T TT T ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS & && & T TT T ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR T TT T RANSPORTS RANSPORTSRANSPORTS RANSPORTS L LL L ABORATORY ABORATORYABORATORY ABORATORY 2. REFERENCE DOCUMENT DOCUMENT DATE TITLE 47 CFR Part 15 2008 Radio Frequency Device ANSI C63.4 2009 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz IMQ S.p.A. con socio unico Via Quintiliano, 43 20138 MILANO - I Test Report No. ARSL00185/6 Date: 2012-07-03 Page 4 of 26 T TT T ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS & && & T TT T ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR T TT T RANSPORTS RANSPORTSRANSPORTS RANSPORTS L LL L ABORATORY ABORATORYABORATORY ABORATORY 3. UNIT UNDER TEST (EUT) DETAILS GENERAL DATA Model tested RTX TREND LCD FCC ID O8IRTXTRENDLCD Manufacturer SISTEMATICA S.p.A. ~ Via Sandro Pertini, 17 – I-12030 Manta Equipment classification According to the definition 15.3 (o) EUT is a Intentional Radiator operating within the bands 902 ÷ 928 MHz so it shall fulfill provisions of 47CFR Part 15 Subpart C – Intentional radiators – and Section 15.249 Type of equipment Remote control for automotive control system Power supply type Battery supplied Power specification 3.7V - 1250mAh Lithium Polymer (LiPo) Battery Pack Operating frequency 915 to 918 MHz. Before working start there's the possibility to select the desired frequency (16 frequencies with 200 kHz step); only one frequency working it's possible Maximum EIRP 90.89 dB
V/m Modulation FSK Channel Spacing 200 kHz - Before use (if necessary) you can select one of sixteen frequencies for work. Antenna Type Integrated (strip on PCB) Peripherals included (for system application) None Interfaces None Integrated interfaces None AC adapter For recharging the internal battery the apparatus is connected via a suitable adapter to the vehicle power supply battery. IMQ S.p.A. con socio unico Via Quintiliano, 43 20138 MILANO - I Test Report No. ARSL00185/6 Date: 2012-07-03 Page 5 of 26 T TT T ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS & && & T TT T ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR T TT T RANSPORTS RANSPORTSRANSPORTS RANSPORTS L LL L ABORATORY ABORATORYABORATORY ABORATORY 4. TEST CONFIGURATION OF UNIT UNDER TEST EUT PORTS Port Description Max length Enclosure Non conductive case / AC power Not present / DC power Generic input for internal battery recharging / Earth Not present / Telecommunication Not present / Signal Not present / Control Not present / Antenna Integrated antenna on PCB Dedicated (soldered wire on PCB) / STATE OF THE EUT DURING TESTS Ref. Mode Description #1 Operating Continuous modulated transmission with a duty cycle of 100% SUPPORT EQUIPMENT Defined as equipment needed for correct operation or loading of the EUT, but not considered as tested: Equipment Manufacturer Model None / / EUT TECHNICAL DOCUMENTATION Document Reference None / EUT Antenna Port AC Power Port Earth Port Telecommunication Port Signal/Control Port DC Power Port Enclosure Port IMQ S.p.A. con socio unico Via Quintiliano, 43 20138 MILANO - I Test Report No. ARSL00185/6 Date: 2012-07-03 Page 6 of 26 T TT T ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS & && & T TT T ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR T TT T RANSPORTS RANSPORTSRANSPORTS RANSPORTS L LL L ABORATORY ABORATORYABORATORY ABORATORY 5. METHODS OF MEASUREMENT All compliance measurements have been carried out using the procedures described in the standard ANSI C63.4-2009 (excluding sub-par. 4.1.5.2, 5.7 9 and 14) and Section 15.31 of CFR47 Part 15 – Subpart A (General). Additional test requirements have been adopted according to the reference Section indicated in the Test Table. FREQUENCY RANGE INVESTIGATED Radiated emission tests: from 9 kHz to tenth harmonic of fundamental. IMQ S.p.A. con socio unico Via Quintiliano, 43 20138 MILANO - I Test Report No. ARSL00185/6 Date: 2012-07-03 Page 7 of 26 T TT T ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS ELECOMMUNICATIONS & && & T TT T ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR ELEMATICS FOR T TT T RANSPORTS RANSPORTSRANSPORTS RANSPORTS L LL L ABORATORY ABORATORYABORATORY ABORATORY 6. SUMMARY OF TEST RESULTS POSSIBLE TEST CASE VERDICTS: Test object does meet the requirement PASS Test object does not meet the requirement FAIL Test case does not apply to the test object N.A. Test not performed N.P. CFR47 Part 15 TITLE RESULT § 2.202 (a) Occupied bandwidth Measured § 15.35 (c) Pulse train measurement for pulsed operation Measured § 15.203 Antenna Requirements PASS § 15.205 (a) Restricted band of operation PASS § 15.205 (b) § 15.215 (b) § 15.249 (d) Radiated Emission 9kHz to 30MHz 30MHz to 10G…
