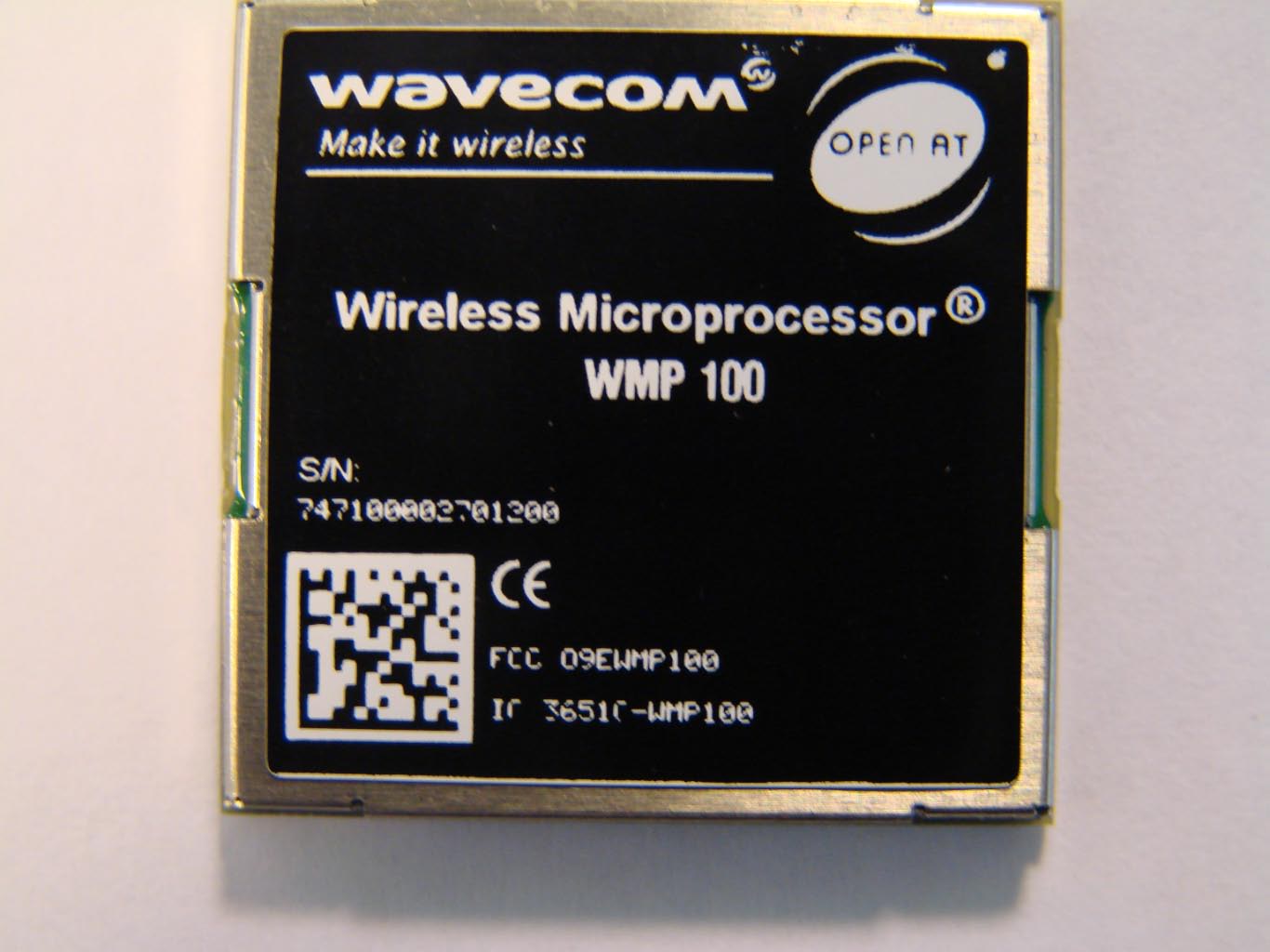

O9EWMP100Quadband GSM Module

Wireless Microprocessor ® WMP100/ Open AT ® Software Suite v1.0 Product Technical Specification and Customer Design Guidelines Reference: WM_DEV_WUP_PTS_005 Revision: 002 Date: March 19, 2007 WMP100/Open AT ® Software Suite v1.0 Product Technical Specification & Customer Design Guidelines Reference: WM_DEV_WUP_PTS_005 Revision: 002 Date: March 19 , 2007 Powered by the Wavecom Open AT ® Software Suite confidential © Page : 1 / 152 This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exclusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. WM_DEV_WUP_PTS_005 March 19, 2007 confidential © Page : 2 / 152 This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exclusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. Document Information Level Date History of the evolution 001 19/10/2006 Creation (Preliminary version) 002 19/03/2007 Updates WM_DEV_WUP_PTS_005 March 19, 2007 confidential © Page : 3 / 152 This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exclusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. Overview This document defines and specifies the WMP100/Open AT ® Software Suite v1.0 available in a GSM/GPRS Class 10 quad-band version. WM_DEV_WUP_PTS_005 March 19, 2007 confidential © Page : 4 / 152 This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exclusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. Table of Contents Document Information......................................................................... 2 Overview ............................................................................................. 3 Table of Contents................................................................................ 4 Table of Figures................................................................................. 10 Cautions ............................................................................................ 12 Trademarks ....................................................................................... 12 Copyright .......................................................................................... 12 1 References................................................................................ 13 1.1 Reference documents ............................................................................13 1.1.1 WAVECOM reference documentation ............................................13 1.1.2 General reference documentation ..................................................13 1.2 List of abbreviations ..............................................................................14 2 General description................................................................... 17 2.1 General information ...............................................................................17 2.1.1 Overall dimensions ........................................................................17 2.1.2 Environment and mechanics..........................................................17 2.1.3 GSM/GPRS Features ......................................................................17 2.1.4 Interfaces.......................................................................................18 2.1.5 Operating system ..........................................................................18 2.2 Functional description ...........................................................................19 2.2.1 RF functionalities ...........................................................................20 2.2.2 Baseband functionalities................................................................20 2.3 Software description .............................................................................20 3 Interfaces ................................................................................. 21 3.1 General Interfaces .................................................................................21 3.2 Power supply ........................................................................................22 3.2.1 Power supply description ..............................................................22 3.2.2 Power supply constraints on VBATT-RF ........................................22 3.2.3 Power supply constraints on VBATT-BB........................................23 3.2.4 Electrical characteristics ................................................................23 3.2.5 Pin description...............................................................................23 WM_DEV_WUP_PTS_005 March 19, 2007 confidential © Page : 5 / 152 This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exclusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. 3.2.6 Application ....................................................................................24 3.3 Power consumption ..............................................................................25 3.3.1.1 Power consumption without Open AT ® processing .................26 3.3.1.2 Power consumption with a Dhrystone Open AT ® application...27 3.3.1.3 Consumption waveform samples.............................................28 3.3.1.3.1 Connected mode current waveform .......................................28 3.3.1.3.2 Slow Idle mode current waveform .........................................29 3.3.1.3.3 Fast Idle mode …

Text truncated - open the document above for the full version.

:-::::* -- t"tffi ;16*rtoENrrALrrY REeuESr Federal Communication Commission Equipment Authorization Divisioru Application Processing Branch 7435 Oakland Mills Road Columbia, MD 2L048 February 75,2007 TO WHOM IT MAY CONCERN Pursuant to Paragraphs $0.457 and 0.459 of the Commissionl's Rules (a7 C.F.R.) and Section S552(bX4) of the Freedom of hrformation Act, WAWCAM S.A. requests confidentiality for the following products: FCC ID Number Product Title/Model O9EWMPI00 Wireless Miuaprocessor WMP700 For the product stated above, we request that the following information be held confidential: '1,. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorizatton Electronic Filing attachment: "schematics". 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment "blockdia grarn" . 3. Operational description submitted as Equipment Authorization Electronic Filing attachment " operational description" The above exhibits contain WAWCOM S. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have arty questions, please feel free to contact me at the address shown below. Sincerely, Name: D. CYNE Company: WAVECOM S.A. Address:3 esplanade du Foncet 92442 Issy les Moulineaux FRANCE Phone: + 33 (0)1 4629 429\ Email: [email protected] WAVECOM S.A 3, esplanade du Foncet, 92442 lssy-les-Moulineaux - France Tel : +33 (0)l 46 29 08 00 Fax: +33 (0)1 46 29 08 08 ww.wavecom.com SA au caoital de 15 531 813 euros - R.C.S Nanterre B 391 838 042 WAVECOM @ 2006. All rights reserved ffi ",au SG!

r'va\rcrco^rr@ RF Exposure Information for WMPI 00 WirelessMicroprocessor 1 ) Power measurement : Measured max conducted power at 850 MHz : 33 dBm Measured max conducted power at 1900 MHz : 29,9 dBm 2 ) Calculation of the acceptable gain maximum for fixed operations : According to rule $1.1310 the limits are for the following frequency : 300-1500 MHz: fl1500 mWlcm2 therefore for 850 MHz: 0.57 mV/lcm2 1500-100,000 MHz: 1 mWcm2 2.1 Calculation for 850 MIIZ G: 101og (0,57 x 4 x PI x 400) -33:0,9 dBi 2.2 Calculation for 1900 MHz G: l0log (1 x 4 x PI x 400)--29,9:7,1 dBi 3 ) Calculation of the acceptable gain maximum for mobile operations : According to rule $24.232 the limits are for the following frequency : 850 MHz: 1,5W [ERP] 1900 MHz: 2W pIRPI 3.1 Calculation for 850 MHz G: l0log (1,5) -33 + 2,15:0,9 dBi 3.2 Calculation for 1900 MHz G: l0log Q)-29,9:3,1 dBi Eric Michel Hardware Director 26/03 WAVECOM S,A 3, esplanâde du Foncet, 92442 lssy-les-Moulineaux - France Tel : +33 (0)1 46 29 08 00 Fax : +33 (0)1 46 29 08 08 M.WAVeCOm,COm SA au caoital de 15 531 813 euros - R.C.S Nanterre B 391 838 042 WAVECOM O 2006. All rights reserved *seb, {ex *r'a*,SS$

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 4-2445-01-04/07 Date: 2007-03-03 Page 1 of 64 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: IC 3463A-1 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 4-2445-01-04/07 Applicant : Wavecom S.A. Type : WMP100 Test Standard : FCC Part 22, 24 RSS-132, -133 FCC ID : 09EWMP100 Certification No. IC : 3651C-WMP100 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 4-2445-01-04/07 Date: 2007-03-03 Page 2 of 64 Table of contents 1 GENERAL INFORMATION...................................................................................................................................................3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................................3 1.1.1 Identification of the testing laboratory......................................................................................................................3 1.2. NOTES........................................................................................................................................................................................3 1.3 DETAILS OF APPLICANT..........................................................................................................................................................4 1.4 APPLICATION DETAILS...........................................................................................................................................................4 1.5 ADDITIONAL EUT INFORMATION FOR IC CANADA (APPENDIX 2)...................................................................................5 1.6 TEST SETUP..............................................................................................................................................................................6 1.7 TEST STANDARDS....................................................................................................................................................................6 2 STATEMENT OF COMPLIANCE.........................................................................................................................................7 2.1 SUMMARY OF MEASUREMENT RESULTS..............................................................................................................................7 2.1.1 PCS 1900.........................................................................................................................................................................7 2.1.2 GSM 850..........................................................................................................................................................................7 3 MEASUREMENTS AND RESULTS......................................................................................................................................8 3.1 PART PCS 1900......................................................................................................................................................................8 3.1.1 RF Power Output...........................................................................................................................................................8 3.1.2 Frequency Stability......................................................................................................................................................12 3.1.3 Radiated Emissions.....................................................................................................................................................15 3.1.4 Receiver Radiated Emissions.....................................................................................................................................21 3.1.5 Conducted Spurious Emissions.................................................................................................................................24 3.1.6 Block Edge Compliance..............................................................................................................................................27 3.1.7 Occupied Bandwidth...................................................................................................................................................29 3.2 PART GSM 850....................................................................................................................................................................33 3.2.1 RF Power Output.........................................................................................................................................................33 3.2.2 Frequency Stability......................................................................................................................................................36 3.2.3 Radiated Emissions.....................................................................................................................................................39 3.2.4 Receiver Radiated Emissions.....................................................................................................................................50 3.2.5 Conducted Spurious Emissions.................................................................................................................................53 3.2.6 Block Edge Complian…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-2445-01-04/07 Date: 2007-03-03 Page 18 of 22 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-2445-01-04/07 Date: 2007-03-03 Page 19 of 22 Photo 3 (Radiated Emissions): Photo 4 (Conducted Emissions):
