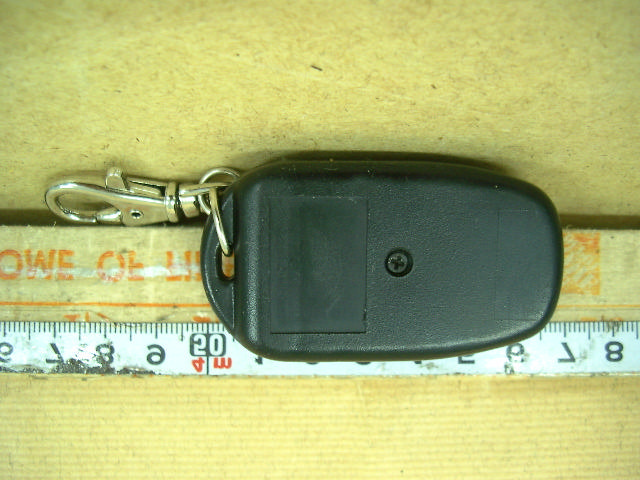

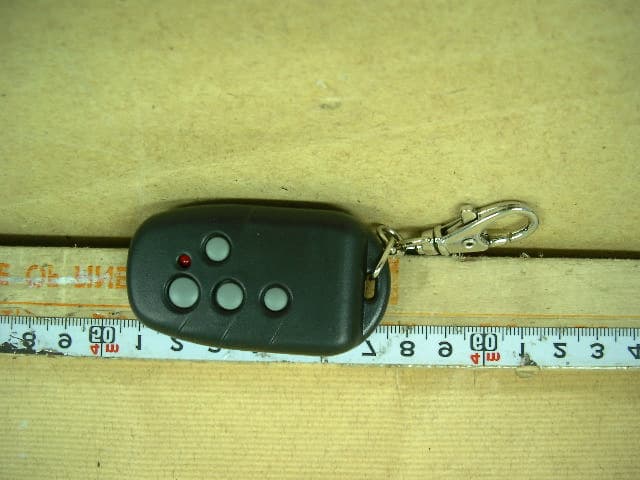

Report Number: 02E0457-D September 23, 2002 Page 11 Rev. 00 External of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: ALTRUSTY ENTERPRISE CO., LTD. FCC ID: OAVAR99TX FCC ID: OAVAR99TX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Report Number: 02E0457-D September 23, 2002 Page 12 Rev. 00 Internal of EUT Report Number: 02E0457-D September 23, 2002 Page 13 Rev. 00

Report Number: 02E0457-D September 23, 2002 Page 1 of 14 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of Universal Replacement Remote Control FCC ID Number : OAVAR99TX Trade Name : ALLREMOTE Model Number : AR99 Agency Series : N/A Report Number : 02E0457-D Date : September 23, 2002 Prepared for : ALTRUSTY ENTERPRISE CO., LTD. 4F. No. 3, Alley 16, Lane 235, Bau Chiau Rd., Hsin-Tien City, Taipei County 231, Taiwan, R.O.C. Prepared by : C&C LABORATORY CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02)8642-2256 This report shall not be reproduced, except in full, without the written approval of C&C Laboratory Co., Ltd. Report Number: 02E0457-D September 23, 2002 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE......................................................3 2. PRODUCT DESCRIPTION.....................................................................4 3. TEST FACILITY.......................................................................................4 4. MEASUREMENT STANDARDS.............................................................4 5. TEST METHODLOGY............................................................................4 6. MEASUREMENT EQUIPMENT USED.................................................5 7. POWERLINE RFI LIMIT........................................................................5 8. RADIATED EMISSION LIMITS.............................................................6 9. SYSTEM TEST CONFIGURATION.......................................................6 10. TEST PROCEDURE................................................................................7 11. EQUIPMENT MODIFICATIONS...........................................................8 12. TEST RESULT..........................................................................................9 12.1. MAXIMUM MODULATION PERCENTAGE(M%)...........................9 12.2. THE EMISSIONS BANDWIDTH.........................................................9 APPENDIX 1 PHOTOGRAPHS OF EUT....................................................10 APPENDIX 2 TEST DATA...........................................................................14 Report Number: 02E0457-D September 23, 2002 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : ALTRUSTY ENTERPRISE CO., LTD. 4F. No. 3, Alley 16, Lane 235, Bau Chiau Rd., Hsin-Tien City, Taipei County 231, Taiwan, R.O.C. CONTACT PERSON : Eric Wang/ General Manager TELEPHONE NO. : (886-2) 8665-6969 EUT DESCRIPTION : Universal Replacement Remote Control MODEL NAME/NUMBER : AR99 FCC ID : OAVAR99TX DATE TESTED : September 18, 2002 ~ September 20, 2002 REPORT NUMBER : 02E0457-D TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 300/310/390 MHz Universal Replacement Remote Control MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by C&C LABORATORY CO., LTD. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by C&C LABORATORY CO., LTD. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by C&C LABORATORY CO., LTD. will constitute fraud and shall nullify the document. James Chan / Manager C&C Laboratory Co., Ltd. Report Number: 02E0457-D September 23, 2002 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 300/310/390 MHz Power Source 12V Battery Transmitting Time Periodic < 5 seconds Associated Receiver N/A 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Report Number: 02E0457-D September 23, 2002 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Cal Due Date ROHDE & SCHWARZ DSAI- D 804.8932.52 EMI Test Display 10/2002 ROHDE & SCHWARZ ESBI-RF/1005.43 00.52 EMI Test RF Unit 10/2002 H.P. 8595EM Spectrum Analyzer (9KHz – 6.5GHz) 02/2003 EMCO 3115 Antenna (1-18GHz) 02/2003 SCHWARZBECK VULB 9160 Antenna (30-2000 MHz) 05/2003 H.P. 8447D Amplifier 05/2003 H.P. 8449B Amplifier (1-26.5GHz) 10/2002 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 kHZ TO 30 MHz SECTION 15.205 AND SECTION 15.209, 15.221, 15.223, 15.225 OR 15.227, AS APPROPRIATE. BATTERY POWER NO REQUIRED. Report Number: 02E0457-D September 23, 2002 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test S…

Text truncated - open the document above for the full version.

Report Number: 02E0457-D September 23, 2002 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up
