OB6-IGMA31HAND HELD DATA TERMINAL

User's Manual UM4714Ver. 6.03 Hi-G-Tek Ltd. Microelectronics and Asset Tracking Technology DataTerminal and DataSeal System DataTerminal System 2 Table of Contents Page 3.1. Battery Installation/Replacement 3.2. Initial Steps 3.3. Screen Contrast 3.4. Keypad Buttons 3.5. SET Procedure 2.1. Seal Installation 2. DataSeal Installation 3. DataTerminal: Operating Instructions: 1.2.1. DataSeal Mounting Fixture 1.2.2. The DataSeal 1.2.3. Seal Wire 1.2.4. The DataTerminal 1.2.5. Communication Cable 1.2.6. Application Software Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1.3.System Requirements 6 9 9 9 5 13 15 10 10 12 12 16 19 20 21 21 22 23 23 25 26 26 29 30 30 1. Introduction 1.1 About this product 1.2. DataTerminal System Components 3.5.1. Basic SET Procedure 3.5.2. SET Procedure with Badge ID 3.6.1. Basic READ Procedure 3.6.2. READ Procedure with Badge ID 3.7. VRF Data 3.8. RDT Data 3.6. READ Procedure 3 3.9.8.1. Set Password 3.9.8.2. Set Clear Data Password 3.9.8.3. Date Format 4. Software Utility Operating Instructions 3.9.5. Set-up Time 3.9.6. Set-up Zone 3.9.7. Display Version 3.9.8. Configuration 3.9.9. View Org. ID List 3.9.10. View Reader ID 3.9.11. Synchronize Time 3.9. Menu Options 4.1. Software Installation 4.2. Connecting to the PC 4.3. Software Setup and Operation 4.4. First Time Operation 40 40 41 41 42 44 46 46 46 47 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 4.4.1. System Administration 4.4.2. Setting Your Configuration Port 4.4.3. Setting Time Zone 49 50 50 50 51 51 57 58 39 39 3.9.3. Statistics 3.9.4. Set-up Date 3.9.1. View Data 3.9.2. Clear Data 3.9.1.1. View From List 3.9.1.2. View by ID 3.9.2.1 Clear All 3.9.2.2. Clear From List 3.9.2.3. Clear by ID DataTerminal System Table of Contents Page 31 32 32 35 36 36 37 37 4 5. Troubleshooting 6. Technical Specifications 5.1. Low Voltage 5.2. Terminal Failure 5.3. RF Communication Failure 5.4. Seal Failure 5.5. System Setup 6.1.DataTerminal 125 kHz IG-MA-31/32 6.2. DataSeal IG-RS-40-916/433/318/315 6.3. Magnetic DataSeal IG-RS-40M-916/433/318/315 69 70 71 72 73 74 75 76 77 78 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology DataTerminal System Table of Contents Page 4.5. File Upload 4.6. Viewing Data Files 4.7. DataTerminal Software Upgrade 59 61 65 Introduction Chapter 1 5 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology The Hi-G-Tek range of products provides a highly reliable and secure cargo and asset monitoring system utilising state-of-the-art RFID technologies. Introduction 1.1. About the Product 1 6 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology The Hi-G-Tek system was developed in order to fill the requirement of fast, automatic processing of secured cargoes and to provide real time monitoring of cargoes both in transit and in storage. The DataSeal is a sophisticated device, which includes a transmitter/ receiver unit, real-time clock, processor, memory and sensing circuitry for sealing verification. The Sealing Wire prevents any attempt of opening, bypassing or tampering with the seal without alerting the system and recording of the event. The system combines the technological and operational advantages of both low frequency close-range data management AND high frequency long range sealing verification and automatic data collection. DataSeal's ability to log data and communicate it through a Handheld DataTerminal is best used In low frequency/short range applications. This way the electronic manifest of the sealed cargo can be written into the DataSeal's memory. The information includes Vehicle ID, container and invoice numbers, cargo description, quantities, destination, etc. Capable of logging up to 55 events, the information can be downloaded into a computerised database for storage and processing. Cost-effective, more reliable and more secure than their mechanical counterparts, the Hi-G-Tek product range will constantly monitor your assets and alert you to any potential problems at all times. The reusable electronic seal automates the processing of secured cargoes enabling the organization to effectively and economically process the increasing numbers of containers' traffic in the ports and between inland destinations. Thank you for choosing Hi-G-Tek quality products. Introduction 1 7 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology When used in high frequency/long range applications, the DataSeal is capable of communicating its ID and status to a distance of up to 30 meters. The DataSeal transmits the information in reply to an interrogation by the DataReader. The ability of the DataSeal to communicate with the DataReader at long range enables the use of the DataSeal in applications such as: tracking and sealing verification of containers in transit, protection of containers in storage, remote, automatic data collection from secured cargoes as they pass through check points, etc. The handheld DataTerminal is used for writing information into the DataSeal's memory at the departure point and retrieving the information at the destination. Events, logged in the DataSeal's memory are also downloaded into the DataTerminal. The DataReader is used in long range applications to interrogate the DataSeals over the high frequency channel for their ID and Status. The DataReader is also used for writing information into the DataSeal and retrieving logged information from the DataSeal. Each DataReader can communicate with numerous DataSeals simultaneously and verify their presence and status. The DataReaders can be chained to allow coverage and protection for secured cargoes in large storage yards and ports. The DataReader has an optional communication modem which allows the system to transmit the collected information through available communication channels to the Control Center. The DataReader is available in both outdoor and indoor models. A set of Mounting Fixtures has been developed for the DataSeal system which allow convenient mounting and removal of…

Text truncated - open the document above for the full version.

March 28, 2007 Attn: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OB6-IGMA31 Dear Sir or Ma'am, Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • IG-MA-31 Confidential PartsLst.pdf • IG-MA-31 Confidential Schem.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Hi-G-Tek Ltd. understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application.

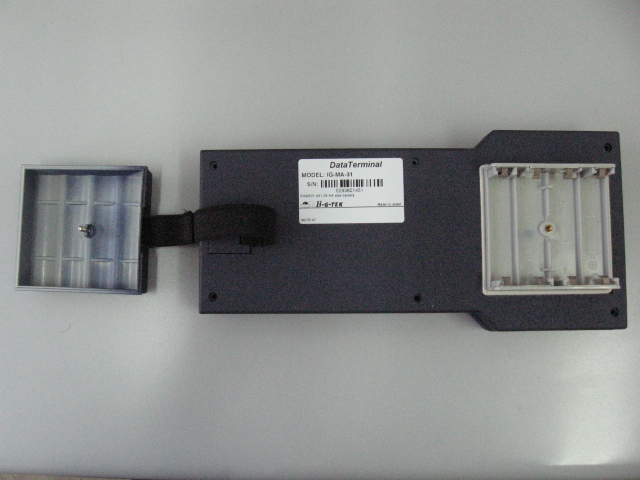

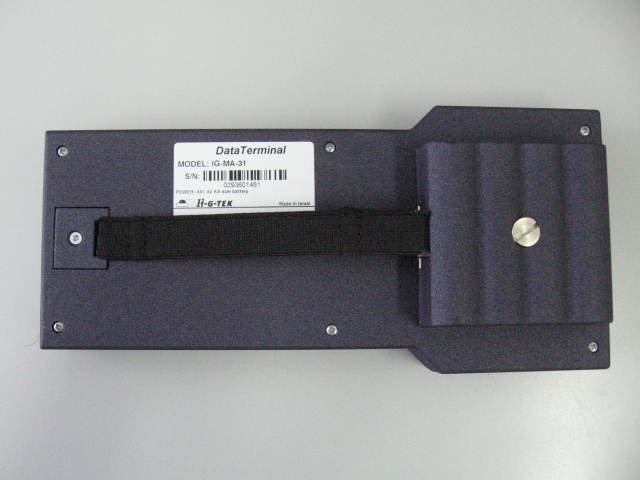

External Photographs of Tested E.U.T. Figure 1 Front View Figure 2 Rear View Figure 3 Rear View Battery Cover Open

Internal Photographs of Tested E.U.T. Figure Internal View Figure 2 LCD Side 1 Figure 3 LCD Side 2 Figure 4 PCB 1 Component Side Figure 5 PCB 1 Print Side Figure 6 PCB 2 Component side Figure 7 PCB 2 Print side

1.1 Theory of Operation 1. Functional Description The Handheld Data Terminal uses its LF transceiver (at any time when it commanded to do so) to communicate by short range link with the end devices (active RFID electronic sensors) It logged their data and transfer it via a serial RS-232 port to a PC. The Data Terminal is battery operated, it has an internal replaceable 4 AA size alkaline batteries. It consists of a graphic LCD and an alphanumerical keypad to configure data into the sensors when required. 2. Hardware Description 2.1. There are 2 PCBs in the Data terminal. Main PCB and keypad PCB (Top PCB). The main PCB includes digital parts (μP, memory, RTC,A/D, RS232 driver etc.) and LF transceiver which utilizes on-off keying (OOK) modulation over a 125KHz carrier (4Kbit data rate) at short range. The Keypad PCB is located over the main PCB, it consists of keypad drivers and LEDs indicators.

Cert. No. 1152.01 Electrical (EMC) Test Report E72310.01 Hi-G-Tek Ltd. Page 1 of 33 ITL FCCMASVE 1.25 26 March 2003 DATE: 27 May 2007 I.T.L. (PRODUCT TESTING) LTD. FCC EMC/Radio Test Report for Hi-G-Tek Ltd. Equipment under test: Data Terminal IG-MA-31 Written by: _____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ E. Pitt, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Cert. No. 1152.01 Electrical (EMC) Test Report E72310.01 Hi-G-Tek Ltd. Page 2 of 33 ITL FCCMASVE 1.25 26 March 2003 Measurement/Technical Report for Hi-G-Tek Ltd. Equipment under test: Data Terminal FCC ID: OB6-IGMA31 DATE: 27 May 2007 This report concerns: Original Grant x Class II change ___ Class B verification Class A verification Class I change ____ Equipment type: Low Power Transmitter Below 1705 kHz Request Issue of Grant: x Immediately upon completion of review Limits used: CISPR 22 Part 15 x Measurement procedure used is ANSI C63.4-2003. Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaiahou Raz Yossi Hershko ITL (Product Testing) Ltd. Hi-G-Tek Ltd. 1 Batsheva St. P.O.B. 87 16 Hacharoshet St. Lod 71100 Or Yehuda 60375 Israel Israel Tel: +972-8-915-3100 Tel: +972-3-533-9359 Fax: +972-8-915-3101 Fax: +972-3-533-8225 Email: [email protected] Email: [email protected] Test Report E72310.00 Hi-G-Tek Ltd. Page 3 of 33 ITL FCCMASVE 1.25 26 March 2003 TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 4 1.1 Administrative Information.................................................................................4 1.2 List of Accreditations .........................................................................................5 1.3 Product Description ...........................................................................................6 1.4 Test Methodology ..............................................................................................6 1.5 Test Facility .......................................................................................................7 1.6 Measurement Uncertainty .................................................................................7 2. PRODUCT LABELING------------------------------------------------------------------------------------- 8 3. SYSTEM TEST CONFIGURATION--------------------------------------------------------------------- 9 3.1 Justification........................................................................................................9 3.2 EUT Exercise Software .....................................................................................9 3.3 Special Accessories ..........................................................................................9 3.4 Equipment Modifications ...................................................................................9 3.5 Configuration of Tested System ......................................................................10 4. BLOCK DIAGRAM-----------------------------------------------------------------------------------------11 4.1 Schematic Block/Connection Diagram ............................................................11 4.2 Theory of Operation ........................................................................................12 5. FIELD STRENGTH OF FUNDAMENTAL ------------------------------------------------------------13 5.1 Test Specification ............................................................................................13 5.2 Test Procedure ................................................................................................13 5.3 Measured Data ................................................................................................13 5.4 Test Instrumentation Used, Field Strength of Fundamental ...........................15 6. RADIATED MEASUREMENT PHOTO ---------------------------------------------------------------16 7. SPURIOUS RADIATED EMISSION 9KHZ-30 MHZ -----------------------------------------------17 7.1 Measured Data ................................................................................................17 7.2 Test Instrumentation Used, Radiated Measurements.....................................18 7.3 Field Strength Calculation ...............................................................................19 8. RADIATED EMISSION TEST DATA PER FCC PART 15, SUB-PART B -------------------20 8.1 Test Specification ............................................................................................20 8.2 Test Procedure ................................................................................................20 8.3 Test Data .........................................................................................................21 8.4 Test Instrumentation Used, Radiated Measurements.....................................24 9. PHOTOGRAPHS OF TESTED E.U.T. ----------------------------------------------------------------25 10. APPENDIX A - CORRECTION FACTORS ----------------------------------------------------------30 10.1 Correction factors for CABLE .........................................................................30 10.2 Correction factors for ACTIVE LOOP ANTENNA ...........................................31 10.3 Correction factors for Biconolog Antenna ......................................................32 10.4 Amplifier Gain ..................................................................................................33 Test Report E72310.00 Hi-G-Tek Ltd. Page 4 of 33 ITL FCCMASVE 1.25 26 March 2003 1. General Information 1.1 Administrative Information Manufacturer: Hi-G-Tek Ltd. Manufacturer's Address: 16 Hacharoshet St. Or-Yehuda 60375 Israe…

Text truncated - open the document above for the full version.

Test set-up
