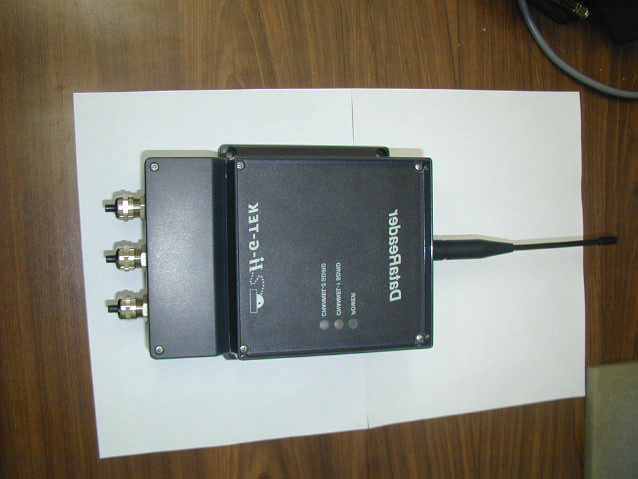

OB6-IGRS46D916DataReader

User's Manual UM4710Ver. A2 Hi-G-Tek Ltd. Microelectronics and Asset Tracking Technology DataReader and DataSeal System Table of Contents Page 1. Introduction 2. DataSeal Installation 1.1. About the Product 1.2. DataReader System Components 1.2.1. DataSeal Mounting Fixture 1.2.2. The DataSeal 1.2.3. Seal Wire 1.2.4. Outdoor DataReader 1.2.5. Indoor DataReader Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 2 16 19 19 19 20 15 3. DataReader Installation 3.1 Outdoor DataReader Installation 3.1.1 Connecting the Outdoor Unit 3.1.2 Ceiling Installation 3.1.3 Wiring the Outdoor Datareader 3.1.4 DataReader Configuration switches 3.1.5 RS232 Wiring Diagram 3.1.5 RS-485 Full Duplex Wiring Diagram 3.1.6 RS-485 Half Duplex Wiring Diagram 3.2 Indoor DataReader Installation 3.2.1 Connecting the Indoor Unit 3.2.2 Ceiling Installation 3.2.3 Wiring the Indoor DataReader 3.2.4 RS-232 Wiring Diagram 3.2.5 RS-485 Full Duplex Wiring Diagram 3.2.6 RS-485 Half Duplex Wiring Diagram 3.3 Chaining DataReaders Together 3.4 RS-232/RS-485 Adapter 2.1. DataSeal Installation 20 22 25 26 29 30 30 31 32 33 33 34 34 36 37 38 39 39 40 43 41 43 44 3.4.1 Connecting the RS-232/RS-485 Adapter to the First Reader 3.4.2. Connecting the RS-232/RS-485 Adapter to the Host 5.1. System Description Table of Contents Page Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 3 5. The System 49 46 45 50 50 57 57 63 66 66 67 68 68 69 70 70 70 71 71 72 72 72 73 73 73 5.3. Parameters Format 5.2.1. Seal's Parameters 5.2.2. Reader's Parameters 5.2.3. Calculating Thw 5.2.4. Calculating Tw 5.2.5. Calculating Thp 5.4.1. Normal Mode 5.4.2. Sleep Mode 5.4.3. Alert Burst Mode 5.4.4. Events Footprint Mode 5.4 Seal Modes of Operations 5.5. Reader Modes of Operation 5.5.1. Carrier Sense Collision 5.5.2. Unsynchronized Mode 5.2. System Parameters 5.1.1. General 5.3.1. Date & Time 5.3.2. 5.3.3. ORG_ID & Department 5.3.4. System 5.3.5. Mode Seal Serial Number. 74 74 76 76 5.6. System Commands 5.6.1. LSC and Reader Messages 5.6.2. Error Codes 5.6.3. Detailed Commands 3.5. Power Supply Requirements 3.6. Communication Cable Selection 3.7. Installation notes 47 4. DataReader Operation Instructions 44 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 4 Table of Contents Page 77 5.6.3.2. Execute RF Command 85 86 89 91 5.6.3.3. Get Results 5.6.3.4. Get Status 77 77 79 79 80 80 81 81 81 82 83 83 83 84 85 84 85 84 82 5.6.3.2.1. Command Transmission 5.6.3.2.2. Verify 5.6.3.2.3. Tamper 5.6.3.2.4. Set 5.6.3.2.5. Suspended Set 5.6.3.2.6. Soft Set 5.6.3.2.7. Deep Sleep 5.6.3.2.8. Hard Wakeup 5.6.3.2.9. Start Alert Burst Mode 5.6.3.2.10. Stop Alert Burst Mode 5.6.3.2.11. Ack Alert Burst Mode 5.6.3.2.12. Read Data 5.6.3.2.13. Write Data 5.6.3.2.14. Reset Data 5.6.3.2.15. Set/Reset Status 5.6.3.2.16. Write Parameters 5.6.3.2.17. Read Parameters 5.6.3.2.18. Addressed Verify 5.6.3.2.19. Read Events 5.6.3.5. Get Burst Message 5.6.3.6. Reset Reader 5.6.3.7. Write Parameters 92 76 76 5.6.3.1. Wakeup 5.6.3.1.1. Command Transmission Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 5 Table of Contents Page 5.6.3.8. Read Parameters 5.6.3.9. BIT 93 94 95 95 96 96 5.6.3.10. Sleep 5.6.3.11. Unsynchronized Reader Message 5.6.3.12. Get Reader's Baud Rate 5.6.3.13. Set Reader's Baud Rate 97 98 98 98 5.6.3.14. Set Reader's Address 5.6.3.15. Acknowledge OK 5.6.3.16. Acknowledge Failed 5.6.3.17. Save Command 100 101 5.6.3.18. Execute Saved Command 5.6.3.19. Reader Channels Definitions Command 103 103 104 104 105 106 106 5.7. System Planning 5.7.1. Electromagnetic Environment 5.7.2. System Layout 5.7.2.1. Radio Frequency Communication Layout 5.7.2.2. Cellular Layout 5.7.2.3. Reader Sessions Retransmissions 5.7.2.4. Line Communications RS-485 Layout Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 6 Table of Contents Page 107 5.8. System Segregation 107 107 108 108 109 5.8.1. Company Segregation by ORG_ID 5.8.2. Department Isolation 5.8.3. Common Services to Several Companies by a Service Provider 5.8.4. How to use subgroups of Seals in a Company 5.8.5. ORG_ID, Global and ADI: Impact on Seal's Response 109 112 5.9. Seal Memory 5.10. Calculating Reader Session Duration 109 113 113 111 5.9.1. Events Memory 5.9.2. User Data 6. RS-485/232 Communication Protocol 6.1. RS-485/232 Communication Protocol: General Description 6.2. Physical Layer 6.2.1. Down Link 6.2.2. Up-Link 115 116 116 116 116 6.4.1. LSC to READERS Messages 6.3. Protocol Flow 6.4. String Format 6.4.1.2. CMND Field Structure 6.4.1.1. CRC Calculation 116 119 119 120 119 5.10.1. Calculating Tbmm 5.10.2. Calculating Trw Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 7 Table of Contents Page 6.5.1. LSC Commands and Acknowledge Table 6.5.2. Message Table 6.5.3. Parameter Table 6.5. LSC and READER Messages 6.5.3.1. Reader Master Firmware Vresion MVER 6.5.3.2. Reader Slave1 Firmware Version SVER1. 6.5.3.3. Reader Slave1 Firmware Version SVER2 127 127 128 129 130 130 130 6.4.2. READER to LSC Messages 6.4.2.2. R_Status Field Structure 6.4.2.3. Reader Messages Packed Data Format 6.4.2.3.1. Packed Data from the LSC 6.4.2.3.2. Packed Data from the READER 123 126 121 126 126 6.5.3.5. Reader ID RID 6.5.3.6. Group Access Identifier ADI Organization identifier OrgID6.5.3.7. 6.5.3.8. Department DEP 6.5.3.9. Reader IH length Thw 6.5.3.10. Reader Address RADD 6.5.3.11. Mode MODE Reader Receives Signal 6.5.3.4. Strength RSSI1 131 131 132 133 133 133 132 132 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 8 Table of Contents Page 6.5.5.1. Wakeup 6.5.5.2. Execute RF Command 6.5.5.2.1. Command Transmission 6.5.5.2.2. Execute RF Command Ack 6.5.5.2.3. Verify 6.5.5.2.4. Tamper 6.5.5.2.5. Set 6.5.5.2.6. Suspended Set 6.5.5.2.7. Soft Set 6.5.5.2.8. Deep Sleep 6.5.5.2.9. Hard Wakeup 6.5.5.2.10.Start Alert Burst Mode 6.5.5.2.11. Stop Alert Burst Mode 6.5.5.2.12. Acknowledge Alert Burst Mode 6.5.5.2.13. Read Data 6.5.5.2.14. Write Data 6.5.5.2.15. Reset Data 6.5.4. Error Codes 6.5.5. Detaile…

Text truncated - open the document above for the full version.

The System Chapter 5 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 50 System 5 5.1.System description T Complete Reader Session Reader H Ine at e d r e rorgation Random Access Window Alert Window T cw T aw T rw T hw T iw Readers Interlace Window 5.1.1. General. Hi-G-Tek DataSeals operate in sleep mode to conserve power. A pre-determined periodically awakens them from sleep mode. This allows them to monitor the surrounding airwaves for a Reader's wake up signal. Tw is the notation used throughout this manual for the wakeup cycle time of the seal. When the Reader initiates a session, it transmits a stream of data bits of programmable length. The notation of the data stream length is Thw. The seals use the SLOTTED ALOHA concept to communicate back to a Reader. The length of an ALOHA time slot is notated as Ts. (Ts is also notated as a window). This time slot is usually of fixed duration. For the Verify, Addressed Verify and Tamper commands, Ts should be defined externally in the command (see paragraph 5.6.3.2.). Fig. 5.1 - RF Communication Channels Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 51 5 System Ts can have one of the following values: 21, 41, 63, 81 msec. The System has four communication channels Reader Interrogation Header with time duration of Thw. Within this time frame the Reader sends a data stream to the seals. Readers Interlace Window with time duration of Tiw. This window is to allow other Readers to transmit and to share one Random Access Window. Random Access Window with time duration of Tcw. During this period seals responds in random access mode. Because the access is random, collisions between seal messages are to be expected. Alert Window with time duration of Taw. The last channel is an emergency channel allowing seals with high priority alert messages to transmit the message to the Reader. Trw is the notation used for the seals transmitting (Reader is receiving) time frame. A complete communication Reader Session is Thw + Trw. To overcome collisions, the seals should retransmit their message several times within the Random Access Window. The number of retransmissions should be defined externally in the command and is called Rr. The seal may also retransmit in the Alert Window. This is notated as Rt. Both Thw and Tw can be programmed. The relationship between Thw and Tw should be kept constant. Thw=Tw+ 135 msec See paragraph 5.2.3. for information on how to calculate Thw and Tw Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 52 5 System Table 5.1 Number of retries within the Random Access Window When there are a certain number of seals in the Reader's receiving zone, probability calculations show that more than one Seal Transmission is required to obtain a complete result. The following table demonstrates the number of retransmissions required for different situations. # Of seal slots (Ts) Max # of Seals Min # of Reader Sessions 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 1 4 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 - 9 6 5 5 4 4 4 4 4 4 4 4 3 3 3 3 3 3 3 3 3 3 3 2 3 3 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1 - - - - 10 6 6 6 5 5 5 4 4 4 4 4 4 4 4 4 4 4 4 4 2 - 4 3 3 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1 - - - - - - - 8 7 7 6 6 6 6 5 5 5 5 5 4 4 4 4 5 2 - - 5 4 3 3 3 3 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1 - - - - - - - - - 10 8 8 8 6 6 6 6 6 5 5 5 5 5 6 2 - - - 5 4 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2 2 2 1 - - - - - - - - - - - - 9 8 8 7 6 6 6 6 6 6 5 7 2 - - - - 6 5 4 4 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 1 - - - - - - - - - - - - - - - 10 8 8 7 7 6 6 6 8 2 - - - - - - 5 5 4 3 3 3 3 3 3 3 3 3 3 2 2 2 2 1 - - - - - - - - - - - - - - - - - - 9 9 9 8 8 9 2 - - - - - - - 6 5 4 4 4 3 3 3 3 3 3 3 3 3 3 3 1 - - - - - - - - - - - - - - - - - - - - 10 9 9 10 2 - - - - - - - - 7 5 5 5 4 4 4 4 3 3 3 3 3 3 3 2 - - - - - - - - - - 7 6 5 5 4 4 4 4 4 3 3 3 3 12 3 - - - - - - 4 4 3 3 3 2 2 2 2 2 2 2 2 2 2 2 2 2 - - - - - - - - - - - - - 9 7 5 5 4 4 4 4 4 4 14 3 - - - - - - - - 5 4 3 3 3 3 3 2 2 2 2 2 2 2 2 2 - - - - - - - - - - - - - - - - 6 5 5 5 4 4 4 16 3 - - - - - - - - - - 4 4 3 3 3 3 3 3 3 2 2 2 2 2 - - - - - - - - - - - - - - - - - - - 9 7 6 5 18 3 - - - - - - - - - - - 6 4 4 4 3 3 3 3 3 3 2 2 2 - - - - - - - - - - - - - - - - - - - - - 7 6 20 3 - - - - - - - - - - - - - 5 4 4 4 3 3 3 3 3 2 3 - - - - - - - - - - - - - - - - - 5 4 3 3 3 3 25 4 - - - - - - - - - - - - - 4 3 3 3 2 2 2 2 2 2 3 - - - - - - - - - - - - - - - - - - - - - - 5 30 4 - - - - - - - - - - - - - - - - 4 3 3 3 3 3 2 4 - - - - - - - - - - - - - - - - - - - - 4 3 3 35 5 - - - - - - - - - - - - - - - - 3 3 2 2 2 2 2 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 53 5 System Table 5.2. Minimum Requirements Maximum # Seals Minimum # Sessions Minimum # Windows Optimum # Retries 2 1 16 6 3 1 40 9 4 1 67 10 5 1 94 9 6 1 122 9 7 1 147 10 8 1 175 9 9 1 207 8 10 1 229 10 11 2 118 8 12 2 129 7 13 2 141 9 14 2 154 9 15 2 169 9 16 2 182 9 17 2 197 9 18 2 211 7 19 2 221 8 20 2 239 8 22 2 255 9 24 3 193 5 26 3 217 6 28 3 226 6 30 3 243 6 35 4 228 4 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 54 5 System Table 5.3. below shows some examples of the Verify command using different retransmissions and Reader Sessions. In this example, Thw=3 sec; Ts=21 msec; Taw=105 msec. Table 5.3. Reducing the Reader Interrogation Header - Thw increases the speed of the Verify session. Increasing the speed of the process is in conflict with the battery lifetime of the seal. (Higher speed = lower battery lifetime). When designing an application, careful attention should be paid to optimizing the correct tradeoffs between system response time, battery lifetime and number of seals. Taw is calculated for 5 slots of Ts. Table 5.4 demonstrates the impact of Thw on response time and battery life. The scenario for the results in the table is a GATE concept, whereby a seal is exposed to a reader for 6…

Text truncated - open the document above for the full version.

Chapter 6 RS 485/232 Communication Protocol Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 116 RS 485/232 Communication Protocol 6 6.1. RS- 485/232 Communication Protocol: General Description Communication between the Local Site Controller LSC and the STAR READER is based on the master/slave approach. The LSC is the MASTER unit, the READERS are the SLAVE units. The LSC and the READERS communicate via a RS-485 multi drop or RS-232 connection. Each READER has its own address, enabling the LSC to approach each reader individually. 6.2. Physical Layer 6.2.1. Down-link Down-link is the link from the LSC to the READERS. The link is RS-485 or RS-232 half duplex. Data rate can be one of the following: 2400, 4800, 9600, 19200, 38400 BPS. The default rate is set at 9600 BPS. 6.2.2. Up-link Up-link is the link from the READERS to the LSC. The link is RS-485 or RS-232 half duplex. Data rate can be one of the following: 2400, 4800, 9600, 19200, 38400 BPS. The default rate is set at 9600 BPS. 6.3. Protocol Flow. Communication is initiated by a command sent by the LSC to the READER. The READER executes the command and responds accordingly. In a long command session, the session is concluded when the LSC acknowledges the READER within T = 50 msec. ACK If the READERS are in sleep mode, the LSC must ensure they are awakened prior to the initialization of the session. In this case, the LSC should wait T = 50 msec before sending the main command. w Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 117 6 RS 485/232 Communication Protocol There are 2 types of commands: SHORT COMMANDS and LONG COMMANDS. Short Commands: These are commands that are relevant to internal tasks at the reader level. Long Commands: These commands involve sessions with seals. The READER will respond to commands generated by the LSC within T seconds. RLSC For short commands, response time should be: T = 50 msec. RLSC For long commands, the LSC should return to retrieve the results after T with the appropriate GET RESULTS command. session Tis a derivative of the type of command executed to the seals. session Acknowledge can be positive or negative. If the LSC detects a problem, Acknowledge will be negative. The READERS are designed to work in cycles. Following an internal or external trigger, a READER SESSION is generated. This is a full communication cycle going back and forth between a READER and the tags located in the READER's receiving zone. The LSC operates differently The READERs are scanned on a different time line, using the same frequency as that of the READER's cycles or greater. This protocol supports RS-485 and RS-232 communication fashions. When working with the LSC using RS-232 communication opposite only one device, address fields should be set to 0xFFFF. When using RS-485 communication in broadcast situations, the address field should be set to 0x0000. Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 118 6 RS 485/232 Communication Protocol Short Commands Mode: Long Commands Mode: Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 119 6 RS 485/232 Communication Protocol 6.4. String Formats. 6.4.1. LSC to READERS messages. Commands & Acknowledge strings: STX #B R# CMND data CRC ETX 1 2 2 2 n 2 1 # of bytes #B CRC Where: STX This is the marker for the beginning of the messages. STX = 02 hex. #B String length, the string contains the R#,CMND, the DATA field, and the CRC. R# This session's READER address . CMND This session's command code . DATA The data field contains the data required to execute the command CRC This is the cyclic redundancy check for DATA and fields #B, R#, CMND. ETX This is the marker for the end of the messages. ETX = 03 hex. 6.4.1.1. CRC Calculation. CRC calculations are based on the following CCITT polynomial: 16125 X + X + X + 1 The result is 2 bytes. Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 120 6 RS 485/232 Communication Protocol 6.4.1.2. CMND Field Structure. The command field is divided into several sections: DIR Denotes string direction. In case of a command from the LSC to the reader, it is equal to 0. PK Denotes whether the command transmitted is composed of packets or not. PK = 0 is for non-packet commands. PK = 1 is for packet commands. ERR this flag indicates an error. ERR = 0 no error. ERR = 1 Error. The first byte in the data field is the error code. CT Is the scenario command type. It describes the Where: command type, and whether it is in short or long form 00000 designates SHORT commands that stream from the LCR to the Reader for MCU purposes. 00011 is for LONG commands. This is the command code . CC Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 121 6 RS 485/232 Communication Protocol Response & Acknowledge strings: 6.4.2. Reader to LSC Message This is the marker for the beginning of the messages. STX=02 hex. String length, the string contains the R#, MSGT, MC, R_status, the DATA field and the CRC. This is the address of the READER for the current session. This is the message type response for the current session. The MSGT corresponds to a specific command (see paragraph 6.4.2.1) This is the message code (see paragraph 5.2) This is the status field of the reader. The field contains bytes A&B (see paragraph 6.4.2.2) The data field contains the relevant response data. This is the cyclic redundancy check for fields #B, MSGT, R_status and DATA. This is the marker for the end of the messages. ETX=03 hex. STX #B R# MSGT MC R_status DATA CRC ETX Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 122 6 RS 485/232 Communication Protocol 6.4.2.1. MSGT Field Structure. The Message Type field is divided into several sections: Where: Is the string direction.Response will be 1. DIR PK ERR MT MC This field holds the same value as the Command Code of the related commands. This field makes it possible to link the response to the appropriate command. This code reflects the nature of the response. A regular response to a command …

Text truncated - open the document above for the full version.

Troubleshooting and Problem Solving Chapter 8 Troubleshooting 8 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 208 1. Power LED is red: reader malfunction. Replace reader 2. Power LED is off: verify power connection 3. Reader does not respond to host. 1. 2. 8.1. DataReader Troubleshooting 3.1 Verify power LED blinks at power on. LED should then remain steady green. 3.2 Verify cable connections are according to diagram 3.3 Verify reader address is correctly transmitted by host 3.4. Verify terminator present at end of the RS485 chain 4.1 Verify seal is within reader communication range 4.2 Verify antenna connections 4.3 Verify SD LED lights up for a short time upon receiving host command (Host request transmitted by reader) 4.4 Verify RD LED lights up for a short time (reader received data from seal) 4. Reader does not read seal 8.2. Evaluation System Troubleshooting When inserting Reader ID and ADD to the list using the evaluation software the reply: "com port time out" is received. "Command Fail" is repeated under Verify & Set option Possible reasons: Possible reasons: a. The Reader is not powered. b. The RS-232 converter is not connected to the PC. c. The RS-232 converter is not powered. d. The PC port definitions are incorrect. a. The Reader is not powered. b. The RS-232 converter is not connected to the PC c. The RS-232 converter is not powered. d. The Reader Address = 0 when connected via RS-485 and more than one Reader is connected Troubleshooting 8 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 209 3. 4. 5. 6. Repeated "No Seals" failure when using the Verify command Repeated "Seal Does Not Respond" reply using the Add Verify command. General All Commands failure - check that ADI, Department, and ORG ID parameters in the Seal and the Reader are compatible. Seal does not respond to Tamper command. Possible reasons: Possible reasons: Possible reasons: a. Incompatible parameters between the Seal and the Reader. The parameters are: ADI, Department, Org ID. b. Low power transmission. c. Antenna disconnected. d. Seals are located too far away. e. Number of windows defined greater than 255. a. Incompatible parameters between the Seal and the Reader. The parameters are: ADI, Department, Org ID. b. Low power transmission. c. Antenna disconnected. d. Seals are located too far away. e. Number of windows defined greater than 255. a. Seal is not in Tamper mode. b. Open the Seal and re-run the Tamper command. Repeat several times. If Seal still does not respond, follow procedure detailed in section 5. Troubleshooting 8 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 210 7. 8. 9. Seal does not respond to Hard Wakeup command: Set or Reset failure in Reset Status command: Check that the required bit can be changed. Parameter cannot be changed in the Write Parameters command:. Possible reasons: Possible reasons: a. The Seal is not in Deep Sleep mode. a. The Parameter is not in the Parameter Change list. b. The number of bytes is not compatible with the parameter size. Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 211 Technical Specifications Chapter 9 Technical Specifications 9 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 212 Physical Characteristics Performance Characteristics O Operating Temperature (C) O Storage Temperature (C) Humidity (%) Mechanical Vibration Mechanical Shock Dimensions (mm) Weight (gr) Power Requirements - External (volts) Interface Operating Frequency (MHz) Read Range (m) Standards Environmental Conditions 195X165X95 not including antenna 1000 RS-485 optically isolated 30 @ open space -40 - +70 -40 - +70 90 non condensing As per MIL-810D & SAE J1455 As per MIL-810D & SAE J1455 FCC part 15.249 24v Outdoor DataReader IG-RS-46D-916IG-RS-46D-433IG-RS-46D-318IG-RS-46D-315 916.5433.92318315 9.1. 24v Outdoor DataReader Power Consumption(watts) 24 Vdc nominal (10 to 35) 1.7W@Tx, 1.1W@Rx Designed according to UL1950 EN300220 EN301489 EN60950 UL1950 UL1950 Technical Specifications 9 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 213 Physical Characteristics Power Requirements - External (volts) 12v Outdoor DataReader 9.2. 12v Outdoor DataReader Power Consumption (watts) 12 Vdc nominal (10 to 35) * All other specifications are as in section 9.1. Physical Characteristics Power Requirements - External (volts) 12v Outdoor DataReader 9.3. 48v Outdoor DataReader 48 Vdc nominal (20 to 70) * All other specifications are as in section 9.1. IG-RS-46D-916/12IG-RS-46D-433/12IG-RS-46D-318/12IG-RS-46D-315/12 IG-RS-46D-916/48IG-RS-46D-433/48IG-RS-46D-318/48IG-RS-46D-315/48 1.7W@Tx, 1.1W@Rx 1.7W@Tx, 1.1W@Rx Power Consumption (watts) Technical Specifications 9 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 214 Physical Characteristics Performance Characteristics O Operating Temperature (C) O Storage Temperature (C) Dimensions (mm) Weight (gr) Interface Operating Frequency (MHz) Read Range (m) Standards Environmental Conditions 195X165X95 not including antenna 1000 RS-485 optically isolated 30 @ open space 0 - +70 -20 - +70 DataReader IG-RS-46-315IG-RS-46-318IG-RS-46-433IG-RS-46-916 315318433.92916.5 9.4. 24v Indoor DataReader Power Requirements - External (volts) 24 Vdc nominal (10 to 35) Designed according to UL1950 EN300220 EN301489 EN60950 UL1950 UL1950 FCC part 15.249 Power Consumption(watts) 1.7W@Tx, 1.1W@Rx Technical Specifications 9 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 215 Physical Characteristics Power Requirements - External (volts) 12v Outdoor DataReader 9.5. 12v Indoor DataReader 12 Vdc nominal (10 to 35) * All other specifications are as in section 9.4. Physical Characteristics Power Requirements - External (volts) 48v Outdoor DataReader 9.6. 48v Indoor DataReader 8 48 Vdc nominal (20 to 70) * All other specifications are as in section 9.4. IG-RS-46-315/12 IG-RS-46-315/48 IG-RS-46-318/12 IG-RS-46-318/48 IG-RS-46-433/12 IG-RS-46-433/48 IG-RS-46-916/12 IG-RS-46-916/48 Power Consumption(…

Text truncated - open the document above for the full version.

Evaluation Software Chapter 7 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 100 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 168 7 Evaluation Software Check to see if there has been any prior installation of the software. If a previous installation was detected, it must be removed before installing the new version. This may be done by clicking the UNINSTALL.EXE file on the CD-ROM. 7.2. Communication Setup - Readers Administration. The Readers Administration screen may be accessed by clicking on the Readers menu button on the top of the screen. and then on Readers Administration. Alternatively, click on the Readers Administration icon or type Ctrl+R. 7.2.1. Defining the readers connected. Reader ID and Reader Address are used to add/remove readers. The readers may be connected using either RS232 or RS485. The Reader ID is located on the back of the Reader, in barcode RS232 communication allows the connection of a single reader to a PC. As only one user is connected, there is no necessity to define a specific reader address. 0538443779 7.1. Software installation. To install the software, insert the CD-ROM disk into your system's CD-ROM drive. Click on the install icon and follow setup instructions that appear on the seen 7 Evaluation Software Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 169 and numeric format. To add a Reader, insert the Reader ID and click on the ADD button. To remove a Reader, use the mouse to mark it and click on the REMOVE button. RS485 communication allows several readers to be connected to a single PC. Prior to configuration, the User must decide on the placement of the readers and in accordance with the layout decide upon a specific Reader Address for each reader. 0538443779 5 7.2.2. Setting up the communication channel. In the Readers/Channel (CommPort) Administration box, click on the Com. Port drop down list to define your communication port. Click on the Baud Rate drop down menu list to the right of the Com. Port drop down list to define Baud Rate. Once you have made your selection, click on the Set Comm Port button. NOTE: The Baud Rate is determined by the PC's capabilities; the Reader itself can work at any of the Baud Rates defined in the drop down list. 7 Evaluation Software Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 170 7 Evaluation Software 7.3. Readers Setup To start the Reader Setup, press on the ”Reader Setup” icon (Item 1 in Figure 7.1) or select “Readers” and “Reader Setup as shown in Figure No. 7.2. 0538443779 5 1 Fig. 7.1 Fig. 7.2 Two groups of parameters are operated from that screen: MCU Setup and RF Modem Setup. 7.3.1. MCU Setup 7.3.2. RF Modem Setup Firmware Version, Loader Version, and Reader ID are Read-Only parameters of the MCU Setup screen (Figure 7.1.) Reader Address is the only parameter that can be modified. Fig. 7.3 The first parameter, Firmware Version is a Read-Only parameter. All other parameters can be modified at any time. After writing the new parameters, for both the MCU and RF Modem, click on the “Apply” button. To get the existing parameters in the DataReader, select the appropriate Reader in the “Reader” box (Item 1 in Figure 7.3). Click on the “Refresh” button if the parameters are not updated automatically 1 Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 171 7 Evaluation Software 7.4. Built-In Test In order to perform the test, click on “Readers” and then “Built-In” Test as shown in Figure 7.4. The “Test” window will open (Figure No. 7.5). Fig. 7.4 Fig. 7.5 Begin the process by selecting the DataReader to be tested at the box marked as Item 1 in Figure 7.5. To get the results of the last test, press on the “Get Current Reader Status” bar. To run a new test, press on the “Execute Built-In Test” bar and the new results will be displayed. 1 3 2 The “Voltage Values” displayed (Item 2 in Figure 7.5) are the actual values measured in the DataReader: The first value (2.544) represents the MCU, the second (0) represents the RF Modem 1 (not installed) and the third value (2.56) represents RF Modem 2. A detailed explanation of the abbreviations in this window (Item 3 in Figure 7.5) is provided hereunder: Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 172 7 Evaluation Software 7.5. Login-Password Setup, Password Change When the program is started for the first time after installation of the Evaluation Software, it will open at the lowest level of authorization. A password is not required at this time. Fig. 7.6 To allow only authorized access using a password, click on “Tools” as shown in Figure 7.6. The “Options” (Figure 7.7) will open. Fig. 7.7 The “Options” window is used for changing the User, Administrator or Distributor passwords. Following Setup of the Evaluation software, the passwords are: For User: user For Administrator: admin In order to change the password for any of the three levels of authorization, key the appropriate information in the boxes and press on the “Change Password” button. If you wish to change the password of a certain user (User or Administrator), you must login as that user. 1 3 2 Fig. 7.8 If you wish to access the Evaluation Software without going through the ”Login” window (Figure 7.8), check the box titled “Always login using this user type of Password” (Item 1 in Figure 7.7). Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 173 7 Evaluation Software If you wish the “Login” window to come up each time the Evaluation Software is activated Password Protection) clear the checkbox titled ”Always Login Using this user type and password”. If this box is checked, the “Login “ window will not come up when opening the Evaluation Software. You will, however, always login as the user type you selected. If the lower checkbox (Item 2 in Figure 7.7 ) is checked, the “Login” window will come up with the selected user type as a default. Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 174 7 Evaluation Software 7.6. Down…
