ODGCLIENTPAGERClient Pager

FCC ID : ODGCLIELTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-FO6-0911 1/1 ATTACHMENT E. - USER’S MANUAL - CLIENT PAGER PRODUCT SPECIFICATIONS General Product Features and Specifications. All Devices shall have the following features and meet the following specifications. 1. User Interface and alerts a. Default alert to be Vibe/Flash b. Must be able to change to Vibe/Flash or Chirp/Flash at PPS level c. Stand by status - shows no LED's, d. When Client pager is sent a message an 4/8/16/12 seconds vibe/flash LED will stay on until button is pushed 1 second. e. Reminder vibe will continue to alert every 0/30/60 seconds for 2 seconds until button is pushed 1second. f. To stop the reminder alert, pager button is pushed 1second. This will discontinue the vibe but the LED's will remain on g. To stop the All LED or the reminder and all LED, hold the button for 3 seconds. After that go to stand by status. h. All LED’s on, No Vibe–signifies pager has been paged and reminder has been turned off i. To turn pager back on and ready, hit button once and the all LED’s will flash 1 second to let you know it is working. j. When battery is low - Low Battery LED will turn on k. We are not requiring this pager be UL approved l. MUST be approved by the FCC 2. Capcode Specifications a. Numeric – minimum of 2 (1 primary address and 1 additional address) 3. Barcode a. Must be readable by a 2 dimensional scanner b. Barcode must have the ability to be scanned without obstruction from the holster or clip 4. Pager Programming Software a. Compatible with Windows 2000/XP/ME b. Supplier will provide ten (10) sets of programming stations including accessories as follows at no charge with additional quantities to be purchased by VWMS at Supplier’s cost with the first purchase order of 5,000 units; i. Interface and cables ii. Cradles iii. Software 5. Physical Specs: a. Paddle should be 5 1/2 inches long + the length of the pager b. Agreed on a blue plastics color c. Only change from picture provided is “Low Batt” should be “Low Battery” and written as an arch d. “Low Battery” will be embossed on the pager e. Button needs to be recessed so that it is flat with the face of the pager to decrease the chance of the pager accidentally being turned off. f. See attached picture for approved look

FCC ID : ODGCLIELTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-FO6-0911 1/1 ATTACHMENT C. - BLOCK DIAGRAM - Oscillator LNA Battery 1.5V VCC 3.0V

HANTEL CO., LTD. Date:2005.08.17 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize < HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.>, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by < HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.> on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing < HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.> as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, SUNG-WON SEO ASSISTANT MANAGER HANTEL CO., LTD. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

1 Helen Zhao To: ??? Subject: RE: Hantel Co., Ltd., FCC ID: ODGCLIENTPAGER, Assessment NO.: AN06T6219, Notice#1 -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Thursday, October 12, 2006 11:03 PM To: Helen Zhao Subject: Re: Hantel Co., Ltd., FCC ID: ODGCLIENTPAGER, Assessment NO.: AN06T6219, Notice#1 Dear Helen, I've atachment the new report. Please check it. Thank you. Best Regards, CHA -----Original Message----- Sent: Wednesday, October 11, 2006 5:40 PM Subject: Hantel Co., Ltd., FCC ID: ODGCLIENTPAGER, Assessment NO.: AN06T6219, Notice#1 Question #1: The test report indicates the receiving frequency is from 929MHz to 932MHz. Based on FCC15.31, you need to test 2 frequencies, one near top and 1 near bottom. But the test report shows only 929MHz (near bottom) has been tested. Please explain. Thank you, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. >

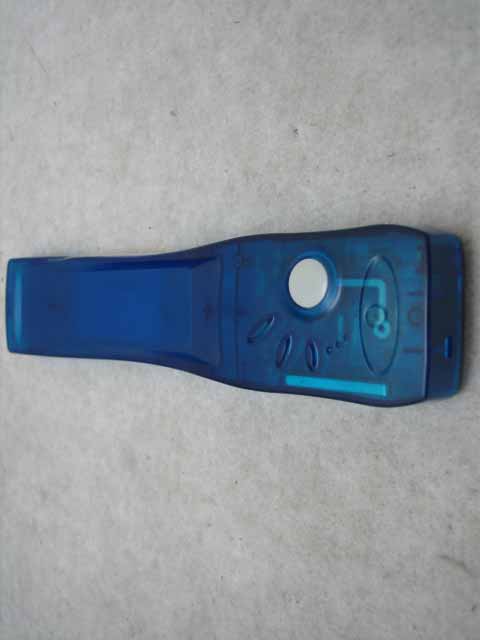

FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0911 1/3 ATTACHMENT B. - EXTERNAL PHOTOS - FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0911 2/3 FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0911 3/3

FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-FO6-0911 1/3 ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS - FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-FO6-0911 2/3 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 3.1 PRODUCT LABEL Model No : CLIENT PAGER FCC ID : ODGCLIENTPAGER EUT Type : PAGER Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. “ Product complies with DHHS Rules-21 CFR subchapter J-applicable at date of manufacture Hantel Co., Ltd. #513-15, Suntechcity, BLD 5F, Sangdaewon-dong, Jungwon-gu, Seongnam, Kyunggi-do, South Korea MADE IN KOREA FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-FO6-0911 3/3 1.2 Label Location Photos LABEL LOCATION

FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0911 1/8 ATTACHMENT F. - INTERNAL PHOTOS - FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0911 2/8 FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0911 3/8 FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0911 4/8 FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0911 5/8 FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0911 6/8 FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0911 7/8 FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0911 8/8

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. Product Compliance Division, EMC Team SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701, KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 CERTIFICATION Equipment Class: Standard(s): EUT Type: This equipment has been shown to be in compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. 1/ 15 Report prepared by : Kun-Hyoung Kim Test engineer of EMC Tech.Part Approved by : Sang Jun LEE Manager of EMC Tech.Part ODGCLIENTPAGER CLIENT PAGER Manufacture; Hantel Co.,Ltd #513-15, Suntechcity, BLD 5F, Sangdaewon-dong, Jungwon-gu, Seongnam, Kyunggi-do, South Korea HANTEL FRN : 0007460181 Date of Issue : September 27. 2006 Test Report No.: HCT-F06-0911 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. HCT FRN : 0005-8664-21 FCC ID : MODEL : Communications Rcvr for use w/ licensed Tx and CBs FCC Class B (CISPR 22) PAGER FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr REPORT NO. : HCT-F06-0911 2/15 TABLE OF CONTENTS PAGE REPORT COVER 1 TABLE OF CONTENTS 2 1. SCOPE 3 2. INTRODUCTION (SITE DESCRIPTION) 4 3. PRODUCTION INFORMATION 5 4. DESCRIPTION OF TESTS 6-7 5. LIST OF SUPPORT EQUIPMENT 8 6. TEST DATA (CONDUCTED) 9 7. PRELIMINARY TEST 10 8. TEST DATA (RADIATED) 11 9. SAMPLE CALCULATIONS 12 10. TEST EQUIPMENT 13 11. TEST SOFTWARE USED 14 12. CONCLUSION 15 ATTACHMENT A: FCC ID LABEL & LOCATION ATTACHMENT B: EXTERNAL PHOTOGRAPHS ATTACHMENT C: BLOCK DIAGRAM ATTACHMENT D: TEST SETUP PHOTOGRAPHS ATTACHMENT E: USER’S MANUAL ATTACHMENT F: INTERNAL PHOTOGRAPHS FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr REPORT NO. : HCT-F06-0911 3/15 MEASUREMENT REPORT 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. • FCC ID : ODGCLIENTPAGER • Equipment Class: Communications Rcvr for use w/ licensed Tx and CBs • EUT Type: PAGER • Model :CLIENT PAGER • Rule Part(s): FCC Part 15 Subpart B • Test Procedure(s): ANSI C63.4 (2003) • Dates of Tests: September 27. 2006 • Frequency Range : 929.000 ~ 932.000 MHz • Place of Tests: 254-1, MAEKOK-RI, HOBUP-MYUN, ICHON-SI, KYOUNGKI-DO, 467-701, KOREA Applicant Name: Address: Hantel Co., Ltd. #513-15, Suntechcity, BLD 5F, Sangdaewon-dong, Jungwon-gu, Seongnam, Kyunggi-do, South Korea FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr REPORT NO. : HCT-F06-0911 4/15 2. INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from Hantel Co., Ltd. PAGER. FCC ID : ODGCLIENTPAGER. The open area test site and conducted measurement facility used to collect the radiated data are located at the 254-1, MAEKOK-RI,HOBUP-MYUN,ICHON-SI,KYOUNGKI-DO, 467-701,KOREA. The site is constructed in conformance with the requirements of ANSI C63.4and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated July 06. 2006 (Confirmation Number: EA90661) FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr REPORT NO. : HCT-F06-0911 5/15 3. PRODUCT INFORMATION 3.1 Equipment Description Equipment Under Test (EUT) is the Hantel Co., Ltd. PAGER. FCC ID : ODGCLIENTPAGER. • FCC ID : ODGCLIENTPAGER • Equipment Class: Communications Rcvr for use w/ licensed Tx and CBs • EUT Type: PAGER • Model : CLIENT PAGER • Frequency Range : 929.000 ~ 932.000 MHz • Numeric : minimum of 2(1 primary address and 1 additional address) • Barcode : - Must be readable by a 2 dimensional scanner - Barcode must have the ability to be scanned without obstruction from the holster or clip • Pager Programming Software : Compatible with Windows 2000/XP/ME Supplier will probide ten(10) sets of programming stations including accessories as follows at no chante with additional quantities to be purchased by VWMS at Supplier’s cost with the first purchase order of 5,000 units; i. Interface and cables ii. C r a d l e s iii. S o f t w a re • Rule Part(s): FCC Part 15 Subpart B FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr REPORT NO. : HCT-F06-0911 6/15 4. Description of Tests(Conducted & Radiated) 4.1 Powerline Conducted Emission (150kHz- 30MHz) The power line conducted RFI measurements were performed according to CISPR 22. The EUT was placed on a non-conducting 1.0 by 1.5 meter table which is 0.8 meters in height and 0.40 meters away from the vertical wall of the shielded enclosure. Power to the EUT is provided through a Rohde & Schwarz…

Text truncated - open the document above for the full version.

FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0911 1/2 ATTACHMENT D. - TEST SETUP PHOTOS- FCC ID : ODGCLIENTPAGER HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0911 2/2 1. RADIATED MEASUREMENT PHOTOS [RADIATED MEASUREMENT PHOTO]
