ODL-930BTSS01Bluetooth Speaker Stand

Volume downVolume up ON/OFF/PAIRING Button LED indicator Aux input jackDC power jack This speaker stand is a Bluetooth stereo speaker system with an AUX in feature. It can be operated with the rechargeable battery, or with the included AC power adapter. AUX input is prioritized whenever a 3.5 mm cable is plugged in. Package contents • Speaker stand • Stereo audio cable • Removeable tablet support • AC power adapter • Quick Setup Guide Features To p Rear Using your Bluetooth stereo speaker stand First time pairing (with a new device) 1 Make sure that the speaker stand is fully charged or power adapter is plugged in. 2 Press and hold the ON/OFF/Pairing button for approximately eight seconds until the LED flashes blue and red alternately (in pairing mode). 3 Turn on the Bluetooth on your other Bluetooth device (e.g., tablet, mobile phone or MP3 player), then search for device name “RF-BTSS01” and choose to connect. The LED indicator will turn blue after successfully connecting. The speaker is ready to play audio from the connected device. Auto playback (auto pairing with the same device) 1 Make sure that the speaker stand is fully charged or power adapter is plugged in. 2 Make sure that the same Bluetooth device is switched on. 3 Turn on the speaker by pressing the on/off/pairing button (make sure that any cables connected to the AUX in jack are unplugged). 4 The speaker stand automatically searches for the devices that paired with it last time. When the same device is found, it will automatically pair again and be ready to play audio from the connected device. QUICK SETUP GUIDE Bluetooth Speaker Stand RF-BTSS01 Removeable tablet support RF-BTSS01_12-0875_QSG_V2_EN.ai 1 8/20/2012 9:48:08 AMRF-BTSS01_12-0875_QSG_V2_EN.ai 1 8/20/2012 9:48:08 AM Stereo audio cable (included) Connection to source MP3 PlayerTabletSmartphone ENGLISH 12-0875 AUX in playback 1 Make sure that the speaker stand is fully charged or the power adapter is plugged in. 2 Turn on the speaker by pressing the on/off/pairing button. 3 Connect one end of the stereo audio cable to your source device, and the other end to the Aux input jack on the back of the speaker. 4 Begin playback on the input source device. Charging Plug the AC adapter into a power outlet and the power plug into the DC power jack of the speaker stand. • Whenever the power adapter is plugged in, it starts the charging process and the LED indicator turns red. • The red LED indicator will turn off when the internal battery is fully charged. • It takes 3.5 hours to fully charge the battery. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ICES-003 This Class B digital apparatus complies with Canadian ICES-003; Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. IC Manual requirement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RSS-102 Statement This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment. Déclaration CNR-102: Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé. One-year limited warranty Visit www.rocketfishproducts.com for details. Contact Rocketfish: For customer service, call 1-800-620-2790 www.rocketfishproducts.com © 2012 BBY Solutions, Inc. All Rights Reserved. Distributed by Best Buy Purchasing, LLC 7601 Penn Avenue South, Richfield, MN USA 55423-3645 ROCKETFISH is a trademark of BBY Solutions, Inc. All other products and brand names are trademarks of their respective owners. Power outlet RF-BTSS01_12-0875_QSG_V2_EN.ai 2 8/20/2012 9:48:16 AMRF-BTSS01_12-0875_QSG_V2_EN.ai 2 8/20/2012 9:48:16 AM

40X26MM 亮银龙 黑底 PMS 877 C银字 CA-930BTCA-930BT 20120803 彩盒贴纸 位 置 要 求贴于机体底部 表面光胶 用酒精测试不掉色 Model no: CA-930BT FCC ID: ODL-930BTSS01 CA A0 张劲松 1:1 放大 贴于机体底部 Model no: CA-930BT FCC ID: ODL-930BTSS01 40X26MM 亮银龙 黑底 PMS 877 C银字 CA-930BTCA-930BT 20120725GM12298 彩盒贴纸 位 置 要 求贴于机体底部 表面光胶 用酒精测试不掉色 Model no: RF-BTSS01 FCC ID: ODL-930BTSS01 Model no: RF-BTSS01 FCC ID: ODL-930BTSS01 Rocketfish A0 张劲松 1:1 放大 贴于机体底部

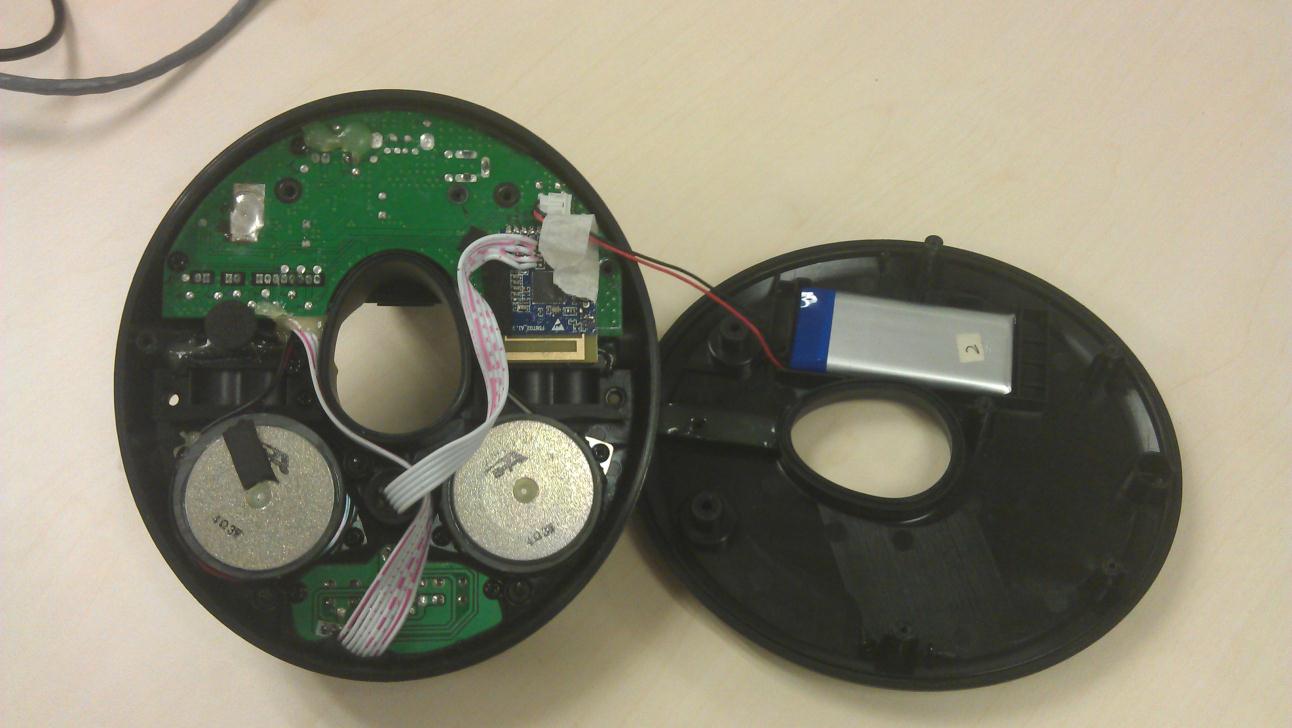

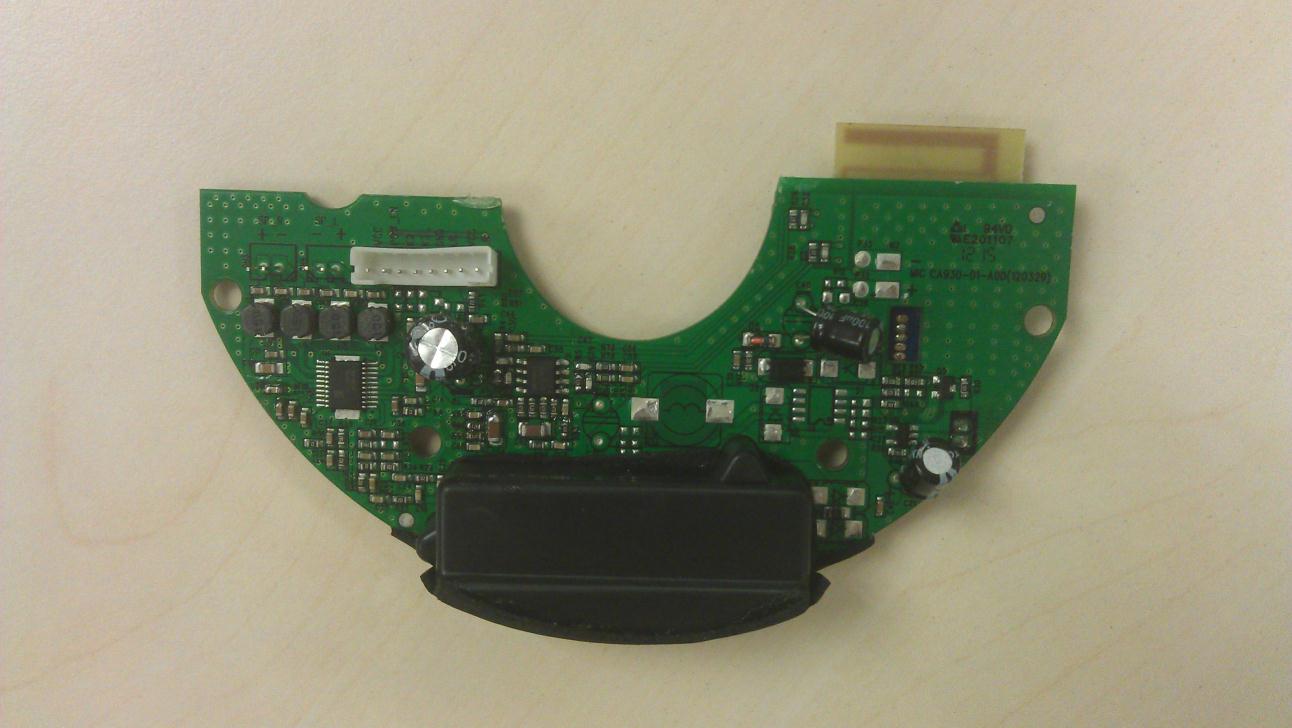

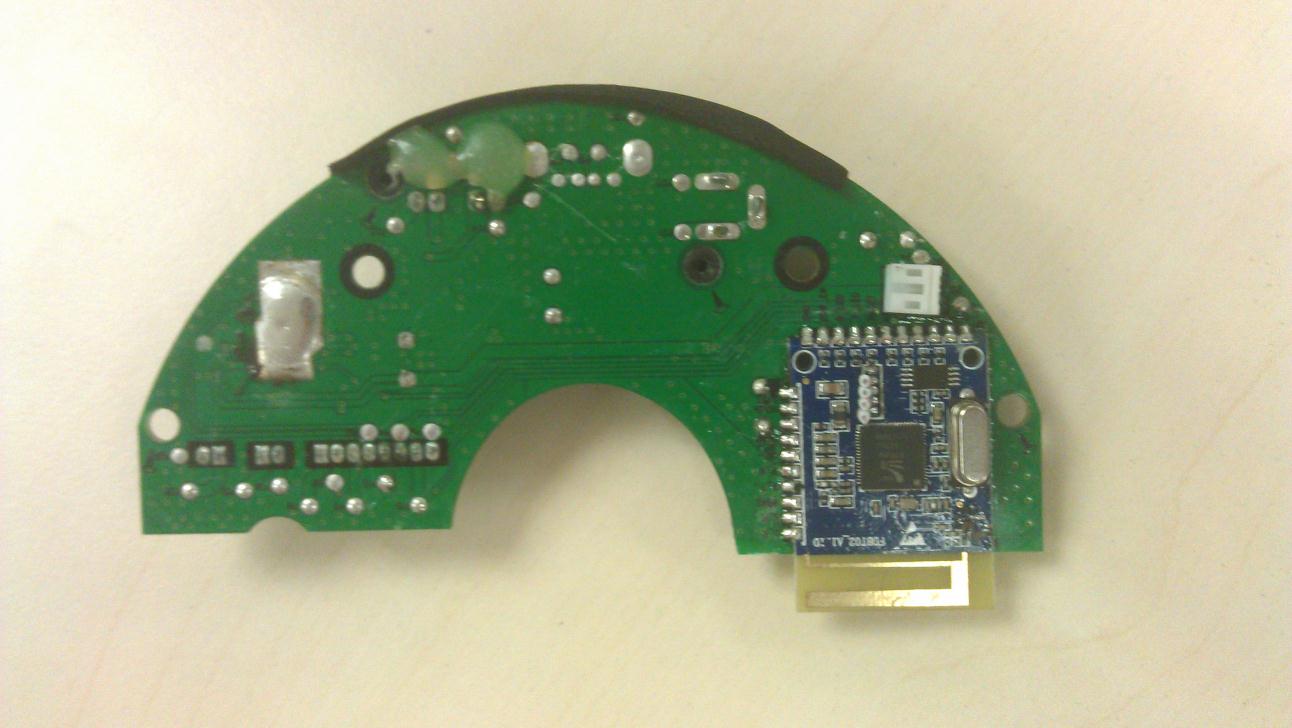

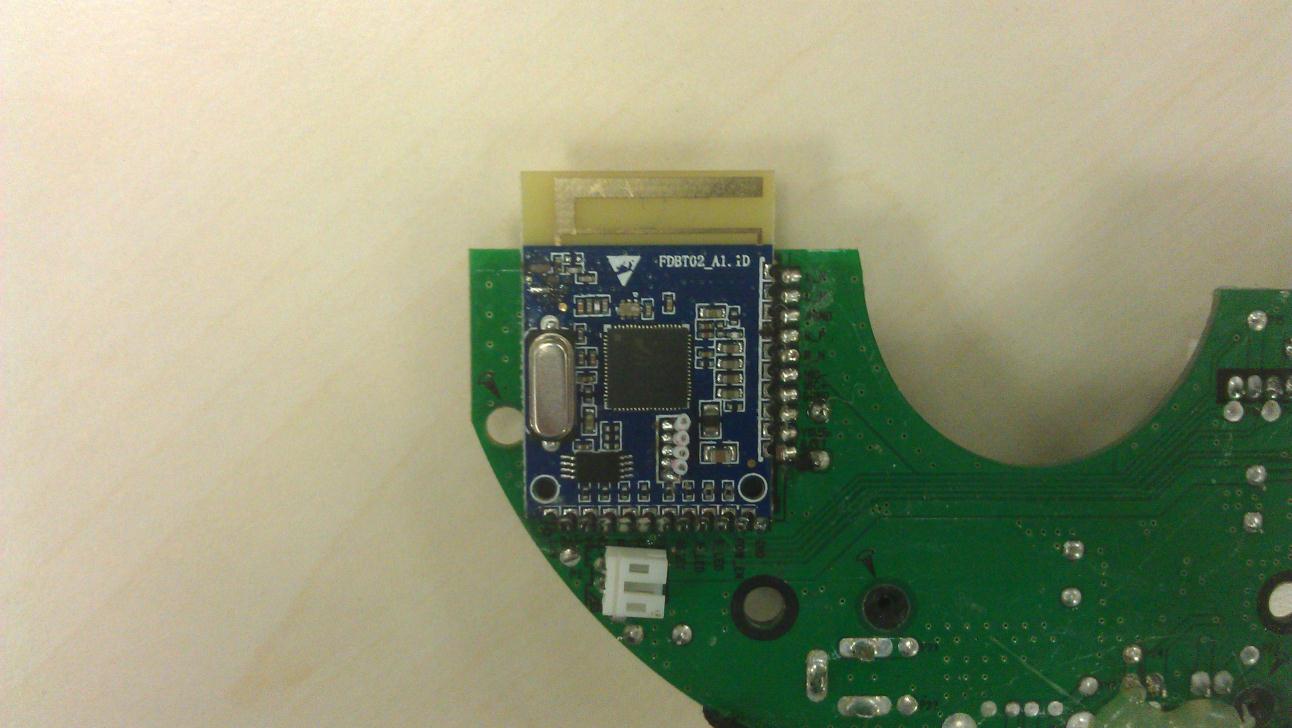

Page 1 of 4 Type Designation: RF-BTSS01, CA-930BT Internal Photos Report Number: 17027342 001 Page 2 of 4 Type Designation: RF-BTSS01, CA-930BT Internal Photos Report Number: 17027342 001 Page 3 of 4 Type Designation: RF-BTSS01, CA-930BT Internal Photos Report Number: 17027342 001 (Bluetooth module) Page 4 of 4 Type Designation: RF-BTSS01, CA-930BT Internal Photos Report Number: 17027342 001 (Bluetooth module) (Bluetooth module)

Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 87 von 90 Page 87 of 90 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Pass Test standard : FCC KDB Publication 447498 The maximum peak output power of the transmitter is 1.309mW (1.17dBm) only, which is <60/f (GHz) mW, i.e. 1.309mW<25(=60/2.4) mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure.

Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 2 von 90 Page 2 of 90 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 PEAK OUTPUT POWER RESULT: Pass 5.1.3 20DB BANDWIDTH RESULT: Pass 5.1.4 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100KHZ BANDWIDTH RESULT: Pass 5.1.5 SPURIOUS EMISSION RESULT: Pass 5.1.6 FREQUENCY SEPARATION RESULT: Pass 5.1.7 NUMBER OF HOPPING FREQUENCY RESULT: Pass 5.1.8 TIME OF OCCUPANCY RESULT: Pass 5.1.9 RADIATED EMISSIONS RESULT: Pass 5.1.10 CONDUCTED EMISSIONS RESULT: Pass 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 3 von 90 Page 3 of 90 Contents 1. GENERAL REMARKS ......................................................................................................... 5 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 5 2. TEST SITES ...................................................................................................................... 5 2.1 TEST FACILITIES ............................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 6 2.3 TRACEABILITY .................................................................................................................. 7 2.4 CALIBRATION ................................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 7 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 7 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 7 3. GENERAL PRODUCT INFORMATION .................................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 8 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 8 3.3 INDEPENDENT OPERATION MODES .................................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 9 3.5 SUBMITTED DOCUMENTS................................................................................................... 9 4. TEST SET-UP AND OPERATION MODES ............................................................................ 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ...................................................................... 10 4.2 TEST OPERATION AND TEST SOFTWARE .......................................................................... 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ........................................................ 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 10 4.5 TEST SETUP DIAGRAM .................................................................................................... 11 5. TEST RESULTS ............................................................................................................... 13 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................. 13 5.1.1 Antenna Requirement ............................................................................................................ 13 5.1.2 Peak Output Power ............................................................................................................... 14 5.1.3 20dB Bandwidth .................................................................................................................... 18 5.1.4 Conducted Spurious Emissions measured in 100kHz Bandwidth ........................................... 22 5.1.5 Spurious Emission ................................................................................................................. 31 5.1.6 Frequency Separation ........................................................................................................... 65 5.1.7 Number of hopping frequency ................................................................................................ 68 5.1.8 Time of Occupancy ............................................................................................................... 70 5.1.9 Radiated emissions ............................................................................................................... 71 5.1.10 Conducted emissions ........................................................................................................ 80 6. SAFETY HUMAN EXPOSURE ............................................................................................. 87 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ................................................................... 87 6.1.1 Electromagnetic Fields .......................................................................................................... 87 7. PHOTOGRAPHS OF THE TEST SET-UP .............................................................................. 88 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 4 von 90 Page 4 of 90 8. LIST OF TABLES ............................................................................................................. 90 9. LIST OF PHOTOGRAPHS .................................................................................................. 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 5 von 90 Page 5 of 90 1. General Remarks 1.1 Complementary Materials None. 2. Test Sites 2.1 Test Facilities Accurate Technology Co., Ltd. (FCC Registration No.: …

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 51 von 90 Page 51 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 52 von 90 Page 52 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 53 von 90 Page 53 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 54 von 90 Page 54 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 55 von 90 Page 55 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 56 von 90 Page 56 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 57 von 90 Page 57 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 58 von 90 Page 58 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 59 von 90 Page 59 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 60 von 90 Page 60 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 61 von 90 Page 61 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 62 von 90 Page 62 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 63 von 90 Page 63 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 64 von 90 Page 64 of 90 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 65 von 90 Page 65 of 90 5.1.6 Frequency Separation RESULT: Pass Date of testing : 2012-07-28 Test standard : FCC part 15.247(a)(1) Basic standard : ANSI C63.4: 2003 Limit : ≥ 25kHz or two-thirds of 20dB bandwidth, whichever is greater Kind of test site : Shield room Test setup Test Channel : Low/ Middle/ High Operation Mode : A.1 Ambient temperature : 25°C Relative humidity : 52% Atmospheric pressure : 101kPa Table 6: Test result of Frequency Separation Channel Channel Frequency (MHz) Measured Channel Separation (MHz) Limit (kHz) Result Low Channel 2402 1.002 ≥ 25kHz or two- thirds of 20dB bandwidth Pass Adjacency Channel 2403 Mid Channel 2441 1.014 ≥ 25kHz or two- thirds of 20dB bandwidth Pass Adjacency Channel 2442 High Channel 2479 1.002 ≥ 25kHz or two- thirds of 20dB bandwidth Pass Adjacency Channel 2480 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 66 von 90 Page 66 of 90 Test Plot of Frequency Separation A Ref 10 dBm 3DB Att 40 dB 300 kHz/Center2.403 GHzSpan3 MHz * * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 0.05 dBm 2.402988000 GHz 2 Delta 2 [T1 ] 0.07 dB -1.002000000 MHz 3 Delta 3 [T1 ] -0.01 dB 1.002000000 MHz Date: 28.JUL.2012 19:32:09 A Ref 10 dBm 3DB Att 40 dB 300 kHz/Center2.479 GHzSpan3 MHz * * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 0.55 dBm 2.478994000 GHz 2 Delta 2 [T1 ] 0.57 dB -1.020000000 MHz 3 Delta 3 [T1 ] 0.45 dB 1.002000000 MHz Date: 28.JUL.2012 19:34:39 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 67 von 90 Page 67 of 90 A Ref 10 dBm 3DB Att 40 dB 300 kHz/Center2.441 GHzSpan3 MHz * * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 0.91 dBm 2.440970000 GHz 2 Delta 2 [T1 ] -0.09 dB -1.002000000 MHz 3 Delta 3 [T1 ] 0.04 dB 1.014000000 MHz Date: 28.JUL.2012 19:29:28 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 68 von 90 Page 68 of 90 5.1.7 Number of hopping frequency RESULT: Pass Date of testing : 2012-07-28 Test standard : FCC part 15.247(a)(1)(iii) Basic standard : ANSI C63.4: 2003 Limits :  15 non-overlapping channels Kind of test site : Shield room Test setup Test Channel : Low/ Middle/ High Operation Mode : A.1 Ambient temperature : 25°C Relative humidity : 52% Atmospheric pressure : 101kPa Table 7: Test result of Number of hopping frequency Frequency Range Measured Quantity of Hopping Channel Limit Result 2402 to 2480MHz 79 15 Pass Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 69 von 90 Page 69 of 90 Test Plot of Number of hopping frequency A Ref 10 dBm 1 PK MAXH 3DB 9 MHz/Center2.441 GHzSpan90 MHz SWT 10 msAtt 40 dB * * RBW 100 kHz VBW 300 kHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 0.05 dBm 2.401940000 GHz 2 Marker 2 [T1 ] 1.11 dBm 2.480060000 GHz Date: 28.JUL.2012 19:27:10 Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 70 von 90 Page 70 of 90 5.1.8 Time of Occupancy RESULT: Pass Date of testing : 2012-07-28 Test standard : FCC part 15.247(a)(1)(iii) Basic standard : ANSI C63.4: 2003 Limits : 0.4s Kind of test site : Shield room Test setup Test Channel : Low/ Middle/ High Operation Mode : A.1 Ambient temperature : 25°C Relative humidity : 52% Atmospheric pressure : 101kPa Table 8: Test result of Time of Occupancy of BDR mode Channel Pulse width (ms) Measured time of Occupancy (s) Limit (s) Result 2402MHz DH1 0.54 0.175 0.4 Pass DH3 1.82 0.298 0.4 Pass DH5 3.09 0.343 0.4 Pass 2441MHz DH1 0.54 0.175 0.4 Pass DH3 1.82 0.298 0.4 Pass DH5 3.09 0.343 0.4 Pass 2480MHz DH1 0.54 0.175 0.4 Pass DH3 1.82 0.298 0.4 Pass DH5 3.09 0.343 0.4 Pass Table 9: Test result of Time of Occupancy of EDR mode Channel Pulse width (ms) Measured time of Occupancy (s) Limit (s) Result 2402MHz DH1 0.55 0.177 0.4 Pass DH3 1.82 0.298 0.4 Pass DH5 3.09 0.343 0.4 Pass 2441MHz DH1 0.55 0.177 0.4 Pass DH3 1.82 0.298 0.4 Pass DH5 3.09 0.343 0.4 Pass 2480MHz DH1 0.55 0.177 0.4 Pass DH3 1.82 0.298 0.4 Pass DH5 3.09 0.343 0.4 Pass Note: Time of Occupancy = Pulse width x (Hopping rate / Number of channels) x Period Period = 0.4 (seconds/ channel) x 79 (channel) = 31.6 seconds Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 71 von 90 Page 71 of 90 5.1.9 Radiated emissions RESULT: Pass Date of testing : 2012-07-19 Test standard : FCC Part 15.109 Basic standard : ANSI C63.4: 2003 Frequency range : 30 – 6000MHz * Limits : FCC Part 15.109(a) Kind of test site : 3m Semi…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 88 von 90 Page 88 of 90 7. Photographs of the Test Set-Up Photograph 1: Set-up for Conducted Emissions Photograph 2: Set-up for Radiated Emissions Produkte Products Prüfbericht - Nr.: Test Report No. 17027342 001 Seite 89 von 90 Page 89 of 90 Photograph 3: Set-up for Spurious Emissions below 1GHz Photograph 4: Set-up for Spurious Emissions above 1GHz
