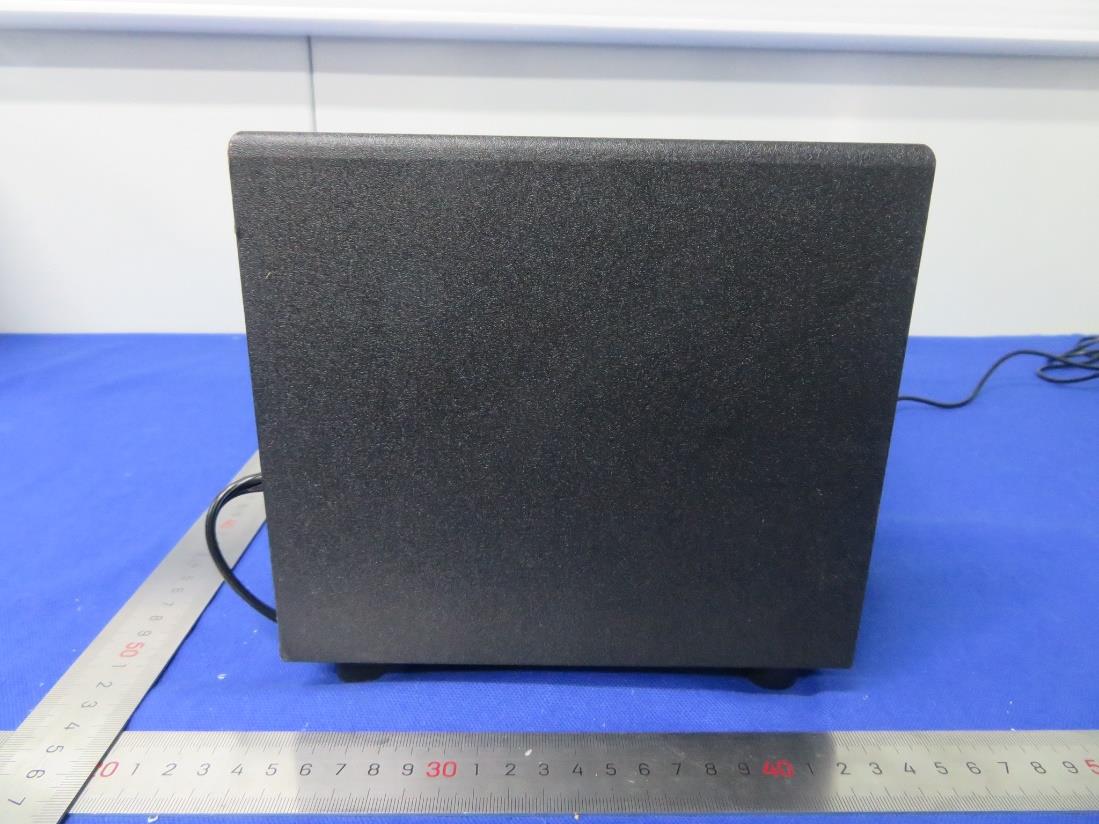

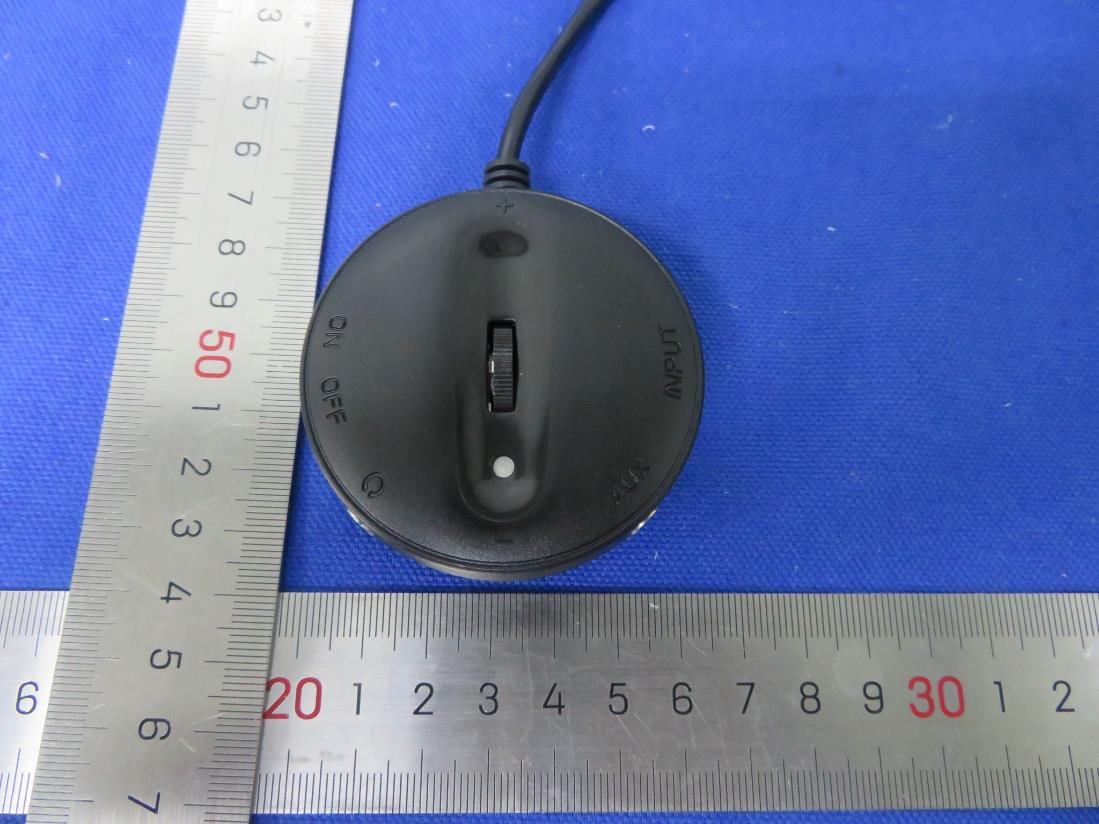

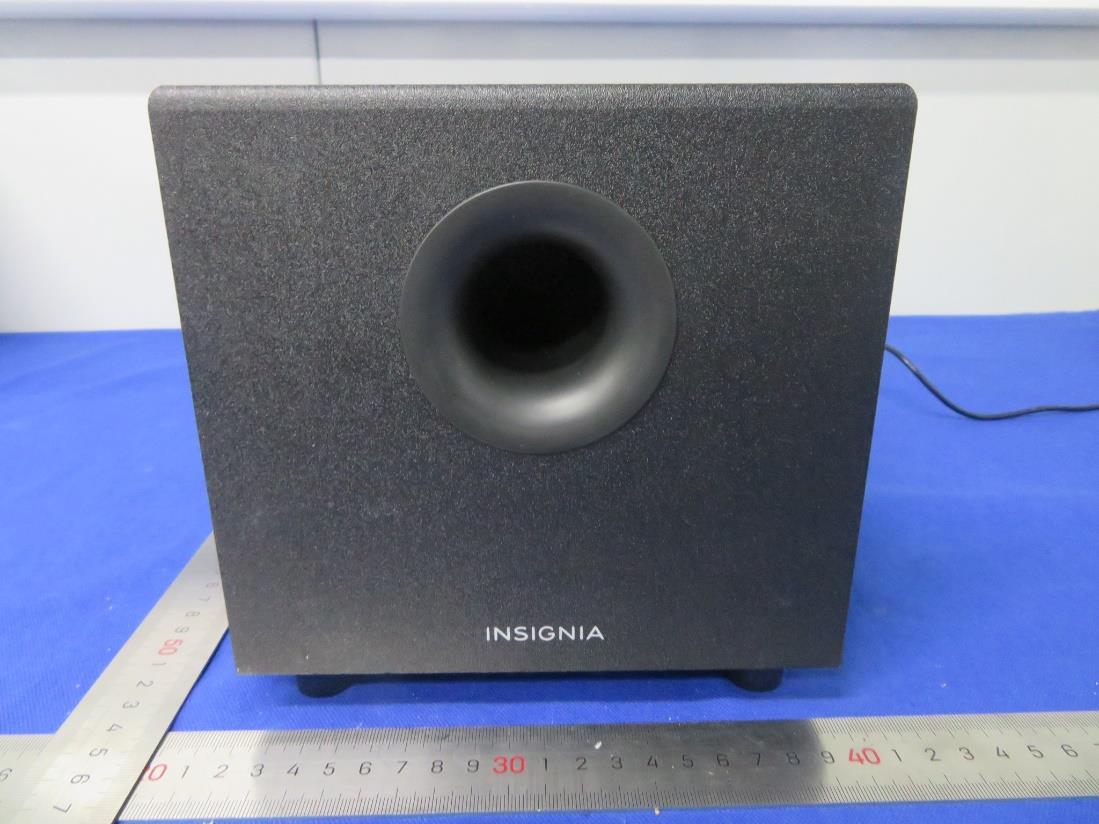

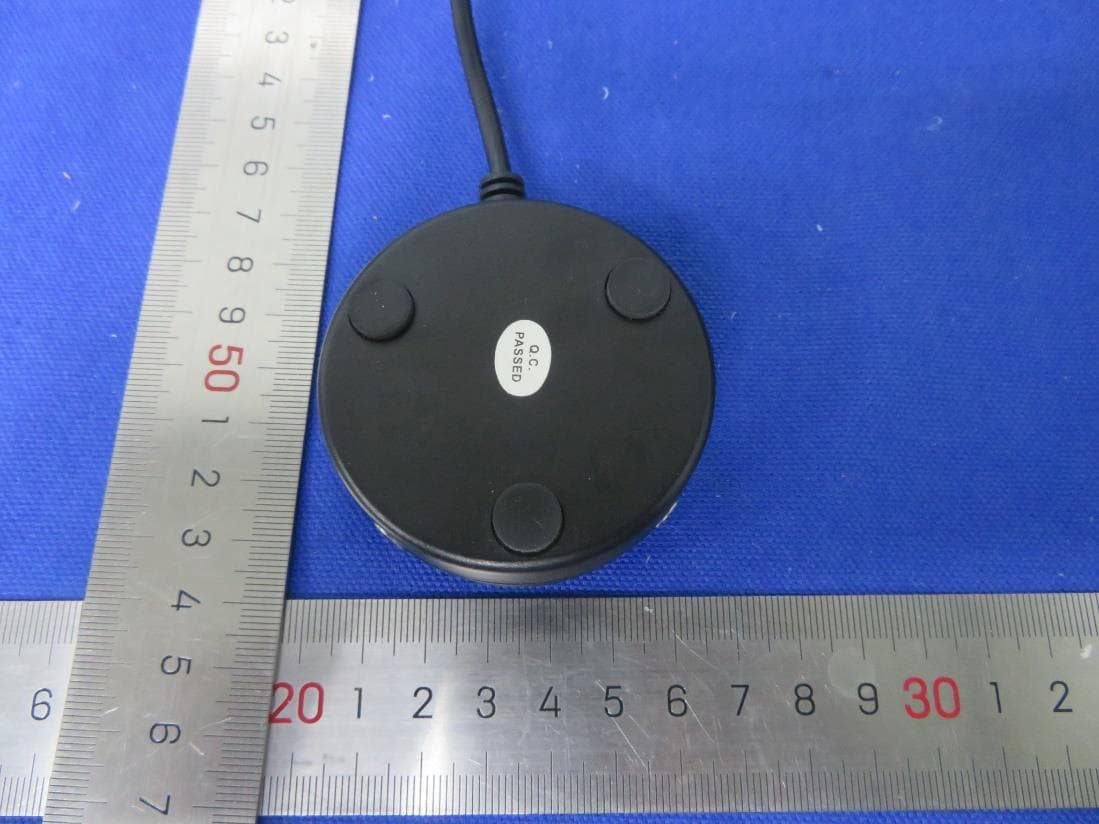

ODL-NS5004BTV22.1 Speaker System with Bluetooth

QUICK SETUP GUIDE Color Changing 2.1 Computer Speakers with Bluetooth NS-5004BT CONNECTING WITH BLUETOOTH 1 Make sure that your Bluetooth device is turned on and within 33 feet (10 meters) of your speakers. 2 Turn on your speakers. The status LED blinks blue to indicate that they are in pairing mode. If the status LED is red, press the Input button once to switch to Bluetooth mode. 3 Turn on your Bluetooth device, then turn on Bluetooth. Set your device to pairing mode, then select Insignia NS-5004BT. See the instructions that came with your Bluetooth device for information about pairing. 4 If you are asked for a password, enter 0000. When pairing is complete, the status LED lights solid blue. STATUS LED RECONNECTING WITH A PREVIOUS DEVICE • Make sure that the last paired Bluetooth device is near your speakers. • When your speakers are on, they automatically search for and try to connect to the last paired device. FORCE PAIRING AND CONNECTING WITH A NEW DEVICE • If you have paired your speakers to a device and want to pair with a different device, press and hold the Input button for three seconds until the blue LED begins blinking. Search your new device’s Bluetooth list for Insignia NS-5004BT, then tap to pair and connect. USING A WIRED CONNECTION 1 Connect an external sound source, such as an MP3 player, by plugging the included audio cable into the AUX jack on the back of your control pod and the sound source. 2 Press the Input button to enter AUX mode. The status LED lights red. Front Control pod CONNECTING THE SPEAKERS 1 Plug the satellite speakers into the To Speaker jack on the back of the subwoofer. 2 Plug the power cable into a power outlet or surge protector. TURNING YOUR SPEAKERS ON AND OFF • Slide the ON/OFF on the control pod to the left to turn on your speakers or right to turn off your speakers. When you first turn on your speakers, they are in Bluetooth pairing mode and the status LED blinks blue. Before using your new product, please read these instructions to prevent any damage. STATUS LED Blinks blue Solid blue Solid red DESCRIPTION Speakers are in pairing mode Speakers are paired AUX mode Flat size (W×H): 12.44 × 11.69 in (315.976 × 296.93 mm.) Final folded size: 4.14 × 11.69 in (105.156 × 296.93 mm.) 3.5 mm audio cable PACKAGE CONTENTS • Satellite speakers (2) • Subwoofer • Control pod • 5 ft. (1.52 m) 3.5 mm to 3.5 mm audio cable • Quick Setup Guide FEATURES • Eight color modes (blue, green, red, purple, yellow, light blue, repeating six colors, and off ) help set the mood • 25W RMS: • 16W RMS subwoofer • 9W RMS satellites (4.5W + 4.5W) • Bluetooth connectivity wirelessly streams audio from your Bluetooth-enabled devices • 3.5 mm input jack lets you connect to external sound sources • Headphone jack provides an easy connection option for private listening Master volume control Status LED Input button AUX input jack Headphone jack Light button RIGHT LEFT Back of speakers Bass volume controlPower cord Power on/off NS-5004BT_19-0173_QSG_V2_EN.ai 1 3/27/2019 5:00:02 PMNS-5004BT_19-0173_QSG_V2_EN.ai 1 3/27/2019 5:00:02 PM V2 ENGLISH 19-0173 SPECIFICATIONS Dimensions (H×W×D): 7.3 × 14 × 7.3 in. (185.4 × 355.6 × 185.4 mm) Wattage: 25W total (16W sub, 4.5W for each satellite speaker) Range: 32.8 ft (10 m) Power cord length: 5.5 ft (1.67 m) SAFETY INSTRUCTIONS 1 Read, follow, and save all instructions and documentation. 2 Do not use this apparatus near water. 3 Clean only with a dry cloth. 4 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 5 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 6 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 7 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 8 Only use attachments/accessories specified by the manufacturer. 9 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 10 Unplug this apparatus during lightning storms or when unused for long periods of time. 11 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in an way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 12 Keep the unit in a well-ventilated environment. Do not install this equipment in a confined space such as a bookcase. 13 WARNING: To reduce the risk of fire or electric shock, do not expose this device to rain, moisture, dripping, or splashing, and no objects filled with liquids, such as vases, shall be placed on it. 14 WARNING: The wall plug is the disconnecting device. The plug must remain readily operable. 15 The apparatus is classified as a class II apparatus. WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation or exposure. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to presence of uninsulated “dangerous voltage” within the product’s enclosure th…

Text truncated - open the document above for the full version.

Cyber Acoustics (HK) Ltd. U.S. Agent Letter of Attestation To: Federal Communications Commission Date: 09/22/2023 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: ODL-NS5004BTV2 Cyber Acoustics (HK) Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, Cyber Acoustics Inc. is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. Cyber Acoustics Inc. understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. APPLICANT Company Name: Cyber Acoustics (HK) Ltd. Contact Person: Tom Au Address: Unit A-B, 8/F, Yue Hing Building, 103 Hennessy Road, Wan Chai, Hong Kong Tel.: +852-25177629 Email: [email protected] U.S. Agent Name: Cyber Acoustics Inc. U.S. Agent FRN: The agent for service of process does no other business with the FCC and does not have an FRN. Address: 3109 NE 109th Ave. Vancouver, WA 98682 Contact Person: Steve Erickson Tel.: 360-883-0333 Email: [email protected] S incerely, The Applicant The Agent Company Name Cyber Acoustics (HK) Ltd. Cyber Acoustics Inc. Contact Person Tom Au Steve Erickson Signature FRN:0021899745

Cyber Acoustics (HK) Ltd. Attestation Statements Not Covered Entity Applicant To: Federal Communications Commission Date: 09/22/2023 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(ii) filing FCC ID: ODL-NS5004BTV2 Cyber Acoustics (HK) Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, _____________________ Signature Printed name: Tom Au Title: Product Quality Manager

TCB Authority to Act as Agent Number: MS-0045317 Revision: 0 Effective date: Oct 8, 2021 Page 1 of 1 Cyber Acoustics (HK) Ltd. Authority to Act as Agent Date: 09/22/2023 TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint TÜV Rheinland (Shenzhen) Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with Cyber Acoustics (HK) Ltd., Unit A-B, 8/F, Yue Hing Building, 103 Hennessy Road, Wan Chai, Hong Kong. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Agency Agreement Date: 09/22/2023 Agreement is valid for 12 months from the above date. Sincerely, ______________________ Signature Printed name: Tom Au Title: Product Quality Manager On behalf of Cyber Acoustics (HK) Ltd. Address: Unit A-B, 8/F, Yue Hing Building, 103 Hennessy Road, Wan Chai, Hong Kong

MS-0044715 Page 1 of 1 Revision 1 Cyber Acoustics (HK) Ltd. Date: 09/22/2023 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Confidentiality Request for FCC ID: ODL-NS5004BTV2 Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Test Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual*** Short Term Permanent Part List/ Antenna Gain Information Datasheet Cyber Acoustics (HK) Ltd. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** Exceptional case for Permanent Confidentiality for these Exhibits by PAG only). Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, ______________________ Signature Printed name: Tom Au Title: Product Quality Manager

Label location

Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Report No. : CN23L7SC 003 Test Specification Test item : 2.1 Speaker System with Bluetooth Identification / Type No. : NS-5004BT FCC ID : ODL-NS5004BTV2 Test standard : CFR47 FCC Part 2: Section 2.1093 FCC KDB 447498 D01 General RF Exposure Guidance v06 Measurement Record: The minimum distance for the EUT is less than 5mm. The maximum peak output power of the transmitter is 8.27 dBm ≈ 6.71 mW < 3*d f = 9.68 mW. Note: *The RF output power test data refer to test report CN23L7SC 002. Summary: The EUT is excluded from SAR evaluation according to FCC KDB 447498 D01 General RF Exposure Guidance v06.

Cyber Acoustics (HK) Ltd. Unit A-B, 8/F, Yue Hing Building, 101-105 Hennessy Road, Wan Chai, Hong Kong Antenna Shape PCB antenna Antenna Dimensions 7 x 17.4mm Antenna Material FR4 RF Frequency Band 2.402~2.480 GHz Impedance 50Ω Polarization Dual Polarization (Vertical and Horizontal ) Antenna Gain Vertical Port Peak Gain : 1.11 dBi Horizontal Port Peak Gain : 0.07 dBi Max. antenna gain is 1.11dBi due to there is a 0.5~1.5dB loss of matching on board. Operating Temperature -30°C~+80°C

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN23L7SC 002 Auftrags-Nr.: Order no.: 168439616 Seite 1 von 24 Page 1 of 24 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2023-08-02 Auftraggeber: Client: Cyber Acoustics (HK) Ltd. Unit A-B, 8/F, Yue Hing Building, 101-105 Hennessy Road, Wan Chai, Hong Kong Prüfgegenstand: Test item: 2.1 Speaker System with Bluetooth Bezeichnung / Typ-Nr.: Identification / Type no.: NS-5004BT Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of sample receipt: 2023-08-22 Please refer to Photo Document Prüfmuster-Nr.: Test sample no: A003538934-003~006 Prüfzeitraum: Testing period: 2023-08-29 - 2023-09-01 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2023-09-08 Ausstellungsdatum: Issue date: 2023-09-08 Stellung / Position: Sachverständige(r)/Expert Stellung / Position: Sachverständige(r)/Expert Sonstiges / Other: FCC ID: ODL-NS5004BTV2 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the above mentioned test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland (Shenzhen) Co., Ltd., 1601-1604, 17-18F, Tower A Building 2, Shenzhen International Innovation Valley, Dashi 1st Road, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P. R. China Mail: [email protected] · Web: www.tuv.com Lin Lin Hardy Suo Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: CN23L7SC 002 Test report no.: Seite 2 von 24 Page 2 of 24 Anmerkungen Remarks 1 Alle eingesetzten Prüfmittel waren zum angegebenen Prüfzeitraum gemäß eines festgelegten Kalibrierungsprogramms unseres Prüfhauses kalibriert. Sie entsprechen den in den Prüfprogrammen hinterlegten Anforderungen. Die Rückverfolgbarkeit der eingesetzten Prüfmittel ist durch die Einhaltung der Regelungen unseres Managementsystems gegeben. Detaillierte Informationen bezüglich Prüfkonditionen, Prüfequipment und Messunsicherheiten sind im Prüflabor vorhanden und können auf Wunsch bereitgestellt werden. The equipment used during the specified testing period was calibrated according to our test laboratory calibration program. The equipment fulfils the requirements included in the relevant standards. The traceability of the test equipment used is ensured by compliance with the regulations of our management system. Detailed information regarding test conditions, equipment and measurement uncertainty is available in the test laboratory and could be provided on request. 2 Wie vertraglich vereinbart, wurde dieses Dokument nur digital unterzeichnet. Der TÜV Rheinland hat nicht überprüft, welche rechtlichen oder sonstigen diesbezüglichen Anforderungen für dieses Dokument gelten. Diese Überprüfung liegt in der Verantwortung des Benutzers dieses Dokuments. Auf Verlangen des Kunden kann der TÜV Rheinland die Gültigkeit der digitalen Signatur durch ein gesondertes Dokument bestätigen. Diese Anfrage ist an unseren Vertrieb zu richten. Eine Umweltgebühr für einen solchen zusätzlichen Service wird erhoben. As contractually agreed, this document has been signed digitally only. TUV Rheinland has not verified and unable to verify which legal or other pertaining requirements are applicable for this document. Such verification is within the responsibility of the user of this document. Upon request by its client, TUV Rheinland can confirm the validity of the digital signature by a separate document. Such request shall be addressed to our Sales department. An environmental fee for such additional service will be charged. 3 Prüfklausel mit der Note * wurden an qualifizierte Unterauftragnehmer vergeben und sind unter der jeweiligen Prüfklausel des Berichts beschrieben. Abweichungen von Prüfspezifikation(en) oder Kundenanforderungen sind in der jeweiligen Prüfklausel im Bericht aufgeführt. Test clauses with remark of * are subcontracted to qualified subcontractors and descripted under the respective test clause in the report. Deviations of testing specification(s) or customer requirements are listed in specific test clause in the report. 4 Die Entscheidungsregel für Konformitätserklärungen basierend auf numerischen Messergebnisen in diesem Prüfbericht basiert auf der "Null-Grenzwert-Regel" und der "Einfachen Akzeptanz" gemäß ILAC G8:2019 und IEC Guide 115:2021, es sei denn, in der auf Seite 1 dieses Berichts genannten angewandten Norm ist etwas anderes festgelegt oder vom Kunden gewünscht. Dies bedeutet, dass die Messunsicherheit nicht berücksichtigt wird und daher auch nicht im Prüfbericht angegeben wird. Zu weiteren Informationen bezueglich des Risikos durch diese Entscheidungsregel siehe ILAC G8:2019. The decision rule for statements of conformity, based on numerical measurement results, in this test report is based on the “Zero Guard Band Rule” and “Simple Acceptance” in accordance with ILAC G8:2019 and IEC Guide 115:2021, unless otherwise specified in the applied standard mentioned on Page 1 of this report or requested by the customer. This …

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 1 of 44 Appendix A: Test Results of FCC Part 15C APPENDIX A: TEST RESULTS OF FCC PART 15C ............................................................................................................... 1 APPENDIX A.1: TEST RESULTS OF 99% BANDWIDTH ................................................................................................................... 2 APPENDIX A.2: TEST RESULTS OF 20DB BANDWIDTH ................................................................................................................. 5 APPENDIX A.3: TEST RESULTS OF CARRIER FREQUENCY SEPARATION ............................................................................................. 8 APPENDIX A.4: TEST RESULTS OF NUMBER OF HOPPING FREQUENCY ............................................................................................ 9 APPENDIX A.5: TEST RESULTS OF TIME OF OCCUPANCY............................................................................................................. 10 APPENDIX A.6: TEST RESULTS OF CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH ...................................... 15 Band Edge................................................................................................................................................................... 15 Conducted Spurious Emission .................................................................................................................................... 18 APPENDIX A.7: TEST RESULTS OF RADIATED SPURIOUS EMISSIONS ............................................................................................. 25 30MHz - 1GHz (Worst case) ....................................................................................................................................... 25 1GHz - 18GHz .............................................................................................................................................................. 27 APPENDIX A.8: TEST RESULTS OF RADIATED EMISSIONS IN RESTRICTED BANDS ............................................................................. 39 APPENDIX A.9: TEST RESULTS OF CONDUCTED EMISSION ON AC MAINS...................................................................................... 43 Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 2 of 44 Appendix A.1: Test Results of 99% Bandwidth TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.88663 2401.5565 2402.4431 --- PASS 2441 0.88871 2440.5533 2441.4420 --- PASS 2480 0.90016 2479.5511 2480.4512 --- PASS 3DH5 Ant1 2402 1.1958 2401.3970 2402.5928 --- PASS 2441 1.1831 2440.4061 2441.5892 --- PASS 2480 1.1760 2479.4137 2480.5897 --- PASS Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 3 of 44 DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 4 of 44 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 5 of 44 Appendix A.2: Test Results of 20dB Bandwidth TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.948 2401.535 2402.483 --- PASS 2441 0.948 2440.535 2441.483 --- PASS 2480 0.942 2479.538 2480.480 --- PASS 3DH5 Ant1 2402 1.248 2401.364 2402.612 --- PASS 2441 1.248 2440.364 2441.612 --- PASS 2480 1.275 2479.355 2480.630 --- PASS Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 6 of 44 DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 7 of 44 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 8 of 44 Appendix A.3: Test Results of Carrier Frequency Separation TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.16 ≥0.948 PASS 3DH5 Ant1 Hop 1.03 ≥0.850 PASS DH5_Ant1_Hop 3DH5_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 9 of 44 Appendix A.4: Test Results of Number of Hopping Frequency TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS DH5_Ant1_Hop 3DH5_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 10 of 44 Appendix A.5: Test Results of Time of Occupancy TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.371 319 0.118 ≤0.4 PASS DH3 Ant1 Hop 1.619 159 0.257 ≤0.4 PASS DH5 Ant1 Hop 2.868 107 0.307 ≤0.4 PASS 3DH1 Ant1 Hop 0.377 319 0.12 ≤0.4 PASS 3DH3 Ant1 Hop 1.629 159 0.259 ≤0.4 PASS 3DH5 Ant1 Hop 2.880 107 0.308 ≤0.4 PASS Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 11 of 44 DH1_Ant1_Hop DH3_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 12 of 44 DH5_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 13 of 44 3DH1_Ant1_Hop 3DH3_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 14 of 44 3DH5_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 15 of 44 Appendix A.6: Test Results of Conducted Spurious Emissions Measured in 100 kHz Bandwidth Band Edge TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 5.592 -45.7 ≤-14.41 PASS High 2480 4.379 -46.74 ≤-15.62 PASS 3DH5 Ant1 Low 2402 5.889 -46.02 ≤-14.11 PASS High 2480 4.417 -49.09 ≤-15.58 PASS DH5 Ant1 Hopping 2402 4.883 -49.3 ≤-15.12 PASS Hopping 2480 3.429 -47.07 ≤-16.57 PASS 3DH5 Ant1 Hopping 2402 3.077 -49 -16.92≤ PASS Hopping 2480 0.2574 -48.77 ≤-19.74 PASS DH5_Ant1_Low_2402 DH5_Ant1_High_2480 Prüfbericht - Produkte Test Report - Products Appendix A CN23L7SC 002 Page 16 of 44 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 DH5_Ant1_Hopping_2402 Prüfbericht - Produkte Test Report - …
