OG5MW1473FM broadcast radio receiver with Bluetooth

BRAND Radio MODEL NO: MW-1473 1 IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit. Water and Moisture The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a set basement. Ventilation The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings. Heat The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat. Power Source The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. Cleaning The unit should be cleaned only as recommended. Object and Liquid Entry Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product. 2 Lightning and Power Surge Protection Unplug the unit from the wall outlet. This will prevent damage to the product due to lightning and power-line surges. Overloading Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire of electric shack. Damage Requiring Service This unit should be serviced by qualified service personnel when: Objects have fallen into or liquid has been spilled into the enclosure. The unit has been exposed to rain. The unit has been dropped or the enclosure damaged. The unit exhibits a marked change in performance or does not operate normally. Periods of Nonuse If the unit is to be left unused for an intended period of time, such as a week or longer, the power adaptor should be unplugged from the unit to prevent damage or corrosion. Servicing The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel. WARNING: 1) The mains plug of adapter is used as disconnect device, the adapter shall remain readily operable. 2) Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. 3) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus. 3 LOCATIONS OF CONTROLS FRONT VIEW TOP VIEW 4 BACK VIEW BOTTOM VIEW 5 1. ALARM 1 ON/OFF Switch 2. ALARM 2 ON/OFF Switch 3. FUNCTION Switch: FM, AUX, BT 4. VOLUME Knob 5. Power On/ Battery charging indicator 6. LCD Display 7. / Button - Press and hold this button to toggle between “Power On” and “Standby” mode. - In Radio mode: to select the preset stations in sequence - In BT mode: to play/ pause current playback 8. ALARM Button - In off mode: Press to set the alarm. 9. TIME Button - In off mode: Press to set the clock time 10. SLEEP Button - In Playback mode: to select the time duration of the sleep timer from “90/80/70/60/50/40/30/20/10/00”minutes 11. Button - In BT mode: to return to the beginning of current track or previous track - In Radio mode: . Press once to search backward radio station with strong signal and stop on the first station signal it finds automatically. . Press and hold this button to auto search from high-end frequency toward low-end frequency and automatically save up all the stations with strong signals in sequence 12. Button. - In BT mode: to return to the beginning of current track or next track - In Radio mode: . Press once to search forward radio station with strong signal and stop on the first station signal it finds automatically. . Press and hold this button to auto search from low-end frequency toward high-end frequency and automatically save up all the stations with strong signals in sequence. 6 13. SNOOZE Button - To activate the snooze function when the alarm is activated - To select LCD backlight Bright/DIM Level 1/DIM Level 2/OFF. 14. Built-in Microphone 15. FM Telescopic Antenna 16. DC 5V Jack 17. 3.5mm AUX-IN Jack 18. Battery Cover 19. Battery locking screw = Unlocked = Locked BATTERY INSTALLATION 1.) Use a coin to rotate the battery locking screw 90 degrees to unlock the battery cover. 2.) Remove the battery cover with your fingers. 3.) Follow the polarity to install the accompanied 3.7V lithium ion battery 4.) Replace the battery compartment door and rotate the locking screw to lock the battery cover. WARNING: - Be sure that the battery is installed correctly. - Only batteries of the same or equivalent type as recommend are to be used. - If the unit is not to be used for an extended period of time, remove the battery to prevent damage or injury from possible battery leakage. - Do not dispose of the battery in fire, the battery may explode or leak. POWER SUPPLY - Connect the supplied AC-DC adapter to the DC 5V Jack on the back of the device through the attached USB cable, and insert the grid plug into a properly installed AC socket. 7 Caution - Only use the supplied power adaptor for this device. Do not use for other devices. - Only use the original AC adapter. This adapter has been specially designed for the accompanied battery in order to gradually charge the battery. Any other adapter may shorten the battery life or can damage it or the devi…

Text truncated - open the document above for the full version.

Updated on 2005/02/07 by Kally Chan To : STC (DongGuan) COMPANY LIMITED DECLARATION OF IDENTITY Hereby we: SHENZHEN MANIWAY ELECTRONICS LIMITED (Name of Applicant) Basic Model Number: MW-1473 Basic Brand Name: MANIWAY Basic Product Name: RADIO Basic Test Report Application Number: Declare the Circuit, PCB Layout, Electrical Parts and Outlook of the following product(s) are identical to the basic model: New / Additional Model Number(s): IBoost MW1473, 7199-45TI, 10823700 New / Additional Brand Name(s): IBoost, ifidelity, Except the following(s) : MODEL NUMBER ,BRAND NAME THE OTHER IS THE SAME Remarks: Signature with Company Chop : Printed Name : DATE:2014-7-10

PAGE 2 OF 3 SHENZHEN MANIWAY ELECTRONICS LIMITED BLDG. 8, SANLIAN HEBEI INDUSTRIAL ESTATE, LONGHUA STREET, BAO'AN DIST., SHENZHEN,CHINA TEL86-755-2813 1616 FAX86-755-2815 2770 Date : 2014-11-6 PHOENIX TESTLAB GmbH Königswinkel 10 D-32825 Blomberg Dear Sirs, Re. : Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. Mr. KC Lee as agent for SHENZHEN MANIWAY ELECTRONICS LIMITED, BLDG. 8, SANLIAN HEBEI INDUSTRIAL ESTATE, LONGHUA STREET, BAO’AN DIST., SHENZHEN, CHINA to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of SHENZHEN MANIWAY ELECTRONICS LIMITED. Product name : RADIO Model : MW-1473 This authorization will expire one year from the date of this letter. Signed & dated by the Company Representative: Wan Ming Title: Sales Manager

PAGE 1 OF 3 SHENZHEN MANIWAY ELECTRONICS LIMITED BLDG. 8, SANLIAN HEBEI INDUSTRIAL ESTATE, LONGHUA STREET, BAO'AN DIST., SHENZHEN,CHINA TEL 86-755-2813 1616 FAX86-755-2815 2770 Company Name: SHENZHEN MANIWAY ELECTRONICS LIMITED Address: BLDG. 8, SANLIAN HEBEI INDUSTRIAL ESTATE, LONGHUA STREET, BAO’AN DIST., SHENZHEN, CHINA Date : 2014-11-6 FCC ID: OG5MW1473 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Specifically, “SHENZHEN MANIWAY ELECTRONICS LIMITED” requests that the following materials be withheld from public inspection under 47CFR 0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list (3) block diagram (4) Circuit Description (5) All specification Therefore, in accordance with 47CFR Sections 0.457 and 0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection. Sincerely, Signed & dated by the Company Representative: Wan Ming Title: Sales Manager

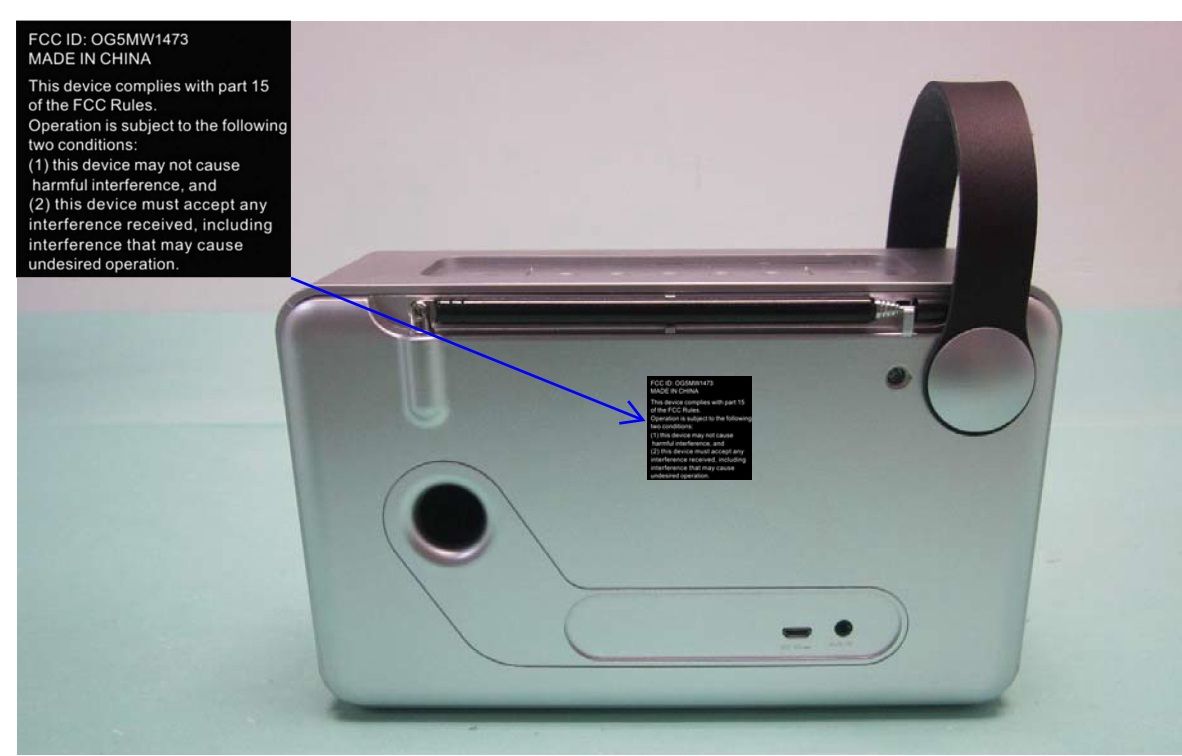

FCC ID: OG5MW1473 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT FCC ID: OG5MW1473 PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT FCC ID: OG5MW1473 PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT FCC ID: OG5MW1473 PHOTOGRAPH OF THE PRODUCT

FCC ID: OG5MW1473 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW FCC ID: OG5MW1473 PHOTOGRAPH OF THE PRODUCT FCC ID: OG5MW1473 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW FCC ID: OG5MW1473 PHOTOGRAPH OF THE PRODUCT FCC ID: OG5MW1473 PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2014-11-11 Page 1 of 93 No.: DM117479 Applicant: Shenzhen Maniway Electronics Limited Bldg 8, Sanlian Hebei Industrial Estate, Longhua Street, Bao’an District, Shenzhen, China Manufacturer: Shenzhen Maniway Electronics Limited Bldg 8, Sanlian Hebei Industrial Estate, Longhua Street, Bao’an District, Shenzhen, China Description of Sample(s): Product: Radio Brand Name: MANIWAY Model Number: MW-1473 FCC ID: OG5MW1473 Date Sample(s) Received: 2014-11-04 Date Tested: 2014-11-06 to 2014-11-11 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2013 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional model(s) details, see page 3 LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report Date: 2014-11-11 Page 2 of 93 No.: DM117479 CONTENT: Cover Page 1 of 93 Content Page 2-3 of 93 1.0 General Details 1.1 Test Laboratory Page 4 of 93 1.2 Equipment Under Test [EUT] Page 4 of 93 Description of EUT operation 1.3 Date of Order Page 4 of 93 1.4 Submitted Sample Page 4 of 93 1.5 Test Duration Page 4 of 93 1.6 Country of Origin Page 4 of 93 1.7 RF Module Details Page 5 of 93 1.8 Antenna Details Page 5 of 93 2.0 Technical Details 2.1 Investigations Requested Page 6 of 93 2.2 Test Standards and Results Summary Page 6 of 93 2.3 Table for Test Modes Page 7 of 93 3.0 Test Results 3.1 Emission Page 8 - 87 of 93 STC Test Report Date: 2014-11-11 Page 3 of 93 No.: DM117479 Appendix A List of Measurement Equipment Page 88 of 93 Appendix B Ancillary Equipment Page 88 of 93 Appendix C Photographs Page 89-93 of 93 STC Test Report Date: 2014-11-11 Page 4 of 93 No.: DM117479 1.0 General Details 1.1 Test Laboratory STC (Dongguan) Company Limited EMC Laboratory 68 Fumin Nan Road, Dalang, Dongguan, Guangdong, China Telephone: (86 769) 81119888 Fax: (86 769) 81116222 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Radio Manufacturer: Shenzhen Maniway Electronics Limited Brand Name: MANIWAY Additional Brand Name(s): IBoost, ifidelity Model Number: MW-1473 Additional Model Number(s): IBoost MW1473, 7199-45TI, 10823700 Rating: 5Vd.c. with Jack The AC/DC adaptor was provided by the applicant with following details: Brand name: pse; Model no.: PSEA050150U USB2; Input: 100-240Va.c. 50/60Hz 0.25A; Output: 5Vd.c. 1.5A. 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a FM broadcast radio receiver with Bluetooth function. The r.f. signal is modulated by IC and type of modulation is frequency hopping spread spectrum Modulation. 1.3 Date of Order 2014-11-04 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2014-11-06 to 2014-11-11 1.6 Country of Origin China STC Test Report Date: 2014-11-11 Page 5 of 93 No.: DM117479 1.7 RF Module Details Module Model Number: F-3076 Module FCC ID: N/A Module Transmission Type: Bluetooth V3.0+ EDR Modulation: FHSS (GFSK / π/4-DQPSK / 8DPSK) Data Rates: 1MBps: GFSK 2 MBps: π/4-DQPSK 3 MBps: 8DPSK Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: Meander line antenna Antenna Gain: 0dBi STC Test Report Date: 2014-11-11 Page 6 of 93 No.: DM117479 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2013 Regulations. FCC Pubic Notice DA 00-705 and ANSI C63.4: 2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Maximum Peak Conducted Output Power FCC 47CFR 15.247(b)(1) FCC Pubic Notice DA 00-705 N/A Radiated Spurious Emissions FCC 47CFR 15.209 ANSI C63.4:2009 N/A AC Mains Conducted Emissions FCC 47CFR 15.207 ANSI C63.4:2009 N/A Number of Hopping Frequency FCC 47CFR 15.247(a)(2)(b)(1) FCC Pubic Notice DA 00-705 N/A 20dB Bandwidth FCC 47CFR 15.247(a)(2) FCC Pubic Notice DA 00-705 N/A Hopping Channel Separation FCC 47CFR 15.247(a)(1) FCC Pubic Notice DA 00-705 N/A Band-edge measurement (Radiated) FCC 47CFR 15.247(c) FCC Pubic Notice DA 00-705 N/A Pseudorandom Hopping Algorithm FCC 47CFR 15.247(a)(1) N/A N/A Time of Occupancy (Dwell Time) FCC 47CFR 15.247(a)(1)(iii) FCC Pubic Notice DA 00-705 N/A Antenna requirement FCC 47CFR 15.203 N/A N/A RF Exposure FCC 47CFR 15.247(i) N/A N/A Note: N/A – Not Applicable STC Test Report Date: 2014-11-11 Page 7 of 93 No.: DM117479 2.3 Table for Test Modes Preliminary tests were performed in different data rate to find the worst radiated emission. The data rate in the table below is the worst case rate with respect to the specific test item. Investigation has been done on all the possible configurations for searching the worst cases. The following table is a list of the test modes shown in this test report. Test Items Mode Data Rate Maximum Peak Conducted Output Power GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Hopping Channel Separation GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Number of Hopping Frequency GFSK / π/4-DQPSK / 8DPSK 2MBps Time of Occupancy(Dwell Time) 8DPSK (DH1 / DH3 / DH5) 2MBps Radiated Spurious Emissions GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Band-edge compliance of Conducted Emission GFSK / π/4-DQPSK / 8DPSK 2MBps STC Test Report Date: 2014-11-11 Page 8 of 93 No.: DM117479 3.0 Test Results 3.1 Emission 3.1.1 Maximum Peak Conducted Output Power Test Requirement: FCC 47CFR 15.247(b)(1) Test Method: FCC Pubic Notice DA 00-705 Test Date: 2014-08-09 Mode of Operation: Tx mode T…
