Maniway WALL MOUNTABLE 2.1CH BLUETOOTH SOUNDBAR SPEAKER WITH BUILT-IN SUBWOOFER USER MANUAL MW-1481 PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE. E‐1 WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The Caution Marking is located at the bottom of the apparatus. The Rating plate is located at the bottom enclosure of the apparatus IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that product heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for a long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. This appliance shall not be exposed to dripping or splashing water and that no object filled with liquids such as vases shall be placed on the apparatus. E‐2 16. Do not overload wall outlet. Use only power source as indicated. 17. Use replacement part as specified by the manufacturer. 18. The product may be mounted to a wall only if recommended by the manufacturer. 19. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks. 20. Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instruction. 21. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 22. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance - this indicates a need for service. 23. Main plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely. 24. The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like. 25. Excessive sound pressure from earphones and headphone can cause hearing loss. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF AC PLUG TO WIDE SLOT. FULLY INSERT. SAVE THESE INSTRUCTIONS E‐3 COMPLIANCE WITH FCC REGULATIONS FCC ID OG5MW1481 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct th…

Text truncated - open the document above for the full version.

Updated on 2005/02/07 by Kally Chan To : STC (DongGuan) COMPANY LIMITED DECLARATION OF IDENTITY Hereby we: SHENZHEN MANIWAY ELECTRONICS LIMITED (Name of Applicant) Basic Model Number: MW-1481 Basic Brand Name: MANIWAY Basic Product Name: Wall Mountable 2.1CH Bluetooth Soundbar Speaker with Built-in Subwoofer Basic Test Report Application Number: DM118475 Declare the Circuit, PCB Layout, Electrical Parts and Outlook of the following product(s) are identical to the basic model: New / Additional Model Number(s): MW-1482，JSBW-750 New / Additional Brand Name(s): MANIWAY, JENSEN Except the following(s) : MODEL NUMBER ,BRAND NAME THE OTHER IS THE SAME Remarks: Signature with Company Chop : Printed Name : Wan Ming DATE: 2015-02-11

Page 4 SHENZHEN MANIWAY ELECTRONICS LIMITED BLDG. 8, SANLIAN HEBEI INDUSTRIAL ESTATE, LONGHUA STREET, BAO'AN DIST., SHENZHEN,CHINA TEL ：86-755-2813 1616 FAX：86-755-2815 2770 Date : 2015-02-10 PHOENIX TESTLAB GmbH Königswinkel 10 D-32825 Blomberg Dear Sirs, Re. : Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. Mr. KC Lee as agent for SHENZHEN MANIWAY ELECTRONICS LIMITED , BLDG. 8, SANLIAN HEBEI INDUSTRIAL ESTATE, LONGHUA STREET, BAO'AN DISTRICT, SHENZHEN,CHINA to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of SHENZHEN MANIWAY ELECTRONICS LIMITED. Product name: Wall Mountable 2.1 Channel Bluetooth Soundbar Speaker with Built-in Subwoofer Mode: MW-1481 This authorization will expire one year from the date of this letter. Print name：Wan Ming Title: Sales Manager Signature:

Page 3 SHENZHEN MANIWAY ELECTRONICS LIMITED BLDG. 8, SANLIAN HEBEI INDUSTRIAL ESTATE, LONGHUA STREET, BAO'AN DIST., SHENZHEN,CHINA TEL ：86-755-2813 1616 FAX：86-755-2815 2770 Company Name: SHENZHEN MANIWAY ELECTRONICS LIMITED Address: BLDG. 8, SANLIAN HEBEI INDUSTRIAL ESTATE, LONGHUA STREET, BAO'AN DIST., SHENZHEN,CHINA Date :2015-02-10 FCC ID: OG5MW1481 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Specifically, “ SHENZHEN MANIWAY ELECTRONICS LIMITED” requests that the following materials be withheld from public inspection under 47CFR 0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list (3) block diagram (4) Circuit Description Therefore, in accordance with 47CFR Sections 0.457 and 0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection. Sincerely, Print name：Wan Ming Title: Sales Manager Signature:

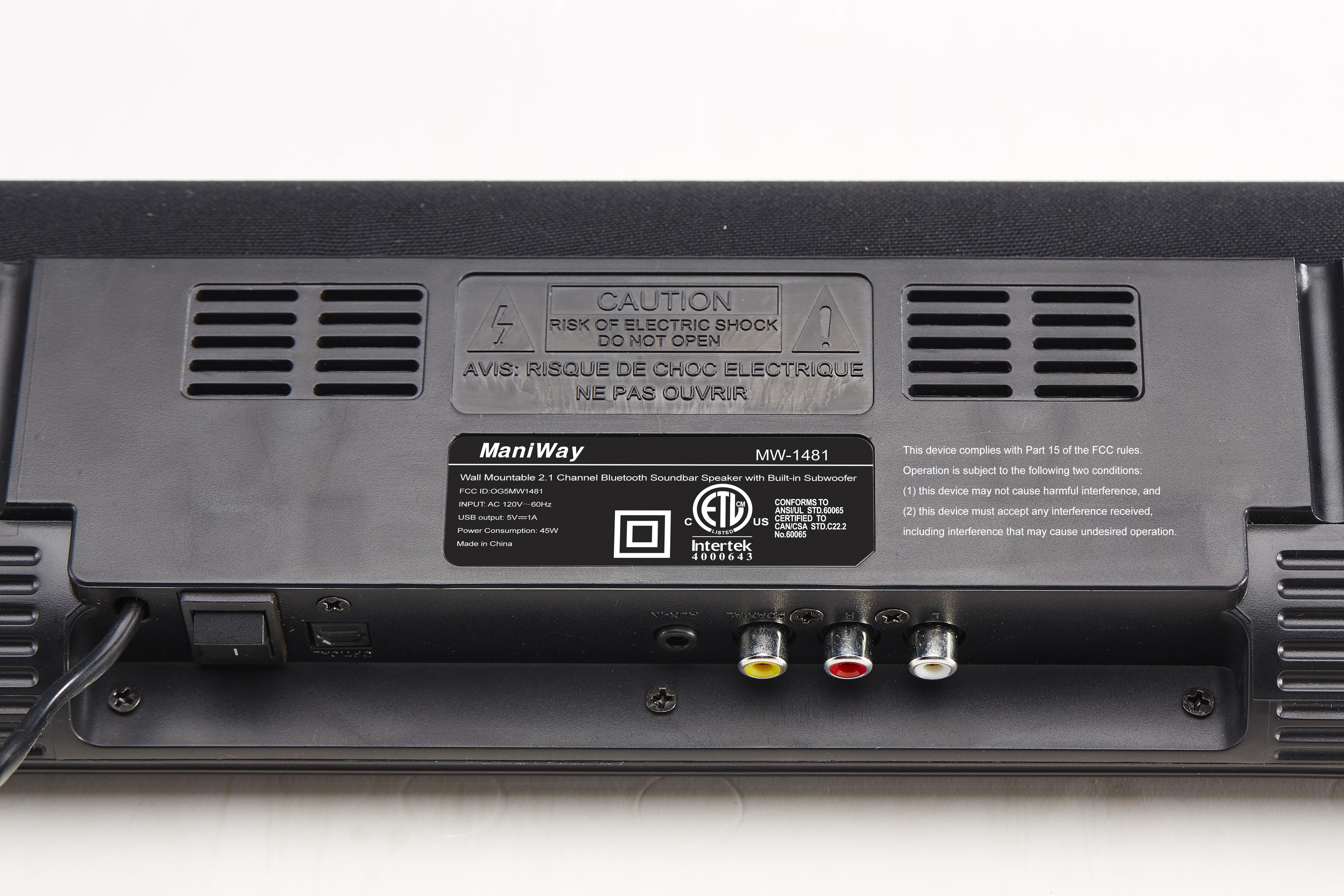

PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2015-02-10 Page 1 of 88 No.: DM118475 Applicant: Shenzhen Maniway Electronics Limited Bldg 8, Sanlian Hebei Industrial Estate, Longhua Street, Bao’an District, Shenzhen, China Manufacturer: Shenzhen Maniway Electronics Limited Bldg 8, Sanlian Hebei Industrial Estate, Longhua Street, Bao’an District, Shenzhen, China Description of Sample(s): Product: Wall Mountable 2.1 Channel Bluetooth Soundbar Speaker with Built-in Subwoofer Brand Name: MANIWAY Model Number: MW-1481 FCC ID: OG5MW1481 Date Sample(s) Received: 2015-01-29 Date Tested: 2015-02-02 to 2015-02-06 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional model(s) details, see page 4. LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report Date: 2015-02-10 Page 2 of 88 No.: DM118475 CONTENT: Cover Page 1 of 88 Content Page 2-3 of 88 1.0 General Details 1.1 Test Laboratory Page 4 of 88 1.2 Equipment Under Test [EUT] Page 4 of 88 Description of EUT operation 1.3 Date of Order Page 4 of 88 1.4 Submitted Sample Page 4 of 88 1.5 Test Duration Page 4 of 88 1.6 Country of Origin Page 4 of 88 1.7 RF Module Details Page 5 of 88 1.8 Antenna Details Page 5 of 88 2.0 Technical Details 2.1 Investigations Requested Page 6 of 88 2.2 Test Standards and Results Summary Page 6 of 88 2.3 Table for Test Modes Page 7 of 88 3.0 Test Results 3.1 Emission Page 8 – 83 of 88 STC Test Report Date: 2015-02-10 Page 3 of 88 No.: DM118475 Appendix A List of Measurement Equipment Page 84 of 88 Appendix B Photographs Page 85-88 of 88 STC Test Report Date: 2015-02-10 Page 4 of 88 No.: DM118475 1.0 General Details 1.1 Test Laboratory STC (Dongguan) Company Limited EMC Laboratory 68 Fumin Nan Road, Dalang, Dongguan, Guangdong, China Telephone: (86 769) 81119888 Fax: (86 769) 81116222 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Wall Mountable 2.1 Channel Bluetooth Soundbar Speaker with Built-in Subwoofer Manufacturer: Shenzhen Maniway Electronics Limited Brand Name: MANIWAY Additional Brand Name: MANIWAY , JENSEN Model Number: MW-1481 Additional Model Number(s): MW-1482, JSBW-750 Rating: 120Va.c. 60Hz 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a Wireless Soundbar. The r.f. signal was modulated by IC and type of modulation was frequency hopping spread spectrum Modulation. 1.3 Date of Order 2015-01-29 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2015-02-02 to 2015-02-06 1.6 Country of Origin China STC Test Report Date: 2015-02-10 Page 5 of 88 No.: DM118475 1.7 RF Module Details Module Model Number: F-3066 Module FCC ID: N/A Module Transmission Type: Bluetooth V3.0+ EDR Modulation: FHSS (GFSK / π/4-DQPSK / 8DPSK) Data Rates: 1MBps: GFSK 2 MBps: π/4-DQPSK 3 MBps: 8DPSK Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: Meander line antenna Antenna Gain: 0dBi STC Test Report Date: 2015-02-10 Page 6 of 88 No.: DM118475 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 Regulations. FCC Pubic Notice DA 00-705 and ANSI C63.4: 2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Maximum Peak Conducted Output Power FCC 47CFR 15.247(b)(1) FCC Pubic Notice DA 00-705 N/A Radiated Spurious Emissions FCC 47CFR 15.209 ANSI C63.4:2009 N/A AC Mains Conducted Emissions FCC 47CFR 15.207 ANSI C63.4:2009 N/A Number of Hopping Frequency FCC 47CFR 15.247 (b)(1) FCC Pubic Notice DA 00-705 N/A 20dB Bandwidth FCC 47CFR 15.247(a)(2) FCC Pubic Notice DA 00-705 N/A Hopping Channel Separation FCC 47CFR 15.247(a)(1) FCC Pubic Notice DA 00-705 N/A Band-edge measurement (Radiated) FCC 47CFR 15.247(c) FCC Pubic Notice DA 00-705 N/A Pseudorandom Hopping Algorithm FCC 47CFR 15.247(a)(1) N/A N/A Time of Occupancy (Dwell Time) FCC 47CFR 15.247(a)(1)(iii) FCC Pubic Notice DA 00-705 N/A Antenna requirement FCC 47CFR 15.203 N/A N/A RF Exposure FCC 47CFR 15.247(i) N/A N/A Note: N/A – Not Applicable STC Test Report Date: 2015-02-10 Page 7 of 88 No.: DM118475 2.3 Table for Test Modes Preliminary tests were performed in different data rate to find the worst radiated emission. The data rate in the table below is the worst case rate with respect to the specific test item. Investigation has been done on all the possible configurations for searching the worst cases. The following table is a list of the test modes shown in this test report. Test Items Mode Data Rate Maximum Peak Conducted Output Power GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Hopping Channel Separation GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Number of Hopping Frequency GFSK / π/4-DQPSK / 8DPSK 2MBps Time of Occupancy(Dwell Time) 8DPSK (DH1 / DH3 / DH5) 2MBps Radiated Spurious Emissions GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Band-edge compliance of Conducted Emission GFSK / π/4-DQPSK / 8DPSK 2MBps STC Test Report Date: 2015-02-10 Page 8 of 88 No.: DM118475 3.0 Test Results 3.1 Emission 3.1.1 Maximum Peak Conducted Output Power Test Requirement: FCC 47CFR 15.247(b)(1) Test Method: FCC Pubic Notice DA 00-705 Test Date: 2015-02-03 Mode of Operation: Tx mode Test Method: The RF output of the EUT was connected to the spectrum analyzer. All the attenuation or cable loss will be added to the mea…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF CONDUCTED EMISSION TEST SET UP
