OGM1268TX-27RC Toy Transmitter Steel Monster

FCCConfidentialityRequest TotheFCCandFCCTCBhandlingthisapplicationforcertification Pursuantto 47CFRSection0.459(a)& (b),we, (theapplicantIgrantee) Companyname Addresss City Country EnertecEnterprisesLtd. UG303,UG3 ChinachemGoidenPlaza,77ModyRoad,T.S.T.East, Kowloon HongKong requestnonedisclosureandconfidentialtreatmentforourcertificationunder: GranteeCodeProductNumber !FCC10: OGM 1268TX-27 ofthefollowingmaterialssubmittedwithinthiscertificationapplication: (pleasecrosswhatisapplicable,oraddotherdocuments) xOperationalDescription xBlockDiagrams xSchematicsDiagrams Abovematerialscontainsecrets,proprietaryandtechnicalinformation,whichwouldcustomarilybeguardedfromcompetitors under47CFR,section0.457(d)(2).Disclosure orpublicationoranyportionofthiscompanyconfidentialmaterialtoother partiescouldcausesubstantialcompetitiveharmandprovideunjustifiedbenefitsforcompetitors. Weunderstandthatpursuant to 47CFRsection0.457(dX1Xii)disclosureoftheapplicantandallaccompanyingdocumentationwillnotbemadebeforethe date ofthegrant. Attestation: CityandCountry:Date:Name: Function: Signature: (thismustbeaperson) (orofficialcompany~!' TobyCHI ManagingDirector ~, (A,,;) KOv'lj ].012./"1/4, ,;,-·.~J4>;' ~ ~;-,,\""--b I

APPENDIX-Photographs of EUT Constructional Details

FCC RADIO TEST REPORT FCC ID: OGM1268TX-27 Product： 4X4 RC Steel Monster Trade Name： N/A Model Name： 1268 Serial Model： 30514 Report No.： NTEK-2012DG0703057F Prepared for Enertec Enterprises Ltd. UG303, UG3 Chinachem Golden Plaza, 77 Mody Road, T.S.T. East,Kownloon, Hong Kong. Prepared by NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 24 Report No.: NTEK-2012DG0703057F ` TEST RESULT CERTIFICATION Applicant’s name ................. : Enertec Enterprises Ltd. Address ................................. : UG303, UG3 Chinachem Golden Plaza, 77 Mody Road, T.S.T. East,Kownloon, Hong Kong. Manufacture's Name ............ : Enertec Enterprises Ltd. Address ................................. : UG303, UG3 Chinachem Golden Plaza, 77 Mody Road, T.S.T. East,Kownloon, Hong Kong. Product description Product name ........................... : 4X4 RC Steel Monster Model and/or type reference : 1268 Serial Model： 30514 Rating(s) ................................ : DC 3V by battery Standards ............................. : FCC Part15.227 Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 25 Jun. 2012 ~2 Jul. 2012 Date of Issue ........................................... : 2 Jul. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 24 Report No.: NTEK-2012DG0703057F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 3.3 CONDUCTED EMISSION MEASUREMENT 12 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.3.2 TEST PROCEDURE 13 3.3.3 DEVIATION FROM TEST STANDARD 13 3.3.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.4 RADIATED EMISSION MEASUREMENT 15 3.4.1 RADIATED EMISSION LIMITS 15 3.4.3 TEST PROCEDURE 16 3.4.4 DEVIATION FROM TEST STANDARD 16 3.4.5 TEST SETUP 17 3.4.6 TEST RESULTS (RADIATED EMISSION OF CARRIER FREQUENCY) 18 3.4.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4 . BANDWIDTH TEST 22 4.1 TEST PROCEDURE 22 4.2 DEVIATION FROM STANDARD 22 4.3 TEST SETUP 22 4.4 TEST RESULTS 23 5 . EUT TEST PHOTO 24 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 24 Report No.: NTEK-2012DG0703057F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.227) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.227 Radiated Spurious Emission Pass 15.227 Occupied Bandwidth Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 5 of 24 Report No.: NTEK-2012DG0703057F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC FRN Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 24 Report No.: NTEK-2012DG0703057F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment 4X4 RC Steel Monster Model Name 1268 Serial Model 30514 Model Difference All the models are identical except the model name. Product Description The EUT is a 4X4 RC Steel Monster Product Type 4X4 RC Steel Monster Operation Frequency: 27.145MHz Modulation Type: FSK Number Of Channel 1CH. Antenna Designation: PCB Printed antenna Antenna Gain(Peak) 0dBi Output Power: 56.55 dBuV/m (AV Max.) Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter N/A Battery DC 3.0V Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A PCB Printed antenna NA 0 Antenna Page 7 of 24 Report No.: NTEK-2012DG0703057F ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX For Conducted Emission Final Test Mode Description Mode 1 TX For Radiated Emission Final Test Mode Description Mode 1 TX Note: (1) The EUT use ne…

Text truncated - open the document above for the full version.

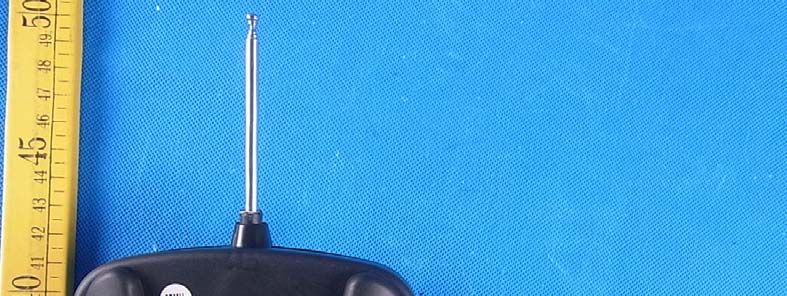

Page 24 of 24 Report No.: NTEK-2012DG0703057F ` 5. EUT TEST PHOTO Radiated Measurement Photos
