OGM7020RX-49RC Toy Receiver

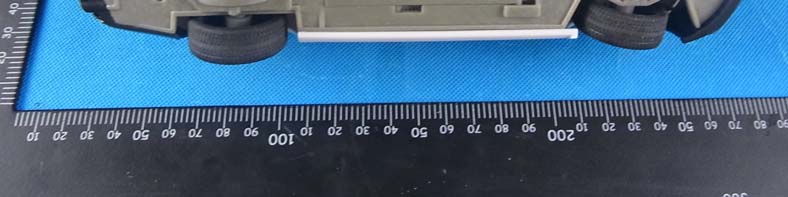

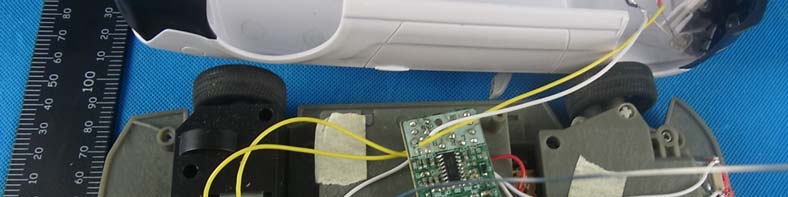

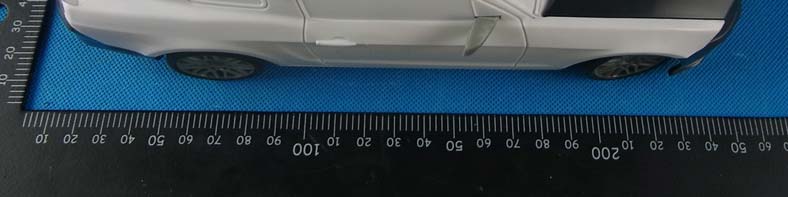

APPENDIX-Photographs of EUT Constructional Details

FCC LABLE

Page 1 of 22 Report No.: NTEK-2012DG0713070E FCC EMC Test Report For Electromagnetic Interference Of Product： Shelby RC Trade Name： N/A Model Number： 7020 Prepared for Enertec Enterprises Ltd. UG303, UG3 Chinachem Golden Plaza, 77 Mody Road, T.S.T. East,Kownloon, Hong Kong. Prepared by NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website: www.ntek.org.cn Page 2 of 22 Report No.: NTEK-2012DG0713070E TEST RESULT CERTIFICATION Applicant’s name ................. : Enertec Enterprises Ltd. Address ................................. : UG303, UG3 Chinachem Golden Plaza, 77 Mody Road, T.S.T. East,Kownloon, Hong Kong. Manufacturer's Name .......... : Enertec Enterprises Ltd. Address ................................. : UG303, UG3 Chinachem Golden Plaza, 77 Mody Road, T.S.T. East,Kownloon, Hong Kong. Product description Product name ........................... : Shelby RC Model and/or type reference : 7020 Standards ............................. : FCC Part15B:2010 ANSI C63.4:2009 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with Part 15 of FCC Rules. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 2 Jul. 2012 ~12 Jul. 2012 Date of Issue ........................................... : 12 Jul. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Jim He) Authorized Signatory : (Bovey Yang) Page 3 of 22 Report No.: NTEK-2012DG0713070E Table of Contents Page 1 . TEST SUMMARY 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 DESCRIPTION OF TEST SETUP 8 2.4 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 9 2.5 MEASUREMENT INSTRUMENTS LIST 10 3 . EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.1.1 POWER LINE CONDUCTED EMISSION 11 3.1.2 TEST PROCEDURE 12 3.1.3 TEST SETUP 12 3.1.4 EUT OPERATING CONDITIONS 12 3.1.5 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 14 3.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT 14 3.2.2 TEST PROCEDURE 14 3.2.3 TEST SETUP 错误！未定义书签。 3.2.4 EUT OPERATING CONDITIONS 15 3.2.5 TEST RESULTS 16 3.2.6 TEST RESULTS(Above 1GHz) 18 4 . EUT TEST PHOTO 19 ATTACHMENT PHOTOGRAPHS OF EUT 20 Page 4 of 22 Report No.: NTEK-2012DG0713070E 1. TEST SUMMARY Test procedures according to the technical standards: EMC Emission Standard Test Item Limit Judgment Remark FCC Part15B:2010 ANSI C63.4: 2009 Conducted Emission Class B N/A Radiated Emission Class B PASS NOTE: (1) ’N/A’ denotes test is not applicable in this Test Report (2) For client’s request and manual description, the test will not be executed. Page 5 of 22 Report No.: NTEK-2012DG0713070E 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration Number:238937; IC Registration Number:9270A-1 CNAS Registration Number:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %. A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE NTEKC01 ANSI 150 KHz ~ 30MHz 3.2 B. Radiated Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE NTEKA01 ANSI 30MHz ~ 1000MHz 4.7 1GHz ~6GHz 5.0 Page 6 of 22 Report No.: NTEK-2012DG0713070E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Shelby RC Model Name 7020 Serial No N/A Model Difference N/A Product Description The EUT is a Shelby RC. Operating frequency: N/A Connecting I/O port: N/A Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Power Source DC Voltage Power Rating DC 6V Page 7 of 22 Report No.: NTEK-2012DG0713070E 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 RX For Conducted Test Final Test Mode Description - - For Radiated Test Final Test Mode Description Mode 1 RX Page 8 of 22 Report No.: NTEK-2012DG0713070E 2.3 DESCRIPTION OF TEST SETUP Mode 1: E-1 EUT Page 9 of 22 Report No.: NTEK-2012DG0713070E 2.4 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Item Equipment Mfr/Brand Model/Type No. Series No. Note E-1 Shelby RC N/A 7020 N/A EUT Item Shielded Type Ferrite Core Length Note Note: (1) The support equipment was authorized by Declaration of Confirmation. (2) For detachable type I/O cable should be specified the length in cm in『Length』column. (3) “YES” means “shielded” “with core”; “NO” means “unshielded” “without core”. Page 10 of 22 Report No.: NTEK-2012DG0713070E 2.5 MEASUREMENT INSTRUMENTS LIST 2.5.1 CONDUCTED TEST SITE Item Kind of Equipment Manufacturer Type …

Text truncated - open the document above for the full version.

Page 19 of 22 Report No.: NTEK-2012DG0713070E 4. EUT TEST PHOTO Radiated Measurement Photos
