OGT2009AAAA1T3, AA2T3, AA3T3, 315MHz Lower Power SRD

FCC ID:OGT2009AA • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radio Transmitters (Part 15) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

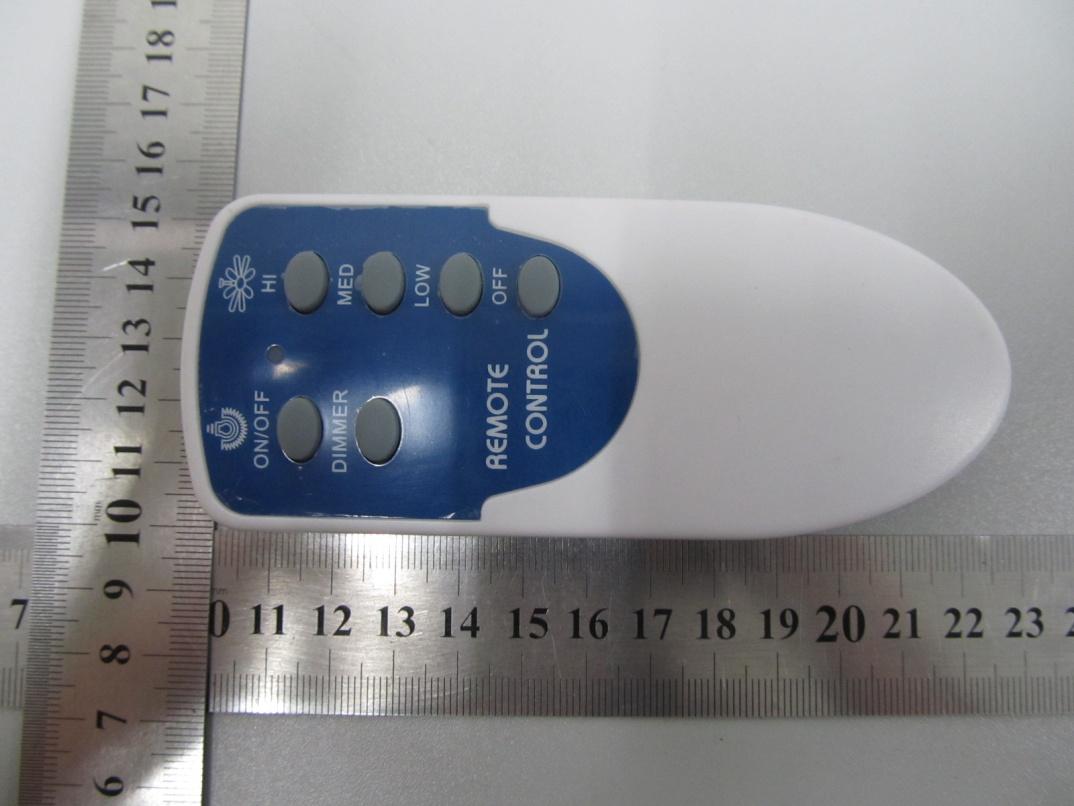

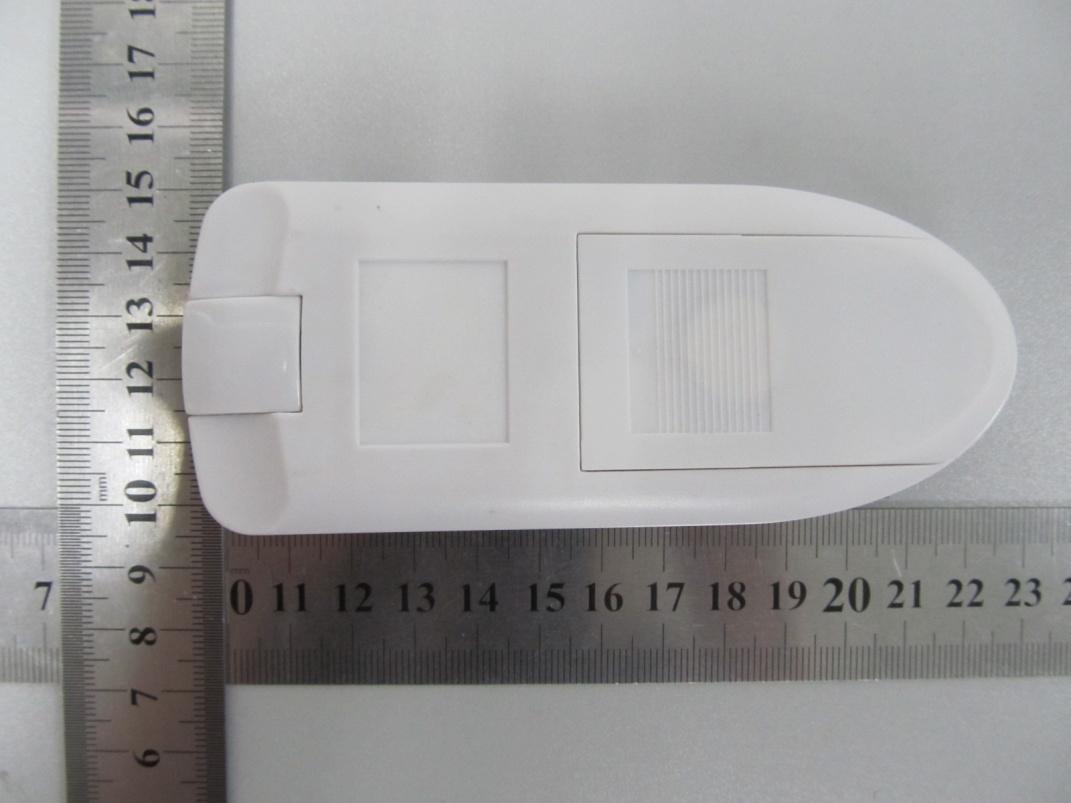

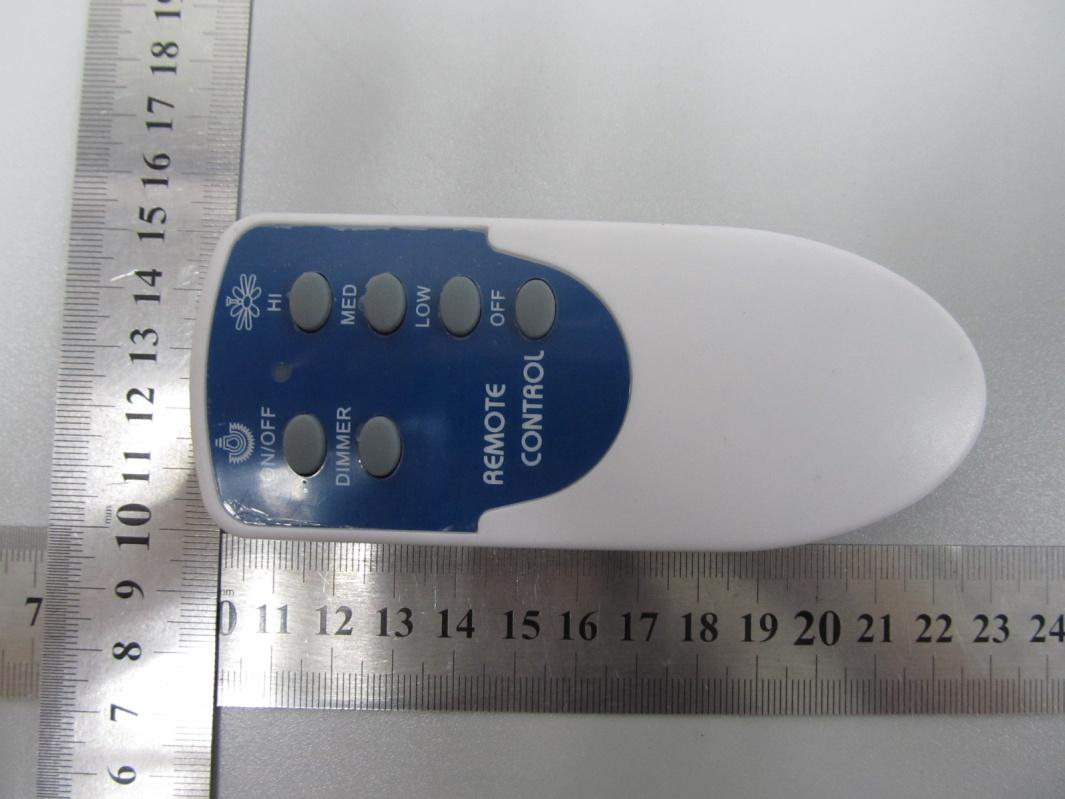

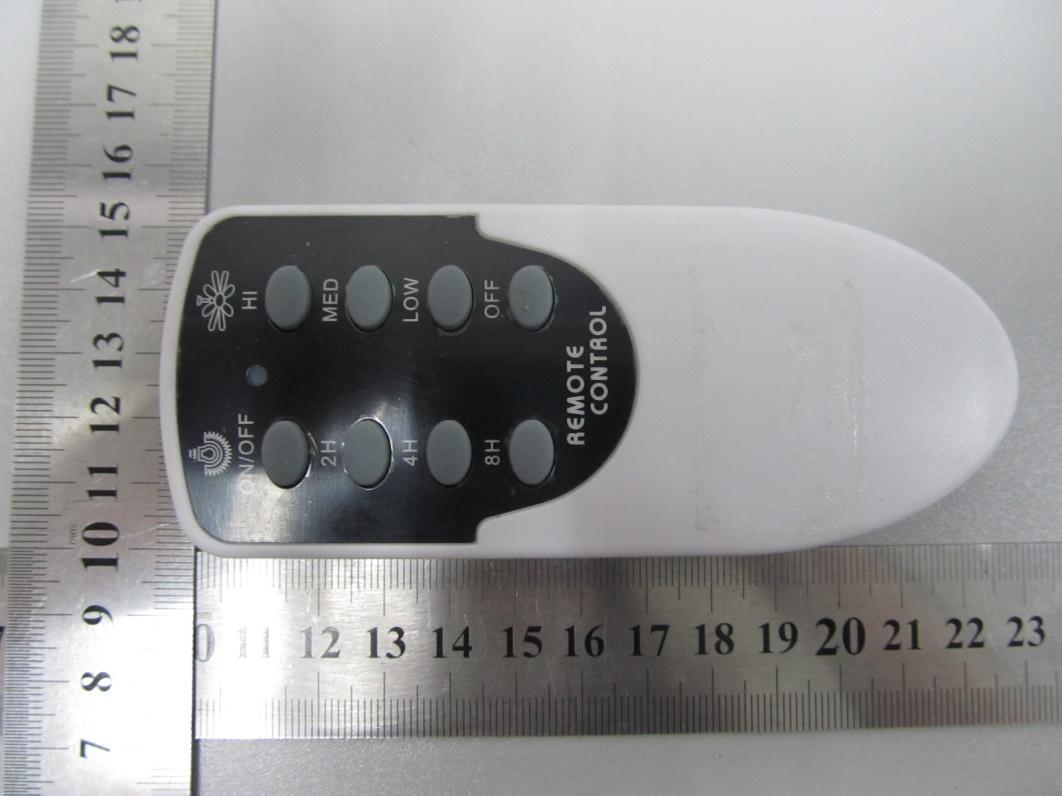

Front View of AA1T3 Front View of AA2T3 Front View of AA3T3 Back View of AA3T1/AA2T3/AA3T3 Side View

Internal Photo of AA1T3/AA2T3/AA3T3

XIN HUI A.A.ELECTRONICS & TOYS LTD A Paragraph Wireless 315MHZ Fan Remote Control Electronic Material List： S/N MATERIAL SPECIFICATION NUMBER ELEMENTPOSITIONS NOTE 1. PCB:AA2012-2TXA 1 Circuit board 2. PCB:AA4450TX 1 Circuit board 3. Resistance 1/8W 1K ±5% 1 R5 4. Resistance 0603 10K ±5% 1 R2 AA4450TX 5. Resistance 1/8W 47K ±5% 1 R4 6. CAP 0603 1P ±1% 1 C6 AA4450TX 7. CAP 0603 12P ±1% 1 C2 AA4450TX 8. CAP 0603 22P ±1% 1 C3 AA4450TX 9. CAP 0603 220P ±5% 1 C1 AA4450TX 10. CAP 0603 100n ±5% 3 C4，C5，C7 AA4450TX 11. Inductance 0603 27n ±10% 1 L2 AA4450TX 12. Inductance 0603 180n ±10% 1 L1 AA4450TX 13. IC：PT4450 1 U2 AA4450TX 14. SMD1206 LED(Red) 1 LED AA2012-2TXA 15. Coding Launch IC： SN8P2501B 1 U1 AA2012-2TXA 16. Four Code Switch 1 SW AA2012-2TXA 17. SAW：315MHZ 1 SAW AA4450TX 18. 4P Thrusting Needle 1 Two Board Fittings 19. Solar Cell Type（Positive） 1 20. Solar Cell Type（Negative） 1 21. Solar Cell Type （Negative Positive） 1 22. 5MM Electronic Jump Line 4 5MM AA2012-2TXA 23. 16MM Electronic Jump Line 1 16MM AA2012-2TXA

Report Number: 64.790.12.00867.01-FCC Page 1 of 21 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd, Huangpu West Ave. Guangzhou 510656 P. R. China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 RF - TEST REPORT Report Number : 64.790.12.00867.01-FCC Date of Issue: 2012-06-29 Model : AA1T3, AA2T3, AA3T3 Product Type : Transmitter FCC ID : OGT2009AA Applicant : XIN HUI A.A. ELECTRONICS & TOYS LTD Address : NO.12,CHAO XING ROAD,HUI CHENG TOWN,XIN HUI DISTRICT, 529100 JIANG MEN CITY,GUANG DONG PROVINCE, PEOPLE'S REPUBLIC OF CHINA Production Facility : XIN HUI A.A. ELECTRONICS & TOYS LTD Address : NO.12,CHAO XING ROAD,HUI CHENG TOWN,XIN HUI DISTRICT, 529100 JIANG MEN CITY,GUANG DONG PROVINCE, PEOPLE'S REPUBLIC OF CHINA Test Result :  Positive  Negative Total pages including Appendices : 21 TÜV SÜD China is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD China reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD China shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD China issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 64.790.12.00867.01-FCC Page 2 of 21 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd, Huangpu West Ave. Guangzhou 510656 P. R. China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Contents 1. DETAILS ABOUT THE TEST LABORATORY ............................................................................... 3 2. DESCRIPTION OF THE EQUIPMENT UNDER TEST ................................................................... 4 3. SUMMARY OF TEST RESULTS .................................................................................................... 5 4. GENERAL REMARKS ................................................................................................................... 6 5. DESCRIPTION OF TEST MODES ................................................................................................. 7 5.1 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED ............................ 8 6. TEST RESULTS ............................................................................................................................. 9 6.1 RADIATED EMISSION MEASUREMENT........................................................................................... 9 6.1.1 Radiated Emission Limits .................................................................................................................. 9 6.1.2 MEASUREMENT INSTRUMENTS LIST .............................................................................................. 10 6.1.3 DUTY CYCLE ..................................................................................................................................... 11 6.1.4 TEST PROCEDURE ............................................................................................................................ 13 6.1.5 DEVIATION FROM TEST STANDARD ................................................................................................ 13 6.1.6 TEST SETUP ...................................................................................................................................... 14 6.1.7 EUT OPERATING CONDITIONS ........................................................................................................ 14 6.1.8 TEST RESULTS(BETWEEN 30 – 5000 MHz) ....................................................................................... 15 6.2 BANDWIDTH TEST .............................................................................................................................. 18 6.2.1 MEASUREMENT INSTRUMENTS LIST .............................................................................................. 18 6.2.2 TEST PROCEDURE ............................................................................................................................ 18 6.2.3 DEVIATION FROM STANDARD ......................................................................................................... 18 6.2.4 EUT OPERATION CONDITIONS ........................................................................................................ 18 6.2.5 TEST RESULTS ................................................................................................................................... 19 6.3 Release Time Test ................................................................................................................................ 20 6.3.1 MEASUREMENT INSTRUMENTS LIST .............................................................................................. 20 6.3.2 TEST PROCEDURE ............................................................................................................................ 20 6.3.3 DEVIATION FROM STANDARD ......................................................................................................... 20 6.3.4 EUT OPERATION CONDITIONS ........................................................................................................ 20 6.3.5 TEST RESULTS ................................................................................................................................... 21 Report Number: 64.790.12.00867.01-FCC Page 3 of…
