OGYFT556649ARC Savage Car

Block Diagram Filter RF power amplifier and Modulator Oscillator 49.860MHz Encoder Control key 49.86MHz ANT I U 1, 128KHZ

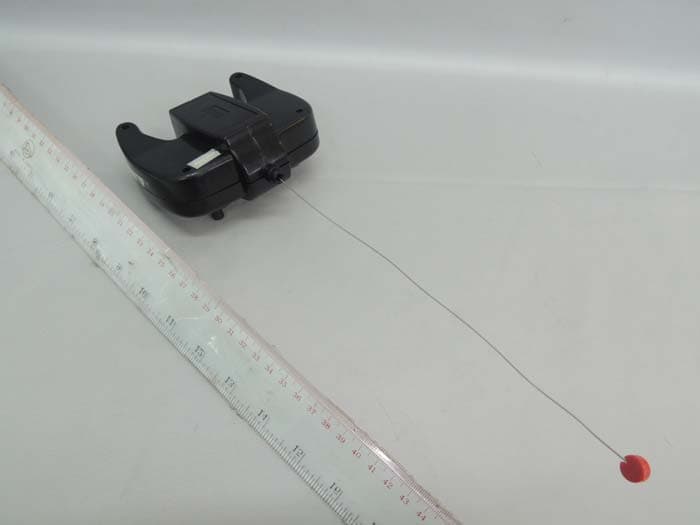

INTERTEK TESTING SERVICE Report No.: 14020671HKG-002 Equipment Photographs Model : 2905036 (External) FCC ID: OGYFT556649A

FT2014A(5566)-27MHz FCC ID label 尺寸：28*24mm FCC ID：OGYFT556627A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FT2014A(5566)-49MH z FCC ID label 尺寸：28*24mm (1) this d evice may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID：OGYFT556649A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

INTERTEK TESTING SERVICE Report No.: 14020671HKG-002 Equipment Photographs Model : 2905036 (Internal) FCC ID: OGYFT556649A INTERTEK TESTING SERVICE Report No.: 14020671HKG-002 Equipment Photographs Model : 2905036 (Internal) FCC ID: OGYFT556649A INTERTEK TESTING SERVICE Report No.: 14020671HKG-002 Equipment Photographs Model : 2905036 (Internal) FCC ID: OGYFT556649A

FCC ID: OGYFT556649A Model: 2905036 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.860 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: S1, S2, S3, S4, U1 2. A RF Oscillator (49.860MHz) Consisting: Y1 3. A Filter Network Consisting: L3, C3, C7 4. A RF Modulator and Amplifier Consisting: 3904, 945 5. A Power Supply Consisting: 9VDC (1 X “9V” battery) Antenna Gain: 0dBi Nominal rated field strength: 76.1dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna.

Analysis Report Report No.: 14020671HKG-002 The Equipment Under Test (EUT) is a transmitter of a RC Car operating at 49.860 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9V battery). The EUT has a left joystick to make the left wheel move forward and reverse and a right joystick to make the right wheel move forward and reverse. After switching ON the EUT and the receiver of the RC Car, activating the joystick on the EUT can control the receiver moving forward, backward, left or right. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 76.1dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 79.1dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0244mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0244mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2014-4-9Sheet of File:F:\2012\..\(49M)WB-607T.schDrawn By: RIGHT 1 NC 2 GND 3 BACK 4 FOR 5 TURB 6 SC 7 SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 NC 13 LEFT 14 U1 TX-2B BL1 1.0UH L2 2.2UH E1 ANTENNA Y1 49.860MHZ 945 BT1 9V 3904 LED1 D1 3.6V L3 8.2UH SW SPDT R2 330R R4 200K R5 15K C5 47P C6 151P C3 471P C1 104P S1S2S3S4 R3 200K R1 2.2K C2 104P C7 47P D2 4148 P0BT101 P0BT102 P0C101 P0C102 P0C201 P0C202 P0C301 P0C302 P0C501 P0C502 P0C601 P0C602 P0C701 P0C702 P0D101 P0D102 P0D201 P0D202 P0E101 P0L101 P0L102 P0L201 P0L202 P0L301 P0L302 P0LED10A P0LED10K P0Q101 P0Q102 P0Q103 P0Q201 P0Q202 P0Q203 P0R101 P0R102 P0R201 P0R202 P0R301 P0R302 P0R401 P0R402 P0R501 P0R502 P0S101 P0S102 P0S201 P0S202 P0S301 P0S302 P0S401 P0S402 P0S?01 P0S?02 P0S?03 P0U101 P0U102 P0U103 P0U104 P0U105 P0U106 P0U107 P0U108 P0U109 P0U1010 P0U1011 P0U1012 P0U1013 P0U1014 P0Y101 P0Y102 P0BT102 P0C102 P0C202 P0C601 P0C702 P0D101 P0LED10K P0Q103 P0Q203 P0S102 P0S202 P0S302 P0S402 P0U103 P0BT101 P0S?01 P0C101 P0D202 P0L101 P0L201 P0R201 P0C201 P0D102 P0R101 P0R202 P0U109 P0C301 P0C701 P0L301 P0C302 P0L202 P0Q202 P0C501 P0L102 P0Q102 P0Y102 P0C502 P0C602 P0Q201 P0R502 P0D201 P0S?03 P0E101 P0L302 P0LED10A P0R102 P0Q101 P0R402 P0Y101 P0R301 P0U1012 P0R302 P0U1011 P0R401 P0U1010 P0R501 P0U108 P0S101 P0U1014 P0S201 P0U101 P0S301 P0U104 P0S401 P0U105 P0S?02 P0U102 P0U106 P0U107 P0U1013

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 14020671HKG-002 Huilai Fengtai Plastics & Ironware Ltd. Application For Certification (Original Grant) (FCC ID: OGYFT556649A) Transmitter Prepared and Checked by: Approved by: Signed On File Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, Chris Lead Engineer Date: April 07, 2014 INTERTEK TESTING SERVICES Report No.: 14020671HKG-002 FCC ID: OGYFT556649A i GENERAL INFORMATION Huilai Fengtai Plastics & Ironware Ltd. BRAND NAME: N/A, MODEL: 2905036 FCC ID: OGYFT556649A Grantee: Huilai Fengtai Plastics & Ironware Ltd. Grantee Address: Huaqing Village Xianan Town Hui Lai County, Jieyan Guangdong Province, China. Contact Person: Allen Cai Tel: +8613809671997 Fax: +8675486989759 e-mail: N/A Buyer: Merchsource LLC Manufacturer: Huilai Fengtai Plastics & Ironware Ltd. Manufacturer Address: Huaqing Village Xianan Town Hui Lai county, Jieyan Guangdong Province, China. Brand Name: N/A Model: 2905036 Type of EUT: Transmitter Description of EUT: RC Savage Car Serial Number: N/A FCC ID: OGYFT556649A Date of Sample Submitted: February 25, 2014 Date of Test: February 25, 2014 to April 04, 2014 Report No.: 14020671HKG-002 Report Date: April 07, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 14020671HKG-002 FCC ID: OGYFT556649A ii SUMMARY OF TEST RESULT Huilai Fengtai Plastics & Ironware Ltd. BRAND NAME: N/A, MODEL: 2905036 FCC ID: OGYFT556649A TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 14020671HKG-002 FCC ID: OGYFT556649A iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 4.0 Equipment Photographs ................................................................................ 6 5.0 Product Labelling........................................................................................... 6 6.0 Technical Specifications ................................................................................ 6 7.0 Instruction Manual ......................................................................................... 6 8.0 Miscellaneous Information............................................................................ 7 8.1 Measured Bandwidth .................................................................................... 7 8.2 Discussion of Pulse Desensitization ...................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14020671HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 2905036 FCC ID: OGYFT556649A INTERTEK TESTING SERVICE Report No: 14020671HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 2905036 FCC ID: OGYFT556649A
