OHT01060512Keyless Entry

STRATTEC Security Corporation FCC ID OHT01060512 IC 5461A-01060512 Page 1 of 7 User Manual Information and Product Description of the Flap Key – Family BOSCH with Chevy, GMC and GM Logo STRATTEC Security Corporation FCC ID OHT01060512 IC 5461A-01060512 Page 2 of 7 General Description of the RF transmitter: The RF remote control system consists of a RF transmitter. The Operation Frequency for the RKE function is 315 MHz and will be used as a portable device. The RF transmitter is mechanically integrated into the Key Fob Housing. This transmitter is used to transmit information for locking or unlocking the vehicle by a unidirectional RF transmission line for normal remote operation by pressing a button. Intended environment conditions: - 10 degree Celsius to + 55 degree Celsius In general the following functions are provided: - Lock the car - Unlock the car - Unlock the trunk of the car - Panic Alarm - Remote Start Label Information: Model Name: Flap Key Family Bosch STRATTEC Security Corporation FCC ID OHT01060512 IC 5461A-01060512 Page 3 of 7 Variants: Flap Key Family BOSCH 314.80 MHz (3-5 Buttons): 13504200 5912543 4 Button Chevy 13500222 5911515 4 Button Chevy 13504199 5912545 5 Button Chevy 13500221 5911516 5 Button Chevy 20873621 5913598 3 Button Chevy 20835406 5913281 3 Button Chevy 20873620 5913597 4 Button + RS Chevy 20835404 5913279 4 Button + RS Chevy 13504258 5912547 4 Button GMC 13501513 5910212 4 Button GMC 13504259 5912548 5 Button GMC 13501514 5910213 5 Button GMC 20873623 5913596 3 Button GMC 20835402 5913286 3 Button GMC 20873622 5913595 4 Button GMC 20835400 5913283 4 Button GMC N/A 5913396 4 Button GM N/A 5913397 5 Button GM Remote Keyless Entry: The hand-held radio Transmitter allows to lock/ unlock the car doors, remotely start the car, open the trunk and activate the panic alarm within a range of around 100m of the vehicle. 1.) To unlock doors Press and release the UNLOCK Button on the RF Transmitter once to unlock. STRATTEC Security Corporation FCC ID OHT01060512 IC 5461A-01060512 Page 4 of 7 2.) To lock doors Press and release the LOCK Button on teh RF Transmitter once to lock. 3.) Trunk Press and release the TRUNK Button on the RF Transmitter once to open the Trunk. 4.) Panic Alarm Press and release the PANIC Button on the RF Transmitter once to turn the Panic Alarm ON and OFF. 5.) Remote Start This button allows the user to remotely start the engine of the vehicle. Notes: If any of the buttons are pressed and not released within 60 second duration the RF transmitter will stop transmitting and shut down to prevent the battery drainage. STRATTEC Security Corporation FCC ID OHT01060512 IC 5461A-01060512 Page 5 of 7 Power Supply: The RF transmitter is battery powered with 1 Lithium battery CR 2032, supplying +3V power, which is installed into the PCB battery holder facing + side down. The display in the instrument cluster of the vehicle will inform the user when the battery of the RF transmitter is getting low (weak). The battery indicator light in the instrument cluster flashes when the battery voltage level is decreasing to a lower than 2.3 V, the battery should be replaces. The minimum operating voltage is approximately 2.1 V. If the voltage drops below 2.1 V the RF transmitter will not operate and battery needs to be replaced. Battery: Replacing the battery: Open the battery cover having transmitter buttons facing down. STRATTEC Security Corporation FCC ID OHT01060512 IC 5461A-01060512 Page 6 of 7 Remove the old battery carefully from the battery compartment. Replace the new battery +-side facing up. Avoid touching the new batteries with fingers, skin oils may cause battery deterioration. Do not touch the PCB or the battery clip. WARNING: This device complies with the Part 15 of the FCC Rules and with the RDSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. STRATTEC Security Corporation FCC ID OHT01060512 IC 5461A-01060512 Page 7 of 7 WARNING for End User: Changes or modifications made to this equipment not expressly approved by STRATTEC Security Corporation may void the FCC authorization to operate the equipment. This hand-held radio transmitter is primarily used for vehicle remote locking/ unlocking (Key less entry) applications. It must be kept away from the reach of children. In the event of RF Failure the key blade can be used to open the vehicle door or trunk.

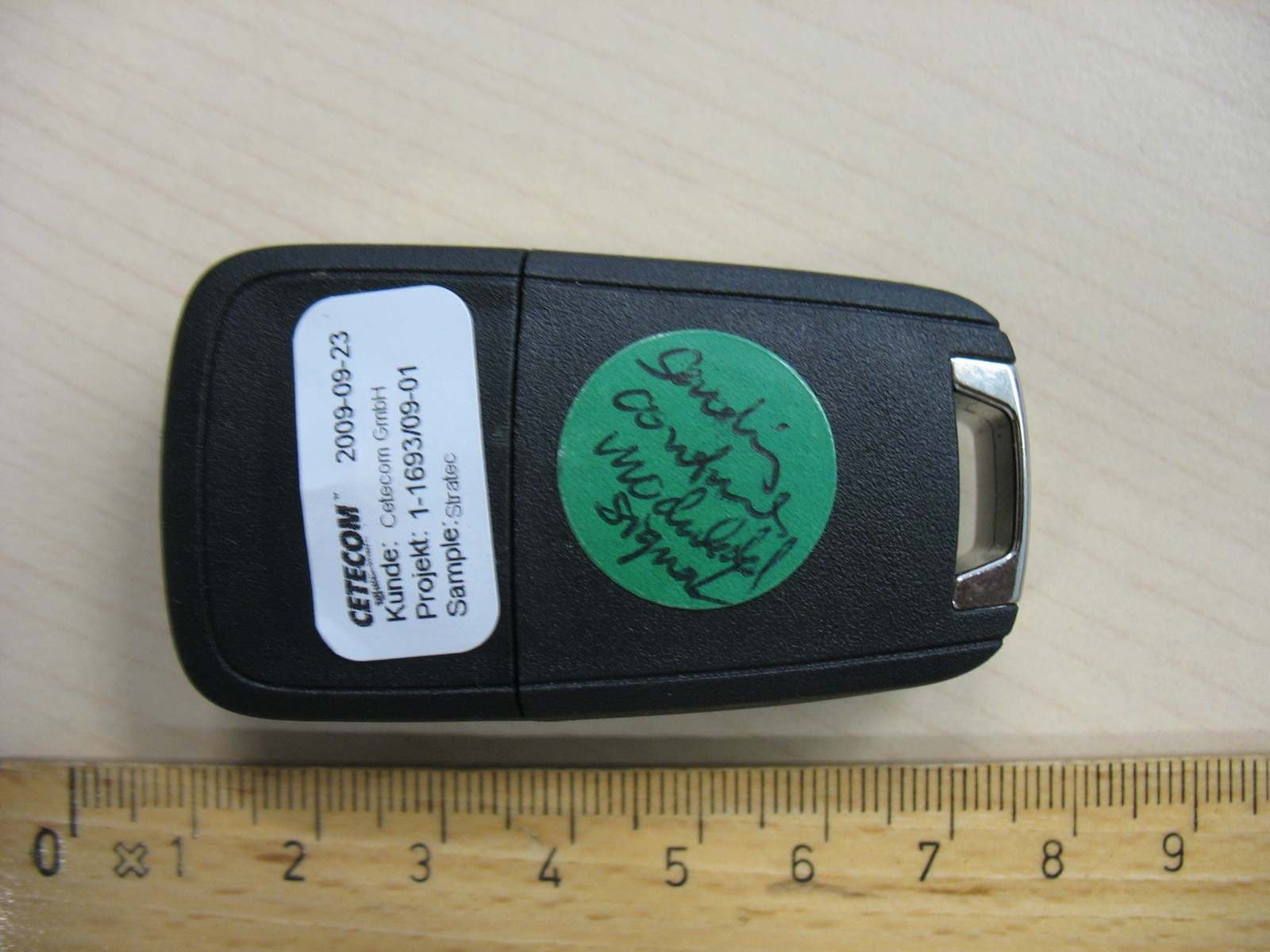

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 1-1693-01-02/09 Date:2009-10-09 Page 25 of 28 7 Annex C: External Photographs of the Equipment Photo documentation Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 1-1693-01-02/09 Date:2009-10-09 Page 26 of 28 Photo 4: Photo 5:

STRATTEC Security Corporation FCC ID OHT01060512 IC 5461A-01060512 Page 2 of 7 Label Information: Model Name: Flap Key Family Bosch

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 1-1693-01-02/09 Date:2009-10-09 Page 27 of 28 Photo 6: Photo 7: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 1-1693-01-02/09 Date:2009-10-09 Page 28 of 28 Photo 8: Photo 9:

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.:1-1693-01-02/09-A Date: 2009-10-09 Page 1 of 28 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: IC 3462C-1 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Accredited Bluetooth ® Test Facility (BQTF) Test report no. : 1-1693-01-02/09-A Applicant : STRATTEC SECURITY Corporation Type : Flap Key Familiy BOSCH Test Standard : FCC Part 15.231 RSS210 Issue 7 FCC ID : OHT01060512 Certification No. IC : 5461A-01060512 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.:1-1693-01-02/09-A Date:2009-10-09 Page 2 of 28 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM.............................................................................................................................................................. 5 1.6 RF TECHNICAL BRIEF COVER SHEET ACC. TO RSS-102 ........................................................................................... 6 1.7 TEST SETUP........................................................................................................................................................... 7 1.8 TEST SPECIFICATIONS............................................................................................................................................ 7 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 8 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 8 2.1.1 CFR 47 Part 15 Radio frequency devices ..................................................................................................... 8 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 9 4 FCC PART 15 SUBPART C....................................................................................................................................10 4.1 Timing of the transmitter ................................................................................................................................10 4.2 Switch off time................................................................................................................................................. 12 4.3 Emission Bandwidth .......................................................................................................................................13 4.4 Field Strength of the Fundamental ................................................................................................................. 14 4.5 Field Strength of the Harmonics and Spurious............................................................................................... 15 4.6 Receiver Spurious Emission (radiated) .......................................................................................................... 20 5 USED TEST EQUIPMENT ..................................................................................................................................... 21 6 ANNEX B: PHOTOGRAPHS OF TEST SITE ..................................................................................................... 24 7 ANNEX C: EXTERNAL PHOTOGRAPHS OF THE EQUIPMENT ................................................................ 25 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.:1-1693-01-02/09-A Date:2009-10-09 Page 3 of 28 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. DAT-P-176/94-D1 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. ............................................................................................................... Responsible for testing laboratory (M…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 1-1693-01-02/09 Date:2009-10-09 Page 24 of 28 6 Annex B: Photographs of Test site Photo documentation Photo 1: Photo 2:
