OHT3731687RKE Transmitter

The device under test is manufactured by the grantee (Strattec Security Corporation) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end-user. Strattec Security Corporation will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER’S MANUAL The following information (in blue) must be included in the end-product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: OHT3731687 IC: 5461A-3731687 This device complies with Part 15 of the FCC Rules and with ISED Canada license-exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Certification Application Attestation Statements To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) STRATTEC Security Corporation certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) STRATTEC Security Corporation (“the applicant”) certifies that, as of the date of the filing of this application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Dated: 28 February 2023 By: ___________ _____________ __ (Signature) Richard Messina Title: Vice President – Global Engineering E-mail: [email protected] On behalf of: Strattec Security Corporation 3333 West Good Hope Road Milwaukee, Wisconsin, 53209 United States of America Telephone: +1 248 824 7580 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist .

FRN: 0007799745

Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Dr., Brighton, Michigan 48116 USA Tel: (734) 252-9785, Fax: (734) 926-9785, e-mail: [email protected] Attn.:Certification and Engineering Bureau, Innovation, Science and Economic Development Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Strattec Security Corporation MCFH Series IC: 5461A-3731687 If necessary, we have enclosed application materials for certification of Strattec Security Corporation MCFH Series. It has been verified to comply with IC RSS-210v10/GENv5. Current Variants: There are two variants of the EUT with the only difference being their housing color: Satin Chrome and Dark Chrome chassis. Both employ the exact same PCB and circuitry. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run (WR) Test Labs, Inc. 11 Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Dr., Brighton, Michigan 48116 USA Tel: (734) 252-9785, Fax: (734) 926-9785, e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Strattec Security Corporation MCFH Series FCC ID: OHT3731687 If necessary, we have enclosed application materials for certification of Strattec Security Corporation MCFH Series. It has been verified to comply with CFR Title 47, Part 15.231. Current Variants: There are two variants of the EUT with the only difference being their housing color: Satin Chrome and Dark Chrome chassis. Both employ the exact same PCB and circuitry. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run (WR) Test Labs, Inc. 10

Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Dr., Brighton, Michigan 48116 USA Tel: (734) 252-9785, Fax: (734) 926-9785, e-mail: [email protected] Re: Certification for Strattec Security Corporation FCC ID: OHT3731687 IC: 5461A-3731687 REQUEST FOR CONFIDENTIALITY Pursuant to USA FCC 47 CFR 0.457(d) and 0.459 and Canada IC RSP-100, Section 10, Strattec Security Corporation requests that a part of the subject application be held confidential. Strattec Security Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to ”competition” would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. ExhibitConf. TypeRational Exh 04 - Block DiagramPermanentIncludes proprietary internal oscillator frequency information. Exh 05 - SchematicsPermanentIncludes proprietary design information Exh 10 - BOM + PlacementPermanentIncludes proprietary design information Long Term Confidentiality (Permanent):Strattec Security Corporation requests that any exhibits listed above as permanently confidential be permanently withheld from public review. Wherein Long Term Confidentiality is not an option for specific exhibits with ISED, this request applies only to the FCC application for those exhibits. Short-Term Confidentiality (FCC Only):Strattec Security Corporation requests that any exhibits selected above as short term confidential be withheld from public view for a period of days (noted above) from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run (WR) Test Labs, Inc.

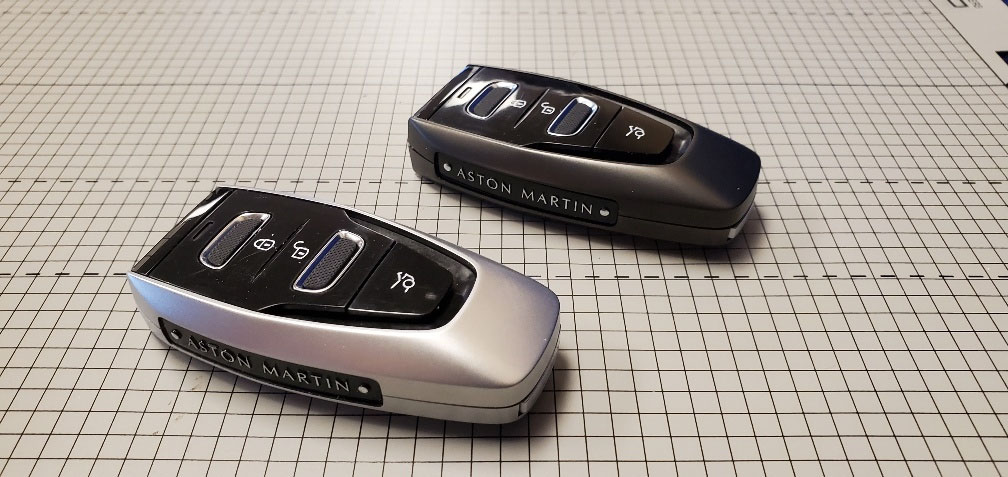

315 MHz Satin Chrome Master L = 11.30 mm H = 7.38 mm Diam = 5.04 mm 315 MHz Satin Dark Master L = 11.30 mm H = 7.38 mm Diam = 5.04 mm

5 Modes of operation The following chapters describe the modes of operation that can be carried out by the DM3 devices. 5.1 Remote keyless Entry The Remote Keyless Entry (RKE) functions enable the user to control the central locking system and other functions of a vehicle from a distance. It is always manually activated by pressing one of the buttons on the device. When activated, the device will transmit a sequence of RF messages. In RKE mode RF communication is processed in simplex mode. For some comfort functions which are activated by holding the buttons pressed continuously, the devices respond with RF transmission triggered by LF (125 KHz) message sent by the vehicle. 5.2 Keyless Entry / Keyless Go Keyless Entry / Keyless Go functions allow the user control of the central locking system and engine start / stop without manual operation of the key. For these functions the devices can be woken up by a 125 KHz low frequency (LF) signal generated by the vehicle. For recognition of LF signals the devices contain a set of 3 orthogonal sensor coils (LF antenna array) and a detection circuit that is integrated in the main μC. For Keyless Entry / Keyless Go functions RF communication takes place in half duplex mode. 5.3 Transponder mode The transponder mode serves as ab backup means for deactivation of the immobilizer system if the keyless go function is not available for any reason. In transponder mode, the device is supplied from the magnetic field generated by the immobilizer system of the vehicle and communicates with the vehicle using damping modulation. The nominal working frequency of the transponder system is 125 KHz. No RF communication is used in transponder mode. Therefore, the device does not generate or emit any RF energy in this mode.

Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Drive Brighton, MI 48116 Phone: (734) 252-9785, Fax (734) 926-9785 e-mail:[email protected] RF EXPOSURE CALCULATIONS Summary: The EUT with all transmitters is compliant with both the FCC power density limit and the ISED Exposure Evaluation limits. Requirement: According to USA CFR 15 §1.1307 (b )(1 ), s ystems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. For Canada, RSS-102 sets out the requirements and measurement techniques used to evaluate radio frequency (RF) exposure compliance of radiocommunication apparatus designed to be used within the vicinity of the human body.

Amber Helm Development L.C. 92723 Michigan Hwy-152 Sister Lakes, Michigan 49047 USA Tel: 888-847-8027 STMCFH-WR2305TX Issued:March 10, 2023 EMC Test Report regarding USA: CFR Title 47, Part 15.231(Emissions) Canada:IC RSS-210v10/GENv5(Emissions) for MCFH315A Category: RKE Transmitter Judgments: 15.231 / RSS-210v10 Compliant Testing Completed: March 10, 2023 TESTING NVLAP LAB CODE 200129-0 Prepared for: Strattec Security Corporation 3333 West Good Hope Road, Milwaukee Wisconsin United States Phone: 248 824-7580, Fax: 414 247-3329 Contact: Rich Messina, [email protected] Data Rec./Rev. by: Rpt. Auth. by: John NantzDr. Joseph Brunett, EMC-002790-NE Rpt. Prep./Rev. by: Date of Issue:March 10, 2023 John Nantz A copy of this report will remain on file until April 2033.Page 1 of 21 Date: March 10, 2023Prepared For: Strattec Security CorporationReport No.: STMCFH-WR2305TX Revision History Rev. No.DateDetailsRevised By r0March 10, 2023Initial Release.J. Brunett r1April 5, 2023Fix HVIN reference.J. Brunett Contents Revision History2 Table of Contents2 1 Test Report Scope and Limitations4 1.1 Laboratory Authorization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.2 Report Retention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.3 Subcontracted Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.4 Test Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.5 Limitation of Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.6 Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.7 Endorsements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.8 Test Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 1.9 Traceability and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2 Test Specifications and Procedures6 2.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3 Configuration and Identification of the Equipment Under Test7 3.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.8Declared Exemptions and Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . .8 4 Emissions9 4.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 4.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 4.1.2Conducted Emissions Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4.2.1Fundamental Emission Pulsed Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4.2.2Fundamental Emission Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 4.2.3Fundamental Emission Field Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 4.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 4.3.1Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 4.3.2Radiated Digital Spurious . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 5 Measurement Uncertainty and Accreditation Documents21 Amber Helm Development L.C., 92723 Michigan Hwy-152, Sister Lakes, Michigan 49047 USAPage 2 of 21 Date: March 10, 2023Prepared For: Strattec Security CorporationReport No.: STMCFH-WR2305TX List of Tables 1Test Site List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2Equipment List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 3EUT Declarations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 4Fundamental Emission Pulsed Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 5Fundamental Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 6Fundamental Emission Field Strength.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 7Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 8Measurement Uncertainty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 List of Figures 1Photos of EUT.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2EUT Test Configuration Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …
