OJB-SSD7ABMAX Customer Premise Equipment

AB-MAX ® Customer Premise Equipment Installation and Maintenance Guide Version 1.1November 6, 2007 Copyright 2006-2007 Axxcelera All rights reserved. Information Subject to Change without Notice Axxcelera reserves the absolute right to make changes to the information set forth in this Product Manual without notice. Specifications subject to change without notice. Customers may inquire as to whether they have the most current Product Manual by contacting Axxcelera Technical Support Department. Proprietary Rights Axxcelera, Axxcelera Broadband Wireless, and the Axxcelera logo are all trademarks of Axxcelera. All other company and product names referenced herein are the trademarks of their respective holders. Axxcelera reserves all copyright, trademark, trade name, service mark, intellectual property, proprietary and other rights to this Product Manual and the diagrams, schematics and all other information contained herein, and nothing shall give Customer any legal, license or other interest in the Product Manual or such diagrams, schematics or other information. Customer agrees not to reproduce or copy by any means any portion of this Product Manual without Axxcelera’s prior written permission in each case. Other than as expressly specified herein, Axxcelera grants no license to Customer under any copyrights or other proprietary rights to use or reproduce any portion of this Product Manual. No Liability Axxcelera makes no warranties with respect to this Product Manual of any kind. WITHOUT LIMITATION, AXXCELERA DISCLAIMS ALL WARRANTIES; EXPRESS OR IMPLIED, INCLUDING LIMITED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING OR TRADE USAGE. WITH RESPECT TO THIS PRODUCT MANUAL, IN NO EVENT SHALL AXXCELERA BE LIABLE TO ANY THIRD PARTY FOR ANY DAMAGES, INCLUDING INDIRECT, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, OR LIABILITY FOR LOSS OF DATA, LOSS OF PROFITS OR ATTORNEY’S FEES, REGARDLESS OF THE FORM OF THE ACTION OR WHETHER AXXCELERA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. LICENSE ISSUES The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact [email protected] OpenSSL License Copyright (c) 1998-2003 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistribution of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. All advertising materials mentioning features or use of this software must display the following acknowledgement: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)” 4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [email protected]. 5. Products derived from this software may not be called “OpenSSL” nor may “OpenSSL” appear in their names without prior written permission of the OpenSSL Project. 6. Redistributions of any form whatsoever must retain the following acknowledgement: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)” THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS AND SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. This product includes cryptographic software written by Eric Young ([email protected]). This product includes software written by Tim Hudson ([email protected]) Original SSLeay License Copyright (C) 1995-1998 Eric Young ([email protected]) All rights reserved. This package is an SSL implementation written by Eric Young ([email protected]). The implementation was written so as to conform with Netscape SSL. This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson ([email protected]). Copyright remains Eric Young’s, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer. 2.…

Text truncated - open the document above for the full version.

11/02/2007 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize ETS Product Service AG to act on our behalf in all matters relating to applications for equipment authorization of ABMAX, FCC ID: OJB-SSD7 including the signing of all documents relating to these matters. Any and all acts carried out by ETS Product Service AG on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Christopher Moritz Director System Engineering Axxcelera Broadband Wireless, Inc.

November 1, 2007 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Request for Confidential Treatment from public disclosure FCC ID: OJB-SSD7 Product Name: AB-MAX Customer Premise Equipment Dear Sirs/Madam, Axxcelera Broadband Wireless, Inc. would like to request that Schematics, Bills of Materials, Circuit/Block Diagrams, Internal Photographs, and Operational Descriptions submitted with the applications for certification be withheld from public disclosure per Section 0.459 of the FCC Rules. This confidentiality request is made under the provisions of Section 0.457(d) of the FCC Rules and Section 552(b)(4) of the Freedom of Information Act. The various items contain proprietary, confidential and trade secret materials, which would not customarily be made available for public inspection. Further, as the products are professionally installed, with no user serviceable parts, the end user or general public would not have access to internal construction methods and details. If you have any questions, please do not hesitate to contact me. Sincerely, Christopher Moritz Director System Engineering Axxcelera Broadband Wireless, Inc.

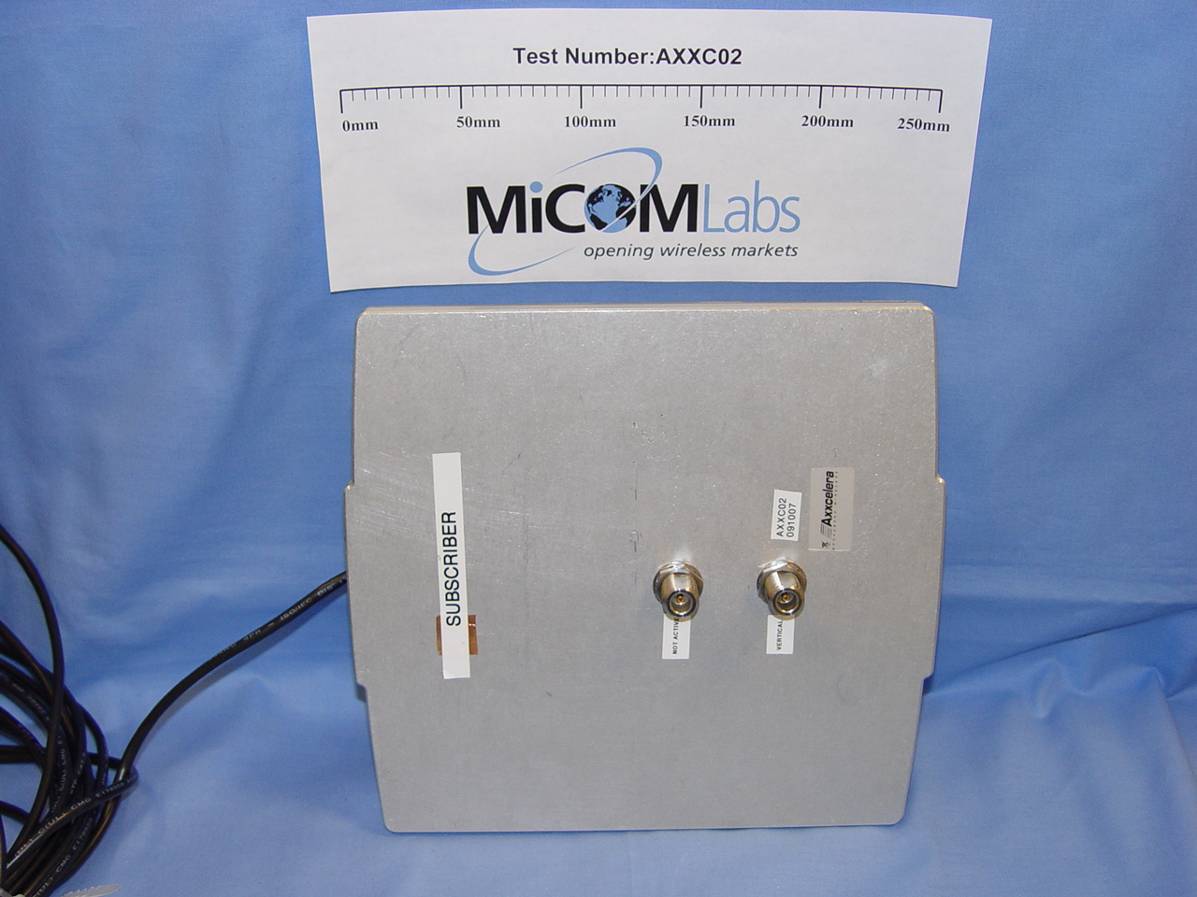

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab November 1, 2007 ACCX02 –AB-MAX Customer Premise Equipment Axxcelera Broadband Wireless, Inc. External Photograph Page 2 of 2 the wireless lab

FCC ID: OJB-SSD7 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab November 1, 2007 ACCX02 –AB-MAX Customer Premise Equipment CONFIDENTIAL Axxcelera Broadband Wireless, Inc Internal Photographs Page 2 of 3 the wireless lab RF and Processor Assembly Bottom Page 3 of 3 the wireless lab RF and Processor Assembly Top

440 Boulder Court, Suite 200, Pleasanton, California 94566, USA Tel.: +1 925 462 0304, Fax: +1 925 462 0306 www.micomlabs.com November 1, 2007 ACCX02 –AB-MAX Customer Premise Equipment Maximum Permissible Exposure FCC, Part 15 Subpart C §15.247(i) Industry Canada RSS-Gen §5.5 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 Freq. Band (GHz) Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 5.8 16.0 39.81 +26.62 459.2 38.10 38.10 Specification Maximum Permissible Exposure Limits §15.247(i) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency levels in excess of the Commission’s guidelines. FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §5.5 Before equipment certification is granted, the applicable requirements of RSS-102 shall be met.

COVER PAGE Test of Axxcelera AB-MAX Customer Premise Equipment To: FCC 47 CFR Part15.247 & IC RSS-210 Test Report Serial No.: AXXC08-A8b Rev A TITLE PAGE TEST REPORT FROM Test of Axxcelera AB-MAX Customer Premise Equipment to To FCC 47 CFR Part15.247 & IC RSS-210 Test Report Serial No.: AXXC08-A8b Rev A Note: this report only contains data with regards to the 5.8 GHz operational modes of the Axxcelera AB-MAX Customer Premise Equipment. 5,470-5,725 MHz test data is reported in MiCOM Labs test report AXXC02-A3b This report supersedes: None Manufacturer: Axxcelera 1600 E.Parham Road Richmond Virginia 23228 USA Product Function: 802.16 Customer Premise Equipment Copy No: pdf Issue Date: 2nd November 2007 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Court, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com CERTIFICATE #2381.01 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: Axxcelera AB-MAX Customer Premise Equipment To: Serial #: Issue Date: Page: FCC 47 CFR Part15.247 & IC RSS-210 AXXC08-A8b Rev A 2nd November 2007 3 of 91 This page has been left intentionally blank Title: Axxcelera AB-MAX Customer Premise Equipment To: Serial #: Issue Date: Page: FCC 47 CFR Part15.247 & IC RSS-210 AXXC08-A8b Rev A 2nd November 2007 4 of 91 This test report may be reproduced in full only. The document may only be updated by MiCOM TABLE OF CONTENTS COVER PAGE....................................................................................................................1 TITLE PAGE.......................................................................................................................2 ACCREDITATION & LISTINGS.........................................................................................5 1. TEST RESULT CERTIFICATE...................................................................................8 2. REFERENCES AND MEASUREMENT UNCERTAINTY..........................................9 2.1. Normative References...............................................................................................9 2.2. Test and Uncertainty Procedures..............................................................................9 3. PRODUCT DETAILS AND TEST CONFIGURATIONS..........................................10 3.1. Technical Details.....................................................................................................10 3.2. Scope of Test Program............................................................................................11 3.3. Equipment Model(s) and Serial Number(s).............................................................12 3.4. Antenna Details.......................................................................................................12 3.5. Cabling and I/O Ports..............................................................................................12 3.6. Test Configurations..................................................................................................13 3.7. Equipment Modifications..........................................................................................13 3.8. Deviations from the Test Standard..........................................................................13 4. TEST SUMMARY......................................................................................................14 5. TEST RESULTS........................................................................................................16 5.1. Device Characteristics.............................................................................................16 5.1.1. 6 dB and 99 % Bandwidth........................................................................16 5.1.2. Peak Output Power..................................................................................27 5.1.3. Peak Power Spectral Density...................................................................38 5.1.4. Maximum Permissible Exposure..............................................................49 5.1.5. Conducted Spurious Emissions...............................................................50 5.1.6. Radiated Emissions.................................................................................60 5.1.7. AC Wireline Conducted Emissions (150 kHz – 30 MHz)..........................84 6. PHOTOGRAPHS.......................................................................................................87 6.1. Radiated Spurious Emissions >1 GHz.....................................................................87 6.2. AC Wireline Emissions (150 kHz - 30 MHz)............................................................88 6.3. General Measurement Test Set-Up.........................................................................89 Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 7. TEST EQUIPMENT DETAILS...................................................................................90 Title: Axxcelera AB-MAX Customer Premise Equipment To: Serial #: Issue Date: Page: FCC 47 CFR Part15.247 & IC RSS-210 AXXC08-A8b Rev A 2nd November 2007 5 of 91 This test report may be reproduced in full only. The document may only be updated by MiCOM ACCREDITATION & LISTINGS MiCOM Labs, Inc. an accredited laboratory complies with the international standard BS EN ISO/IEC 17025. The company is accredited by the American Association for Laboratory Accreditation (A2LA) www.a2la.org test laboratory number 2381.01. MiCOM Labs test schedule is available at the following URL; http://www.a2la.org/scopepdf/2381-01.pdf Labs personnel. Any changes will be …

Text truncated - open the document above for the full version.

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab November 1, 2007 ACCX02 –AB-MAX Customer Premise Equipment Axxcelera Broadband Wireless, Inc TEST SET-UP PHOTOGRAPHS General Measurement Test Set-Up Page 2 of 3 the wireless lab Radiated Spurious Emissions >1 GHz Page 3 of 3 the wireless lab Conducted Emissions (150 kHz - 30 MHz)
