36882 English I/B ver. 11202A-1 1 11202A-1 OWNER’S MANUAL # 36882 ver. 11202A-1 Page : 1 ENGLISH VERSION IMPORTANT SERVICE INFORMATION Read this manual before attempting to setup or use this instrument. It contains important information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and proof of purchase to simplify and accelerate any needed action. If you need assistance or service, call (800) 888-8990 between 8:00 a.m. and 4:30 p.m. Pacific Standard Time, Monday through Friday. You can also visit our web site at: http://www.nwbphones.com for technical support and information on our other products. WARNING To prevent fire or shock hazard, do not expose this product to rain or any type of excess moisture. If accidentally dropped into water, the AC adaptor should immediately be unplugged from the wall along with the telephone line cord. THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE OWNER'S MANUAL . EXCURSION  36882 CARTON CONTENTS • Excursion ® 36882 Base and Handset • Rechargeable Ni-Cd Battery Pack • Telephone Line Cord (Short and Long) • AC Adaptor (9VDC, 350 mA, Center Positive) • User’s Manual • Warranty Card • Accessory Order Form • Wall Mount Screws and Hardware 36882 English I/B ver. 11202A-1 11202A-1 2 OWNER’S MANUAL # 36882 ver. 11202A-1 Page : 2 ENGLISH VERSION TABLE OF CONTENTS Important Service Information.........................................................................................................1 Warning..............................................................................................................................................1 Carton Contents .................................................................................................................................1 Important Safety Instructions...........................................................................................................4 Installation Precautions .....................................................................................................................5 Maintenance.......................................................................................................................................5 Battery Cautionary Instruction........................................................................................................5 FCC Notice.........................................................................................................................................5 Controls Diagram...............................................................................................................................7 Caller ID Q & A ................................................................................................................................8 Descriptions........................................................................................................................................9 Installation........................................................................................................................................ 10 Battery Installation ...................................................................................................................... 10 Belt Clip Installation.................................................................................................................... 10 Wall Mounting............................................................................................................................. 11 Uninstalling the Wall Mount Bracket ........................................................................................ 12 Power Connection............................................................................................................................ 12 Headset Connection......................................................................................................................... 12 Initial Setup...................................................................................................................................... 12 LCD Information ............................................................................................................................. 13 Telephone Operation........................................................................................................................ 13 To Place a Call............................................................................................................................. 13 To Receive a Call ......................................................................................................................... 13 Redial Feature.............................................................................................................................. 14 Intercom Functions...................................................................................................................... 14 To End Intercom Mode ............................................................................................................... 14 Transferring Calls....................................................................................................................... 14 Multi-Channel Access.................................................................................................................. 15 Flash Function .............................................................................................................................. 15 Mixed Mode Dialing (Temporary Tone Dialing) ...................................................................... 15 Low Battery Warning................................................................................................................. 15 65,536 Combination Security Coding......................................................................................... 15 Resetting Se…

Text truncated - open the document above for the full version.

36882bbd.sch-1 - Tue Nov 19 11:13:18 2002

36882hbd.sch-1 - Tue Nov 19 11:14:41 2002

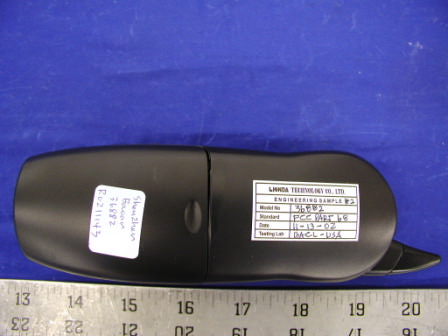

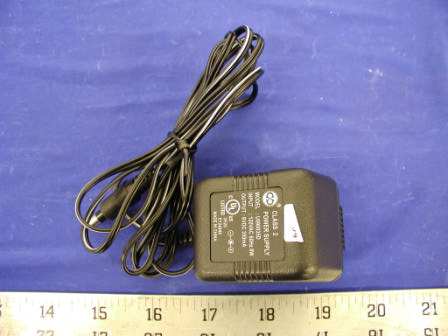

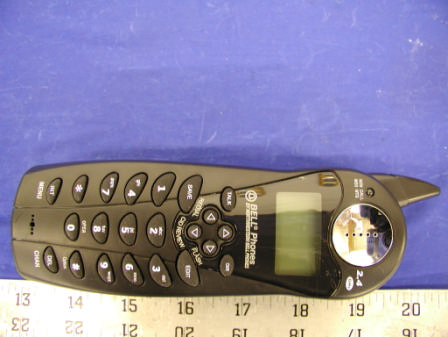

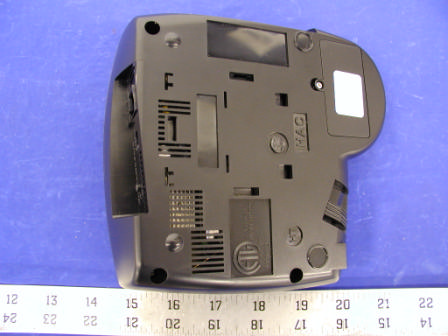

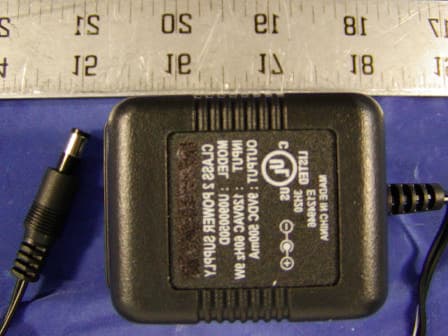

Shenzhen Baoan Hantong Electronics Factory FCC ID: OK836882HT02 EXHIBIT C - EUT PHOTOGRAPHS Base Chassis - Top View Base Chassis - Rear View Shenzhen Baoan Hantong Electronics Factory FCC ID: OK836882HT02 Handset Chassis - Top View Handset Chassis - Bottom View Shenzhen Baoan Hantong Electronics Factory FCC ID: OK836882HT02 Handset Chassis - Left View Handset Chassis - Right View Shenzhen Baoan Hantong Electronics Factory FCC ID: OK836882HT02 AC Adapter View Base Chassis - Front View

EXHIBIT A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom Side of Base/Proposed FCC Label Location Rear Side of Handset/FCC ID Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: EW780-1005-00 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. 2.1875" 1.0" FCC ID: OK836882HT02 OK836882HT02

Base Main Board - Component View Base Main Board - Solder View Base Main Board and Housing Handset Main Board and Housing Base Transmitter - Component View Base Transmitter - Solder View Handset – Main Board Component View Handset – Main Board Solder View Handset – Transmitter Component View Handset – Transmitter Solder View Handset – Battery View

LIONDA TECHNOLOGY COMPANY LIMITED ENGINEERING DEPARTMENT 36882desc.doc Page 1 3/3/2003 CIRCUIT DESCRIPTION Model: 36882 Base a. RF Transmitter Section – RF Board Compressed audio signal is frequency modulated through the varactor diode D3, D4. Diode D3, D4, L4 and Q5 the external components formed the voltage controlled oscillator circuit for the transmitter part. This circuit generates the TX VCO frequency. A portion of this signal is fed back to the PLL IC’s pin1 (FIN1) for phase comparison. Once the phase of oscillation stabilized, the PLL circuit generates the error voltage necessary for the VCO to oscillate at the desired transmitter’s RF frequency. The VCO circuit impedance is matched with the succeeding circuit through the transistor Q2 that also acts as the buffer amplifier. RF amplifier Q7 boosts the signal for transmission. This amplified RF signal is trimmed to the desired frequency band by BPF2403 so as not to interfere with the receiver circuit. The transmitter RF signal is then propagated through the antenna. b. RF Receiver Section - RF Board The Base Unit antenna receives RF signal. Band Pass Filter BPF2475 trims the signal to the desirable frequency band. Transistor Q6 & Q3 is a low noise amplifier that boosts the RF signal to a specific level for mixing. PLL IC1 (KB8825B) is used as a Universal Phase Lock Loop circuit. The frequency from the Voltage Controlled Oscillator (VCO) D1, L5 and Q4, is fed back to the PLL IC through pin 16 (FIN2) for phase comparison. During channel scanning or turning the unit on, once the phase of oscillation stabilized (locked), the PLL circuit generates the first local oscillator frequency for down-converting the received RF signal into the first IF frequency 10.7MHz. This process is accomplished through the IF mixer circuit Q1. Q1 is used for matching the impedance of the mixer circuit with the succeeding circuits. The resulting IF signal is kept constant by the IF Filter FL1 to 10.7MHz which is then mixed with the second local oscillator frequency 11.150MHz (derived from X1 & C47) to produced a much lower IF frequency. This lower IF frequency if further filtered by IF Filter FL4 to produce a more stable signal of 450AKHz. Quadrature signal detection is accomplished internally by the Narrow-band Detector IC2 (KA3361) with the IF coil L7. The recovered audio frequency can be taken from IC2 audio output pin9. Double conversion of received signal is utilized to improve the image frequency rejection of the unit. c. Transmitter Audio Section – Main Board 1 LIONDA TECHNOLOGY COMPANY LIMITED ENGINEERING DEPARTMENT 36882desc.doc Page 2 3/3/2003 Audio Frequency signal from the telephone line is compressed through the compressor part of IC4 to minimize the transmission noise. The degree of compression depends on the external RC combinations. AGC is also utilized by IC4 to avoid shock noise caused by abrupt change of audio levels. The compressed audio is filtered and amplified for better acoustical performance. d. Receiver Audio Section – Main Board The compressed Audio Frequency signal is passed through passive RC filters for acoustic compliance. The filtered audio is then fed to the Compander IC4 for expansion thus retrieving the original Audio signal with noise filtered out. Q5 is used as buffer circuit. Bridge rectifier D12-D15 isolates the high-voltage telephone line to the rest of the circuit. D12-D15 is also act as a hybrid transformer to create a two-way path for audio transmission to and reception from the telephone line. Handset a. RF Transmitter Section – RF Board Refer to portion 1.b for this section. All circuit performance is the same except that Band Pass Filter BPF2403 is changed to BPF2475 for the handset transmission. b. RF Receiver Section – RF Board Refer to portion 1.b for this section. All circuit performance is the same except that Band Pass Filter BPF2475 is changed to BPF2403 for the handset reception. c. Transmitter Audio Section – Main Board Audio Frequency signal from the handset or from the headset microphone is compressed through the compressor part of IC1 to minimize the transmission noise. The degree of compression depends on the external RC combinations. AGC is also utilized by IC1 to avoid shock noise caused by abrupt change of audio levels. The compressed audio is filtered and amplified for better acoustical performance. Q3 is a switching transistor that controls the power supply for the TX RF part. d. Receiver Audio Section – Main Board The compressed Audio Frequency signal is passed through passive RC filters for acoustic compliance. The filtered audio is then fed to the Compander IC1 for expansion thus retrieving the original audio signal with noise filtered out. Q2 & Q10 act as audio amplifier to sufficiently drive the handset speaker. Q7 and Q8 are 2 2 LIONDA TECHNOLOGY COMPANY LIMITED ENGINEERING DEPARTMENT 36882desc.doc Page 3 3/3/2003 switching transistors that control the power supply for the RF part, the Compander part and the AF amplifier respectively. An earphone jack is provided for an optional headset unit for handsfree conversation on the handset. OTHERS (Handset): a. Charging and Reset Controls Recharging the handset battery is accomplished by putting the handset on the cradle. IC5 detects this action and sends a command to the CPU for proper exchange of security code. b. Ring Detection When the handset receives the ring command from the base unit, the CPU will send buzzer signal to the ringer amplifier Q5 and Q6 that drives the Buzzer. OTHERS (Base): a. Hook Switching and Dialing Hook switching and the transistor Q6 that is controlled by the CPU accomplishes pulse dialing. DTMF signal from the ladder circuit internal to the CPU is filtered and amplified by Q5. b. Over-voltage Protection Fuse1 and varistor Z1 act as high current and high voltage protectors for the telephone line interface. In case of presence of voltage surge across the telephone line, Fuse1 decreases its resistance and dumps the line…

Text truncated - open the document above for the full version.

LIONDA TECHNOLOGY COMPANY LIMITED Lionda Research and Development Center 36882 TestMode.doc 1 03/03/03 Test Mode Procedure for 36882 Note: The default channel frequency is CH25 for both the Base Unit (B/U) and the Handset (H/S). Refer to the Frequency Table for proper frequency allocations. Base Basic Test Mode: Insert the 12Vdc plug into the B/U DC jack while pressing the “#” key. Both RX and TX will be activated and basic testing can be done. Press the “#” key to scan the channel frequency one at a time. Handset: Insert the battery into the H/S battery socket while pressing the “#” key. Both RX and TX will be activated and basic testing can be done. Press the “#” key to scan the channel frequency one at a time. LIONDA TECHNOLOGY COMPANY LIMITED Lionda Research and Development Center 36882 TestMode.doc 2 03/03/03 36882 FREQUENCY CHART B A S E H A N D S E T B A S E H A N D S E T CH TX RX TX RX CH TX RX TX RX 1 2400.592 2472.215 2472.215 2400.592 26 2403.002 2474.625 2474.625 2403.002 2 2400.688 2472.312 2472.312 2400.688 27 2403.098 2474.722 2474.722 2403.098 3 2400.785 2472.408 2472.408 2400.785 28 2403.195 2474.818 2474.818 2403.195 4 2400.881 2472.504 2472.504 2400.881 29 2403.291 2474.914 2474.914 2403.291 5 2400.977 2472.601 2472.601 2400.977 30 2403.387 2475.011 2475.011 2403.387 6 2401.074 2472.697 2472.697 2401.074 31 2403.484 2475.107 2475.107 2403.484 7 2401.170 2472.794 2472.794 2401.170 32 2403.580 2475.204 2475.204 2403.580 8 2401.267 2472.890 2472.890 2401.267 33 2403.677 2475.300 2475.300 2403.677 9 2401.363 2472.986 2472.986 2401.363 34 2403.773 2475.396 2475.396 2403.773 10 2401.459 2473.083 2473.083 2401.459 35 2403.869 2475.493 2475.493 2403.869 11 2401.556 2473.179 2473.179 2401.556 36 2403.966 2475.589 2475.589 2403.966 12 2401.652 2473.276 2473.276 2401.652 37 2404.062 2475.686 2475.686 2404.062 13 2401.749 2473.372 2473.372 2401.749 38 2404.159 2475.782 2475.782 2404.159 14 2401.845 2473.468 2473.468 2401.845 39 2404.255 2475.878 2475.878 2404.255 15 2401.941 2473.565 2473.565 2401.941 40 2404.351 2475.975 2475.975 2404.351 16 2402.038 2473.661 2473.661 2402.038 41 2404.448 2476.071 2476.071 2404.448 17 2402.134 2473.758 2473.758 2402.134 42 2404.544 2476.168 2476.168 2404.544 18 2402.231 2473.854 2473.854 2402.231 43 2404.640 2476.264 2476.264 2404.640 19 2402.327 2473.950 2473.950 2402.327 44 2404.737 2476.360 2476.360 2404.737 20 2402.423 2474.047 2474.047 2402.423 45 2404.833 2476.457 2476.457 2404.833 21 2402.520 2474.143 2474.143 2402.520 46 2404.930 2476.553 2476.553 2404.930 22 2402.616 2474.240 2474.240 2402.616 47 2405.026 2476.650 2476.650 2405.026 23 2402.713 2474.336 2474.336 2402.713 48 2405.122 2476.746 2476.746 2405.122 24 2402.809 2474.432 2474.432 2402.809 49 2405.219 2476.842 2476.842 2405.219 25 2402.905 2474.529 2474.529 2402.905 50 2405.315 2476.939 2476.939 2405.315
