OKUJP2326Retro Bluetooth Turntable

Retro Bluetooth Turntable Model: JP-2326 Instruction Manual 2 FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC’s RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation. 3 PRODUCT OVERVIEW 1. /MODE button & Volume knob • Press the /MODE button to turn on the turntable, then press repeatedly to switch to different mode (Bluetooth, Vinyl, Auxiliary), press and hold the button to turn off the turntable. • In Bluetooth mode, double press this button to disconnect or reconnect the Bluetooth connection; in AUX/HDMI mode, double press this button to enter Bluetooth transmitting state. • Rotate the Volume knob to adjust the music volume. 2. Light ring 3. LINE OUT jacks 4. Earphone jack 5. AUX IN jack 6. DC IN jack FRONT VIEW BACK VIEW 1 2 3 4 5 6 4 PRODUCT OVERVIEW BACK VIEW 1 2 3 4 5 1. Plug the AC adapter into the DC IN jack to power the turntable. 2. Press the /MODE button to turn on the turntable, then press the button repeatedly to switch to different mode; press and hold the /MODE button to turn off the turntable. 3. In Bluetooth mode, double press the /MODE button to disconnect the current Bluetooth connection, then you can connect to another Bluetooth device, or you can double press again to reconnect the device. 4. In AUX/HDMI mode, double press the /MODE button to transmitte the audio signal to another Bluetooth device via Bluetooth transmission, double press again to stop the transmitting. 5. The turntable will enter standby mode after 20 minutes without audio signal input (only for Europe version). GENERAL OPERATION 1. Lift lever 2. Hold down clip 3. Speed selector Press to select the playback speed.(Green 33 ⅓ rpm, Blue 45 rpm, Cyan 78 rpm) 4. Tone arm 5. Stylus 5 Bluetooth Receiver 1. Plug the AC adapter into the DC IN jack of the turntable. 2. Press the /MODE button to turn on the turntable, then press the button repeatedly to switch to Bluetooth mode, and you will hear a sound "Bluetooth" and the Light ring will flash blue. 3. Enable the Bluetooth function on your Bluetooth device to search for the turntable. ON SettingsBluetooth Bluetooth DEVICES JP-2326 Connected Now Discoverable BLUETOOTH RECEIVER AND TRANSMITTER 4. When the pairing name " JP-2326 " appears in the list, select it to make connection. 5. Once connected, you will hear a confirmation sound and the Light ring stops flashing. 6. Now you can play the music on your Bluetooth device. Note: If you want to connect another Bluetooth device, double press the /MODE button on the turntable to disconnect the current Bluetooth connection. Bluetooth Transmitter You can play music from this turntable to external Bluetooth speaker/soundbar/earbud/ headphone. 1. Start playback in AUX/HDMI mode. 2. Double press the /MODE button on the turntable to activate Bluetooth Transmitter function, the Light ring will flash. 3. Power on the external Bluetooth device and activate its Bluetooth pairing mode. 4. After a few seconds, the external device will connect to the turntable automatically, then the Light ring will stop flashing. 5. To turn off Bluetooth Transmitter mode, double press the /MODE button on the turntable. Note: Make sure there is no other Bluetooth devices near the turntable. 6 VINYL RECORD PLAYBACK 1. Plug the AC adapter into the DC IN jack of the turntable. 2. Press the /MODE button to turn on the turntable, then press the button repeatedly to switch to Vinyl mode, and you will hear a sound "Vinyl" and the Light ring will flash white. 3. Open the cover of the turntable. 4. Detach the stylus guard by pulling straight in the direction shown. 5. Place a vinyl record (not included) on the turntable by aligning the Turntable Spindle to the record hole. 6. Press the Speed Selector to select 33, 45 or 78 to match the play speed of the record. 7. Unlock the Hold Down Clip. 8. Raise the Cue Lever to lift the tone arm off the tone arm support. 9. Gently move the tone arm to the edge of the record (or the starting point of a track). 10. Release the Cue Lever to put the tone arm on the record and it will automatically start playing. 11. Rotate the Volume +/- knob to adjust the volume. 12. To pause/stop during playback, raise the Cue Lever to lift the tone arm off the record. 13. When finished listening, the tone arm will automatically stop af…

Text truncated - open the document above for the full version.

LocalRepresentativeLetter ForCertificationServiceintheUSA FederalCommunicationsCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoSection2.911(d)(7),oftheCommission’sRules(47C.F.R.)weattestasfollowsfor theproductlistedbelow: FCCIDModelname OKUJP2326JP-2326 Weherebyacknowledgeasfollows: i.bothsigneesconfirmthatthepointofcontactacceptsresponsibilitytoactasaUS- AmericanRepresentativeonbehalfoftheapplicant ii.thepointofcontactprovidesthephysicalU.S.addressandemailaslistedbelow iii.bothpartiesmaintaintherequirementsofthisagreementfornolessthanoneyear afterthegranteehasterminatedallmarketingandimportationortheconclusionof anyCommission-relatedproceedinginvolvingtheequipment. iv.Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,the granteeisobligatedtonotifytheFCCwithin30daysviathegrantingTCB. US-AmericanPointofContactApplicant/ApprovalHolder SignatureDate:2026-9-4SignatureDate:2026-9-4 CompanyName:FCCUSAgent,LLCShenzhenJunlanElectronicLtd FRN:00334028840021880893 ContactName:TimPayneYoukChen Address:3722IllinoisAvenue,Saint Charles,IL,60174,UnitedStates Room201includingtheEntire Building,Building1,No.71Lijing SouthRoadShijingCommunity, ShijingSubdistrict,Pingshan District,ShenzhenCity, GuangdongProvince,P.R.China Phone:(708)571-314813509664682 Email:[email protected]@jump-lan.com

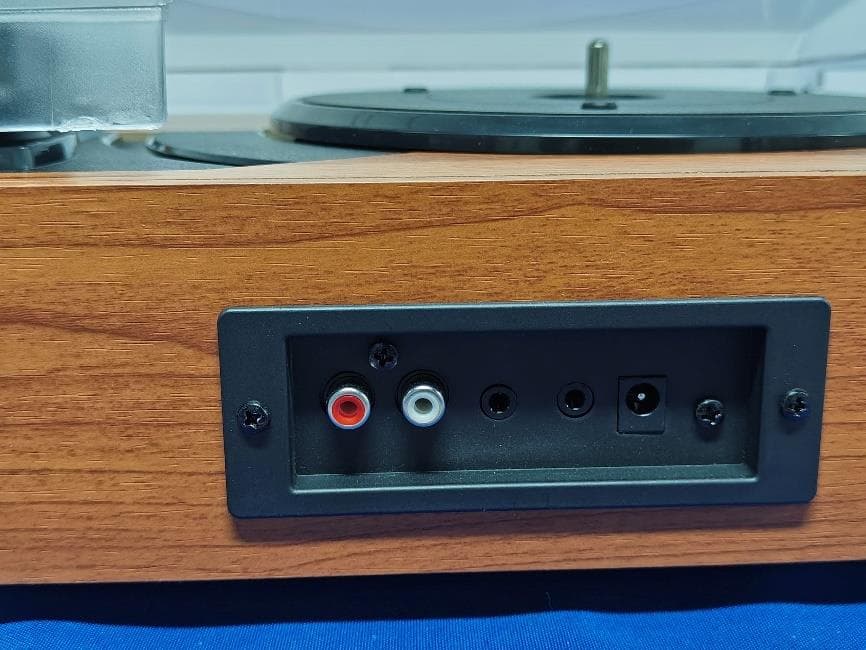

Page 1 of 5 FCC ID: OKUJP2326 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. External Photos Photo 1 Photo 2 Page 2 of 5 FCC ID: OKUJP2326 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 5 FCC ID: OKUJP2326 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 5 FCC ID: OKUJP2326 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: OKUJP2326 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 ------End------

Label FCC ID: OKUJP2326

Page 1 of 3 FCC ID: OKUJP2326 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Internal Photos Photo 1 Photo 2 Page 2 of 3 FCC ID: OKUJP2326 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 PCB Antenna Page 3 of 3 FCC ID: OKUJP2326 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 ------End------

Page 1 of 9 Report No.: AiTDG-260814020W2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited. If there is a need to alter or revise this document, the right belongs to Dongguan Yaxu (AiT) Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. RF Exposure evaluation Product Name:Retro Bluetooth Turntable Brand Name:OTIC Model:JP-2326 Series Model: N/A FCCID: OKUJP2326 Applicant:Shenzhen Junlan Electronic Ltd Address:Room 201 including the Entire Building, Building 1, No. 71 Lijing South Road Shijing Community, Shijing Subdistrict, Pingshan District ,Shenzhen City, Guangdong Province, P.R.China Manufacturer:Shenzhen Junlan Electronic Ltd Address:Room 201 including the Entire Building, Building 1, No. 71 Lijing South Road Shijing Community, Shijing Subdistrict, Pingshan District ,Shenzhen City, Guangdong Province, P.R.China Standard(s): 47CFR §1.1310,47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt:Jul. 23, 2026 Date of Test:Jul. 23, 2026~ Aug. 12, 2026 Issued Date:Aug. 12, 2026 Issued By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Reviewed by: Approved by: Emiya Lin Simba Huang Page 2 of 9 Report No.: AiTDG-260814020W2 Report Revise Record Report VersionIssued DateNotes V1.0Aug. 12, 2026Initial Release Page 3 of 9 Report No.: AiTDG-260814020W2 Contents 1GENERAL INFORMATION............................................................................................................................4 1.1ENVIRONMENTAL CONDITIONS....................................................................................................................4 1.2GENERAL DESCRIPTIONOF EUT.................................................................................................................4 1.3TEST FACILITY..........................................................................................................................................6 1.4MEASUREMENT UNCERTAINTY....................................................................................................................7 2METHOD OF MEASUREMENT.....................................................................................................................8 2.1APPLICABLE STANDARD.............................................................................................................................8 2.2LIMIT........................................................................................................................................................8 2.3MPE CALCULATION METHOD.....................................................................................................................9 2.4MANUFACTURING TOLERANCE...................................................................................................................9 2.5STANDALONE MPE RESULT.....................................................................................................................13 2.6CONCLUSION..........................................................................................................................................13 Page 4 of 9 Report No.: AiTDG-260814020W2 1GENERAL INFORMATION 1.1Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature:25°C Relative Humidity:55 % Air Pressure:101 kPa 1.2General Descriptionof EUT Product Name: Retro Bluetooth Turntable Model/Type reference: JP-2326 Serial Model: N/A Model different: N/A Power Supply: DC 12V from adapter Adapter Information: Model: GKYZA0100120US Input: 100-240V ~ 50/60Hz 0.5A MAX Output:12V1000mA Manufacturer: SHENZHEN SHI GUANGKAIYUAN TECHNOLOGY LTD Battery information: N/A Hardware version.: N/A Software version.: N/A Test sample(s) ID: AiTDG-260723075-1 BR/EDR: Version: Supported BR/EDR Modulation: GFSK, π/4DQPSK, 8DPSK Operation frequency: 2402MHz~2480MHz Channel number: 79 Channel separation: 1MHz Antenna type: PCB antenna Antenna gain: -0.58dBi Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 9 Report No.: AiTDG-260814020W2 1.3Test Facility Test Laboratory: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: CNAS-Registration No: L6177 Dongguan Yaxu (AiT) technology Limited is accredited to ISO/IEC 17025:2017 general Requirements for the competence of testing and calibration laboratories (CNAS-CL01 Accreditation Criteria for the competence of testing and calibration laboratories) on April 18, 2022 FCC-Registration No.: 362653 Designation Number: CN1457 Dongguan Yaxu (AiT) Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC-Registration No.: 6819A CAB identifier: CN0122 The 3m Semi-anechoic chamber of Dongguan Yaxu (AiT) Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 6819A A2LA-Lab Cert. No.: 6317.01 Dongguan Yaxu (AiT) Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and…

Text truncated - open the document above for the full version.

Page 1 of 38 Report No. AiTDG-260814020W1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. The test facility is recognized, certified, or accredited by the following organizations:  NVLAP (Lab Code: 200611-0) SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is recognized under the National Voluntary Laboratory Accreditation Program (NVLAP/NIST). NVLAP Code: 200611-0.  ACMA SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory can also perform testing for the Australian C-Tick mark as a result of our NVLAP accreditation.  SGS UK(Certificate No.: 32), SGS-TUV SAARLAND and SGS-FIMKO Have approved SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory as a supplier of EMC TESTING SERVICES and SAFETY TESTING SERVICES.  CNAS (Lab Code: L0167) SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory has been assessed and in compliance with CNAS-CL01:2006 accreditation criteria for testing laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of Testing Laboratories.  FCC (Registration No.: 282399) SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration 282399, May 31, 2002.  Industry Canada (Registration No.: 4620B-1) The 3m/10m Alternate Semi-anechoic chamber of SGS-CSTC Standards Technical Services Co., Ltd., has been registered by Certification and Engineering of Industry Canada for radio equipment testing with Registration No. 4620B-1. Date of Registration: February 18, 2009.Valid until February 18, 2011.  VCCI (Registration No.: R-2460 and C-2584) The 10m Semi-anechoic chamber and Shielded Room of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: R-2460 and C-2584 respectively.  CBTL (Lab Code: TL129) SGS-CSTC Standards Technical Services Co., Ltd., E&E Laboratory has been assessed and fully comply with the requirements of ISO/IEC 17025:2005, the Basic Rules, IECEE 01:2006-10 and Rules of procedure IECEE 02:2006-10, and the relevant IECEE CB-Scheme Operational documents. This certificate was issued August 6, 2009 and valid until May 19, 2012. TEST REPORT Client Information: Applicant:Shenzhen Junlan Electronic Ltd Applicant add.: Room 201 including the Entire Building, Building 1, No. 71 Lijing South Road Shijing Community, Shijing Subdistrict, Pingshan District ,Shenzhen City, Guangdong Province, P.R.China Manufacturer:Shenzhen Junlan Electronic Ltd Manufacturer add.: Room 201 including the Entire Building, Building 1, No. 71 Lijing South Road Shijing Community, Shijing Subdistrict, Pingshan District ,Shenzhen City, Guangdong Province, P.R.China Product Information: Product Name: Retro Bluetooth Turntable Model No.: JP-2326 Brand Name: OTIC FCC ID: OKUJP2326 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: Jul. 23, 2026Date of Test: Jul. 23, 2026~ Aug. 12, 2026 Date of Issue: Aug. 12, 2026Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Emiya Lin Simba Huang Page 2 of 38 Report No. AiTDG-260814020W1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. The test facility is recognized, certified, or accredited by the following organizations:  NVLAP (Lab Code: 200611-0) SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is recognized under the National Voluntary Laboratory Accreditation Program (NVLAP/NIST). NVLAP Code: 200611-0.  ACMA SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory can also perform testing for the Australian C-Tick mark as a result of our NVLAP accreditation.  SGS UK(Certificate No.: 32), SGS-TUV SAARLAND and SGS-FIMKO Have approved SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory as a supplier of EMC TESTING SERVICES and SAFETY TESTING SERVICES.  CNAS (Lab Code: L0167) SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory has been assessed and in compliance with CNAS-CL01:2006 accreditation criteria for testing laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of Testing Laboratories.  FCC (Registration No.: 282399) SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration 282399, May 31, 2002.  Industry Canada (Registration No.: 4620B-1) The 3m/10m Alternate Semi-anechoic chamber of SGS-CSTC Standards Technical Services Co., Ltd., has been registered by Certification and Engineering of Industry Canada for radio equipment testing with Registration No. 4620B-1. Date of Registration: February 18, 2009.Valid until February 18, 2011.  VCCI (Registration No.: R-2460 and C-2584) The 10m Semi-anechoic chamber and Shielded Room of SGS-CSTC Standard…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2 450MHz2500MHz2400MHz 2450MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) 333 Kexing Road, Xiangzhou District, Zhuhai City, Guangdong Province Address: Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Page 1 of 54 Report No.: AiTDG-260814020W1 1. Bandwidth 1.1 Test Result 1.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.878 / Pass 2441 DH5 1 0.893 / Pass 2480 DH5 1 0.912 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.186 / Pass 2441 2DH5 1 1.189 / Pass 2480 2DH5 1 1.199 / Pass 8DPSK SISO 2402 3DH5 1 1.195 / Pass 2441 3DH5 1 1.202 / Pass 2480 3DH5 1 1.206 / Pass 1.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.924 / Pass 2441 DH5 1 0.967 / Pass 2480 DH5 1 1.010 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.308 / Pass 2441 2DH5 1 1.289 / Pass 2480 2DH5 1 1.313 / Pass 8DPSK SISO 2402 3DH5 1 1.262 / Pass 2441 3DH5 1 1.284 / Pass 2480 3DH5 1 1.264 / Pass Page 2 of 54 Report No.: AiTDG-260814020W1 1.2 Test Graph 1.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 3 of 54 Report No.: AiTDG-260814020W1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 4 of 54 Report No.: AiTDG-260814020W1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 5 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 6 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 7 of 54 Report No.: AiTDG-260814020W1 1.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 8 of 54 Report No.: AiTDG-260814020W1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 9 of 54 Report No.: AiTDG-260814020W1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 10 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 11 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 12 of 54 Report No.: AiTDG-260814020W1 2. Maximum Conducted Output Power 2.1 Test Result 2.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 0.93 <=30 Pass 2441 DH5 0.24 <=30 Pass 2480 DH5 -0.39 <=20.97 Pass Pi/4DQPSK SISO 2402 2DH5 1.84 <=20.97 Pass 2441 2DH5 1.14 <=20.97 Pass 2480 2DH5 0.51 <=20.97 Pass 8DPSK SISO 2402 3DH5 2.29 <=20.97 Pass 2441 3DH5 1.60 <=20.97 Pass 2480 3DH5 0.92 <=20.97 Pass Note1: Antenna Gain: Ant1: -0.58dBi; Page 13 of 54 Report No.: AiTDG-260814020W1 2.2 Test Graph 2.2.1 Power GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 14 of 54 Report No.: AiTDG-260814020W1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 15 of 54 Report No.: AiTDG-260814020W1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 16 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 17 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 18 of 54 Report No.: AiTDG-260814020W1 3. Carrier Frequency Separation 3.1 Test Result 3.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 1.000 1.010 >=0.673 Pass Pi/4DQPSK SISO HOPP 2DH5 1.001 1.313 >=0.875 Pass 8DPSK SISO HOPP 3DH5 1.013 1.284 >=0.856 Pass Page 19 of 54 Report No.: AiTDG-260814020W1 3.2 Test Graph 3.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 20 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 21 of 54 Report No.: AiTDG-260814020W1 4. Number of Hopping Frequencies 4.1 Test Result 4.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass Page 22 of 54 Report No.: AiTDG-260814020W1 4.2 Test Graph 4.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 23 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 24 of 54 Report No.: AiTDG-260814020W1 5. Time of Occupancy (Dwell Time) 5.1 Test Result 5.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.386 31.600 319 123.134 <=400 Pass DH3 1.644 31.600 156 256.464 <=400 Pass DH5 2.892 31.600 111 321.012 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.390 31.600 320 124.800 <=400 Pass 2DH3 1.640 31.600 159 260.760 <=400 Pass 2DH5 2.892 31.600 107 309.444 <=400 Pass 8DPSK SISO HOPP 3DH1 0.398 31.600 318 126.564 <=400 Pass 3DH3 1.648 31.600 168 276.864 <=400 Pass 3DH5 2.898 31.600 96 278.208 <=400 Pass Page 25 of 54 Report No.: AiTDG-260814020W1 5.2 Test Graph 5.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV Page 26 of 54 Report No.: AiTDG-260814020W1 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV Page 27 of 54 Report No.: AiTDG-260814020W1 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV Page 28 of 54 Report No.: AiTDG-260814020W1 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Page 29 of 54 Report No.: AiTDG-260814020W1 Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Page 30 of 54 Report No.: AiTDG-260814020W1 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 31 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH1_HOPP_Ant1_NTNV 8DPSK_3DH1_HOPP_Ant1_NTNV Page 32 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH3_HOPP_Ant1_NTNV 8DPSK_3DH3_HOPP_Ant1_NTNV Page 33 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV Page 34 of 54 Report No.: AiTDG-260814020W1 6. Unwanted Emissions In Non-restricted Frequency Bands 6.1 Test Result 6.1.1 Ref Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 0.77 2441 DH5 1 -0.05 2480 DH5 1 -0.64 HOPP DH5 1 0.80 0.80 Pi/4DQPSK SISO 2402 2DH5 1 0.73 2441 2DH5 1 0.11 2480 2DH5 1 -0.57 HOPP 2DH5 1 0.47 0.47 8DPSK SISO 2402 3DH5 1 0.84 2441 3DH5 1 0.13 2480 3D…

Text truncated - open the document above for the full version.

Page 45 of 54 Report No.: AiTDG-260814020W1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV Page 46 of 54 Report No.: AiTDG-260814020W1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 47 of 54 Report No.: AiTDG-260814020W1 Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Page 48 of 54 Report No.: AiTDG-260814020W1 Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 49 of 54 Report No.: AiTDG-260814020W1 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 50 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV Page 51 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 52 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV Page 53 of 54 Report No.: AiTDG-260814020W1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 54 of 54 Report No.: AiTDG-260814020W1 7. Form731 7.1 Test Result 7.1.1 Form731 Lower Freq (MHz) High Freq (MHz) MAX Power (W) MAX Power (dBm) 2402 2480 0.0017 2.29 ------End------

Page 1 of 2 FCC ID: OKUJP2326 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Test Setup Photo Radiated Emission Page 2 of 2 FCC ID: OKUJP2326 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Conducted Emission RF Conduction ------End------
