OL33GV26043IP Phone with Bluetooth

US Alcatel 4038 / 4039 / 4068 www.alcatel.com transfer h old r edial end Telephone Receiver Socket for connecting headphones or a handsfree/speaker unit „ Audio keys END key to terminate a call. Handsfree/Speaker Key: to make or answer a call without lifting the receiver. • lit in handsfree mode or headset mode (short press). • flashing in speaker mode (long press). Intercom/Mute key: • During a call: press this key so that your party cannot hear you. • Terminal idle: press this key so that you can automa tically answer a call without lifting the receiver. To adjust the speaker or receiver volume up o r down „ Extension unit An extension unit can be fitted to your tele-phone. This provides additional keys which can be configured as feature keys, line keys, call keys etc.To affix labels: push the holding strip of the unit backwards to you and lift it. Install the la-bel under the keypad, in the housing designed for, and place the keypad back into position. „ Indicator light • F lashing green: incoming call . • F lashing orange: alarm . Alphabetic keypad „ Display and display keys Contains several lines and pages providing information on calls and the features accessible via the 10 keys associated with the words on the screen. Forward icon: pressing the key next to this icon allows you to progr am or change the forward feature. Receiver connected. Appointment programmed. Silent mode enabled. Telephone locked. Display keys: pressing a display key activates the feature shown asso ciated with it on the screen. „ Navigation „ Welcome screens OK key: used to validate your choices and options while programming or config u- ring. Left-right navigator: used to move from one page to another. Up-down navigator: used to scroll through the content of a page. Back/Exit key: to return to previous menu (short press) or return to first screen (long press) ; during a conversation, provides access to welcome scr eens (Menu, Info, ...) and to return to the conversation icon screens. Menu page: contains all features and applications ac- cessible via the keys associated with the words on the screen.. Perso page: contains call line keys (allowing supervi- sion of calls) and programmable call keys. Info page: contains information on the telephone and the statu s of its features: name, telephone num- ber, number of messages, activation of forwar feature, app ointment reminder, etc. „ Call display Incoming call. Call in progress or outgoing call. Call on hold. If you get two calls at the same time, you can switch from one call to the other by pressing th e display key associated with each call. Left-right navigator: used to check calls. OK key: used to answer the call checked. „ Feature keys and programmable keys Guide key: used to obtain information on features of the 'men u' page and to program key of the 'perso' page. Messaging key to access vario us mail servi ces : i f the ke y flas hes , a new vo ice message or a new te xt mess age has be en received . 'Redial' ke y: to access the 'Redial' function . Hold: the call is placed on hold. Transfer: t ransfer the call to an other numb er. Adjust the tilt of the screen NOE-DC 3GV19001USABed01.fm Page 2 Lundi, 13. décem bre 2004 6:24 18 American Other Customize your terminal. The customization features of the telephone are accessed from the Menu page. Modifying your personal code Lock / unlock your telephone Adjusting the audio features Adjusting screen brightness (Alcatel 4038) reach the ' menu ' page follow informations displayed on the screen reach the ' menu ' page depending the displayed informations, enter your password or confirm your telephone is locked/unlocked reach the ' menu ' page adjust ringing (melody, volume, mode,...) by following instructions displayed on the screen reach the ' menu ' page increase or decrease the contrast adjust the contrast by consecutive presses Settings My set/My opti o Password Lock 2 6 5 3 ab c def jkl m n o Settings My phone Ringing Settings My phone Contraste OR Screen Alcatel 4068 4 Using your telephone Identifying the terminal you are on The number of your telephone is displayed on the 'Info' page. Making a call Answering a call Redial Making a callback request to a busy number Voice message service Reviewing your voice mailbox If the key flashes, a new voice message or a new te xt message has been received. Access the Info page using the navigator. lift the receiver handsfree programmable li ne key dial the number for your call To make an external call, dial the outside line access code (9) before dialing your party's number. lift the receiver handsfree press the key next to the 'incoming call' icon last number redial the number you are calling is busy hang up follow informations displayed on the screen press the key next to 'review voice or text message' OR OR OR 2 6 5 3 ab c def jkl mn o OR OR Paulis calling Call back Divert your calls to another number Forwarding your calls to another number Immediate forwarding to your voice mailbox When you return, cancel all forwarding Directory Using dial by name Programming your call keys Make calls via your programmed call keys press the key associated with the type of forward required (immediate, if busy, if no reply etc.) dial number to be called press the ok key if programming is not automatically recorded press the key associated with 'forward to voice mailbox' press the ok key if programming is not automatically recorded if necessary, confirm cancellation of the forward press the key next to 'cancel or deactivate the forward' enter the first letters of the name select the name from the displayed list make the call select the name from the displayed list make the call follow informations displayed on the screen press a call key either directly or via the key access the perso page using the navigator select the party you want to call from the programmed call keys call the selected party 2 6 5 3 ab c def jkl mn o ... Helen During a call Placing a call on hold (HOLD) During a c…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 December 1rst, 2005 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Alcatel Business Systems requests confidentiality for the following products: FCC ID Number Product Title/Model OL33GV26043 4068 IP Touch (IP Terminal) OL33GV26007 A IP Touch Bluetooth® Wireless Handset (Wireless Handset) For the products stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” The above exhibits contain Alcatel Business Systems trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Rainier BALTZ Company: Alcatel Business Systems Address: 1 Route du Dr A. Schweitzer 67408 ILLKIRCH (France) Phone: 33 3 90 67 7160 Email: [email protected]

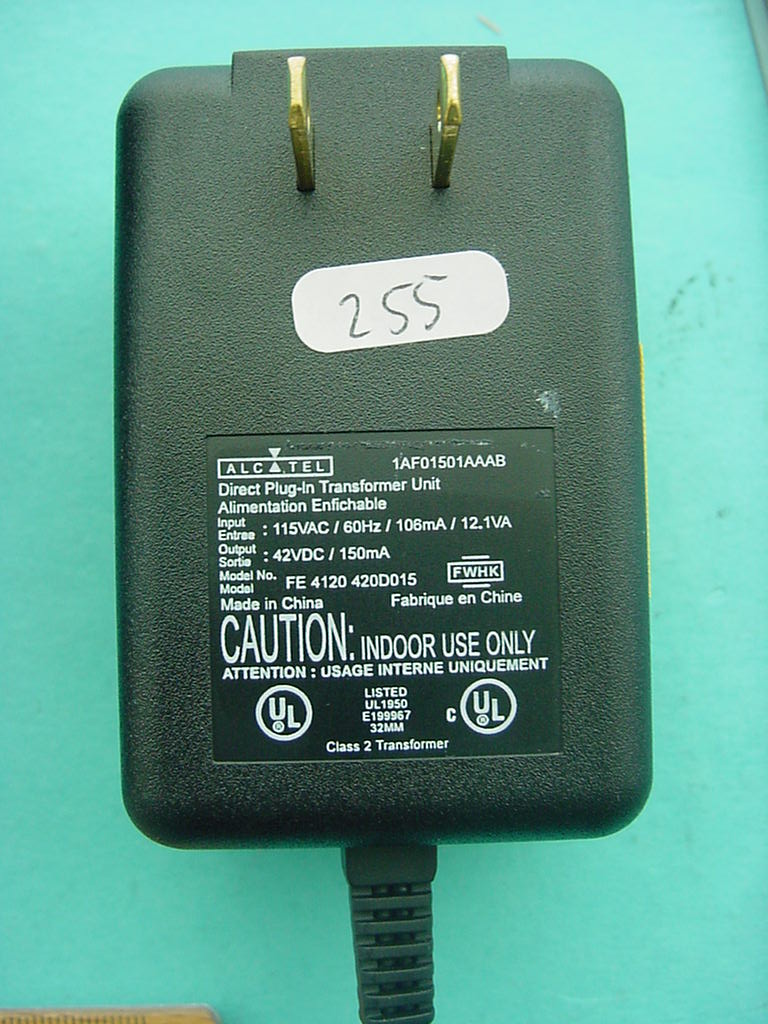

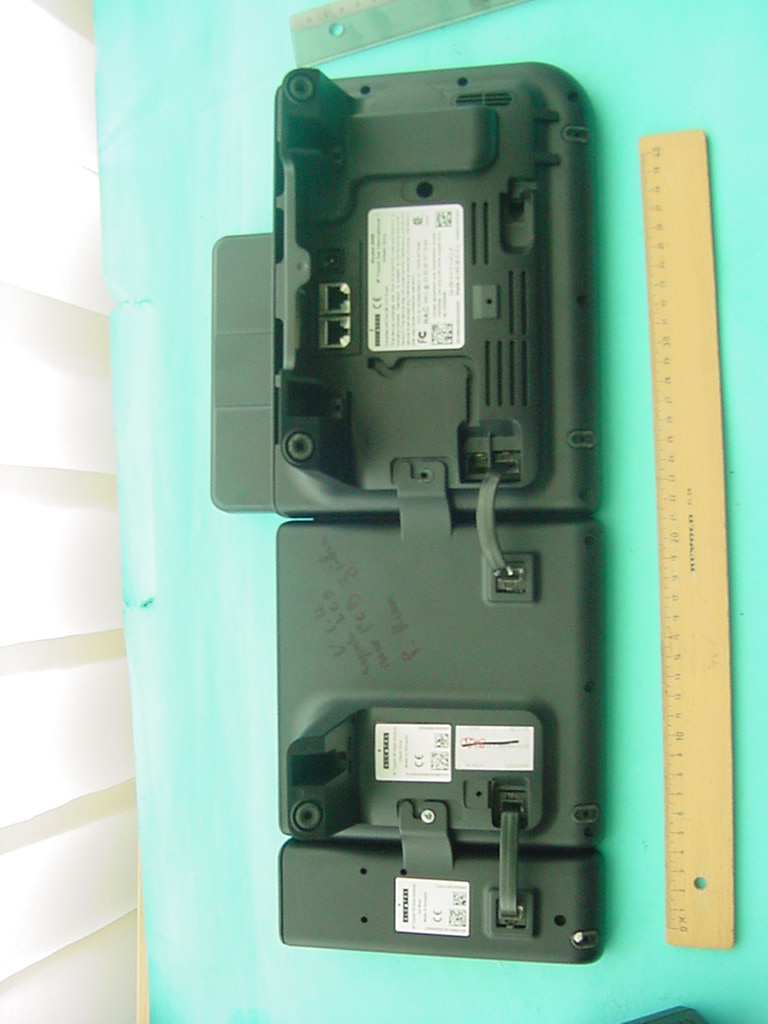

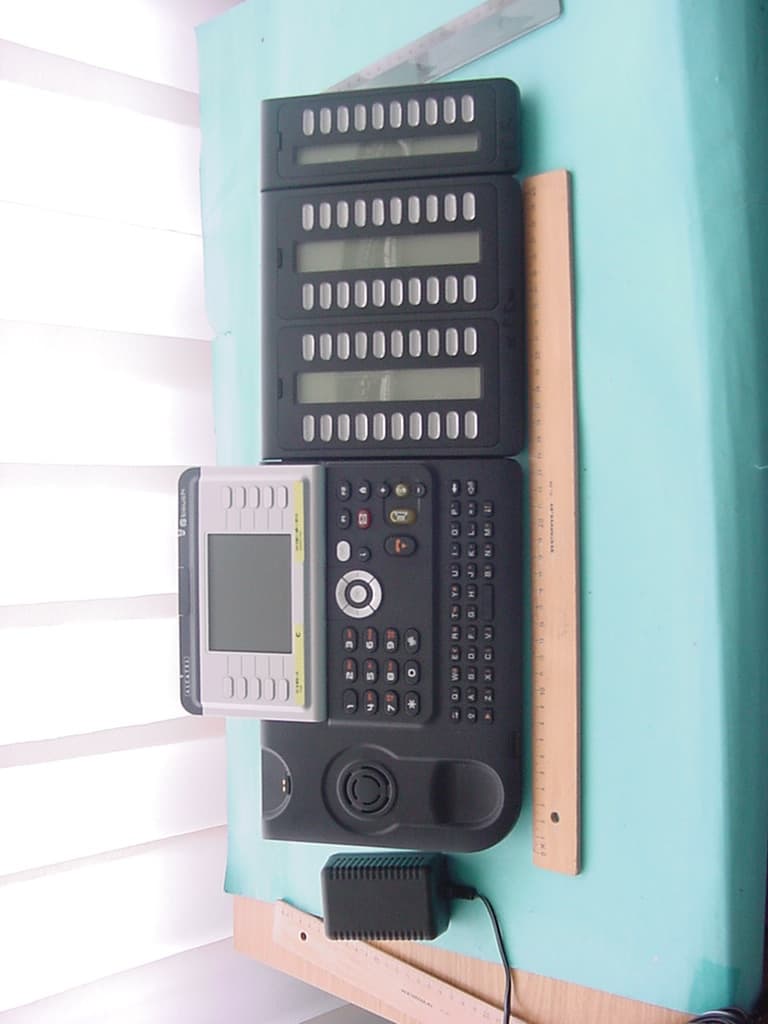

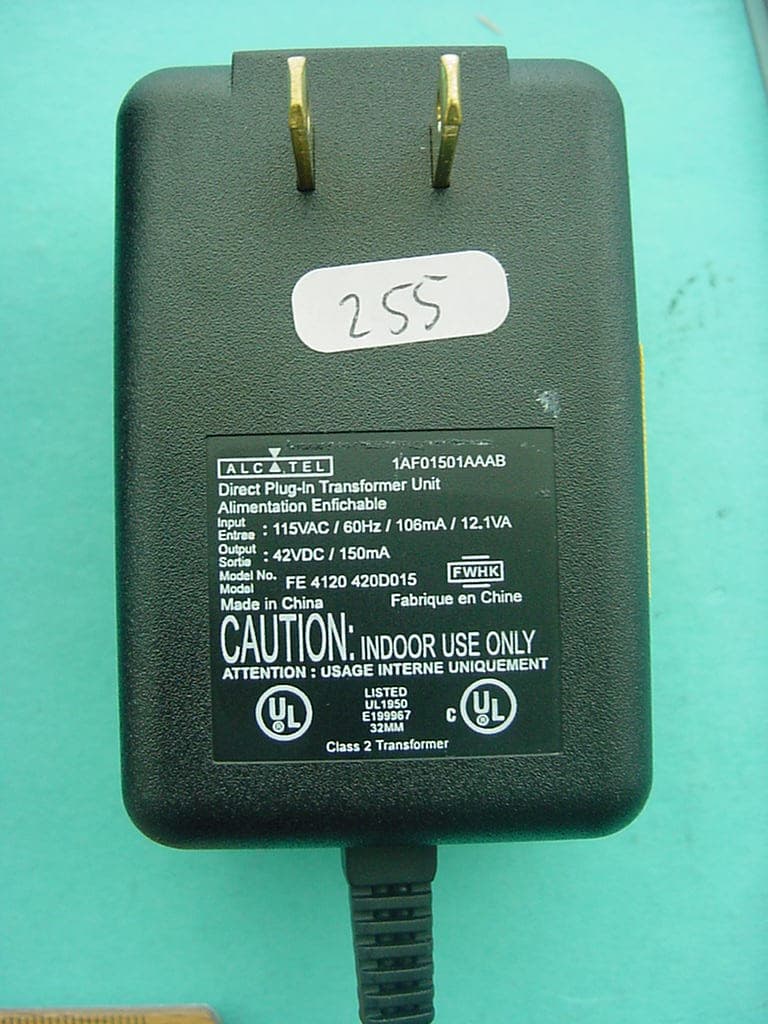

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 52 of 62 6 External Photographs of the Equipment Photograph No.: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 53 of 62 Photograph No.: 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 54 of 62 Photograph No.: 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 55 of 62 Photograph No.: 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 56 of 62 Photograph No.: 5 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 57 of 62 Photograph No.: 6

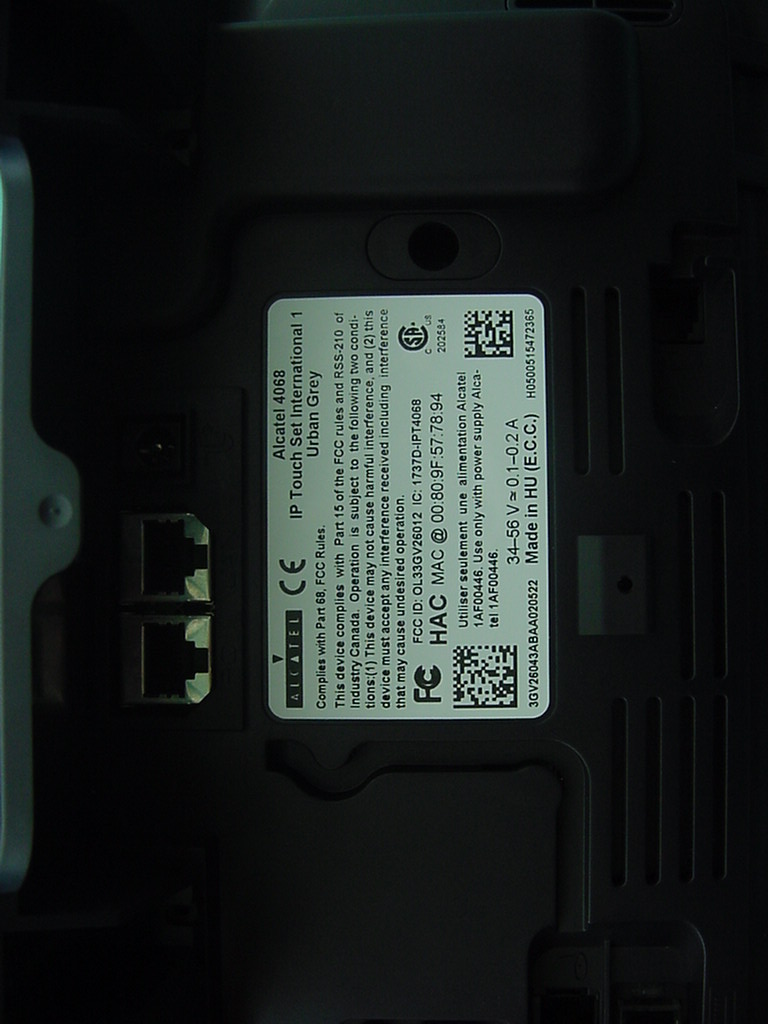

All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization. 1AA 00014 0004 (9007) A4 Interleaf 5.3.1 Labelling Specifications for Alcatel 8&9 series Terminals ED 06 Jean–Pierre MERLEN01.24.20063GV 21141 UCAA DSZZA5 / 39 4.2Product assembled level identification label for A–B–C–D IP Phones IP A, B and C Label example Utiliser seulement une alimentation Alcatel 1AF00446. Use only with power supply Alcatel 1AF00446. This device complies with Part 15 of the FCC rules and ICES006 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Alcatel 4038 34 – 56 V = 0.1 – 0.2 A IP Touch Set International 1 Urban Grey Complies with Part 68, FCC Rules. Made in Hungary (E.E.C.) 202584 HAC MAC @ 00:80:9F:56:04:7F 3GV26003ABAA030348 WLP00400212345 DM2 DM4 ACN 000 005 363 AC04-0440001 PTC 220/04/061 IP D only Label example Utiliser seulement une alimentation Alcatel 1AF00446. Use only with power supply Alcatel 1AF00446. This device complies with Part 15 of the FCC rules and RSS–210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Alcatel 4068 34 – 56 V = 0.1 – 0.2 A IP Touch Set International 1 Urban Grey Complies with Part 68, FCC Rules. FCC ID: OL33GV26012 IC: 1737D–IPT4068 Made in Hungary (E.E.C.) 202584 HAC MAC @ 00:80:9F:56:04:7F 3GV26012ABAA030348 WLP00400212345 DM2 DM4 ACN 000 005 363 005NYDA0019 2.4FH1 AC04-0440001 R PTC 220/04/062 We will find from top to down : Dimensions of the label : 73 x 48 mm Made in xxxxxxx under responsability of manufacturing example : Made in Hungary (E.E.C.) Logo : Alcatel Product designation :example Alcatel 4038 IP Touch Set International 1 (see table) Color specification : Urban Grey or Ice Blue (see table) Normative information: Compliance with FCC part 68 (optional marking) and compliance with FCC part 15 (mandatory text). Compliance with ICES006 (unintentional radiations on IP A, B, C ) or with RSS–210 (intentional radiations on IP D ) FCC ID and IC: on IP D only for R2 (release 2) , FCC ID: OL33GV26012 IC: 1737D–IPT4068 on IP D only for R3 (release 3) , FCC ID: OL33GV26043 IC: 1737D–IPT4068A Electric informations : Power supply, current consumption and warning Logo : crossed out wheeled bin Logo : CE Logo : New Zealand, Telepermit number : (8 characters) see table (example : 220/04/061) Logo : Australia, number ACN 000 005 363

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 58 of 62 7 Internal Photographs of the Equipment Photograph No.: 1 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 59 of 62 Photograph No.: 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 60 of 62 Photograph No.: 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 61 of 62 Photograph No.: 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 62 of 62 Photograph No.: 5

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 1 of 62 \\Ut55\3_PROJEKTE\05_closed\4371_1\Task4(----------)\3-4371-01-04_05_ FCC_4068 IP Touch.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: BE 0012 Accredited by the German Accreditation Council DAR–Registration Number DAT–P–176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report no. : 3-4371-01-04/05 Applicant : Alcatel Business Systems Type : Alcatel 4068 IP Touch Test Standard : FCC Part 15.247 RSS210 FCC ID : OL33GV26012A Certification No. IC : 1737D-IPT4068A CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 2 of 62 Table of contents 1. ADMINISTRATIVE DATA ...................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.1.2 Organizational items..................................................................................................................................... 3 1.1.3 Applicant ́s details ........................................................................................................................................ 4 1.2 ADMINISTRATIVE DATA OF MANUFACTURER / MEMBER........................................................................................ 4 1.3 DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) .......................................................................................... 5 1.3.1 EUT: Type, S/N etc. ...................................................................................................................................... 5 1.3.2 If RF component testing only, describtion of additional used HW/SW ......................................................... 5 1.3.3 Additional EUT information For IC Canada (appendix 2)...........................................................................6 1.3.4 EUT operating modes ................................................................................................................................... 7 1.3.5 Extreme conditions testing values................................................................................................................. 7 2. TESTSTANDARD & SUMMARY LIST OF ALL PERFORMED TEST CASES .............................................. 8 3. RF MEASUREMENT TESTING ............................................................................................................................. 9 3.1 DESCRIPTION OF TEST SET-UP................................................................................................................................9 3.1.1 Radiated measurements ................................................................................................................................ 9 3.1.2 Conducted measurements ............................................................................................................................. 9 3.2 REFERENCED DOCUMENTS................................................................................................................................... 10 3.3 ADDITIONAL COMMENTS..................................................................................................................................... 10 3.4 ANTENNA GAIN................................................................................................................................................... 10 3.5 CARRIER FREQUENCY SEPARATION §15.247(A1)................................................................................................. 11 3.6 NUMBER OF HOPPING CHANNELS §15.247(A1) .................................................................................................... 12 3.7 TIME OF OCCUPANCY (DWELL TIME) §15.247(A1 III) .......................................................................................... 14 3.8 POWER SPECTRAL DENSITY (HYBRID SYSTEM IN INQUIRY MODE/PAGE SCAN) §15.247(D) ................................. 15 3.9 SPECTRUM BANDWIDTH OF A FHSS SYSTEM / 20DB BANDWITH §15.247(A1) ................................................... 16 3.10 MAXIMUM OUTPUT POWER (CONDUCTED) § 15.247 (B) (1) ................................................................................. 19 3.11 MAX. PEAK OUTPUT POWER (RADIATED) § 15.247 (B) (1).................................................................................... 22 3.12 BAND-EDGE COMPLIANCE OF CONDUCTED EMISSIONS §15.247 (C) ..................................................................... 23 3.13 BAND-EDGE COMPLIANCE OF RADIATED EMISSIONS §15.205 .............................................................................. 27 3.14 SPURIOUS EMISSIONS - CONDUCTED (TRANSMITTER) § 15.247 (C) (1) ............................................................... 31 3.15 SPURIOUS EMISSIONS > 30 MHZ- RADIATED (TRANSMITTER) § 15.247 (C) (1) ................................................... 35 3.16 SPURIOUS EMISSIONS - RADIATED (RECEIVER) § 15.109 ..................................................................................... 42 3.17 SPURIOUS EMISSIONS < 30 MHZ - TRANSMITTER RADIATED § 15.209 ................................................................ 45 3.17 SPURIOUS EMISSIONS < 30 MHZ - TRANSMITTER RADIATED § 15.209 ................................................................ 45 3.18 CONDUCTED EMISSIONS <30 MHZ §…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 49 of 62 4 Photographs of Test site Radiated CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 50 of 62 Test site: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Test report no.: 3-4371-01-04/05 Date: 2005-08-04 Page 51 of 62 AC-conducted:
