OL6SK-5100Single-Mode Cellular CDMA Phone

SK Teletech Company Limited

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: Oct 07, 2002
Application Purpose: Original Equipment
Date of Application: Oct 07, 2002
Equipment Note: Single-Mode Cellular CDMA Phone
Frequency Range: 824.70000000 - 848.31000000
Company: SK Teletech Company Limited
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone

Cover Letter(s)

September 27, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SK Teletech Co., Ltd. FCC ID: OL6SK-5100 Part 22 Certification Gentlemen: Submitted herewith, on behalf of SK Teletech Co., Ltd. is an application for Part 22 Certification of the Single-Mode Cellular CDMA Phone. Attached is the applicant’s attestation statement, measurement report (test data and test plots), RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), schematics & circuit description (confidential), operational description (confidential), parts list & tune-up procedure (confidential) and user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SK Teletech Co., Ltd.

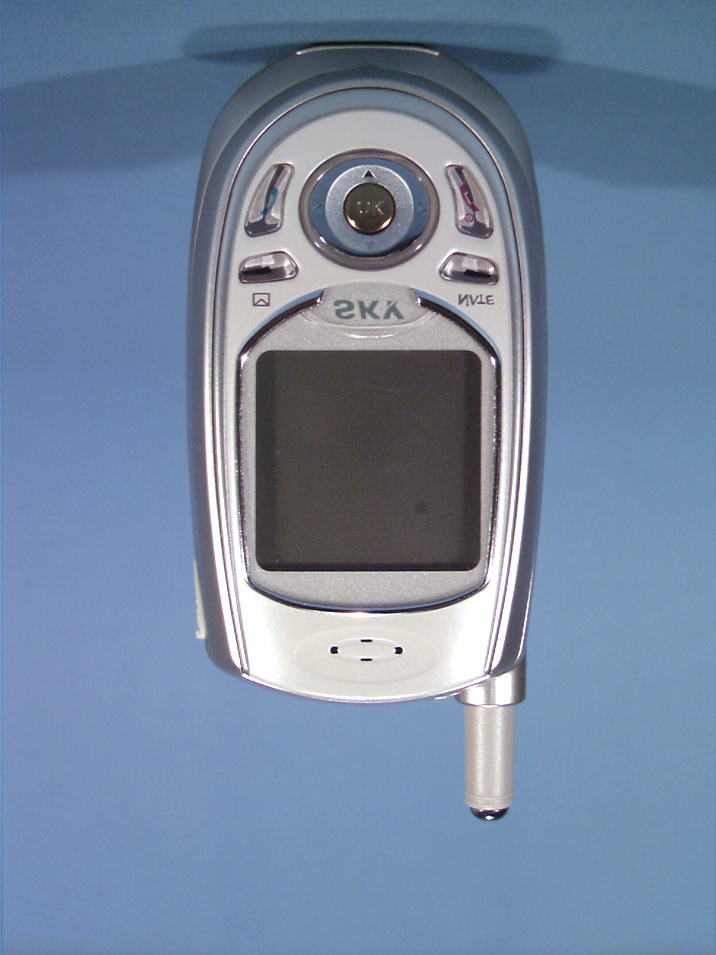

External Photos

ID Label/Location Info

© 2002PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SK Teletech Co. Ltd,. MODEL : SK - 5100FCC I.D : OL6SK - 5100 SK Teletech Co. Ltd,. MODEL : SK - 5100FCC I.D : OL6SK - 5100

Internal Photos

© 2002 PCTEST Lab SK TELETECH FCC ID: OL6SK-5100 Single-Mode Cellular CDMA Phone (Model: SK-5100) © 2002 PCTEST Lab SK TELETECH FCC ID: OL6SK-5100 Single-Mode Cellular CDMA Phone (Model: SK-5100) © 2002 PCTEST Lab SK TELETECH FCC ID: OL6SK-5100 Single-Mode Cellular CDMA Phone (Model: SK-5100) © 2002 PCTEST Lab SK TELETECH FCC ID: OL6SK-5100 Single-Mode Cellular CDMA Phone (Model: SK-5100) © 2002 PCTEST Lab SK TELETECH FCC ID: OL6SK-5100 Single-Mode Cellular CDMA Phone (Model: SK-5100) © 2002 PCTEST Lab SK TELETECH FCC ID: OL6SK-5100 Single-Mode Cellular CDMA Phone (Model: SK-5100) © 2002 PCTEST Lab SK TELETECH FCC ID: OL6SK-5100 Single-Mode Cellular CDMA Phone (Model: SK-5100) © 2002 PCTEST Lab SK TELETECH FCC ID: OL6SK-5100 Single-Mode Cellular CDMA Phone (Model: SK-5100) © 2002 PCTEST Lab SK TELETECH FCC ID: OL6SK-5100 Single-Mode Cellular CDMA Phone (Model: SK-5100) © 2002 PCTEST Lab SK TELETECH FCC ID: OL6SK-5100 Single-Mode Cellular CDMA Phone (Model: SK-5100) © 2002 PCTEST Lab SK TELETECH FCC ID: OL6SK-5100 Single-Mode Cellular CDMA Phone (Model: SK-5100)

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220909477.OL6 Test Dates: Sept. 9-12, 2002 Phone Type: Single-Mode CDMA FCC ID: OL6SK-5100 Page 1 of 30 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SK TELETECH CO., LTD. Dates of Tests: Sept. 9-12, 2002 267 Namdaemunno 5-ga, Chung-gu Test Report S/N: SAR.220909477.OL6 Seoul, 100-711 KOREA Test Site: PCTEST Lab, Columbia MD U.S.A. Attn: Oh Sang-Seok, Sr. Research Engineer FCC ID: OL6SK-5100 APPLICANT: SK TELETECH CO., LTD. EUT Type: Single-Mode Cellular CDMA Phone Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.361 W ERP CDMA (25.573 dBm) / 25.0 dBm Conducted Max. SAR Measurement: 1.24W/kg CDMA Head SAR; 1.43W/kg CDMA Body SAR Trade Name/Model(s): SK-5100 FCC Classification: Non-Broadcast Transmitter held to ear (TNE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220909477.OL6 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220909477.OL6 Test Dates: Sept. 9-12, 2002 Phone Type: Single-Mode CDMA FCC ID: OL6SK-5100 Page 2 of 30 © 2002 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION .................................................................................................. 3 SAR DEFINITION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware ................................................................................................... 4 System Electronics .................................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 Probe Measurement System.................................................................................... 5 Probe Specifications ............................................................................................... 5 4. Probe Calibration Process....................................................................................... 6 Dosimetric Assessment Procedure .......................................................................... 6 Free Space Assessment ........................................................................................... 6 Temperature Assessment ........................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ........................................................................................................ 7 Brain & Muscle Simulating Mixture Characterization ............................................. 7 Device Holder for Transmitters............................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications .................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ................................................. 9 Measurement Procedure......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications.................................. 9 8. DEFINITION OF REFERENCE POINTS ................................................................. 10 EAR Reference Point............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS .................................................................. 11 Positioning for Cheek/Touch ................................................................................ 11 Positioning for Ear / 15° Tilt .................................................................................. 12 Body Holster /Belt Clip Configurations ................................................................. 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 14 Uncontrolled Environment ................................................................................... 14 Controlled Environment........................................................................................ 14 11. MEASUREMENT UNCERTAINTIES ............…

Text truncated - open the document above for the full version.

RF Exposure Info

SK TELETECH FCC ID: OL6SK-5100 -- Cellular CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.751 mW/g, SAR (10g): 0.529 mW/g SK TELETECH Cellular CDMA phone Model: SK-5100 Celllular CDMA Mode, Ch.1013 [824.70MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 25.0dBm; Right Head Phantom, Cheek / Touch position; Slide = up (Normal position) Test Date -- 09/11/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 7.13E-2 2.14E-1 3.56E-1 4.99E-1 6.42E-1 PCTEST Engineering Laboratory, Inc. SK TELETECH FCC ID: OL6SK-5100 -- Cellular CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.481 mW/g, SAR (10g): 0.343 mW/g SK TELETECH Cellular CDMA phone Model: SK-5100 Celllular CDMA Mode, Ch.1013 [824.70MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 25.0dBm; Right Head Phantom, EAR/15 Degree Tilt position; Slide = up (Normal position) Test Date -- 09/11/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 4.71E-2 1.41E-1 2.35E-1 3.30E-1 4.24E-1 PCTEST Engineering Laboratory, Inc. SK TELETECH FCC ID: OL6SK-5100 -- Cellular CDMA Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.919 mW/g, SAR (10g): 0.629 mW/g SK TELETECH Cellular CDMA phone Model: SK-5100 Celllular CDMA Mode, Ch.1013 [824.70MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 25.0dBm; Left Head Phantom, Cheek/Touch position; Slide = up (Normal position) Test Date -- 09/09/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 8.52E-2 2.56E-1 4.26E-1 5.96E-1 7.67E-1 PCTEST Engineering Laboratory, Inc. SK TELETECH FCC ID: OL6SK-5100 -- Cellular CDMA Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.553 mW/g, SAR (10g): 0.382 mW/g SK TELETECH Cellular CDMA phone Model: SK-5100 Celllular CDMA Mode, Ch.0779 [848.37MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 25.0dBm; Left Head Phantom, EAR/15 Degree Tilt position; Slide = up (Normal position) Test Date -- 09/09/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 5.77E-2 1.73E-1 2.88E-1 4.04E-1 5.19E-1 PCTEST Engineering Laboratory, Inc. SK TELETECH FCC ID: OL6SK-5100 -- Cellular CDMA Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(6.40,6.40,6.40) Med. Parameters 835 MHz Muscle: σ = 0.98 mho/m ε r = 55.6 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.28 mW/g, SAR (10g): 0.886 mW/g SK TELETECH Cellular CDMA phone Model: SK-5100 Celllular CDMA Mode, Ch.1013 [824.70MHz]; Standard Battery; Slide = up; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 25.0dBm; Spacing = 1.5cm from EUT (antenna side) to flat phantom, No BeltClip/No Holster; Test Date -- 09/11/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.35E-1 4.05E-1 6.74E-1 9.44E-1 1.21E+0 PCTEST Engineering Laboratory, Inc. SK TELETECH FCC ID: OL6SK-5100 -- Cellular CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position --In; Crest Factor 1.0 SAR (1g): 1.06 mW/g, SAR (10g): 0.716 mW/g SK TELETECH Cellular CDMA Phone Model: SK-5100 Celllular CDMA Mode, Ch.1013 [824.70MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 25.0dBm; Right Head Phantom, Cheek/Touch position; Slide = down (2nd. position) Test Date -- 09/10/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 9.60E-2 2.88E-1 4.80E-1 6.72E-1 8.64E-1 PCTEST Engineering Laboratory, Inc. SK TELETECH FCC ID: OL6SK-5100 -- Cellular CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.980 mW/g, SAR (10g): 0.653 mW/g SK TELETECH Cellular CDMA Phone Model: SK-5100 Celllular CDMA Mode, Ch.1013 [824.70MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 25.0dBm; Right Head Phantom, EAR/15 Degree Tilt position; Slide = down (2nd. position) Test Date -- 09/10/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 9.99E-2 3.00E-1 5.00E-1 6.99E-1 8.99E-1 PCTEST Engineering Laboratory, Inc. SK TELETECH FCC ID: OL6SK-5100 -- Cellular CDMA Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.24 mW/g, SAR (10g): 0.831 mW/g SK TELETECH Cellular CDMA Phone Model: SK-5100 Celllular CDMA Mode, Ch.1013 [824.70MHz]; Slim Battery; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 25.0dBm; Left Head Phantom, Cheek/Touch position; Slide = down (2nd.position). Test Date -- 09/10/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.22E-1 3.66E-1 6.10E-1 8.53E-1 1.10E+0 PCTEST Engineering Laboratory, Inc. SK TELETECH FCC ID: OL6SK-5100 -- Cellular CDMA Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position --In; Crest Fac…

Text truncated - open the document above for the full version.

RF Exposure Info

835MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.34mW/g, SAR (10g): 1.60 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C PCTEST Brain Tissue Simulating Liquid [09/09/2002] SAR Tot [mW/g] 2.47E-1 7.56E-1 1.13E+0 1.69E+0 2.11E+0 PCTEST Engineering Laboratory, Inc.

Test Report

PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.220909476.OL6 Test Dates: Sept. 9-12, 2002 Phone Type: Single Mode CDMA FCC ID: OL6SK-5100 Page 1 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. 0 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification SK TELETECH CO., LTD. Dates of Tests: Sept. 9-12, 2002 267 Namdaemunno 5-ga, Chung-gu Test Report S/N: 22.220909476.OL6 Seoul, 100-711 KOREA Test Site: PCTEST Lab, Columbia MD U.S.A. Attn: Oh Sang-Seok, Sr. Research Engineer FCC ID OL6SK-5100 APPLICANT SK TELETECH CO., LTD. Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §22.901(d), §2 EUT Type: Single-Mode Cellular CDMA Phone Model: SK-5100 Tx Frequency Range: 824.70 — 848.31MHz (CDMA) Rx Frequency Range: 869.70 — 893.31MHz (CDMA) Max. RF Output Power: 0.361 W ERP CDMA (25.573 dBm) Max. SAR Measurement: 1.24W/kg CDMA Head SAR; 1.43W/kg CDMA Body SAR Emission Designator(s): 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220909476.OL6 PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.220909476.OL6 Test Dates: Sept. 9-12, 2002 Phone Type: Single Mode CDMA FCC ID: OL6SK-5100 Page 2 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-7 5.1 EFFECTIVE RADIATED POWER OUTPUT 8 6.1 RADIATED MEASUREMENTS 9-11 7.1 FREQUENCY STABILITY 12-13 8.1 PLOTS OF EMISSIONS 14 9.1 LIST OF TEST EQUIPMENT 15 10.1 SAMPLE CALCULATIONS 16 11.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT K: SCHEMATIC DIAGRAM(S) ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.220909476.OL6 Test Dates: Sept. 9-12, 2002 Phone Type: Single Mode CDMA FCC ID: OL6SK-5100 Page 3 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SK TELETECH CO., LTD. Address: 267 Namdaemunro 5-ga, Chung-gu Seoul, 100-711 Korea Attention: Oh Sang-Seok, Sr. Research Engineer • FCC ID: OL6SK-5100 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 824.70 — 848.31 MHz (CDMA) • Rx Freq. Range: 869.70 — 893.31 MHz (CDMA) • Max. Power Rating: 0.361 W ERP CDMA (25.573 dBm) • FCC Classification(s): Non-Broadcast Transmitter Held to Ear (TNE) • Equipment (EUT) Type: Single-Mode Cellular CDMA Phone • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): §22.901(d), §2 • Dates of Tests: Sept. 9-12, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22.220909476.OL6 PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.220909476.OL6 Test Dates: Sept. 9-12, 2002 Phone Type: Single Mode CDMA FCC ID: OL6SK-5100 Page 4 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half- wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level is recorded. For readings above 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic a…

Text truncated - open the document above for the full version.

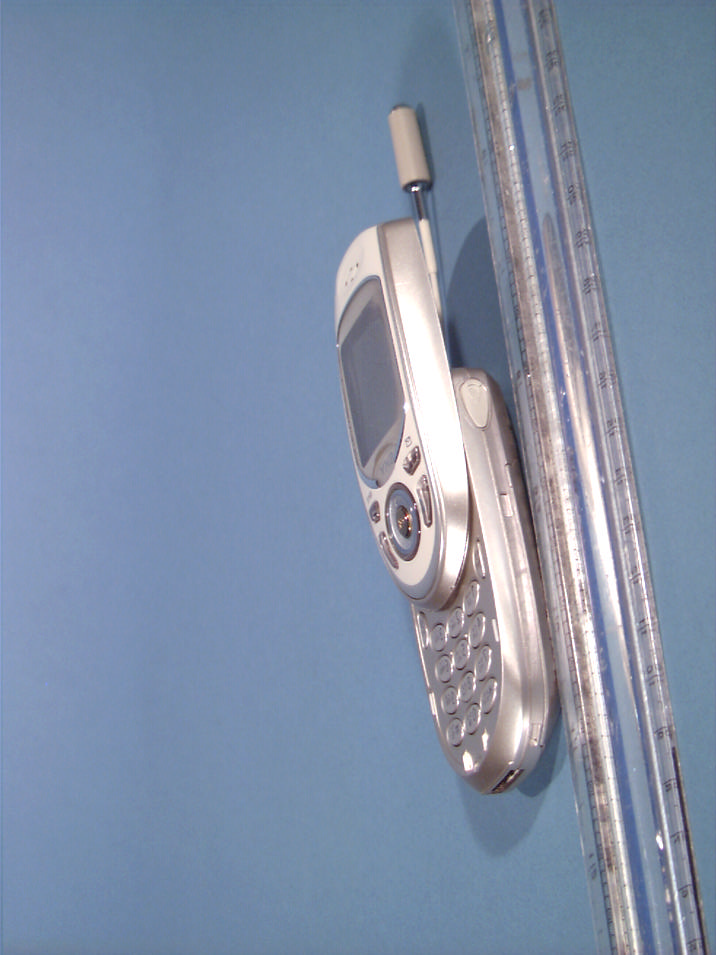

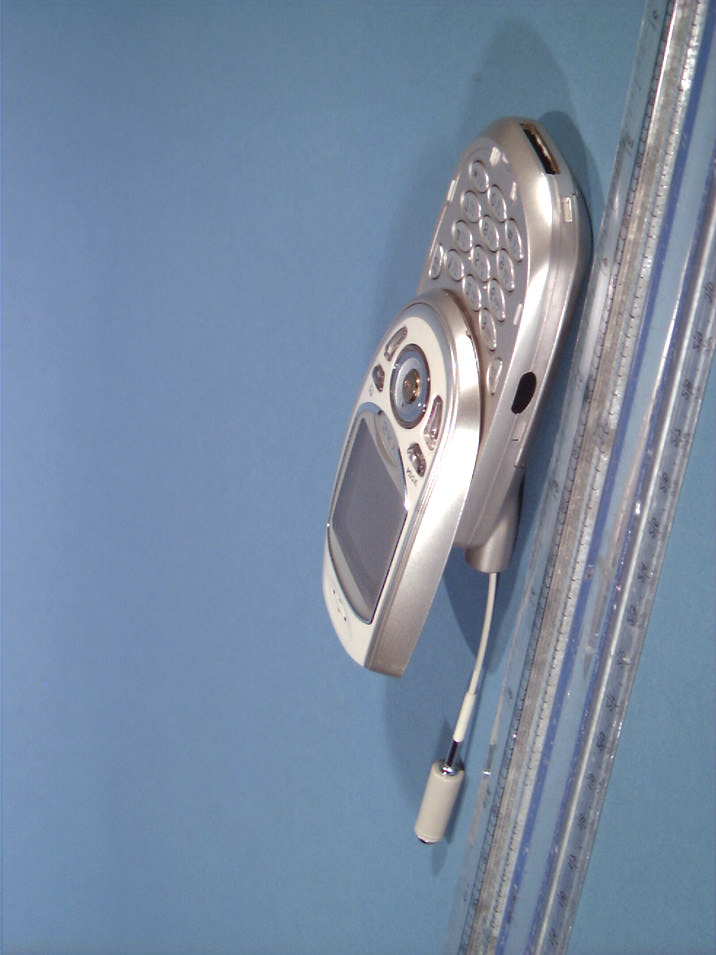

Test Setup Photos

Contact Information

Applicant

Felix Jin(Manager)

[email protected]82-2-2112-3114Fax: 82-22-2112--3399

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Non-Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	22.901(d)	824.7 MHz - 848.31 MHz	361.00 mW	1M25F9W	2.5000000000 ppm

Confidentiality

Long Term

Grant Notes

Output is ERP. SAR compliance for body-worn operating configurations is limited to the specific configuration testing for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5 cm. separation between the device, including its antenna whether extended or retracted, and the user�s body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values are � Head: 1.24 W/kg: Body-worn: 1.43 W/kg.
