OL6SK-6100Single-Mode Cellular Phone (CDMA)

SK Teletech Company Limited

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: Jul 28, 2004
Application Purpose: Original Equipment
Date of Application: Jul 28, 2004
Equipment Note: Single-Mode Cellular Phone (CDMA)
Frequency Range: 824.70000000 - 848.31000000
Company: SK Teletech Company Limited
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 SK-6100 User Manual 2 Advanced features of SK-6100 MP3 Player Use your mobile phone as an MP3 player!! Enjoy MP3 music from dance to ballads, hip-hops and rocks with your mobile phone. 40 chord melody More vivid melody! The phone provides diverse and more vivid music in various fields with 40-chord melody. CDMA2000 1x superhigh speed data communication SK-6100 is a mobile phone faster than a modem. The phone implements the CDMA 2000 1x superhigh speed communication function of 153.6Kbps with MSM6050 equipped, enabling you to navigate the wireless Internet in super high speed or to swiftly download the multimedia data. Wireless internet You can enjoy a hundredfold realistic wireless Internet at anytime and anywhere by downloading various multimedia contents to SK-6100. Other features Still smart and various functions! auto answering/recorder, 99 memory location numbers, stopwatch, electronic pocketbook (Calendar/scheduler, alarm, morning call, and calculator), various animations, my melody, etiquette, music bell, etc. 3 User’s Manual Table of Contents Advanced features of SK-6100..................................................................2 User’s Manual Table of Contents...............................................................3 Precautions for using the mobile phone....................................................8 Safety information................................................................................................................9 Introduction................................................................................................10 Package Contents.............................................................................................................10 Part Names and Functions................................................................................................11 ? Part Name......................................................................................................................................................11 ? Part Function.................................................................................................................................................12 Display Indicators..............................................................................................................14 Basic key usage................................................................................................................15 ? Muti-function keys........................................................................................................................................15 ? Adding an entry.............................................................................................................................................16 ? How to view items........................................................................................................................................16 ? How to select items.....................................................................................................................................16 ? How to use related menu..........................................................................................................................17 Using the battery...............................................................................................................17 ? Cautions..........................................................................................................................................................17 ? Inserting the battery....................................................................................................................................18 ? Removing the battery.................................................................................................................................18 ? Battery life.......................................................................................................................................................19 ? Low battery alarm........................................................................................................................................19 ? Charging the battery...................................................................................................................................19 ? Minimum battery charging time...............................................................................................................20 Basic Operation.........................................................................................20 Switching the phone on/off................................................................................................20 ? Switching the phone on.............................................................................................................................20 ? Switching the phone off.............................................................................................................................20 Making a call......................................................................................................................20 Redialing calls...................................................................................................................21 ?Search call history and redial.....................................................................................................................21 Speed dial..........................................................................................................................21 Answering calls..................................................................................................................22 Functions available during a call.......................................................................................22 ? Adjusting the earpiece volume................................................................................................................22 4 ? Check received messages.........................…

Text truncated - open the document above for the full version.

Attestation Statements

21th FL, Startower737, Yeoksam-dong, Kangnam-ku Seoul, 135-984, Korea Phone : +82-2-2112-3114 Fax : +82-2-2112-3399 Teletech Co., Ltd. July 12, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A In re : SK TELETECH CO., LTD FCC ID : OL6SK-6100 Single-Mode CDMA Cellular Phone FCC Part 22 Certification Requestfor Confidentiality Gentlemen, In accordance with 0.459 of CFR47, SK Teletech Co., Ltd. Hereby request confidentiality of the Block Diagrams, Circuit Diagrams & Description, Part List, Tune-up Procedure, and Operational Description attachments for the attached application. These documents contains detailed system and equipment description and related information about the product which SK Teletech Co., Ltd. Considers to be proprietary,confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future techno- logical products will evolve, SK Teletech Co., Ltd. Considers that this information would be of benefit to its competitors, and that the disclosure of the in these documents would give competitors an unfair advantage in the market. Sincerely, Felix JIN Manager / R&D Planning Team SK TeletechCo., Ltd. Teletech Co., Ltd. July 12, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To whom it concern, We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1998, 21U.S.C.853(a). Sincerely, Felix JIN Manager / R&D Planning Team SK Teletech Co., Ltd. 21th FL, Startower737, Yeoksam-dong, Kangnam-ku Seoul, 135-984, Korea Phone : +82-2-2112-3114 Fax : +82-2-2112-3399

External Photos

ID Label/Location Info

© 2004 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) Teletech Co., Ltd. Teletech Co., Ltd.

Internal Photos

SK TELETECH FCC ID: OL6SK-6100 EUT Photographs © 2004 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: SK-6100 SK TELETECH FCC ID: OL6SK-6100 EUT Photographs © 2004 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: SK-6100 SK TELETECH FCC ID: OL6SK-6100 EUT Photographs © 2004 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: SK-6100 SK TELETECH FCC ID: OL6SK-6100 EUT Photographs © 2004 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: SK-6100 SK TELETECH FCC ID: OL6SK-6100 EUT Photographs © 2004 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: SK-6100 SK TELETECH FCC ID: OL6SK-6100 EUT Photographs © 2004 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: SK-6100 SK TELETECH FCC ID: OL6SK-6100 EUT Photographs © 2004 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: SK-6100 SK TELETECH FCC ID: OL6SK-6100 EUT Photographs © 2004 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: SK-6100 SK TELETECH FCC ID: OL6SK-6100 EUT Photographs © 2004 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: SK-6100 SK TELETECH FCC ID: OL6SK-6100 EUT Photographs © 2004 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: SK-6100 SK TELETECH FCC ID: OL6SK-6100 EUT Photographs © 2004 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: SK-6100

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240712430.OL6 Test Dates: July 12-13, 2004 Phone Type: Single-Mode CDMA FCC ID: OL6SK-6100 Page 1 of 30 © 2004 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SK TELETECH CO., LTD. Dates of Tests: July 12-13, 2004 21th FL, Startower, 737 Yeoksam-dong, Test Report S/N: SAR.240712430.OL6 Kangnam-gu, Seoul, 135-984 KOREA Test Site: PCTEST Lab, Columbia MD FCC ID: SK TELETECH CO., LTD. APPLICANT: OL6SK-6100 EUT Type: Single-Mode Cellular Phone (CDMA) Tx Frequency: 824.70 – 848.31 MHz (CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.297 W ERP CDMA (24.723 dBm) / 24.7 dBm Conducted Max. SAR Measurement: 1.22 W/kg CDMA Head SAR; 1.15 W/kg CDMA Body SAR; Trade Name/Model(s): SK-6100 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #80] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240712430.OL6 Test Dates: July 12-13, 2004 Phone Type: Single-Mode CDMA FCC ID: OL6SK-6100 Page 2 of 30 © 2004 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY.......................................................................................17-27 15. SAR TEST EQUIPMENT..........................................................................................28 16. CONCLUSION...............................................................................................................29 17. REFERENCES..................................................................................................................30 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240712430.OL6 Test Dates: July 12-13, 2004 Phone Type: Single-Mode CDMA FCC ID: OL6SK-6100 Page 3 of 30 © 2004 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in …

Text truncated - open the document above for the full version.

RF Exposure Info

Test Report

PCTEST PT. 22 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22.240712429.OL6 Test Dates: July 12-13, 2004 Phone Type: Single-Mode CDMA FCC ID: OL6SK-6100 Page 1 of 18 © 2004 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification SK TELETECH CO., LTD. Dates of Tests: July 12-13, 2004 21th FL, Startower, 737 Yeoksam-dong, Kangnam-gu Test Report S/N: 22.240712429.OL6 Seoul, 135-984 KOREA Test Site: PCTEST Lab, Columbia MD U.S.A. FCC ID OL6SK-6100 APPLICANT SK TELETECH CO., LTD. Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §22H EUT Type: Single-Mode Cellular Phone (CDMA) Model: SK-6100 Tx Frequency Range: 824.70 – 848.31MHz (CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) Max. RF Output Power: 0.297 W ERP CDMA (24.723 dBm) Max. SAR Measurement: 1.22 W/kg CDMA Head SAR; 1.15 W/kg CDMA Body SAR Emission Designator(s): 1M25F9W Test Device Serial No. Identical Prototype [S/N: #80) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22.240712429.OL6 Test Dates: July 12-13, 2004 Phone Type: Single-Mode CDMA FCC ID: OL6SK-6100 Page 2 of 18 © 2004 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-8 5.1 EFFECTIVE RADIATED POWER OUTPUT 9 6.1 RADIATED MEASUREMENTS 10-12 7.1 FREQUENCY STABILITY 13-14 8.1 PLOTS OF EMISSIONS 15 9.1 LIST OF TEST EQUIPMENT 16 10.1 SAMPLE CALCULATIONS 17 11.1 CONCLUSION 18 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22.240712429.OL6 Test Dates: July 12-13, 2004 Phone Type: Single-Mode CDMA FCC ID: OL6SK-6100 Page 3 of 18 © 2004 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SK TELETECH CO., LTD. Address: 21th FL, Startower, 737 Yeoksam-dong, Kangnam-gu Seoul, 135-984 KOREA • FCC ID: OL6SK-6100 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W (CDMA) • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) • Max. Power Rating: 0.297 W ERP CDMA (24.723 dBm) • FCC Classification(s): Non-Broadcast Transmitter Held to Ear (TNE) • Equipment (EUT) Type: Single-Mode Cellular Phone (CDMA) • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): §22H • Dates of Tests: July 12-13, 2004 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22.240712429.OL6 PCTEST PT. 22 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22.240712429.OL6 Test Dates: July 12-13, 2004 Phone Type: Single-Mode CDMA FCC ID: OL6SK-6100 Page 4 of 18 © 2004 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half- wave dipol…

Text truncated - open the document above for the full version.

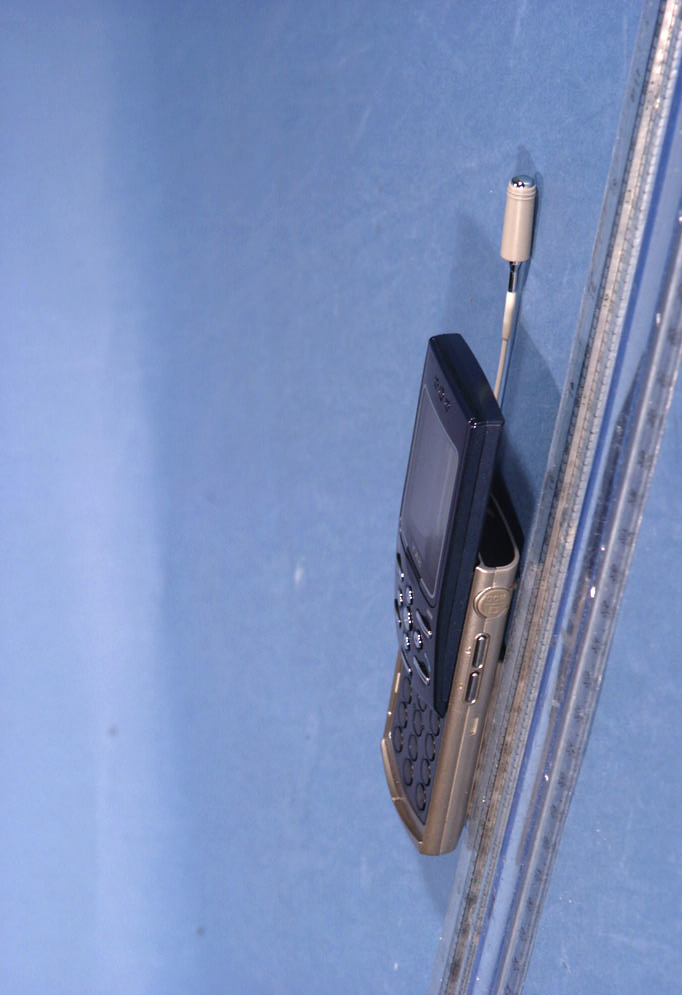

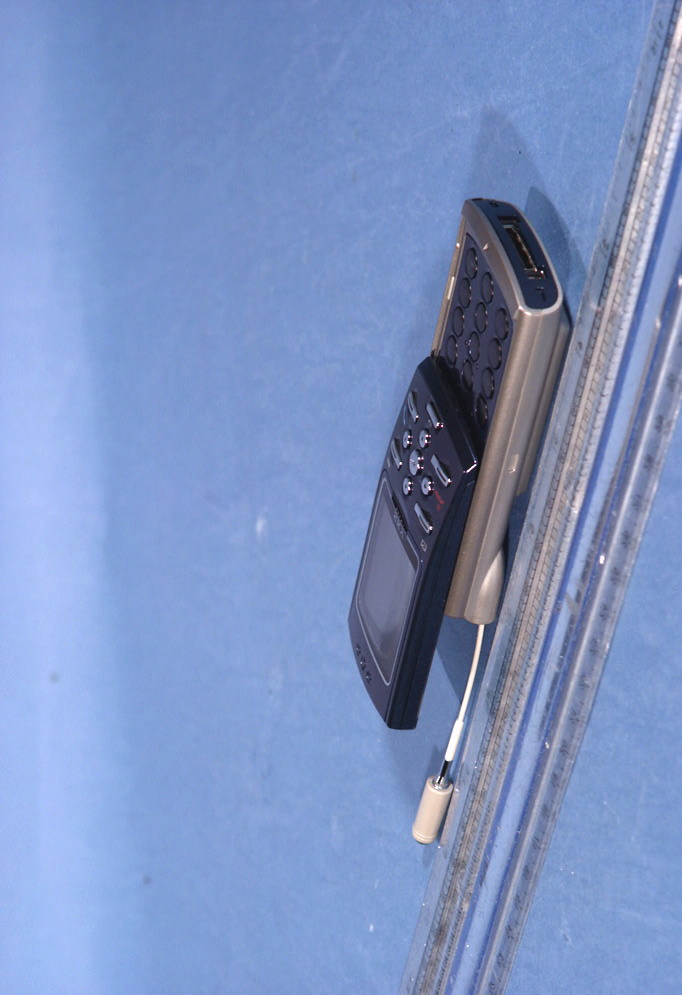

Test Setup Photos

Contact Information

Applicant

Felix Jin(Manager)

[email protected]82-2-2112-3114Fax: 82-22-2112--3399

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]4102906652Fax: 4102906654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	22H	824.7 MHz - 848.31 MHz	297.00 mW	1M25F9W	2.5000000000 ppm

Confidentiality

Long Term

Grant Notes

Output listed is ERP. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm from the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt-clips or holsters may not contain metallic components. The highest reported SAR values are - Head: 1.22 W/kg; Body-worn: 1.15 W/kg.
