OMD800-216Assistive Listening Systems for hard of hearing

TM User’s Manual for all Listen Products LISTEN TECHNOLOGIES CORPORATION © Copyright 1999 Listen Technologies Corporation TM LISTEN TECHNOLOGIES CORPORATION P.O. Box 683010 Park City, Utah 84068-3010 U.S.A. Shipping: 1762A Prospector Avenue Park City, UT 84060 Telephone: +1.435.647.0318 Toll Free: 1.800.330.0891 Fax: +1.435.647.0316 Internet: www.listentech.com E-Mail: [email protected] Printed in U.S.A. 10/99 (c) Copyright 1999 Reprint with permission only productmanual 11x17.qrk 10/11/99 2:42 PM Page 1 2LISTEN TECHNOLOGIES CORPORATION +1.435.647.0318 1.800.330.0891 Fax: +1.435.647.0316 Internet: www.listentech.comAll specifications are subject to change without notice. TM LISTEN TECHNOLOGIES CORPORATION +1.435.647.0318 1.800.330.0891 Fax: +1.435.647.0316 31 Internet: www.listentech.com All specifications are subject to change without notice. 216MHz Frequency Compatibility Table (Continued) INTRODUCTION Assistive Listening Systems help enhance the ability to hear in many applications. These systems deliver audio directly to a person’s ear through an earphone. This earphone can be used in conjunction with a hearing aid or placed directly on the ear. The earphone is connected to a receiver, which picks up a broadcast transmission of an audio source. Volume can be adjusted by the user. Audio originates from a person speaking into a microphone or sound system. Assistive Listening Devices are commonly available in facilities such as places of worship, stadiums, arenas, meeting rooms, schools, etc. In various public facilities in the U.S.A., assistive listening device accessibility is mandated by the Americans with Disabilities Act, and must be provided by the facility for the hard of hearing. Listen’s FM Assistive Listening Systems, in particular, are extremely versatile, durable and easy to set up and use. 100% compatible with all major manufacturers of FM assistive listening products, Listen products offer access to 57 channels at 72MHz or at 216MHz. This means that if you have a Listen receiver and walk into a facility, simply press “SEEK” to find the transmitting channel. 57 channels also more likely guarantee that a facility manager can find a clear transmission channel to broadcast on or can easily change channels if interference becomes a problem. Also, Listen’s receivers and portable transmitter feature high performance NiMH batteries which allow for hassle- free, long battery life. Another unique feature is Listen’s LCD Display, which communicates battery level, channel and RF signal strength. Listen is dedicated to whatever-it-takes customer support. We even offer a Limited Lifetime Warranty that assures maximum performance and no hassle. Contact Listen; we’ll be happy to assist you. Introduction productmanual 11x17.qrk 10/11/99 2:42 PM Page 2 TM LISTEN TECHNOLOGIES CORPORATION +1.435.647.0318 1.800.330.0891 Fax: +1.435.647.0316 3 Internet: www.listentech.comAll specifications subject to change without notice. 30 LISTEN TECHNOLOGIES CORPORATION +1.435.647.0318 1.800.330.0891 Fax: +1.435.647.0316 Internet: www.listentech.com All specifications are subject to change without notice. 216MHz Frequency Compatibility Table Table of Contents Frequency & Compatibility Tables 72MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-29 216MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30-31 LR-500 Programmable Display Receiver and LR-400 Display Receiver Differences in the LR-400 and LR-500 . . . . . . . . . . . .21 Preparing Listen receivers for use . . . . . . . . . . . . . . .21 Operating the Listen receiver . . . . . . . . . . . . . . . . . . .22 Locking into only one channel . . . . . . . . . . . . . . . . . .23 Receiver LED indicator . . . . . . . . . . . . . . . . . . . . . . .23 Receiver battery status icon . . . . . . . . . . . . . . . . . . .23 LR-400 and LR-500 Look & Listen ™ LCD display descriptions . . . . . . . . . . . . . . . .23 Unlocking and locking the access door . . . . . . . . . . .24 Charging batteries using SmartCharge ™ . . . . . . . . . . .24 Operating the receiver with a wall transformer . . . . .25 LR-400 and LR-500 specifications . . . . . . . . . . . . . . .26 Receiver troubleshooting . . . . . . . . . . . . . . . . . . . . . .27 LR-500 programming . . . . . . . . . . . . . . . . . . . . . . . . .25 MISCELLANEOUS Technical Service Contacts . . . . . . . . . . . . . . . . . . . . . . . . .4 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Compliance Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Limited Lifetime Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .5 LT-800 Stationary Transmitter Preparing the LT-800 for use . . . . . . . . . . . . . . . . . . . . . . .6 Lock into or unlock a channel . . . . . . . . . . . . . . . . . . . . . .7 Audio connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Antenna set up options . . . . . . . . . . . . . . . . . . . . . . . . . . .8 LT-800 front illustration: controls & display descriptions . .9 Audio controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Operating the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Selecting a channel to transmit on . . . . . . . . . . . . . . . . .10 LT-800 specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 LT-800 troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .12 LT-700 Portable Transmitter Preparing the LT-700 for use . . . . . . . . . . . . . . . . . . . . . .13 Operating the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Selecting a channel to transmit on . . . . . . . . . . . . . . . . .15 Look & Listen™ LCD display descriptions . . . . . . . . . . . .15 LT-700 programming . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Locking into only one channel . . . . . . . . . . . . . . . . . . . . .16 LED indicator . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

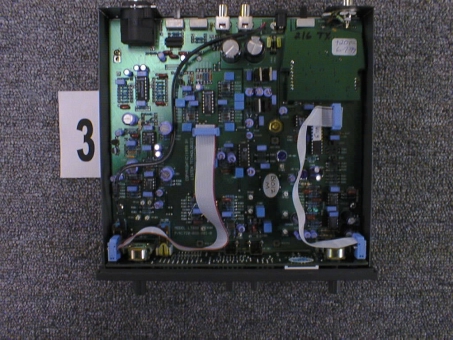

Report No.:990715 Client: Listen Technologies Co. FCC ID : OMD800-216 October 19, 1999 TEST REPORT According to FCC Part 95 Subparts E,G for LOW POWER RADIO SERVICES (LPRS) STATIONARY TRANSMITTING SYSTEMS MODEL: LT-800 Prepared for: LISTEN TECHNOLOGIES Corporation 1762A Prospector Avenue Park City, Utah 84060 Prepared by JMR Compliance Engineering 20400 Plummer Street Chatsworth, CA 91311 Phone: 818-993-4801 This report contains confidential information. The owner of this report may make duplicates of it, provided all pages are copied. Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 2 of 64 TABLE OF CONTENTS PREFACE4 1.0CERTIFICATION of TEST DATA5 2.0GENERAL INFORMATION6 2.1Client Information6 2.2Administrative Data6 3.0EQUIPMENT UNDER TEST (EUT) 7 3.1EUT Nomenclature 7 3.2Brief Description of EUT7 3.3Photographs of EUT 8 3.4Support Equipment List11 3.5Cabling Configuration11 3.6EUT Modifications12 3.7Photographs of EUT Modification12 3.8EUT Labeling per FCC Requirements12 4.0TEST PROCEDURE AND CONFIGURATION13 4.1Test Specification13 4.2Block Diagram of EUT Set-up for the Test13 4.3Procedure of RF Power Output, Unwanted radiation, Radiated Emission Test, Modulation Characteristics, Spurious Emissions, Field Strength of Spurious Radiation, Occupied Bandwidth14 4.4Test Equipment Used15 4.5Photographs of Test Setup16 Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 3 of 64 5.0TEST RESULTS17 5.1 RF Power Output Test 17 5.2Unwanted Radiation Test24 5.3. Modulation characteristics 36 5.4. Occupied Bandwidth Test 37 5.5. Spurious Emissions at antenna terminals 43 5.6. Field strength of Spurious Radiation 50 5.7. Frequency Stability 63 Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 4 of 64 PREFACE This report describes the results of measurements made on the Low Power Radio Service (LPRS) STATIONARY TRANSMITTERS which falls under the class of intentional radiator by the FCC Part 95 Rules and Regulations. This EUT is designated:LPRS Stationary Transmitter - Assistive Listening System Model:LT-800 The LT-800 is designed and manufactured by Listen Technologies Corporation. The EUT was tested in full compliance with the FCC Regulations using the methods of FCC Part 95 and Part 2 “Frequency Allocations and Radio Treaty Matters; General Rules and Regulations”. The results of the testing indicate that the LPRS STATIONARY TRANSMITTER LT-800 met the Part 95 limits and requirements. Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 5 of 64 1.0CERTIFICATION OF TEST DATA Certification The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the test sample (EUT), and measurements obtained as of the dates and the times of the test under the conditions specified and to the methods of FCC Part 95 and Part 2 “Frequency Allocations and Radio Treaty Matters; General Rules and Regulations”. All measurements are traceable to the National Institute of Standards and Technology (NIST). The test results provided with this report, indicate that the equipment tested: Model: LT-800 is compliant with the following Rules and Regulations: A.47 Code of Federal Regulations, Part 95, Subpart E and G : 10-1-98 Edition B.47 Code of Federal Regulations, Part 2, LPRS transmitters: 10-1-98 Edition Tests performed by: _______________________ Vlad Shapiro EMC Technician Report approved by: ________________________ Leon Kogan Technical Director, JMR Compliance Engineering Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 6 of 64 2.0GENERAL INFORMATION 2.1Client Information Company Name: Listen Technologies Co. Contact:Keldon Paxman Company Address: 1762A Prospector Avenue Park City, Utah 84060 Phone:(435) 647-0318 2.2Administrative Data Device tested:LPRS Stationary Transmitter Model:LT-800 Accessories:N/A Expository Statement:This device is designed to operate as LPRS transmitter Purpose of test:Demonstrate compliance with FCC Rules, Part 95, Subparts E and G Date of test:10/20/99 Place of the test:JMR Electronics, Inc. Compliance Engineering Laboratory 20400 Plummer Street Chatsworth, CA 91311 Phone: 818-993-4801 Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 7 of 64 3.0EQUIPMENT UNDER TEST (EUT) 3.1EUT Nomenclature Manufacturer:Listen Technologies Co. Model No. ( type )LT-800 Serial No.N/A Equipment categoryLPRS Stationary Transmitter 3.2 Brief Description of EUT The LT-800 is the LPRS Stationary Transmitter with RF frequency range 216.025 – 216.975 MHz designed to help enhance the ability to hear for hard of hearing people and to use for many other applications including tour group communications and language translation. The LT-800 was configurated as an independent module and was tested with Rubber Ducky, Directional Antenna and Micriphone, Speaker connected. The modulation frequency was provided by external Test Oscilator Operating Frequency: 216.025 – 216.975 MHz Power Supply: External, 12VDC 830 mA OEM, AC Adapter, Model : AA-1283 Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 8 of 64 3.3Photographs of EUT Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 9 of 64 1 - AC-DC OEM Power Adaptor 2 - Rubber Ducky antenna 3 - LT-800 unit without cover Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 10 of 64 3 - LT-800 unit without cover Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 11 of 64 3.4Support Equipment List EquipmentOEM , AC Adapter Model No.AA-1283 Serial No.N/A EquipmentMicrophone Model No.33-3018 OPTIMUS Serial No.N/A EquipmentSpeaker Model No.Broadcast Vision Serial No.N/A EquipmentTest Oscilator Model No.651B Test Oscilator, Hewlett Pakard Serial No.1230AO8435 3.5Cabling Configuration Power Cords: UnitAC Adapter to LT-800 MFGGeneric Shielded?No Length1.9 m Unit651B Test Oscilator MFGGeneric…

Text truncated - open the document above for the full version.

Listen Technical Support : 1.800.330.0891 or +1.435.647.0318 FCC ID: OMD800-001 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. Listen Technical Support : 1.800.330.0891 or +1.435.647.0318 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. FCC ID: OMD800-001 _ + _ + WARNING! Do not place the BATTERY SELECT switch in the NiMH position when using non-Nickel Metal Hydride batteries! Place switch in the NiMH position when using NiMH batteries. Place switch in the ALKALINE position when using alkaline batteries. _ + _ + WARNING! Do not place the BATTERY SELECT switch in the NiMH position when using non-Nickel Metal Hydride batteries! Place switch in the NiMH position when using NiMH batteries. Place switch in the ALKALINE position when using alkaline batteries. Listen Technical Support : 1.800.330.0891 or +1.435.647.0318 FCC ID: OMD800-216 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. Listen Technical Support : 1.800.330.0891 or +1.435.647.0318 FCC ID: OMD800-216 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. This device complies with part 15 of the FCC rules. Operation is subject to the following two condi- tions: (1) This device may not cause harmful in- terference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Listen Technical Support : 1.800.330.0891 or +1.435.647.0318 FCC ID: OMD700-001 Listen Technical Support : 1.800.330.0891 or +1.435.647.0318 FCC ID: OMD700-216 This device complies with part 15 of the FCC rules. Operation is subject to the following two condi- tions: (1) This device may not cause harmful in- terference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. This device complies with part 15 of the FCC rules. Operation is subject to the following two condi- tions: (1) This device may not cause harmful in- terference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Listen Technical Support : 1.800.330.0891 or +1.435.647.0318 FCC ID: OMD700-001 Listen Technical Support : 1.800.330.0891 or +1.435.647.0318 FCC ID: OMD700-216 This device complies with part 15 of the FCC rules. Operation is subject to the following two condi- tions: (1) This device may not cause harmful in- terference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interfer- ence-Causing Equipment Regulations. Listen Technical Support : 1.800.330.0891 or +1.435.647.0318 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interfer- ence-Causing Equipment Regulations. Listen Technical Support : 1.800.330.0891 or +1.435.647.0318

LT-800 Stationary Transmitter 216 MHz OMD-800-216Bottom Panel – FCC Label Positioning relative scale 11/29/99 LT-700 Portable Transmitter 216MHz – OMD-700-216FCC Label Positioning reliative scale 11/29/99 Back LT-800 Front 8” 8”

Report No.:990715 Client: Listen Technologies Co. FCC ID : OMD800-216 October 19, 1999 TEST REPORT According to FCC Part 95 Subparts E,G for LOW POWER RADIO SERVICES (LPRS) STATIONARY TRANSMITTING SYSTEMS MODEL: LT-800 Prepared for: LISTEN TECHNOLOGIES Corporation 1762A Prospector Avenue Park City, Utah 84060 Prepared by JMR Compliance Engineering 20400 Plummer Street Chatsworth, CA 91311 Phone: 818-993-4801 This report contains confidential information. The owner of this report may make duplicates of it, provided all pages are copied. Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 2 of 64 TABLE OF CONTENTS PREFACE4 1.0CERTIFICATION of TEST DATA5 2.0GENERAL INFORMATION6 2.1Client Information6 2.2Administrative Data6 3.0EQUIPMENT UNDER TEST (EUT) 7 3.1EUT Nomenclature 7 3.2Brief Description of EUT7 3.3Photographs of EUT 8 3.4Support Equipment List11 3.5Cabling Configuration11 3.6EUT Modifications12 3.7Photographs of EUT Modification12 3.8EUT Labeling per FCC Requirements12 4.0TEST PROCEDURE AND CONFIGURATION13 4.1Test Specification13 4.2Block Diagram of EUT Set-up for the Test13 4.3Procedure of RF Power Output, Unwanted radiation, Radiated Emission Test, Modulation Characteristics, Spurious Emissions, Field Strength of Spurious Radiation, Occupied Bandwidth14 4.4Test Equipment Used15 4.5Photographs of Test Setup16 Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 3 of 64 5.0TEST RESULTS17 5.1 RF Power Output Test 17 5.2Unwanted Radiation Test24 5.3. Modulation characteristics 36 5.4. Occupied Bandwidth Test 37 5.5. Spurious Emissions at antenna terminals 43 5.6. Field strength of Spurious Radiation 50 5.7. Frequency Stability 63 Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 4 of 64 PREFACE This report describes the results of measurements made on the Low Power Radio Service (LPRS) STATIONARY TRANSMITTERS which falls under the class of intentional radiator by the FCC Part 95 Rules and Regulations. This EUT is designated:LPRS Stationary Transmitter - Assistive Listening System Model:LT-800 The LT-800 is designed and manufactured by Listen Technologies Corporation. The EUT was tested in full compliance with the FCC Regulations using the methods of FCC Part 95 and Part 2 “Frequency Allocations and Radio Treaty Matters; General Rules and Regulations”. The results of the testing indicate that the LPRS STATIONARY TRANSMITTER LT-800 met the Part 95 limits and requirements. Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 5 of 64 1.0CERTIFICATION OF TEST DATA Certification The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the test sample (EUT), and measurements obtained as of the dates and the times of the test under the conditions specified and to the methods of FCC Part 95 and Part 2 “Frequency Allocations and Radio Treaty Matters; General Rules and Regulations”. All measurements are traceable to the National Institute of Standards and Technology (NIST). The test results provided with this report, indicate that the equipment tested: Model: LT-800 is compliant with the following Rules and Regulations: A.47 Code of Federal Regulations, Part 95, Subpart E and G : 10-1-98 Edition B.47 Code of Federal Regulations, Part 2, LPRS transmitters: 10-1-98 Edition Tests performed by: _______________________ Vlad Shapiro EMC Technician Report approved by: ________________________ Leon Kogan Technical Director, JMR Compliance Engineering Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 6 of 64 2.0GENERAL INFORMATION 2.1Client Information Company Name: Listen Technologies Co. Contact:Keldon Paxman Company Address: 1762A Prospector Avenue Park City, Utah 84060 Phone:(435) 647-0318 2.2Administrative Data Device tested:LPRS Stationary Transmitter Model:LT-800 Accessories:N/A Expository Statement:This device is designed to operate as LPRS transmitter Purpose of test:Demonstrate compliance with FCC Rules, Part 95, Subparts E and G Date of test:10/20/99 Place of the test:JMR Electronics, Inc. Compliance Engineering Laboratory 20400 Plummer Street Chatsworth, CA 91311 Phone: 818-993-4801 Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 7 of 64 3.0EQUIPMENT UNDER TEST (EUT) 3.1EUT Nomenclature Manufacturer:Listen Technologies Co. Model No. ( type )LT-800 Serial No.N/A Equipment categoryLPRS Stationary Transmitter 3.2 Brief Description of EUT The LT-800 is the LPRS Stationary Transmitter with RF frequency range 216.025 – 216.975 MHz designed to help enhance the ability to hear for hard of hearing people and to use for many other applications including tour group communications and language translation. The LT-800 was configurated as an independent module and was tested with Rubber Ducky, Directional Antenna and Micriphone, Speaker connected. The modulation frequency was provided by external Test Oscilator Operating Frequency: 216.025 – 216.975 MHz Power Supply: External, 12VDC 830 mA OEM, AC Adapter, Model : AA-1283 Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 8 of 64 3.3Photographs of EUT Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 9 of 64 1 - AC-DC OEM Power Adaptor 2 - Rubber Ducky antenna 3 - LT-800 unit without cover Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 10 of 64 3 - LT-800 unit without cover Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 11 of 64 3.4Support Equipment List EquipmentOEM , AC Adapter Model No.AA-1283 Serial No.N/A EquipmentMicrophone Model No.33-3018 OPTIMUS Serial No.N/A EquipmentSpeaker Model No.Broadcast Vision Serial No.N/A EquipmentTest Oscilator Model No.651B Test Oscilator, Hewlett Pakard Serial No.1230AO8435 3.5Cabling Configuration Power Cords: UnitAC Adapter to LT-800 MFGGeneric Shielded?No Length1.9 m Unit651B Test Oscilator MFGGeneric…

Text truncated - open the document above for the full version.

Report No.:990715 Client: Listen Technologies Co. FCC ID : OMD800-216 October 19, 1999 TEST REPORT According to FCC Part 95 Subparts E,G for LOW POWER RADIO SERVICES (LPRS) STATIONARY TRANSMITTING SYSTEMS MODEL: LT-800 Prepared for: LISTEN TECHNOLOGIES Corporation 1762A Prospector Avenue Park City, Utah 84060 Prepared by JMR Compliance Engineering 20400 Plummer Street Chatsworth, CA 91311 Phone: 818-993-4801 This report contains confidential information. The owner of this report may make duplicates of it, provided all pages are copied. Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 2 of 64 TABLE OF CONTENTS PREFACE4 1.0CERTIFICATION of TEST DATA5 2.0GENERAL INFORMATION6 2.1Client Information6 2.2Administrative Data6 3.0EQUIPMENT UNDER TEST (EUT) 7 3.1EUT Nomenclature 7 3.2Brief Description of EUT7 3.3Photographs of EUT 8 3.4Support Equipment List11 3.5Cabling Configuration11 3.6EUT Modifications12 3.7Photographs of EUT Modification12 3.8EUT Labeling per FCC Requirements12 4.0TEST PROCEDURE AND CONFIGURATION13 4.1Test Specification13 4.2Block Diagram of EUT Set-up for the Test13 4.3Procedure of RF Power Output, Unwanted radiation, Radiated Emission Test, Modulation Characteristics, Spurious Emissions, Field Strength of Spurious Radiation, Occupied Bandwidth14 4.4Test Equipment Used15 4.5Photographs of Test Setup16 Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 3 of 64 5.0TEST RESULTS17 5.1 RF Power Output Test 17 5.2Unwanted Radiation Test24 5.3. Modulation characteristics 36 5.4. Occupied Bandwidth Test 37 5.5. Spurious Emissions at antenna terminals 43 5.6. Field strength of Spurious Radiation 50 5.7. Frequency Stability 63 Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 4 of 64 PREFACE This report describes the results of measurements made on the Low Power Radio Service (LPRS) STATIONARY TRANSMITTERS which falls under the class of intentional radiator by the FCC Part 95 Rules and Regulations. This EUT is designated:LPRS Stationary Transmitter - Assistive Listening System Model:LT-800 The LT-800 is designed and manufactured by Listen Technologies Corporation. The EUT was tested in full compliance with the FCC Regulations using the methods of FCC Part 95 and Part 2 “Frequency Allocations and Radio Treaty Matters; General Rules and Regulations”. The results of the testing indicate that the LPRS STATIONARY TRANSMITTER LT-800 met the Part 95 limits and requirements. Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 5 of 64 1.0CERTIFICATION OF TEST DATA Certification The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the test sample (EUT), and measurements obtained as of the dates and the times of the test under the conditions specified and to the methods of FCC Part 95 and Part 2 “Frequency Allocations and Radio Treaty Matters; General Rules and Regulations”. All measurements are traceable to the National Institute of Standards and Technology (NIST). The test results provided with this report, indicate that the equipment tested: Model: LT-800 is compliant with the following Rules and Regulations: A.47 Code of Federal Regulations, Part 95, Subpart E and G : 10-1-98 Edition B.47 Code of Federal Regulations, Part 2, LPRS transmitters: 10-1-98 Edition Tests performed by: _______________________ Vlad Shapiro EMC Technician Report approved by: ________________________ Leon Kogan Technical Director, JMR Compliance Engineering Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 6 of 64 2.0GENERAL INFORMATION 2.1Client Information Company Name: Listen Technologies Co. Contact:Keldon Paxman Company Address: 1762A Prospector Avenue Park City, Utah 84060 Phone:(435) 647-0318 2.2Administrative Data Device tested:LPRS Stationary Transmitter Model:LT-800 Accessories:N/A Expository Statement:This device is designed to operate as LPRS transmitter Purpose of test:Demonstrate compliance with FCC Rules, Part 95, Subparts E and G Date of test:10/20/99 Place of the test:JMR Electronics, Inc. Compliance Engineering Laboratory 20400 Plummer Street Chatsworth, CA 91311 Phone: 818-993-4801 Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 7 of 64 3.0EQUIPMENT UNDER TEST (EUT) 3.1EUT Nomenclature Manufacturer:Listen Technologies Co. Model No. ( type )LT-800 Serial No.N/A Equipment categoryLPRS Stationary Transmitter 3.2 Brief Description of EUT The LT-800 is the LPRS Stationary Transmitter with RF frequency range 216.025 – 216.975 MHz designed to help enhance the ability to hear for hard of hearing people and to use for many other applications including tour group communications and language translation. The LT-800 was configurated as an independent module and was tested with Rubber Ducky, Directional Antenna and Micriphone, Speaker connected. The modulation frequency was provided by external Test Oscilator Operating Frequency: 216.025 – 216.975 MHz Power Supply: External, 12VDC 830 mA OEM, AC Adapter, Model : AA-1283 Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 8 of 64 3.3Photographs of EUT Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 9 of 64 1 - AC-DC OEM Power Adaptor 2 - Rubber Ducky antenna 3 - LT-800 unit without cover Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 10 of 64 3 - LT-800 unit without cover Report No.: 990715 Client: Listen Technologies Co. FCC ID : OMD800-216 Page 11 of 64 3.4Support Equipment List EquipmentOEM , AC Adapter Model No.AA-1283 Serial No.N/A EquipmentMicrophone Model No.33-3018 OPTIMUS Serial No.N/A EquipmentSpeaker Model No.Broadcast Vision Serial No.N/A EquipmentTest Oscilator Model No.651B Test Oscilator, Hewlett Pakard Serial No.1230AO8435 3.5Cabling Configuration Power Cords: UnitAC Adapter to LT-800 MFGGeneric Shielded?No Length1.9 m Unit651B Test Oscilator MFGGeneric…

Text truncated - open the document above for the full version.

TM User’s Manual for all Listen Products LISTEN TECHNOLOGIES CORPORATION © Copyright 1999 Listen Technologies Corporation TM LISTEN TECHNOLOGIES CORPORATION P.O. Box 683010 Park City, Utah 84068-3010 U.S.A. Shipping: 1762A Prospector Avenue Park City, UT 84060 Telephone: +1.435.647.0318 Toll Free: 1.800.330.0891 Fax: +1.435.647.0316 Internet: www.listentech.com E-Mail: [email protected] Printed in U.S.A. 10/99 (c) Copyright 1999 Reprint with permission only productmanual 11x17.qrk 10/11/99 2:42 PM Page 1 2LISTEN TECHNOLOGIES CORPORATION +1.435.647.0318 1.800.330.0891 Fax: +1.435.6…
