OO4-IDS1014iMARK EC and iMARK IC

identecsolutions.com iMARK EC (IDS1014) Hardware User Manual iMARK EC | Hardware User Manual | 11/09/2024 2 CONTENTS 1.0 PREFACE ............................................................................................................................... 6 2.0 INTRODUCTION ..................................................................................................................... 7 2.1. iMARK EC ....................................................................................................................... 7 2.1.1. UHF Interface ............................................................................................................. 8 2.1.2. LF Interface ................................................................................................................ 8 2.2. System components - Tags ............................................................................................ 9 2.3. Connectors & Configuration .......................................................................................... 10 2.3.1. Connector Pinouts .................................................................................................... 10 2.3.2. Connector sealing .................................................................................................... 11 3.0 CONFIGURATION ................................................................................................................ 12 3.1. External Coil Information ............................................................................................... 13 3.1.1 Types of External Antennas ............................................................................... 15 3.2. Status LEDs .................................................................................................................. 16 4.0 MECHANICAL INFORMATION AND INSTALLATION ........................................................ 17 5.0 TROUBLESHOOTING AND MAINTAINANCE ..................................................................... 18 5.1. Maintenance ................................................................................................................. 18 5.2. Spare Parts ................................................................................................................... 18 5.3. Returns ......................................................................................................................... 18 6.0 TECHNICAL SPECIFICATIONS ........................................................................................... 19 DOCUMENT HISTORY Num Filename Version Author Date 1 M_EN_iMARK_EC_V10 1.0 MOM 21.03.2024 2 M_EN_iMARK_EC_V11 (update RF exposure compliance - Page 4) 1.1 MOM 11.09.2024 iMARK EC | Hardware User Manual | 11/09/2024 3 PROPRIETARY NOTICE THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO IDENTEC SOLUTIONS1 AND MAY NOT BE USED OR DISCLOSED TO OTHER PARTIES IN WHOLE OR IN PART WITHOUT THE PRIOR WRITTEN AUTHORIZATION FROM IDENTEC SOLUTIONS. DISCLAIMER AND LIMITATION OF LIABILITY IDENTEC SOLUTIONS AG AND ITS AFFILIATES, SUBSIDIARIES, OFFICERS, DIRECTORS, EMPLOYEES, AND AGENTS DO NOT MAKE ANY EXPRESS OR IMPLIED WARRANTIES OR REPRESENTATIONS WITH RESPECT TO SUCH INFORMATION INCLUDING, WITHOUT LIMITATION, WARRANTIES AS TO NON-INFRINGEMENT, RELIABILITY, SUITABILITY FOR A PARTICULAR PURPOSE AND ACCURACY. IDENTEC SOLUTIONS SHALL NOT UNDER ANY CIRCUMSTANCES BE LIABLE TO ANY PERSON FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, DAMAGES RESULTING FROM USE OF OR RELIANCE ON INFORMATION PRESENTED HEREIN, OR LOSS OF PROFITS OR REVENUES OR COSTS OF REPLACEMENT GOODS, EVEN IF INFORMED IN ADVANCE OF THE POSSIBILITY OF SUCH DAMAGES. OF THIS DOCUMENT SHALL BE SOLELY RESPONSIBLE FOR PROPER SELECTION, APPLICATION, AND USE OF THE PRODUCT DESCRIBED HEREIN, AS WELL AS THE INCORPORATION/INTEGRATION OF SUCH PRODUCT INTO OTHER EQUIPMENT OR SYSTEMS. THE USER SHALL INDEMNIFY AND HOLD IDENTEC SOLUTIONS HARMLESS FROM AND AGAINST ANY AND ALL DAMAGES, LIABILITIES, CLAIMS, OR EXPENSES (INCLUDING REASONABLE ATTORNEYS' FEES) ARISING OUT OF OR RELATING TO (I) IMPROPER SELECTION, APPLICATION, INSTALLATION, USE OR INCORPORATION/INTEGRATION OF THE PRODUCT; OR (II) INFRINGEMENT OF ANY PATENT, TRADEMARK, COPYRIGHT OR OTHER THIRD PARTY INTEREST ARISING OUT OF IDENTEC SOLUTIONS’ COMPLIANCE WITH ANY OF THE USER'S DESIGNS, SPECIFICATIONS, OR INSTRUCTIONS RELATED TO THE PRODUCT. TRADEMARKS “IDENTEC SOLUTIONS”, THE STYLIZED “i”, “iPORT”, “iPOINT”, “iMARK” AND “BECAUSE IT WORKS” ARE TRADEMARKS OF IDENTEC SOLUTIONS. COPYRIGHT NOTICE COPYRIGHT © 2024 IDENTEC SOLUTIONS. ALL RIGHTS RESERVED. NO PART OF THIS DOCUMENT MAY BE REPRODUCED OR TRANSMITTED IN ANY FORM BY ANY MEANS, PHOTOGRAPHIC, ELECTRONIC, MECHANICAL, OR OTHERWISE, OR USED IN ANY INFORMATION STORAGE AND RETRIEVAL SYSTEM, WITHOUT THE PRIOR WRITTEN PERMISSION OF IDENTEC SOLUTIONS SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE. COPYRIGHT © 2024 IDENTEC SOLUTIONS AG 1 IDENTEC SOLUTIONS means IDENTEC SOLUTIONS AG, currently including the following subsidiaries: a) IDENTEC SOLUTIONS Deutschland GmbH; b) IDENTEC SOLUTIONS Norway AS; c) IDENTEC SOLUTIONS Inc; d) IDENTEC SOLUTIONS Australia and New Zealand PTY LTD. IDENTEC SOLUTIONS AG reserves the right to establish additional subsidiaries at its sole discretion at any time without prior notice. iMARK EC | Hardware User Manual | 11/09/2024 4 Radio Frequency Compliance Statement IDENTEC SOLUTIONS is the responsible party for the compliance of the following devices: MODEL: IDS1014 iMARK EC Region/Country Organization Marking EUROPE: EU CE USA: FCC OO4-IDS1014 CANADA: ISED 3538A-IDS1014 HVIN with external coil (EC): IDS1014 The user(s) of these products are cautioned to only use accessories and peripherals approved, in advance, by IDENTEC SOLUTIONS. The use of accessories and peripherals, other than those approved by IDENTEC SOLUTIONS, or unauthorized changes to approved …

Text truncated - open the document above for the full version.

CERTIFICATIONS CONCERNING “COVERED” EQUIPMENT Date: April 24 th , 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 FCC ID: OO4-IDS1014 To Whom It May Concern: As required by section 2.911(d)(5)(i), IDENTEC SOLUTIONS AG (FRN: 0006172258) (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. As required by section 2.911(d)(5)(ii), IDENTEC SOLUTIONS AG (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Thank you for your attention to this matter. Sincerely yours, On behalf of: IDENTEC SOLUTIONS AG Millennium Park 2 A-6890 Lustenau - Austria Signature: Full Name: Mr. Karl-Heinz Feierle Title: Head of HW Development Email: [email protected] ContactPhone: +43 5577 87387 0

CERTIFICATION DESIGNATING A U.S. AGENT FOR SERVICE OF PROCESS Date: April 24 th , 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 FCC ID: OO4-IDS1014 To Whom It May Concern: As required by section 2.911(d)(7), we IDENTEC SOLUTIONS AG (FRN: 0006172258) certifies that we acknowledge the designation of a contact located in the United States for purposes of acting as the applicant’s agent for service of process. We IDENTEC SOLUTIONS AG accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. As required by section 2.911(d)(7), we IDENTEC SOLUTIONS, Inc., 15150 Preston Rd Suite 300 , Dallas, TX 75248, United States (FRN: 0034421545) certifies that we acknowledge our obligation acting as the applicant’s agent for service of process for the above referenced FCC ID. We [IDENTEC SOLUTIONS, Inc.] confirm that we are not associated with or part of any TCB or FCC recognised test lab. Thank you for your attention to this matter. Sincerely yours, Printed Name: Mr. Karl-Heinz Feierle Printed Name:Ji Park Company: IDENTEC SOLUTIONS AG Company:IDENTEC SOLUTIONS, Inc. Job Title: Head of HW Development Job Title: Financial Controller Email: [email protected] Email:[email protected] Telephone: +43 5577 87387 0 Telephone: +1 972 535 4144

LETTER OF AGENCY Date: April 24 th , 2024 Element Materials Technology 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK FCC ID: OO4-IDS1014 Product name: iMARK EC / iMARK IC Model Number: IDS1014 / ISD1015 To Whom It May Concern: SMEE (Mr. Laurent Chapus, 385 Rue René Rambaud, ZA Le Parvis 2, F-38500 Voiron, France) is authorized to act on our behalf, until otherwise notified, for applications to Element Materials Technology. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application, is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you for your attention to this matter. Yours faithfully. On behalf of: IDENTEC SOLUTIONS AG Millennium Park 2 A-6890 Lustenau - Austria Signature: Full Name: Mr. Karl-Heinz Feierle Title: Head of HW Development Email: [email protected] ContactPhone: +43 5577 87387 0

Family certification information FCC ID: OO4-IDS1014 IC: 3538A-IDS1014 Product name: iMARK EC / iMARK IC Model Number (HVIN): IDS1014 / ISD1015 Model differences: Product Name (PMN) Model (HVIN) iMARK EC IDS1014 iMARK IC IDS1015 iMARK EC (HVIN IDS1014) is equipped with a connector to support an external LF loop working on 125kHz. iMARK IC (HVIN IDS1015) contains an internal PCB loop antenna and is not designed to connect an external or any other loop. Both devices have a connector for DC power supply. No AC power adapter supplied with both models. Both devices have same PCB inside enclose. Rated (UHF 902-928MHz) conducted output power setting: 2dBm for IDS1014 and 5dBm for IDS1015 On behalf of: IDENTEC SOLUTIONS AG Millennium Park 2 A-6890 Lustenau - Austria Signature: Full Name: Mr. Karl-Heinz Feierle Title: Head of HW Development Email: [email protected] ContactPhone: +43 5577 87387 0

LETTER OF AGENCY Date: April 24 th , 2024 Element Materials Technology 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK FCC ID: OO4-IDS1014 Product name: iMARK EC / iMARK IC Model Number: IDS1014 / ISD1015 To Whom It May Concern: SMEE (Mr. Laurent Chapus, 385 Rue René Rambaud, ZA Le Parvis 2, F-38500 Voiron, France) is authorized to act on our behalf, until otherwise notified, for applications to Element Materials Technology. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application, is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you for your attention to this matter. Yours faithfully. On behalf of: IDENTEC SOLUTIONS AG Millennium Park 2 A-6890 Lustenau - Austria Signature: Full Name: Mr. Karl-Heinz Feierle Title: Head of HW Development Email: [email protected] ContactPhone: +43 5577 87387 0

REQUEST FOR CONFIDENTIALITY Date: April 24 th , 2024 FCC ID: OO4-IDS1014 ISED ID: 3538A-IDS1014 To Whom it may concern: We hereby request the exhibits listed below to be held confidential: • Schematics • Block Diagram • Operational Description These exhibits contain trade secrets and proprietary information not customarily released to the public. The public disclosure of the material in these exhibits might provide unjustified benefits to our competitors and be harmful to our operations. Product name: iMARK EC / iMARK IC Model name: IDS1014 / IDS1015 Brand name: IDENTEC SOLUTIONS Sincerely yours, On behalf of: IDENTEC SOLUTIONS AG Millennium Park 2 A-6890 Lustenau - Austria Signature: Full Name: Mr. Karl-Heinz Feierle Title: Head of HW Development Email: [email protected] ContactPhone: +43 5577 87387 0

Page 1/4 EXTERNAL PHOTOS OF TESTED EUT Applicant: IDENTEC SOLUTIONS AG Model / HVIN: IDS1014 Product name / PMN: iMark EC Page 2/4 External LF antenna LF (125kHz) loop antenna connector Page 3/4 Applicant: IDENTEC SOLUTIONS AG Model / HVIN: IDS1015 Product name / PMN: iMark IC Page 4/4

Page 1/1 PRODUCT LABELING Applicant: IDENTEC SOLUTIONS AG Model / HVIN: IDS1014 & IDS1015 Product name / PMN: iMark EC & iMark IC IDS1014 Label is 50x25mm IDS1015 Label is 50x25mm

Page 1/4 INTERNAL PHOTOS OF TESTED EUT Applicant: IDENTEC SOLUTIONS AG Model / HVIN: IDS1014 Product name / PMN: iMark EC UHF (902-928MHz) antenna Page 2/4 Metallic shield removed Under side PCB view Page 3/4 Applicant: IDENTEC SOLUTIONS AG Model / HVIN: IDS1015 Product name / PMN: iMark IC Metallic shield removed Under side PCB view UHF (902-928MHz) antenna LF (125kHz) antenna Page 4/4 LF antenna LF antenna

COORDONNEES SMEE TEL : 04 76 65 76 50 385, Rue Renè Rambaud, ZA le Parvis 2 FAX : 04 76 66 18 30 38500 VOIRON - France SAS au capital de 50 000 € / RC Grenoble B534 796 453 / SIRET 534 796 453 00015 / code APE 7490B / n° TVA : FR 59 534 796 453 RF Exposure Considerations for FCC ID: OO4-IDS1014 1-mW Test Exemption for LF 125kHz Per FCC KDB 447498 D04 Interim General RF Exposure Guidance v01, and per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. ERP calculation: EIRP = (Exd)² / 30 Where : E is the field strength in V/m d is the measurement distance in m EIRP is the equivalent isotropically radiated power in W Working in dB units: ERIP[dBm] = E[dBμV/m] + 20 log(3/d[m]) – 104.77 E[dBμV/m] = Radiated field at distance d[m] ERP[dBm] = ERIP[dBm] -2.14 Measure E field as per test reports: IDS1014 (iMARK EC): 17.6dBμV/m @ 300m (Average) → ERP[dBm] = -39.8dBm → ERP[mW] = 0.105μW → Below the 1mW test exemption IDS1015 (iMARK EC): 5.6dBμV/m @ 300m (Average) → ERP[dBm] = -51.8dBm → ERP[mW] = 0.007μW → Below the 1mW test exemption MPE calculation for UHF transmitter (902.5-927.5MHz) Prediction of MPE limit at a prediction distance: S= ² . . 4 . R G P  = ² . . 4 . . . R P R I E  S: Power density (mW/cm²) P: Peak output power at antenna terminal (mW) G: Numerical Antenna gain R: Distance of radiation to antenna (cm) (1): Max EIRP for IDS1014 (iMARK EC) (2): Max EIRP for IDS1015 (iMARK IC) Frequency (MHz) Maximum E.I.R.P. (mW) R (cm) Power Density S (mW/cm²) MPE limit (mW/cm²) % of limit Limit (%) Verdict 902.5 to 927.5MHz 0.733 (1) 20 0.0001 0.6 0.015 100% Below MPE limit for uncontrolle d exposure 902.5 to 927.5MHz 0.688 (2) 20 0.0001 0.6 0.013 100% Conclusion: Therefore, the device complies with FCC’s RF radiation exposure limits for general population for a mobile device. Certified By Laurent CHAPUS (Agent for this device) SMEE 385, Rue René Rambaud ZA Le Parvis 2 38500 Voiron - France [email protected] FCC Registration Number: 0020356952 (FRN) Applicant for this device: IDENTEC SOLUTIONS AG Millennium Park 2 A-6890 Lustenau Austria ContactPhone: +43 5577 87387 0

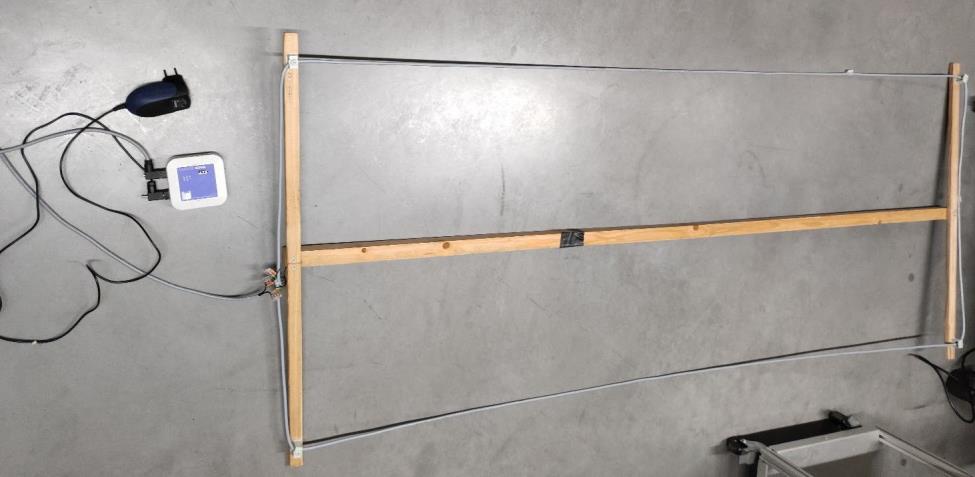

Page 1/3 ANTENNA DESCRIPTION Applicant: IDENTEC SOLUTIONS AG Model / HVIN: IDS1014 & IDS1015 Product name / PMN: iMark EC & iMark IC 1.1 RF antenna 1 (902-928MHz) Description: FPC antenna MOLEX 105262, 1.4dBi @ 915MHz Photo: Page 2/3 1.3 RF antenna (LF @ 125kHz, external coil antenna, IDS1014) Description: LF 125kHz (coil antenna) Photo: iMark EC (External LF loop antenna) Maximum usable size is 1.85mx0.8m (2 turns) Page 3/3 1.4 RF antenna (LF @ 125kHz, internal coil antenna, IDS1015) Description: LF 125kHz (coil antenna) Photo: iMark IC (Internal LF loop antenna) PCB antenna, 8 turns, 59mmx84mm

Rapport d’essais / Test Report N° : 10123-FCC-ISED-1 Page 1 / 32 COORDONNEES SMEE TEL : 04 76 65 76 50 385 rue René Rambaud – ZA Le Parvis 2 FAX : 04 76 66 18 30 38500 VOIRON - France SAS au capital de 50 000 € / RC Grenoble B534 796 453 / SIRET 534 796 453 00023 / code APE 7490B / n° TVA : FR 59 534 796 453 FCC Test Firm Designation Number: FR0014 ISED Wireless Device Testing Laboratory CAB Number: FR0004 Matériel testé : Equipment under test: IDENTEC SOLUTIONS / iMARK EC (IDS1014), iMARK IC (IDS1015) (Trademark / Marketing name or product reference) Demandeur de certification : Applicant for certification: IDENTEC SOLUTIONS AG Millennium Park 2 A-6890 Lustenau – Austria Client : Customer: IDENTEC SOLUTIONS AG Millennium Park 2 A-6890 Lustenau – Austria Numéro d’affaire : Work number : 10123 Référence de la proposition : Proposal number: DV-10212 Date de l’essai : Date of test: Du 29 février au 12 mars 2024 February 29 th to March 12 th , 2024 Objectif des essais : Test purpose: EMC qualification according to following standards: - CFR 47, FCC Part 15, Subpart C (Chapter 15.249 - Operation within the bands 902–928 MHz, 2400–2483.5 MHz, 5725–5875 MHz, and 24.0–24.25 GHz) - Industry Canada, RSS-Gen Issue 5 & RSS-210 Issue 10, section B.10 (Bands 902–928, 2400–2483.5 and 5725–5875 MHz) Measurement standards: ANSI C63.10 (2013) Lieu du test: Test location: SMEE, 385 rue René Rambaud 38500 VOIRON - France Test réalisé par : Test realized by: Chemseddine KERMICHE Conclusion : Conclusion: L’équipement satisfait aux prescriptions et essais des normes citées en référence. The appliance complies with requirements and tests of above mentioned standards. Ed. Date Modifications / Pages Written by : Visa Approved by: Visa 1 September 10 th , 2024 Initial Edition Chemseddine KERMICHE Test operator Laurent Chapus Technical Manager La copie de ce document n'est permise que sous sa forme intégrale. Ce document est le résultat d’essais effectués sur un échantillon. Il ne préjuge pas de la conformité de l’ensemble des produits fabriqués à l’objet essayé. Pour la déclaration de conformité de l'équipement, il n'est pas tenu compte de l'incertitude de mesure. Cette nouvelle édition de ce rapport annule et remplace l’édition précédente. Les modifications apportées à une nouvelle édition de ce rapport sont signalées par un trait vertical à gauche de la page. L’utilisation de la marque d’accréditation COFRAC est interdite. This document shall not be reproduced, except in full. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested. For the declaration of conformity of the equipment, the measurement uncertainty is not taken into account. This new edition of this report cancels and replaces the previous edition. Changes made to a new edition of this report are indicated by a vertical line to the left of the page. The use of the COFRAC accreditation mark is prohibited. Accréditation N° 1-6356 Portée disponible sur : Scope available on : www.cofrac.fr Page 2 / 32 Rapport d’essai / Test Report N° : 10123-FCC-ISED-1 Page 2 / 32 Contents 1. NORMATIVE REFERENCES ........................................................................................................... 3 2. TEST SYNTHESIS ........................................................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) .................................................................................................. 5 4. TEST CONDITIONS ......................................................................................................................... 6 5. MODIFICATIONS OF THE EUT ....................................................................................................... 6 6. SPECIAL ACCESSORIES ................................................................................................................ 6 7. MEASUREMENT UNCERTAINTY .................................................................................................... 6 8. FIELD STRENGTH CALCULATION ................................................................................................. 6 9. TEST SETUP DIAGRAM .................................................................................................................. 7 10. CONDUCTED EMISSION MEASUREMENT (150 KHZ-30MHZ) .................................................. 9 11. FIELD STRENGTH OF FUNDAMENTAL .................................................................................... 14 12. UNWANTED EMISSIONS & FIELD STRENGTH OF HARMONICS ........................................... 15 13. OCCUPIED BANDWIDTH (99%) ................................................................................................ 26 14. TEST EQUIPMENT LIST ............................................................................................................ 32 Page 3 / 32 Rapport d’essai / Test Report N° : 10123-FCC-ISED-1 Page 3 / 32 1. Normative References FCC qualification according to: Standards Applied Title ANSI C63.10 (2013) X American National Standard for Testing Unlicensed Wireless Devices CFR47, Part 15 (March 2024) X Telecommunication – Federal Communication Commission – Radio frequency devices, Sections 15.207 / 15.209 / 15.249 ISED Canada qualification according to: Standards Applied Title RSS-Gen (Issue 5/2018, amendments 2019 and 2021) X General Requirements and Information for the Certification of Radio Apparatus RSS-210 (Issue10/2019+Amendment 2020) X Licence-exempt Radio Apparatus: Category I Equipment, Section B.10: Devices Operating in Frequency Bands for Any Application, Band 902-928 MHz Deviation from standards: None. Page 4 / 32 Rapport d’essai / Test Report N° : 10123-FCC-ISED-1 Page 4 / 32 2. Test synthesis TEST Paragraph number FCC Part 15 ISED RSS-210 Spec. FCC Part 15 ISED RSS-210 RESULTS (comments) Conducted emissions test 15.207 (a) RSS-Gen: Issue 5…

Text truncated - open the document above for the full version.

Rapport d’essais / Test Report N° : 10123-FCC-ISED-2 Page 1 / 25 COORDONNEES SMEE TEL : 04 76 65 76 50 385 rue René Rambaud – ZA Le Parvis 2 FAX : 04 76 66 18 30 38500 VOIRON – France SAS au capital de 50 000 € / RC Grenoble B534 796 453 / SIRET 534 796 453 00023 / code APE 7490B / n° TVA : FR 59 534 796 453 FCC Test Firm Designation Number: FR0014 SED Wireless Device Testing Laboratory CAB Number: FR0004 Matériel testé : Equipment under test: IDENTEC SOLUTIONS / iMARK EC (IDS1014), iMARK IC (IDS1015) (Trademark / Marketing name or product reference) Client / Demandeur: Customer / Applicant : IDENTEC SOLUTIONS AG Millennium Park 2 A-6890 Lustenau – Austria Rapport délivré à : Issued to: IDENTEC SOLUTIONS AG Millennium Park 2 A-6890 Lustenau – Austria Référence de la proposition : Proposal number: 10123 Numéro d’affaire : Work number : DV-10212 Date de l’essai : Date of test: Du 4 au 12 mars 2024 March 4 th to 12 th , 2024 Objectif des essais : Test purpose: EMC qualification according to following standards: - CFR 47, FCC Part 15, Subpart C - Industry Canada, RSS-Gen Issue 5 / RSS-210 Issue 10 Low power transmitter below 1705KHz Measurement standards: ANSI C63.10 (2013) Lieu du test: Test location: SMEE, 385 rue René Rambaud 38500 VOIRON - France Test réalisé par : Test realized by: Chemseddine KERMICHE Conclusion : Conclusion: L’équipement satisfait aux prescriptions et essais des normes citées en référence. The appliance complies with requirements and tests of above mentioned standards. Ed. Date Modifications / Pages Written by: Visa Approved by: Visa 1 September 10 th , 2024 Initial Edition Chemseddine KERMICHE Test operator. Laurent CHAPUS Technical Manager. La copie de ce document n'est permise que sous sa forme intégrale. Ce document est le résultat d’essais effectués sur un échantillon. Il ne préjuge pas de la conformité de l’ensemble des produits fabriqués à l’objet essayé. Pour la déclaration de conformité de l'équipement, il n'est pas tenu compte de l'incertitude de mesure. Cette nouvelle édition de ce rapport annule et remplace l’édition précédente. Les modifications apportées à une nouvelle édition de ce rapport sont signalées par un trait vertical à gauche de la page. L’utilisation de la marque d’accréditation COFRAC est interdite. This document shall not be reproduced, except in full. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested. For the declaration of conformity of the equipment, the measurement uncertainty is not taken into account. This new edition of this report cancels and replaces the previous edition. Changes made to a new edition of this report are indicated by a vertical line to the left of the page. The use of the COFRAC accreditation mark is prohibited. Accréditation N° 1-6356 Portée disponible sur : Scope available on : www.cofrac.fr Page 2 / 25 Rapport d’essai / Test Report N° : 10123-FCC-ISED-2 Page 2 / 25 Contents 1. NORMATIVES REFERENCES ......................................................................................................... 3 2. TEST SYNTHESIS ............................................................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) ................................................................................................... 5 4. TEST CONDITIONS .......................................................................................................................... 5 5. MODIFICATIONS OF THE EUT ........................................................................................................ 5 6. SPECIAL ACCESSORIES ................................................................................................................ 6 7. MEASUREMENT UNCERTAINTY .................................................................................................... 6 8. FIELD STRENGTH CALCULATION .................................................................................................. 6 9. TEST SETUP DIAGRAM ................................................................................................................... 7 10. CONDUCTED EMISSION MEASUREMENT (150 KHZ-30MHZ) ................................................... 9 11. RADIATED EMISSION MEASUREMENT (9KHZ-10GHZ) ........................................................... 13 12. 99% AND -20DB OCCUPIED BANDWIDTH ................................................................................ 21 Page 3 / 25 Rapport d’essai / Test Report N° : 10123-FCC-ISED-2 Page 3 / 25 1. Normatives References FCC qualification according to: Standards Applied Title ANSI C63.10 (2013) X American National Standard for Testing Unlicensed Wireless Devices CFR47, Part 15 X Telecommunication – Federal Communication Commission – Radio frequency devices, Sections 15.207 / 15.209 ISED Canada qualification according to: Standards Applied Title RSS-Gen (Issue 5/2018, amendments 2019 and 2021) X General Requirements and Information for the Certification of Radio Apparatus RSS-210 (Issue10/2019) X Licence-exempt Radio Apparatus: Category I Equipment, Deviation from standards: None. Page 4 / 25 Rapport d’essai / Test Report N° : 10123-FCC-ISED-2 Page 4 / 25 2. Test synthesis TEST Paragraph number FCC Part 15 ISED RSS-210 Spec. FCC Part 15 ISED RSS-210 RESULTS (comments) Conducted emissions test 15.207 (a) RSS-Gen: Issue 5, §8.8 15.207 (a) Table 4, §8.8 PASS Unwanted emissions outside the specified frequency band and harmonics 15.209 RSS-210: Issue 10 RSS-Gen: Issue 5, §8.9 Measure at 300m 9-490kHz: 2400μV/m/F(kHz) 6.370μA/m/F (kHz) Measure at 30m 0.490-1.705: 24000μV/m/F(kHz) 63.70μA/m/F (kHz) 1.705-30MHz: 30μV/m 0.08μA/m Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m PASS Occupied Bandwidwth FCC Part 15.215 c) RSS-Gen: Issue 5, §6.7 -20dB and 99% BW PASS Antenna requirem…

Text truncated - open the document above for the full version.

Page 1/4 TEST SETUP PHOTOS Applicant: IDENTEC SOLUTIONS AG Model: IDS1014 & IDS1015 Product names: iMark EC & iMark IC CONDUCTED EMISSIONS Page 2/4 RADIATED EMISSIONS (FREQ < 30MHz) Page 3/4 RADIATED EMISSIONS (FREQ 30MHz-1GHz) iMARK IC iMARK IC iMARK EC (UHF mode) iMARK EC (LF mode) Page 4/4 RADIATED EMISSIONS (FREQ > 1GHz)
