OO4-ILR-IB2LActive Transponder Tag

Active UHF Beacon Tag i-B2L – Marker Version - Preliminary Beyond RFID. The i-B series is the beacon generation of IDENTEC SOLUTIONS’ Intelligent Long Range  (ILR  ) active RFID tags. Built on IDENTEC SOLUTIONS’ patented high-performance technology, the i-B2L tag provides impressive long-range capabilities for wireless applications that require the benefits provided by beacon tags. Static data is written on an i-BL tag and is continuously sent at a programmable interval (ping rate) without being requested by a reader. The i-B2L series offers an attractive price for continuous tag collection in specific scenarios such as: • Access control • Tracking of Vehicles and Containers • Online inventory • Localization of assets or personnel at specific areas (i.e. gates, dock doors) Using advanced UHF radio frequency technology, i-B2L tags send data at distances of up to 100 meters (300 feet) to either a mobile (handheld) or fixed reader (interrogator). Due to the ultra-low power consumption and configurable ping rate (one second to four minutes), the i-B2L tag can effectively operate maintenance-free for many years. The i-B2L tag is the most economical choice for basic long-range technology and is ideal for tracking mobile assets in more stable, predictable environments. Features Benefits • 100-meter read range Allows the longest read-range for identification and tracking using beacon technology. • Long battery lifetime Delivers long time maintenance-free operation, without battery replacement. The battery lifetime depends on the ping rate, which is configurable. • UHF operating frequencies Tags are available for both standard North American and European ISM band frequencies. • Non-line-of-sight data transmission Allows tags to be identified without the need of visual contact. • Automatic transmission Tags do not have to be “woken” — they transmit automatically. • Industrial housing Durable in demanding environments. • Customizable ping rate Ensures that the frequency band is not busy. • Low cost Economical choice for tracking assets with active RFID technology. • Marker Technology Precise position location of the Tag via its 125KHz inductive loop coils in 3 axis. Ping-Rate Durability (Years) 1s 2 2s 4 i-B2L – Preliminary www.identecsolutions.com Europe: Austria: IDENTEC SOLUTIONS AG, Millennium Park 2, 6890 Lustenau / AUSTRIA Tel: +43 (0)5577 87387-0 Fax: +43 (0)5577 87387-15 Germany: IDENTEC SOLUTIONS Deutschland GmbH, Hertzstr. 10, 69469 Weinheim / GERMANY Tel.: +49 (0)6201 9957-0 Fax: +49 (0)6201 9957-99 North America: USA: IDENTEC SOLUTIONS INC., Liberty Plaza II, 5057 Keller Springs Rd. Suite 375, Addison, Texas 75001 Tel: +1(972) 535 4144 Fax: +1(469) 424 0404 Caution: Any changes or modifications not express ly app roved by the party responsible for compliance could void the user’s authority to operate the equipment. IDENTEC SOLUTIONS IDENTEC SOLUTIONS is a leading global supplier of innovative RFID systems (Radio Frequency Identification) with communi- cation ranges of up to 100 metres. With its unique Intelligent Long Range  (ILR  ) technology, IDENTEC SOLUTIONS offers innovative and economical solutions for automated data gathering, identification, tracking, and localization of objects. ILR technology makes it possible to ensure that • the right goods, • in the right amounts, • in the right condition, • with the right information • are located at the right place • at the right time, leading to increased efficiency and quality improvements in Production, Logistics and Supply Chain Management. To learn more about how ILR technology can increase the efficiency of your business, contact IDENTEC SOLUTIONS or visit our website at www.identecsolutions.com. In Europe: +43 5577 87387-0, or [email protected] In North America: 1-866-402-4211 (toll free), or [email protected] Information in this document is subject to change without notice and becomes contractual only after written confirmation by IDENTEC SOLUTIONS. “IDENTEC SOLUTIONS”, “Intelligent Long Range”, “ILR”, “i-LINKS”, “i-B”, “i-D”, “i-Q”, “i-CARD”, “i-PORT”, “Solutions. It’s in our name.”, “Smarten up your assets.“ and the stylized “i” are trademarks or registered trademarks of IDENTEC SOLUTIONS, Inc. and/or IDENTEC SOLUTIONS AG. Copyright © 2004 by IDENTEC SOLUTIONS. All rights reserved. Version 1.21 05/07 Technical Specifications Performance Read range to i-PORT R2 Up to 100 m (300 ft) (free air) Read range to i-CARD R2 Up to 100 m (300 ft) (free air) Operating frequency 868 MHz (EC) or 915 MHz (NA) ISM band Triggering frequency band 125 kHz Operation Transmits in regular intervals a pre-programmed data string Repetition rate (ping rate) 0.5 – 60 seconds in 0.5 second steps Antennas: 1 Omnidirectional PCB Antenna, 3 inductive coil antenna for 3 dimensions x,y,z Transmit power <1 mW Certification CE (EN 300 220-1, -3; ETSI EN 301 489-1, -3), FCC Part 15 Electrical Power source Lithium battery (not replaceable) Expected battery life 2 Years @ 4 second intervals Data Programmability One time Programming and activation Wireless by proximity device over a distance of maximum 5 cm Reprogrammable No Deactivation No Memory capacity 13 characters or 17 bytes Environmental Operating temperature –40°C to +85°C (–40ºF to +158ºF) Shock 50 G, 3 times DIN IEC 68-2-27 Multiple drops to concrete from 1 m (3 ft) Vibration 3 G, 20 sine wave cycles, 5 Hz to 150 Hz, DIN IEC 68-2-6 5 G, noise 5 Hz to 1000 Hz, 30 minutes DIN IEC 68-2-64 Physical Type i-B2L potted version Dimensions 131 mm x 28 mm x 21 mm (5.2 in. x 1.1 in. x 0.85 in.) Case Material Plastic (Luran ® S) Mass 100 grams Enclosure rating IP 65 — Protected against dust and low-pressure jets of water Colour dark blue or grey

Ersteller: U. Rodemeier Revision: 03 Erstelldatum: 03.08.01 Datum: 4.10.2006 Seite 1 von 1 Request for Confidentiality PHOENIX TESTLAB GmbH Date: June 15, 2007 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: OO4-ILR-IB2L Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Technical Description • Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure od this application and all accompanying documentation will not be made before the date of the GRANT for this application ́. Thank you for your attention in this matter. Applicant’s Company : Senton GmbH address : Auessere Fruehlingstrasse 45, D-94315 Straubing Signature : Johann Roidt Job Title and Dept. : Technical Director

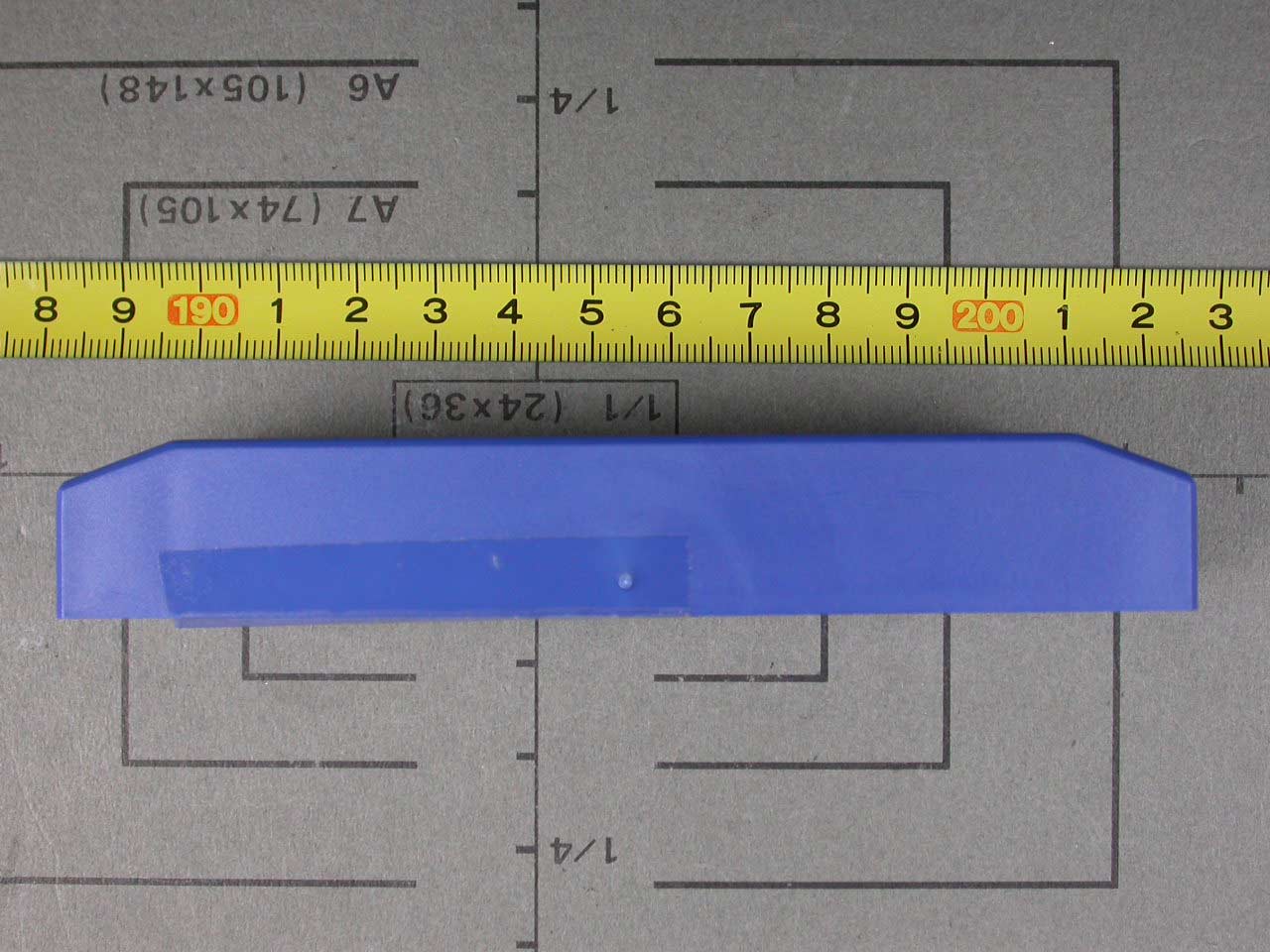

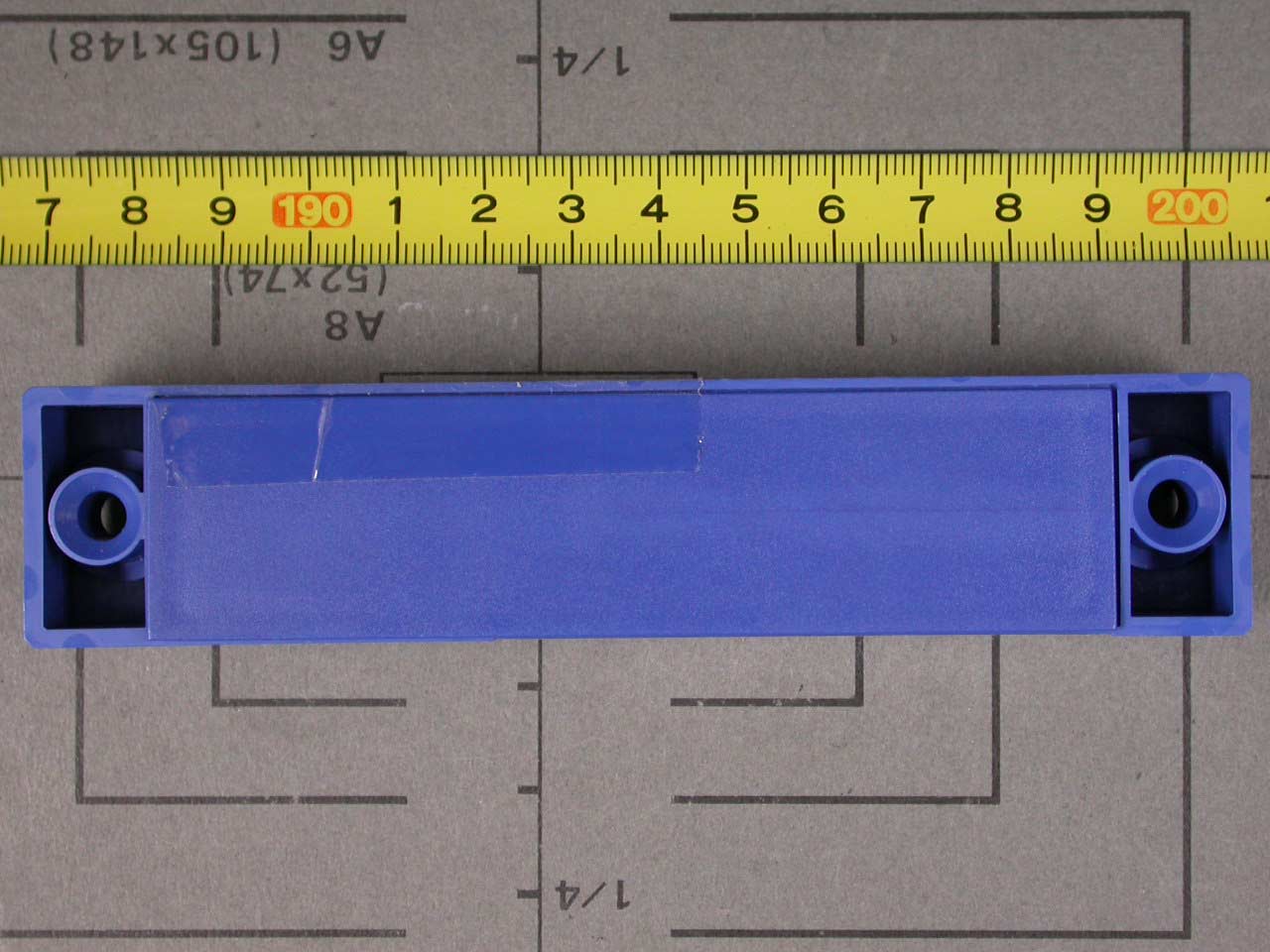

FCC ID: OO4-ILR-IB2L FCC ID: OO4-ILR-IB2L FCC ID: OO4-ILR-IB2L FCC ID: OO4-ILR-IB2L FCC ID: OO4-ILR-IB2L FCC ID: OO4-ILR-IB2L

FCC ID: OO4-ILR-IB2L

FCC ID: OO4-ILR-IB2L FCC ID: OO4-ILR-IB2L FCC ID: OO4-ILR-IB2L

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Test Report No. 55456-070375-2 (Edition 2) Page 1 of 36 Pages Straubing, July 3, 2007 T E S T - R E P O R T No. 55456-070375-2 (Edition 2) for i-B2L Type S/NA Active Transponder Tag Applicant: IDENTEC SOLUTIONS AG Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.215 and 15.249 Industry Canada Radio Standards Specifications RSS-Gen Issue 1, Section 7.2.2 and RSS-210 Issue 6, Sections 2.2, A2.9 (Category I Equipment) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070375-2 (Edition 2) Page 2 of 36 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ........................................................ 3 2 Administrative Data..................................................................................................... 4 3 Identification of the Test Laboratory ........................................................................... 5 4 Summary .................................................................................................................... 6 5 Operation Mode and Configuration of EUT................................................................. 7 6 Measurement Procedures........................................................................................... 8 6.1 Bandwidth Measurements .................................................................................... 8 6.2 Pulse Train Measurement .................................................................................... 9 6.3 Radiated Emission in Fully or Semi Anechoic Room.......................................... 10 6.4 Radiated Emission at Open Field Test Site........................................................ 12 7 Photographs Taken During Testing .......................................................................... 13 8 Test Results .............................................................................................................. 17 8.1 Occupied Bandwidth........................................................................................... 19 8.2 Bandwidth of the Emission ................................................................................. 23 8.3 Designation of Emissions ................................................................................... 25 8.4 Pulse Train Measurement .................................................................................. 26 8.5 Restricted Bands of Operation ........................................................................... 29 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .......................................... 30 8.7 Radiated Emission Measurement 30 MHz to 10 GHz ....................................... 31 8.8 Exposure of Humans to RF Fields...................................................................... 32 9 Referenced Regulations ........................................................................................... 34 10 Revision History ........................................................................................................ 35 11 Charts taken during testing ....................................................................................... 36 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070375-2 (Edition 2) Page 3 of 36 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : i-B2L Type S/NA Parts 2 : Serial number(s): 0.390.000.001 Manufacturer: IDENTEC SOLUTIONS AG Type of equipment: Active Transponder Tag Version: As delivered FCC ID: OO4-ILR-IB2L Additional parts/accessories: Technical data of EUT Application frequency range: 902 - 928 MHz Frequency range: 916 MHz Operating frequency: 916 MHz Type of modulation: ASK Pulse train: 8.76 ms Pulse width: 100 ms Number of RF-channels: 1 Channel spacing: Not Applicable (Wideband) Designation of emissions 3 : 200kA1D Type of antenna: Integrated on printed board Size/length of antenna: 60 mm Connection of antenna: detachable not detachable Type of power supply: Battery supply Specifications for power supply: nominal voltage: 3.6 V 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. 3 Also known as "Class of Emission". Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070375-2 (Edition 2) Page 4 of 36 Pages 2 Administrative Data Application details Applicant (full address): IDENTEC SOLUTIONS AG Millenniumspark 2 A-6890 Lustenau Contact person: Mr. Reinhold Gantner Contract identification: Receipt of EUT: May 3, 2007 Date(s) of test: May 2007 Note(s): Report details Report number: 55456-070375-2 Edition: 2 Issue date: July 3, 2007 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070375-2 (Edition 2) Page 5 of 36 Pages 3 Identification of the Test Laboratory Details of the Test Laboratory Company name: Senton GmbH EMI/EMC Test Center Address: Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Laboratory accreditation: DAR-Registration No. DAT-P-171/94-02 FCC test site registration number 90926 Industry Canada test site registration: IC 3050 Contact person: Mr. Johann Roidt Phone: (+49) (0)9421 5522-0 Fax: (+49) (0)9421 5522-99 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070375-2 (Edition 2) Page 6 of 36 Pages 4 Summary Summary of test results The tested sample complies with the requirements set forth in the Code of Federal Regulations CFR 47, Part 15, Sections 15.205, 15.215 and 15.249 of the Federal Communication Commission (FCC) and the Radio Standards Specifications RSS-210 Issue 6, Sections…

Text truncated - open the document above for the full version.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070375-2 (Edition 1) Page 14 of 35 Pages Test setup for radiated emission measurement (fully anechoic room) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070375-2 (Edition 1) Page 15 of 35 Pages Test setup for radiated emission measurement (open field test site) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070375-2 (Edition 1) Page 16 of 35 Pages Test setup for radiated emission measurement (open field test site) - continued -
